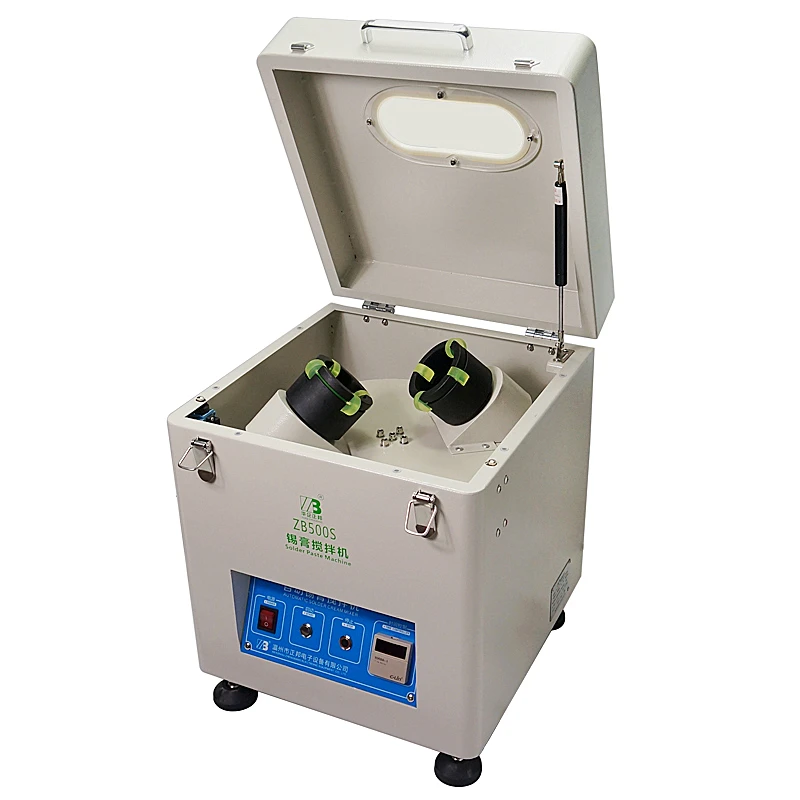

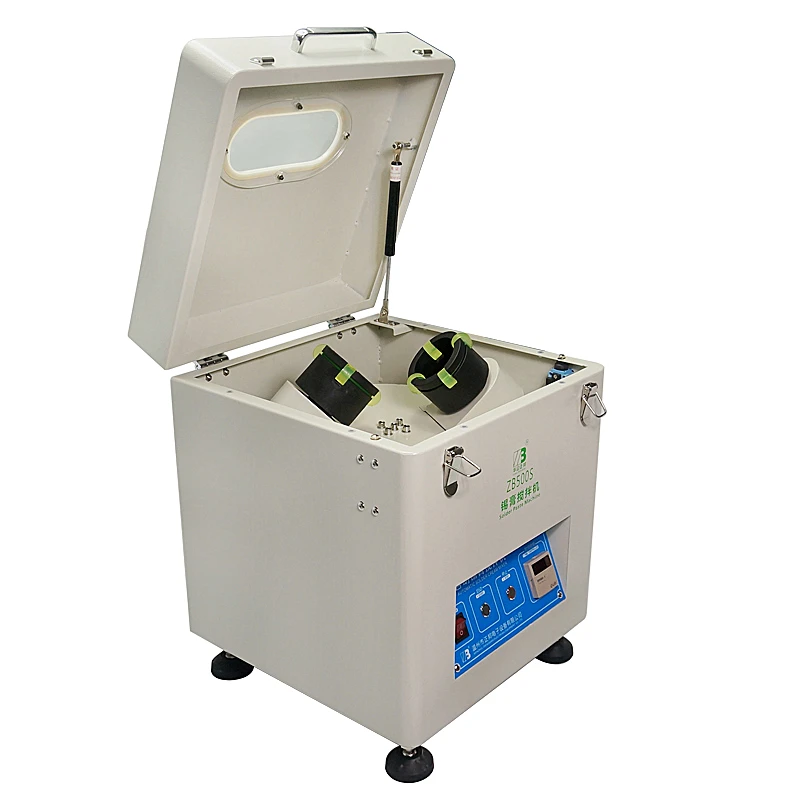

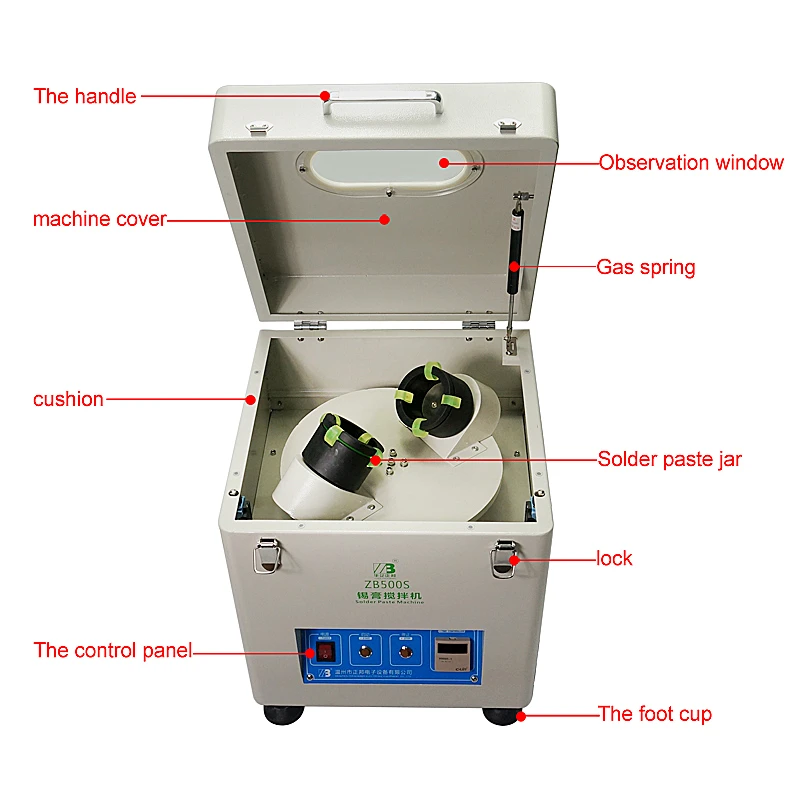

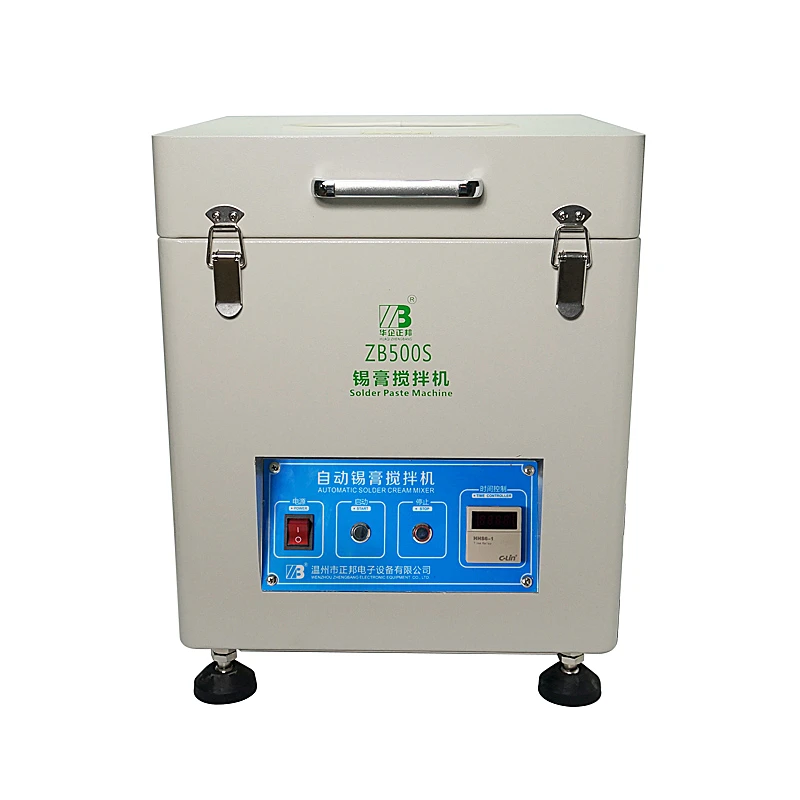

LY Warmly Recommend High Quality SMT Automatic Solder Paste Mixer 500g-1000g ZB500S For Repair PCB 220V 50Hz 60W

Overview

  ZB500S Automatic Solder Cream Mixer makes solder cream move downward constantly through centrifugal force generated by revolution and cooperation with energy from rotation at 45 degree angle of axis of revolution. Solder cream located in the tank bottom makes upward movement from the surrounding, which forms a tornado-funnel shaped stirring action, and it can stir, soften and defoam the solder cream with appropriate viscosity. Solder cream has good wettability, even diffusivity, excellent printing effect after mixing, which achieves the best welding performance when reflowing soldering. Its characteristics are as follows:

·There is special control circuit, adjustable mixing time and easy operation.

·Solder cream is placed by 45 degrees and rotates along axis direction and solder cream won't stick to the pot cover.

·Smooth operation, low noise, temperature return naturally and bubble remove in the process of mixing.

·There is no need to open cover for solder cream pot and it is convenient and safe for pick-and-place.

·There is safety device to ensure the personal safety.

Technical parameters

Type	ZB500S
Operating speed	Motor speed: 1350RPM
	One revolution: 400RPM; Two rotations: 300RPM
Operational capability	0-1000 g * 2 tanks
Acceptance of solder cream pot	Tank diameter Φ60-Φ67 standard configuration (suitable for general 500 g solder cream bottle) Other specifications, please contact us for customization.
Time setting	0.01s~99H99s, minute and second set
Display mode	LED digital display
Rated power	Constant speed   60W
Working power supply	AC   220V±10%  50Hz

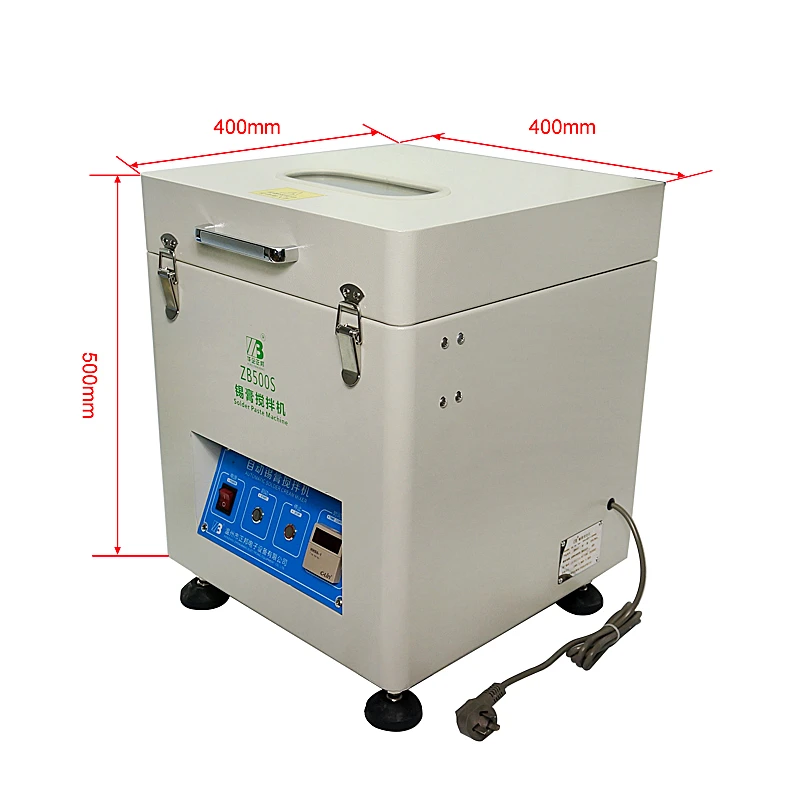

Boundary dimension	400×400×500mm
Machine weight	50kg



Attachment list



1. Adjustment belt                        2 PCS

2. Rotation belt                             2PCS

3. Balance weights 500g              1PCS

4. Instruction book                       1PCS

5. Certificate of quality                 1PCS

6. Lining                                       2PCS



Package & Shipping

Packaging:

Packaging material: Carton/Wooden case with foam inside.

Shipping:

A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)

C. 25-30 workdays shipping from China to Russian customers.

D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM



Our Services

1.We provide you the friendly English User manual or operating videos for free.

2.24 hours technical support by email or calling.

3.Warranty: 1 year free, 2-3 years cost price and free technical support always.

4.Free training to make sure you master the operating of our products.

5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.



Company Information

USBearth business group is located in Shenzhen, China.

Our factory owns 2 brands , Ly and Bauer , and Shuttle,ZM,KIDI,HonTon … Factory agent .

We has 10 years experiences in manufacturing and foreigh trade

Our BGA rework stations , such Ly IR6000, Ly IR6500, Ly IR9000,Ly IR-PRO-SC, Ly IR8000, Ly HR560, Ly HR560C, Ly HR500, Ly SV550C, Bauer IR-PRO-SCC ,Bauer OMEGA XD …

CNC machines like cnc 3020/4030/6040/9060 …series products ,Mobile LCD separating stationslike 946D /947B /950V/948V/948B…are hot sale in the world, especially in these countries from North and South American,European and Asian.

FAQ

1) This is the first time I use this kind of machine, is it easy to operate?

There is english manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ?

1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.Send your order by air or by sea.
