2023 Новый Умный дом tuya переключатель и панель сцены zigbee умное
- Категория: Electrical Supplies >>>
- Поставщик: Shenzhen,Topmax,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 47.36 $* | 48.36 $* |
| Jul-18-2025 | 38.70 $* | 39.84 $* |
| Jun-18-2025 | 46.80 $* | 47.82 $* |
| May-18-2025 | 46.3 $* | 47.66 $* |
| Apr-18-2025 | 37.56 $* | 38.76 $* |
| Mar-18-2025 | 45.62 $* | 46.5 $* |
| Feb-18-2025 | 45.88 $* | 46.13 $* |
| Jan-18-2025 | 44.62 $* | 45.24 $* |
Характеристики
Product Description
item | 4 inch scene penl & 3 Gang relay switch 2 in one |
Network | Zigbee |
Customized support | Software reengineering |
Place of Origin | China |
Guangdong | |
Brand Name | Golden Security |
Model Number | GS-T3E |
Max. Current | 16A |
Max. Voltage | 110V~250V |
Mechanical Life | 100000 Times |
Product name | Zigbee smart home system |
Size | 86*86mm |
Application | smart life APP |
Voice Control | Alexa google home |
Panel Material | 4 inch display |
Gang | 3 Gang |
Wireless Type | zigbee |
Control | App remote control |
Application scenarios | Control the lights, curtains, air conditioners,othersmart home devices |
4 inch scene panel & 3 Gang relay switch 2 in one ①It is a ZigBee smart switch, and also is a multi-functional scene panel when connected with Tuya smart gateway. ②Intelligent devices control, such as lights, curtains, air conditioners, and other smart home devices through panel. Smart scene linkage, customize application scenarios and bind smart devices according to your needs. Only one touch to quickly start the smart devices with preset scenarios, such as one-click to start the air conditioner, open the curtains and turn off the lights (home mode). |

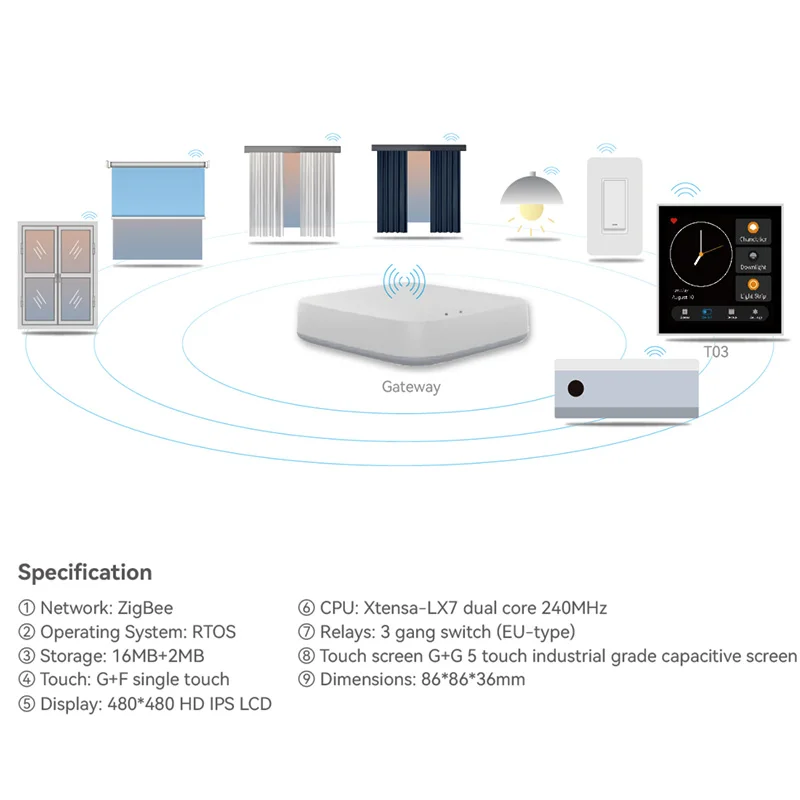

It's a Zigbee smart switch with 3 gang relays. 1)T3E a zigbee smart switch with build-in 3 relay outputs to control lights. 2)Compatible with European standard wall boxes, simple in-wall installation. Specification ① Network: ZigBee ② Operating System: RTOS ③ Storage: 16MB+2MB ④ Touch: G+F single touch ⑤ Display: 480*480 HD IPS LCD ⑥ CPU: Xtensa-LX7 dual core 240MHz ⑦ Relays: 3 gang switch (EU-type) ⑧ Touch screen G+G 5 touch industrial grade capacitive screen ⑨ Dimensions: 86*86*36mm |

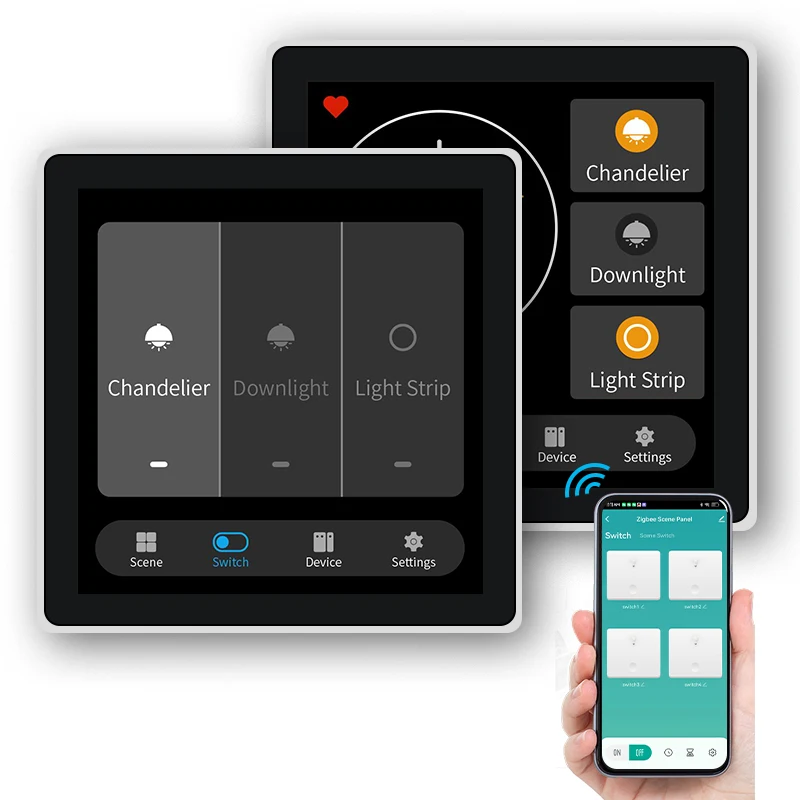

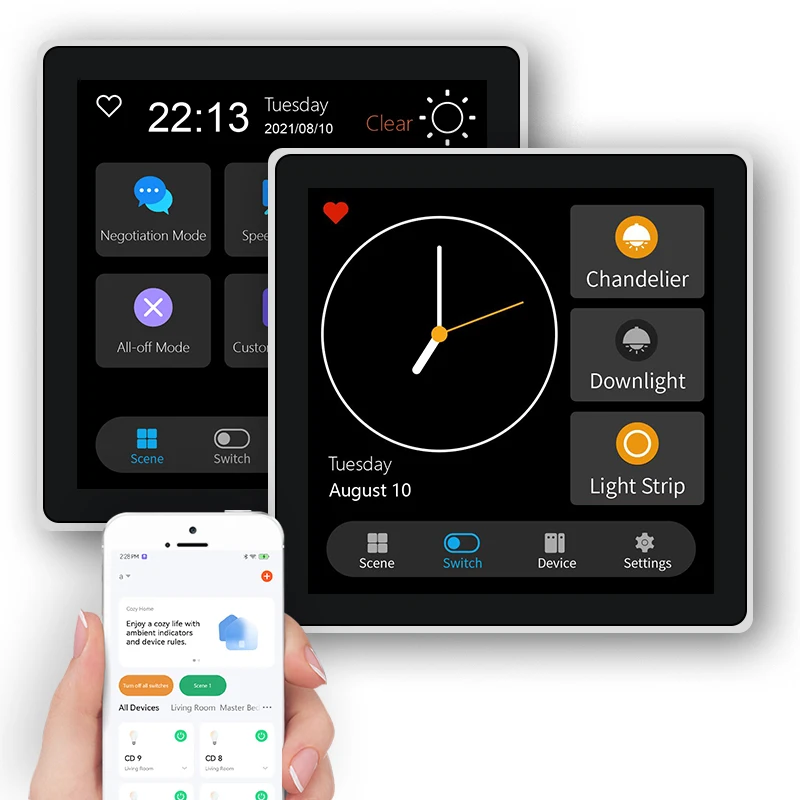

Smart switch with build-in 3 realys T3E is 3 Gang Smart switch,it can connect with maximum 200W Lamp dierctly. | Smart curtain control You can wireless control the smart curton on/off directly from T3E touch screen smart panel,just link the on or off button of curtain motor with smart panel scene button via smart life APP. | Exquisite clock design Exquisite clock with 3 lamps control can be designed as the home page, it's much easily to turn on or turn off the lamps fastly. |
One-click start scenario mode control one touch to quickly start the smart devices with preset scenarios, such as one-click to start the air conditioner, open the curtains and turn off the lights (home mode). | Quick control the device on LCD display You can quick control all the wireless zigbee smart device via LCD display quickly,such as lights/curtain/Roller shutter/air condioner | Air conditioner control After link the universal remote infrared transcoder with the related keys of T3E ,then you can control the air conditioner directly from LCD display. |
T3E is not the Smart gateway,but the scene panel and 3 Gang Switch two in one T3E is a touch screen smart switch with 3 Gang,it's not the smart gateway,it control the other smart device,like smart curtain,smart universal remote infrared transcoder,other smart switch,smart roller shutter via wireless scene setting finished by tuya APP or smart life APP |
FAQ
1. Are you the source manufacturer or trading company? We are the source manufacture with our own R&D department over than 10 Full-time engineers,at the meantime we are the national high-tech enterprise in China. 2. how can we guarantee quality? We can provide 2 years free warranties for all of our distributors,we can also provide the replaced components and parts to our distributors for free when there is falites and delivery together with new order. 3.what can you buy from us? * Smart Home Systems:4 inch smart gateways, 4 inch touch screen 3 Gang relay switch & scene panel 2 in 1 ,smart dimming controller, Zigbee & BLE gateway hub, PIR and microwave sensor WIFI/ZigBee, Smart Video door phone, Knob Dimmer Switch,Temperature and humidity + light sensor, Smart ZigBee Switch and related series of accessories. 4.Which network does T3E touch panel work?and should it work with gateway? T3E is working with wireless Zigbee network,and It need work with smart home automation gateway together, then it can be controlled by mobile APP or google home alexa voice control. 5.Is T3E LCD panel with built-in relay to control lights? Yes,T3E is with builit-in relay to control lights,and the maximum related power is 300W/Gang. 6.Does T3E support Alexa , Google Assistant voice control & Homekit ? T3E can support Alexa and google home voice control,but right not it can't support home kit. |
