Products Description

I. Product Overview

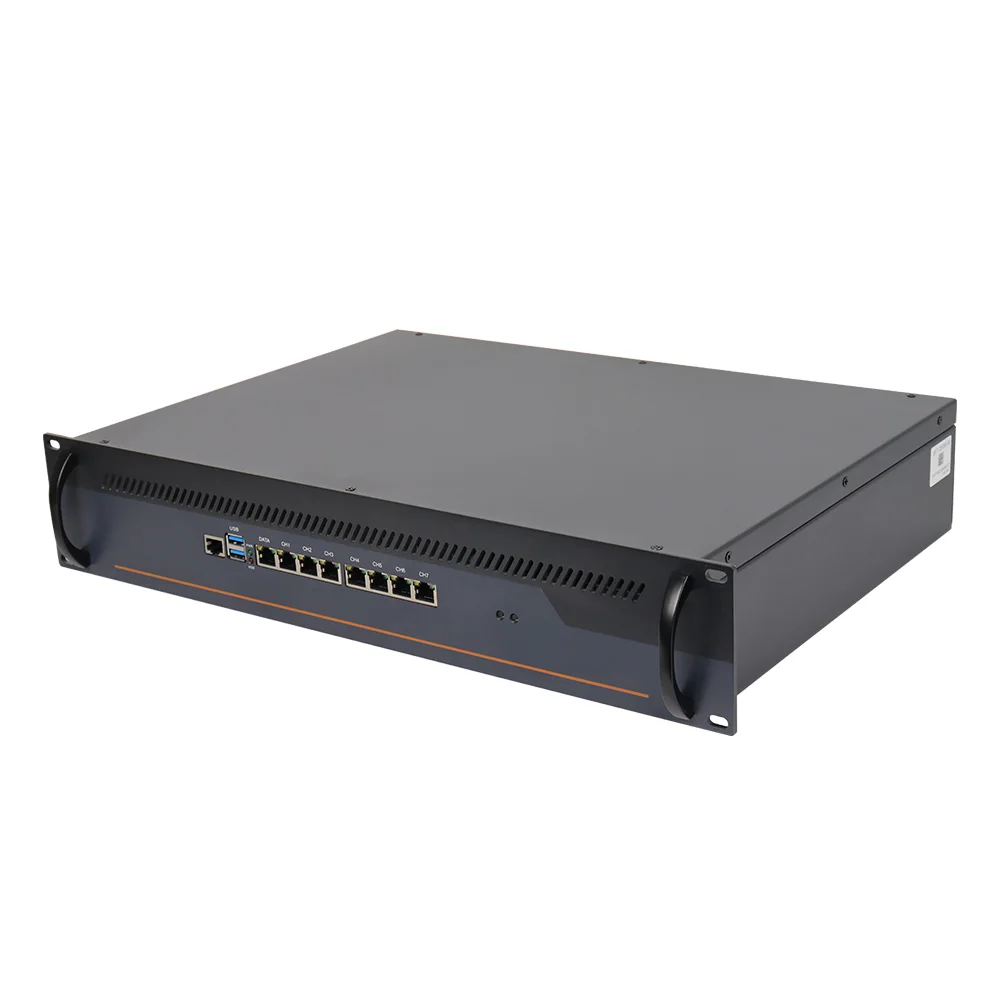

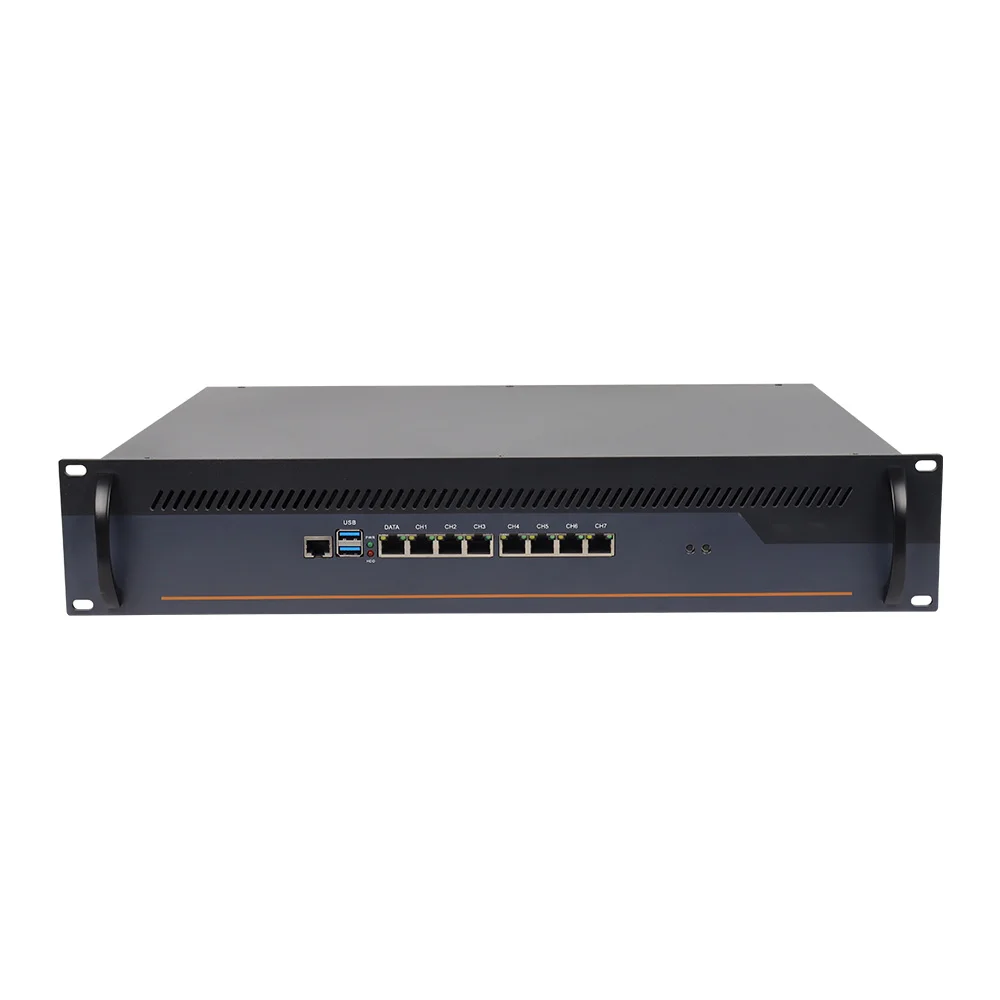

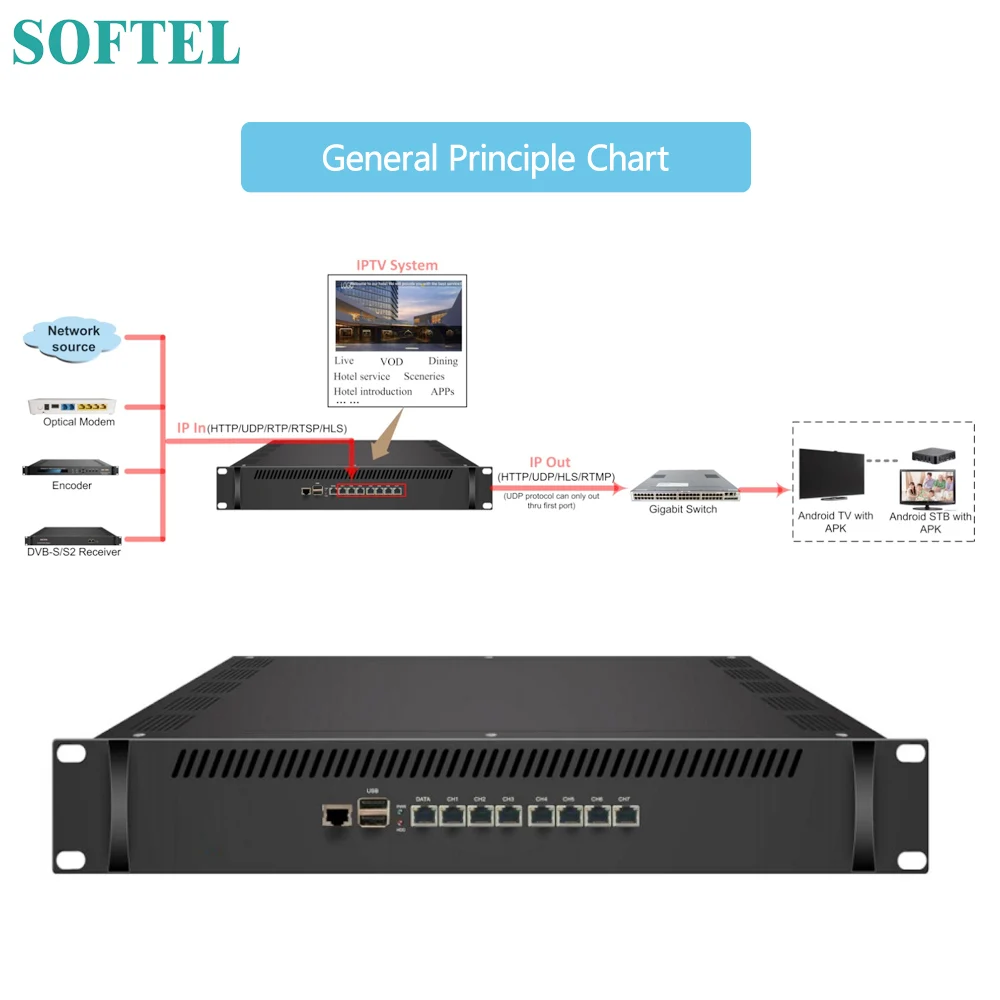

SOFTEL SFT3508S IPTV Gateway Server is the newest device that combined IP Gateway and IPTV server in one unit. It is used for protocol conversion scenarios and streaming media distribution scenarios. It can convert the broadcast network IP stream over HTTP, UDP, RTP, RTSP, HLS, and TS files into HTTP, UDP, HLS, and RTMP protocols. In addition, it integrates an IPTV system and users can upload VOD sources on it with huge memory. In conclusion, this full-function device makes it ideal for small CATV head end systems, especial in hotel TV system

II. Key Features

-IP Gateway + IPTV server in one device

-Manage gateway and IPTV server separately

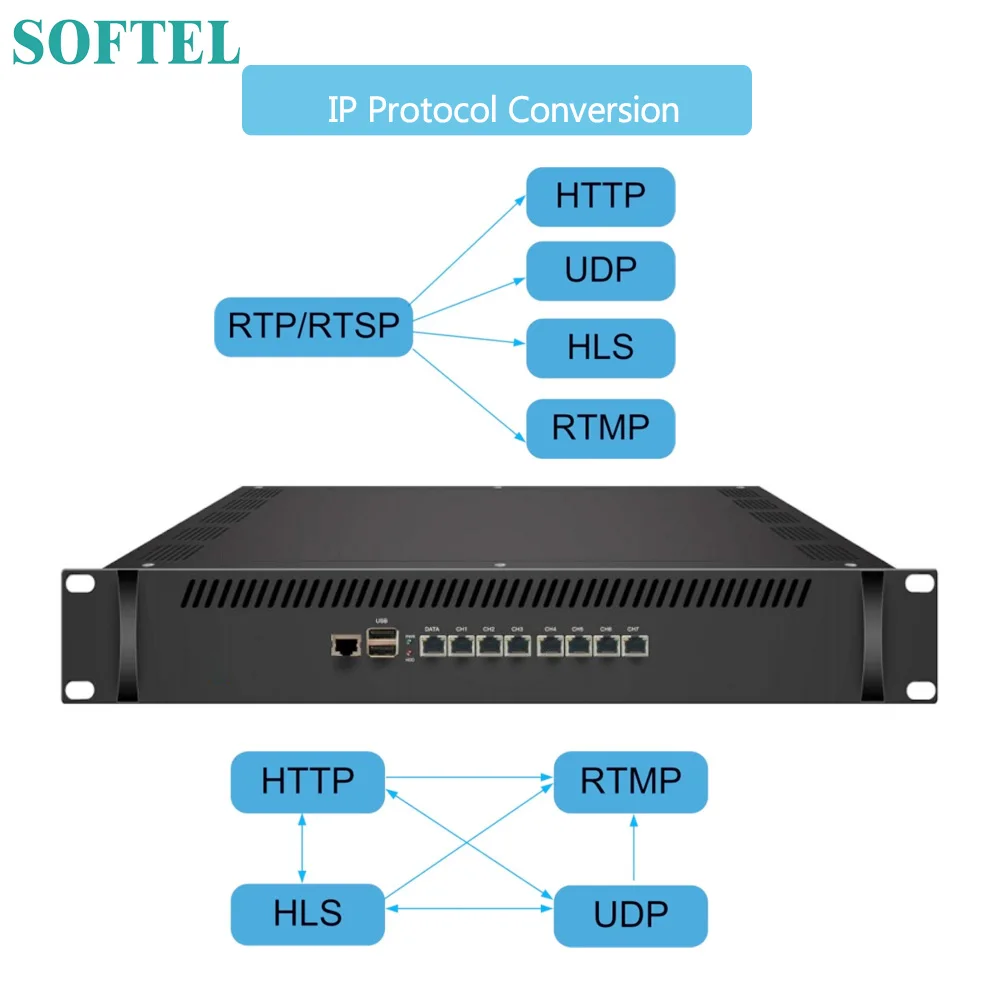

-HTTP, UDP, RTP, RTSP, and HLS in→HTTP, UDP, HLS, and RTMP out

-IPTV Functions: Live channel, VOD, Hotel intro, Dining, Hotel service, Scenery intro, APPS, and so on

-Adding scrolling caption, welcome words, pictures, advertisements, videos, and music in the main interface

-TS files uploaded through Web management

-IP anti- jitter function

-Downloading SOFTEL IPTV APK directly from this device -Support program playing with APK
downloaded android STB and TV, maximum 150 terminals

-Control via web-based NMS management through DATA port

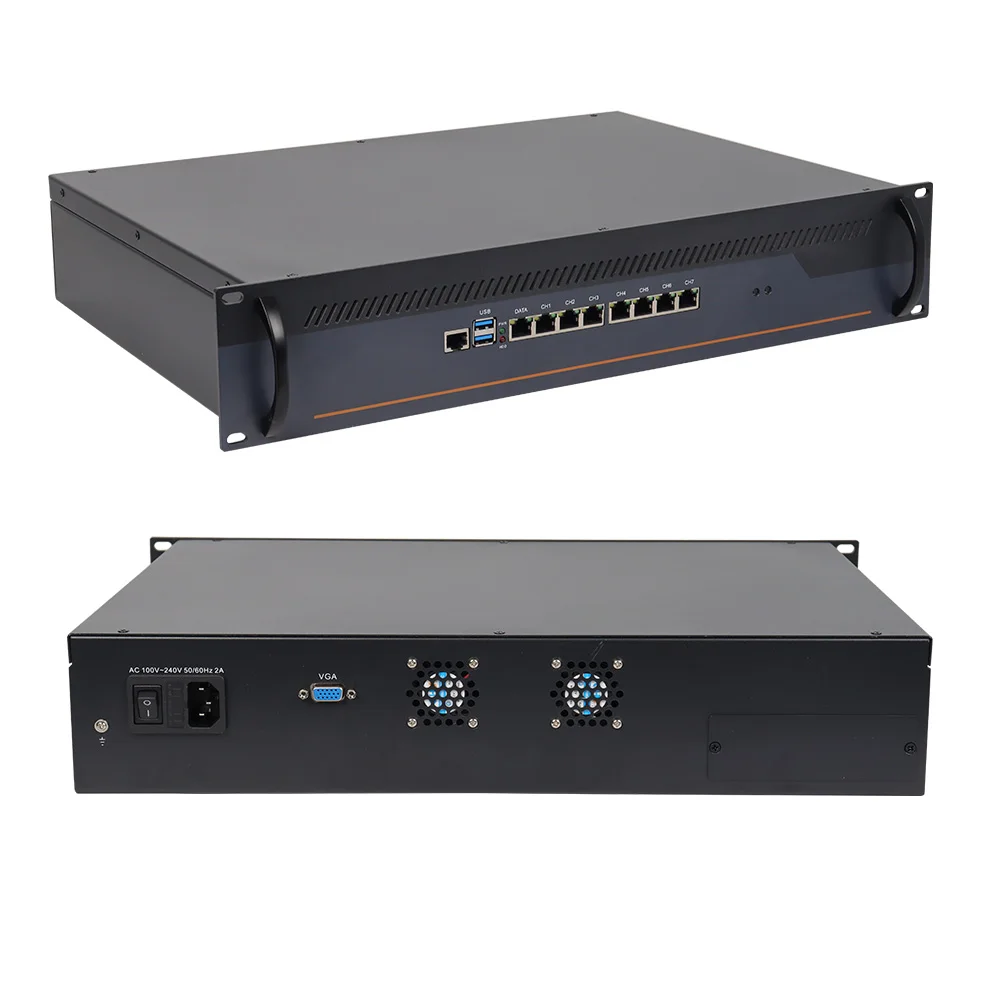

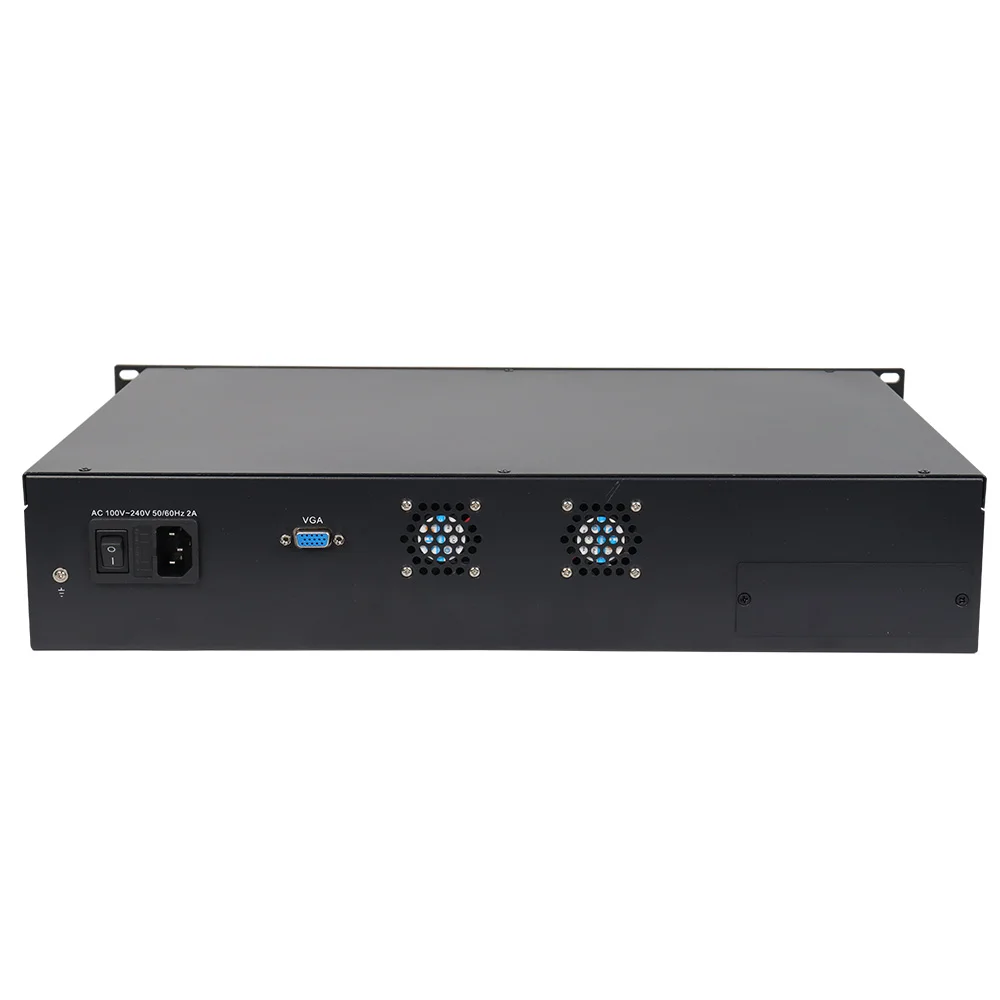

Details Images

Product Paramenters

IP Input	DATA CH 1-7(1000M) ports: IP input over HTTP, UDP(SPTS),RTP(SPTS), RTSP (over UDP, payload: mpeg TS) and HLS
		TS files uploading through Web management
IP output	First Data port (1000M): IP out over HTTP (Unicast), UDP(SPTS, Multicast) HLS and RTMP (Program source should be H.264 and AAC encoding)
		DATA CH 1-7(1000M) ports: IP out over HTTP/HLS/RTMP (Unicast)
System	Memory			4G
		CPU			1037
		Solid-State Disk(SSD)			120G
		Mechanical Hard Disk			4T
		Channel switching time with SOFTEL’ STB: HTTP (1-3s), HLS (0.4-0.7s)
		Play programs with APK downloaded android STB and TV, maximum 150 terminals
		About 80 HD/SD programs (Bitrate:2Mbps) When HTTP/RTP/RTSP/HLS is converted into UDP (Multicast),the actual application shall prevail, and suggest maximum 80% CPU utilization
		IPTV system function	support Live channel, VOD, Hotel introduction, Dining, Hotel service, APPS, scenery introduction and so on (Please install SOFTEL IPTV APK)
		IPTV system main interface	support adding scrolling caption, welcome words, pictures, advertisement, video, music (Please install SOFTEL IPTV APK)
		web-based NMS management thru DATA port
General	Demission	482.6mm×328mm×88mm (WxLxH)
		Temperature	0~45℃(operation), -20~80℃(storage)
		Power Supply	AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz
