CS120X тяжелые сверлильные станки для бурения мрамора глубиной
- Категория: Stone Machinery >>>
- Поставщик: Changsha,Dth,Drill,Construction,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.17 $* | 0.65 $* |
| Aug-16-2025 | 0.93 $* | 0.80 $* |
| Jul-16-2025 | 0.95 $* | 0.66 $* |
| Jun-16-2025 | 0.82 $* | 0.53 $* |
| May-16-2025 | 0.87 $* | 0.82 $* |
| Apr-16-2025 | 0.40 $* | 0.51 $* |
| Mar-16-2025 | 0.99 $* | 0.31 $* |
| Feb-16-2025 | 0.5 $* | 0.87 $* |
| Jan-16-2025 | 0.49 $* | 0.77 $* |
Характеристики
Product Overview

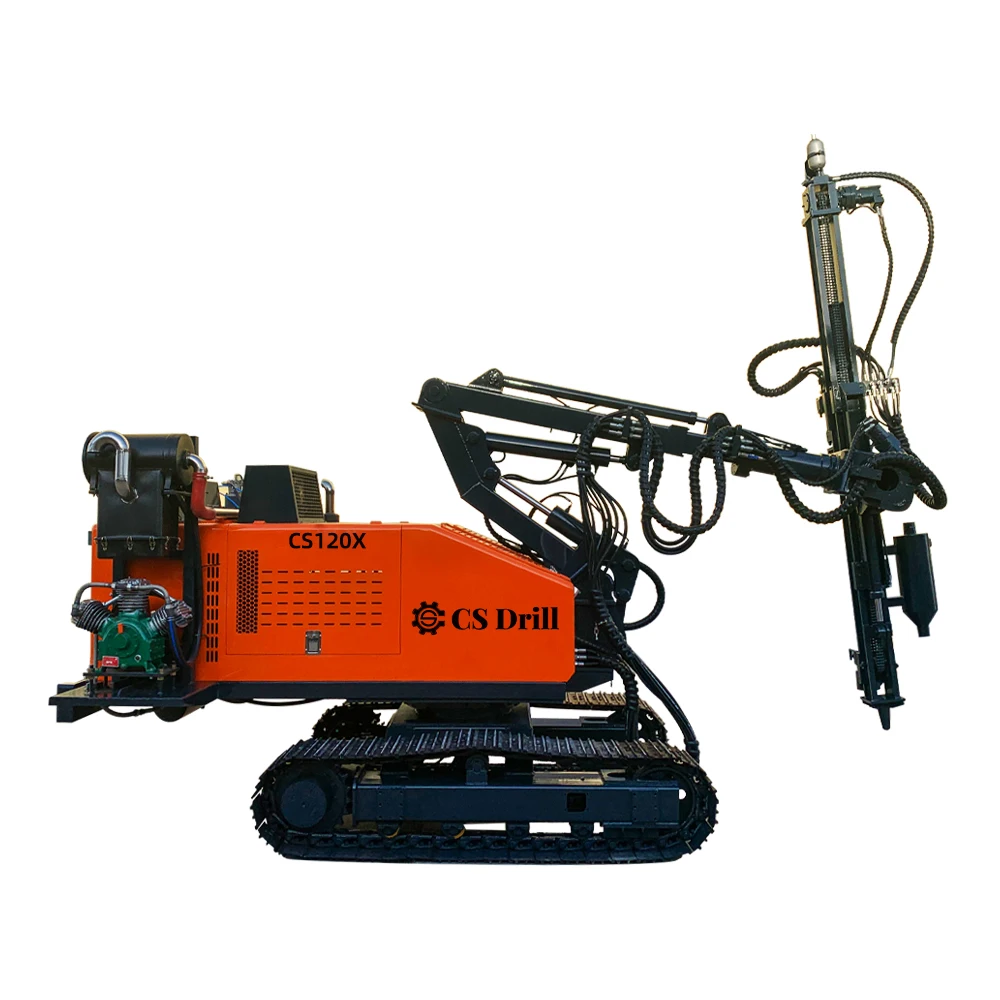

Heavy Marble Drilling 30m Depth Rock Granite Quary Drill Machines
The fuel-driven hydraulic drilling rig is mainly used for rock blasting and drilling, and facing stone mine rock mass or block decomposition drilling. It is suitable for urban construction project, surface mining, quarries ,construction work sites,foundation pit construction, road slope protection project etc.
Product Feature：
1. The overall design is scientific and reasonable, which can meet the needs of multi-dimensional operations without dead ends. The whole can rotate 360 degrees, the working arm can rotate 360 degrees, and the slide frame of the drilling rig can rotate 360 degrees.
2. Equipped with a self-developed hydraulic rock drill, the rock drilling efficiency is high, the service life is long, and maintenance is easy.
3. It adopts remote control operation, which is convenient and applicable.
4. Equipped with an air compressor air supply system, which can effectively meet the needs of drilling and blowing stone powder.
5. Bring your own vacuum cleaner to reduce dust hazards and effectively reduce the occurrence of occupational diseases.
6. The engine and the air compressor share a large dry and wet two-stage air filter to ensure that the equipment operates well under high dust conditions.
7. It is designed with folding boom structure, which is convenient for motorized walking and transportation.
8. Equipped with a super-large radiator to ensure long-term stable operation in an environment of 40 degrees Celsius.
9. It adopts crawler walking, has strong climbing ability, and is suitable for various harsh working conditions.
1. The overall design is scientific and reasonable, which can meet the needs of multi-dimensional operations without dead ends. The whole can rotate 360 degrees, the working arm can rotate 360 degrees, and the slide frame of the drilling rig can rotate 360 degrees.
2. Equipped with a self-developed hydraulic rock drill, the rock drilling efficiency is high, the service life is long, and maintenance is easy.
3. It adopts remote control operation, which is convenient and applicable.
4. Equipped with an air compressor air supply system, which can effectively meet the needs of drilling and blowing stone powder.
5. Bring your own vacuum cleaner to reduce dust hazards and effectively reduce the occurrence of occupational diseases.
6. The engine and the air compressor share a large dry and wet two-stage air filter to ensure that the equipment operates well under high dust conditions.
7. It is designed with folding boom structure, which is convenient for motorized walking and transportation.
8. Equipped with a super-large radiator to ensure long-term stable operation in an environment of 40 degrees Celsius.
9. It adopts crawler walking, has strong climbing ability, and is suitable for various harsh working conditions.
Product Specification (CS120 Heavy Marble Drilling 30m Depth Rock Granite Quary Drill Machines) | ||||||||
Model No. | CS120 | |||||||
Overall Weight | 5600kg | |||||||

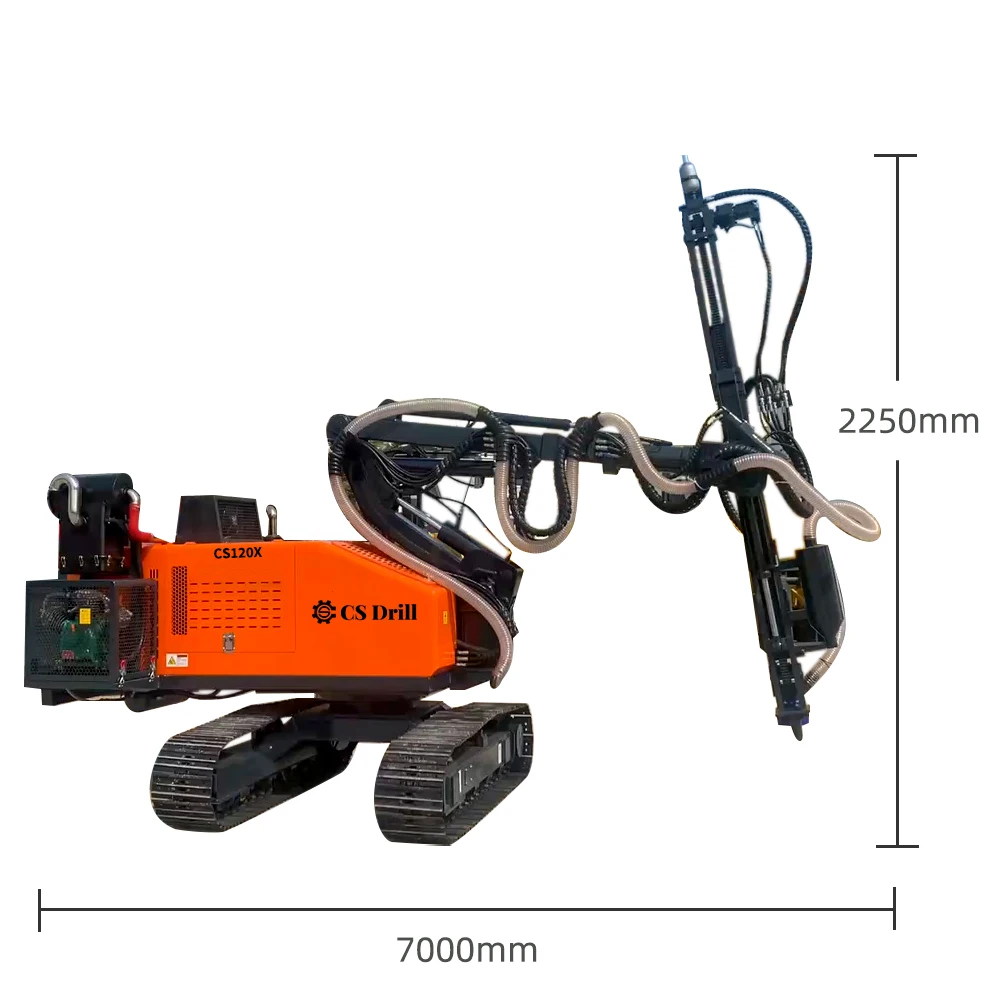

Dimensions | 7000mm*2200mm*2250mm | |||||||
Economic drilling depth | 12m | |||||||
Hole Diameter | 32-50mm | |||||||
Drilling Speed | 400-1400mm/min | |||||||
Impact Pressure | ≤15Mpa | |||||||
Slag blowing air pressure | ≥4kg/cm2 | |||||||
Propulsion stroke | 2500mm | |||||||
Engine power | 74kw | |||||||
Walking Speed | ≤3km/h | |||||||

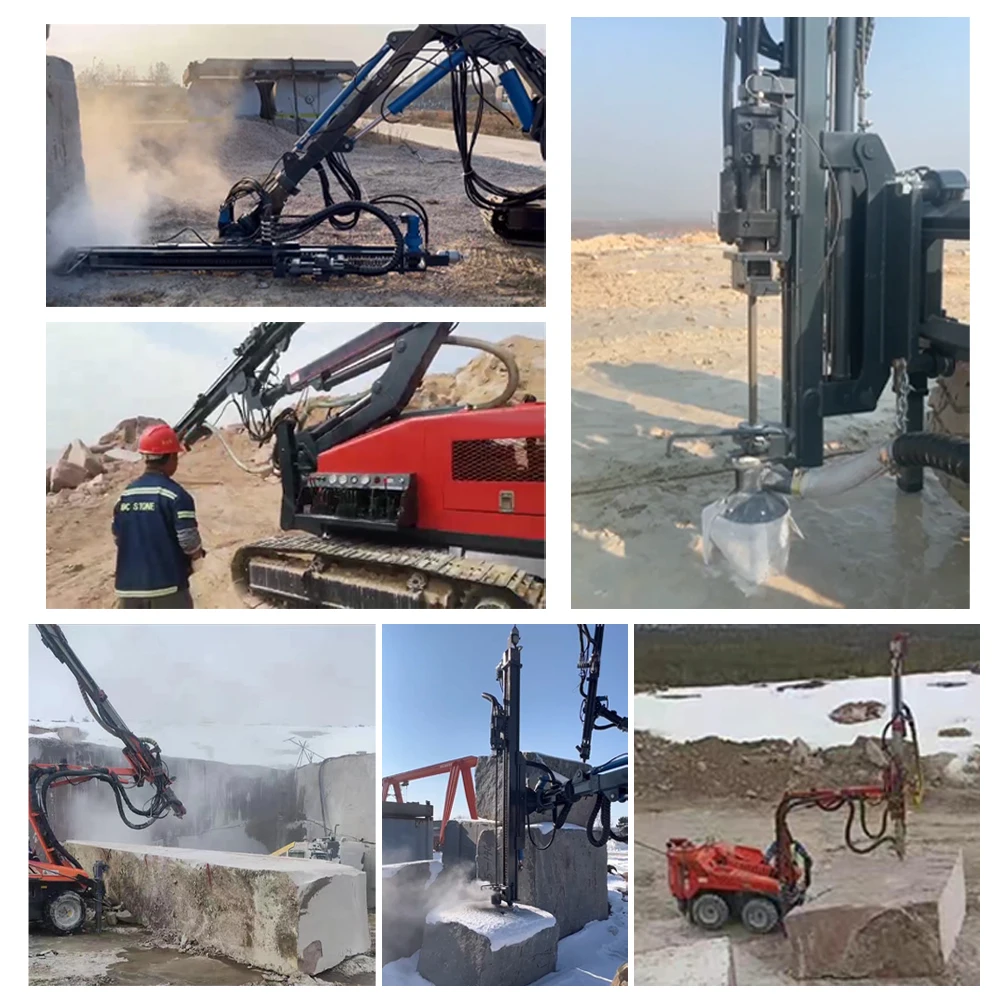

Application
Company Profile
Changsha DTH Drill Construction Machinery Co., Ltd has more than 20 years of drilling tools industry since 1996. Its predecessor was the designated processing workplace of down-the-hole drilling tools of Changsha Institute of Mining Research. It is the Institute of Metal Research of the Chinese Academy of Sciences, the National Institute of Materials Research (NIMS) of Japan, and the partner of University of Queensland, Australia, the Swiss Federal Institute of Technology (EMPA).
Zhao, MingChun from CsDrill is the world's top 2% scientists in 2022, China's first self-developed down-the-hole reverse circulation drill was successfully developed by his team. The monopoly of Sandvik and Atlas was broken, and the price was only one tenth of theirs. Make exploration sampling, drilling wells, mine blasting holes and other projects more efficient and energy-saving.
The down-the-hole reverse circulation drill we developed has solved two major problems in the world. The first is that when the borehole meets water, the slag is discharged into a wet mass and the inner pipe is blocked. In the video, you can see that despite the water, our slag discharge is dry and very smooth. Second, less slag discharge. In the video, you can see that our slag discharge is very large, which really achieves energy saving and efficiency.
The down-the-hole reverse circulation drill we developed has solved two major problems in the world. The first is that when the borehole meets water, the slag is discharged into a wet mass and the inner pipe is blocked. In the video, you can see that despite the water, our slag discharge is dry and very smooth. Second, less slag discharge. In the video, you can see that our slag discharge is very large, which really achieves energy saving and efficiency.
Contact us
Exhibition
Certificate
Packing & Delivery
Our Service
1.Pre-sale service: Act as a good adviser and assistant of clients enable them to get rich and generous returns on their
investments .
investments .
①.Select equipment model.
②.Design and manufacture products according to client's special requirement ;
③.Train technical personnel for clients .
2.Services during the sale:
①.Pre-check and accept products ahead of delivery .
②. Help clients to draft solving plans.
3.After-sale services: Provide considerate services to minimize clients' worries.
①.Complete After-sales service,professional engineers available to service machinery at home or oversea.
②. 24 hours technical support by e-mail.
③.Other essential technological service.
