Products Description

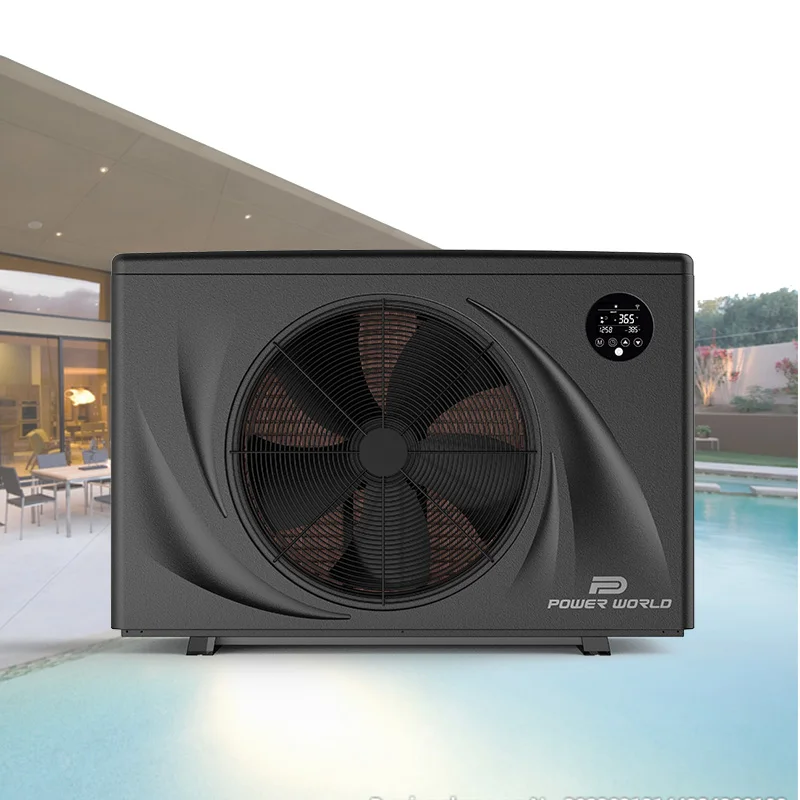

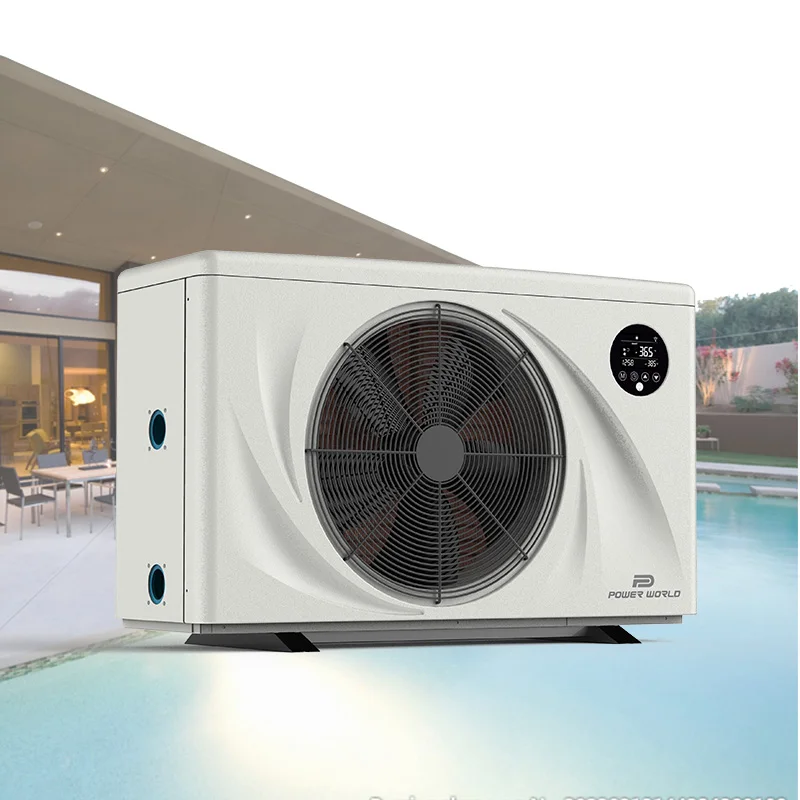

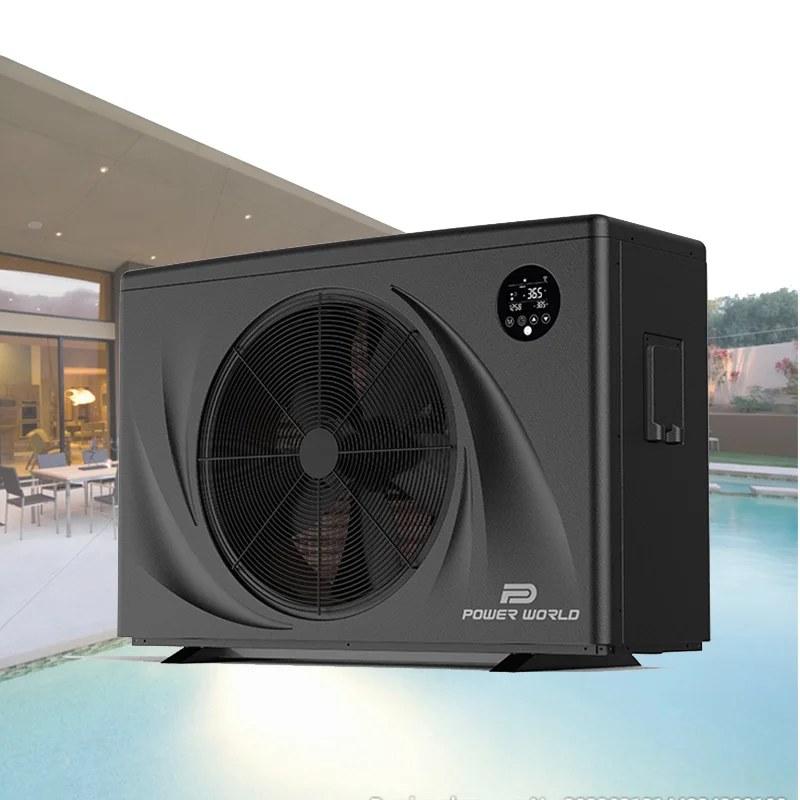

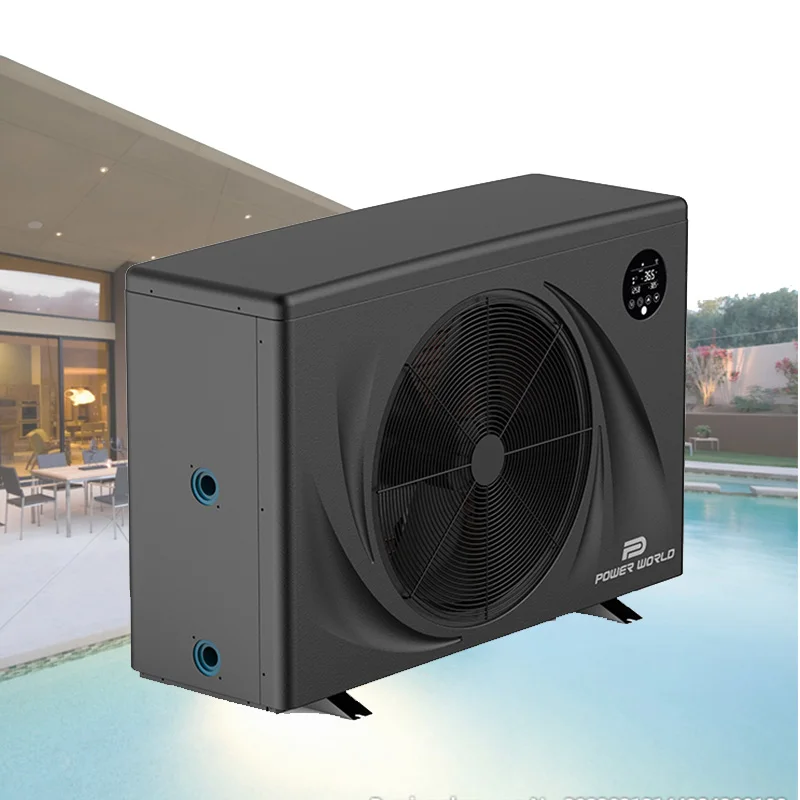

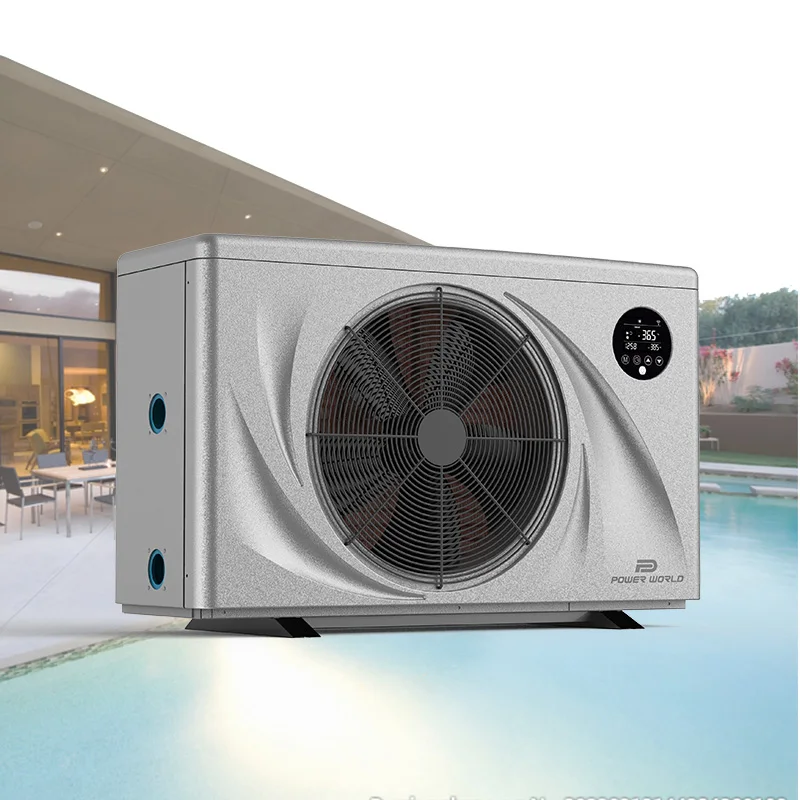

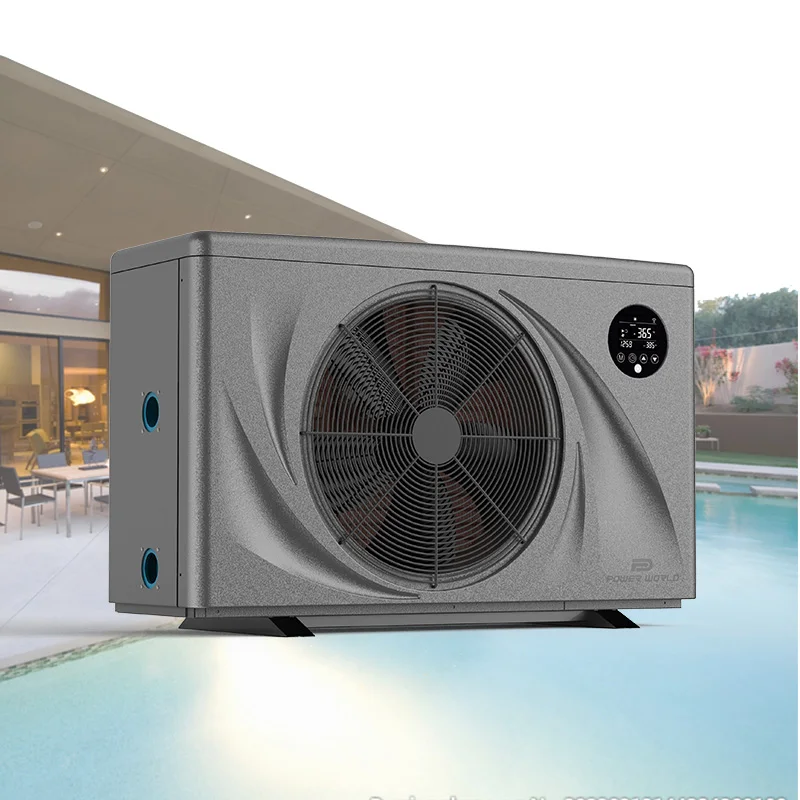

New Design ABS Plastic Full Inverter Swimming Pool Heat Pump

The appearance of the INVERTER Quiet Pro Series Swimming Pool Heat Pump adoptnewest design in 2021, which is specially designed for swimming pools from 15 to 130m3.
This series uses ABS blister material,adopting a three-dimensional craft-"wind blade shape" screwless design style,which effectively accomplishes reducing noise with multiple noise reduction methods while performing beauty. It is featured by good impact resistance,heat resistance,low-temperature resistance,which indicates strong durability.






COP as High as 15. 0
*COP is up to 15. 0 at Air 27℃/Water 26℃/Humidity 80%.·
*The average COP is 11. 0 during the swimming season.·
*Operating at air -7°C - Maximize your pool season.
Embedded LCD Control Panel
The new control panel adopts the newly designed embedded 5-button display screen in 2021 to ensure the integration of the unit.
The screen can be easily touched (partially touched).The control panel has a built-in WIFI function,which means that with the App remote control function,you can adjust your parameters anytime and anywhere.


Ultra Silent
The space where the compressor is located is wrapped
with silencing materials,and a full yen closed design is adopted to implement three noise reduction measures of sound absorption,sound insulation,and buffering for the entire unit to ensure low-noise operation.
Anti-Corrosion ABS Casing
Low-temperature impact resistance is also better.·It is featured by good gloss, hardness, toughness, and rigidity.·It has a better dyeing performance,so we have 6 colors for you to choose from.




Model
PW010-KZXYC-H
PW015-KZXYC-H
PW020-KZXYC-H
PW030-KZXYC-H
PW040-KZXYC-H
PW050-KZXYC-H
PW060-KZXYC-H
Advised pool volume (m3)
15~30
20~40
25~50
30~60
40~75
55~100
55~100
Operating air temperature (℃)
-7 ~43
Performance Condition: Air 27°C, Water 26°C, Humidity 80%
Heating capacity (kW)
7.50~1.92
9.50~2.10
11.00~2.50
14.00~3.15
17.00~3.75
20.00~4.00
24.00~4.80
Heating Capacity(Btu)
25500~6528
32300~7140
37400~8500
47600~10710
57800~13090
68000~13600
81600~16320
Consumed power (kW)
1.15~0.13
1.46~0.14
1.83~0.17
2.15~0.21
2.62~0.25
3.33~0.27
4.00~0.32
COP
6.5~14.8
6.5~15.0
6.0~14.7
6.5~15.0
6.5~15.0
6.0~14.8
6.0~15.0
COP at 50% capacity
10.50
11.00
11.00
10.50
11.00
11.00
11.00
Performance Condition: Air 15°C, Water 26°C, Humidity 70%
Heating capacity (kW)
5.80~1.42
7.2~1.50
8.5~1.65
10.7~2.40
13.0~2.65
15.6~2.85
18.7~3.42
Heating Capacity(Btu)
19720~4828
24480~5100
28900~5610
36380~8160
44200~9010
53040~9690
63580~11630
Consumed power (kW)
1.15~0.20
1.43~0.21
1.77~0.23
2.12~0.34
2.58~0.36
3.25~0.40
3.89~0.49
COP
5.0~7.1
5.0~7.2
4.8~7.2
5.0~7.1
5.0~7.4
4.8~7.0
4.8~7.0
COP at 50% capacity
6.50
6.50
6.50
6.50
6.50
6.50
6.50
Performance Condition: Air 35℃,Water 28℃, Humidity 80%
Cooling capacity (kW)
4.0
5.2
6.0
7.2
8.6
10.1
11.8
Sound pressure at 1m dB(A)
38~48
38~48
40~50
42~51
43~52
43~53
44~54
Sound pressure of 50% capacity at 1m dB(A)
40
40
41
43
44
44
45
Sound pressure at 10m dB(A)
18~25
18~25
19~26
22~27
23~30
24~31
25~32
Heat exchanger
Spiral titanium tube in PVC
Casing
Metal Casing
Power supply
230V/1 Ph/50Hz
Water Connection (mm)
Φ50
Rated input current at air 15℃（A）
5.1~0.9
6.3~0.9
7.8~1.0
9.3~1.5
11.3~1.6
14.3~1.8
17.8~2.3
Advised water flux (m³/h)
2~4
2~4
3~5
4~6
6~9
8~10
9~12
Water Pressure Drop (max) kPa
2
3
4
5
5
6
8
Net weight/Gross weight（kg)
62/70
62/70
64/72
77/87
81/91
81/91
Developing
Carton size（mm）
1000X396X640
1125X416X765
Package size（mm）（carton）
1040*410*780
1165*430*905
Package size（mm）（Polywood）
1060*430*780
1185*450*905
Loading quantity (20GP/40GP/40HQ)
78/162/162
52/104/104
Refrigerant consumption（g）
340g
430g
440g
520g
730g
780g
Developing
Refrigerant
R32
Compressor
Panasonic
Four-way valve
Sanhua
Expansion valve
Sanhua
Frequency drive board
CHICO
Operating water temperature (℃) *heating
9 ~40
Operating water temperature (℃) *cooling
9 ~35
