2 канала HDMI USB 3 0 карта захвата Видео PIP PBP оборудование устройство видео с петлевым переключателем микшера для потоковой передачи
- Категория: Cables & Commonly Used Accessories >>>
- Поставщик: Shenzhen,Gaia,Vision,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 83.95 $* | 85.70 $* |
| Jul-16-2025 | 67.89 $* | 68.29 $* |
| Jun-16-2025 | 81.91 $* | 83.52 $* |
| May-16-2025 | 81.24 $* | 83.21 $* |
| Apr-16-2025 | 64.83 $* | 65.1 $* |
| Mar-16-2025 | 79.31 $* | 81.73 $* |
| Feb-16-2025 | 79.13 $* | 81.94 $* |
| Jan-16-2025 | 78.38 $* | 80.67 $* |
Характеристики
Product Description

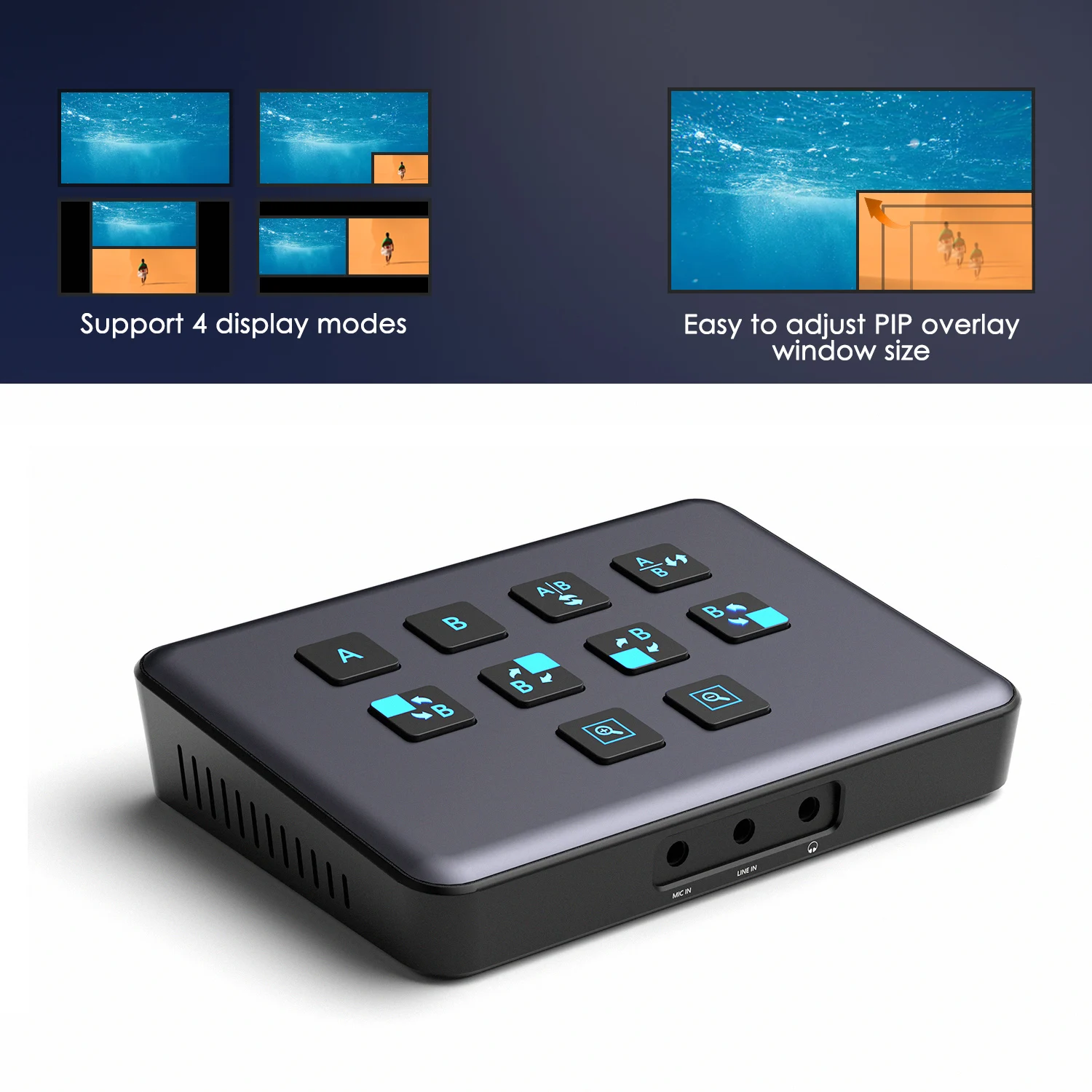

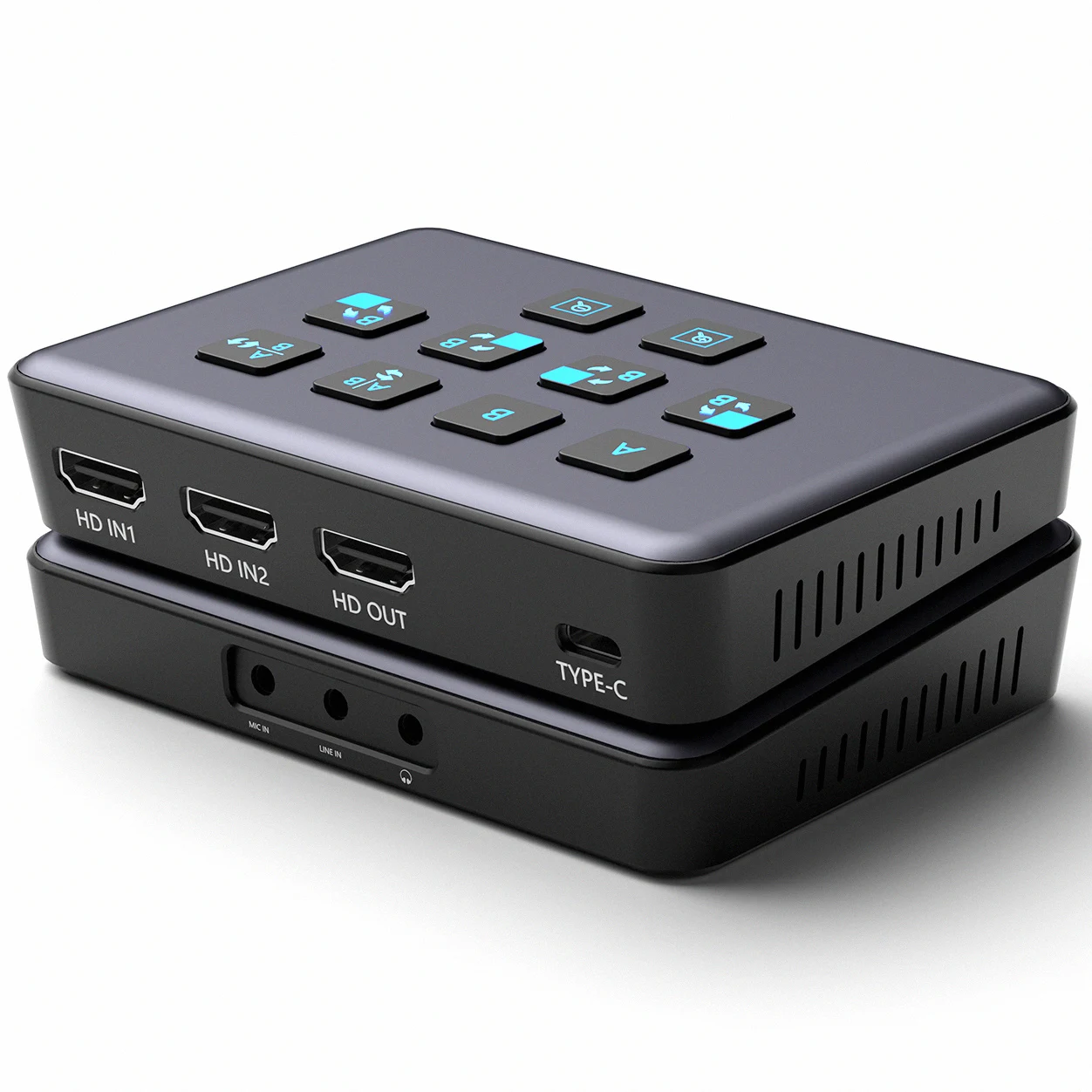

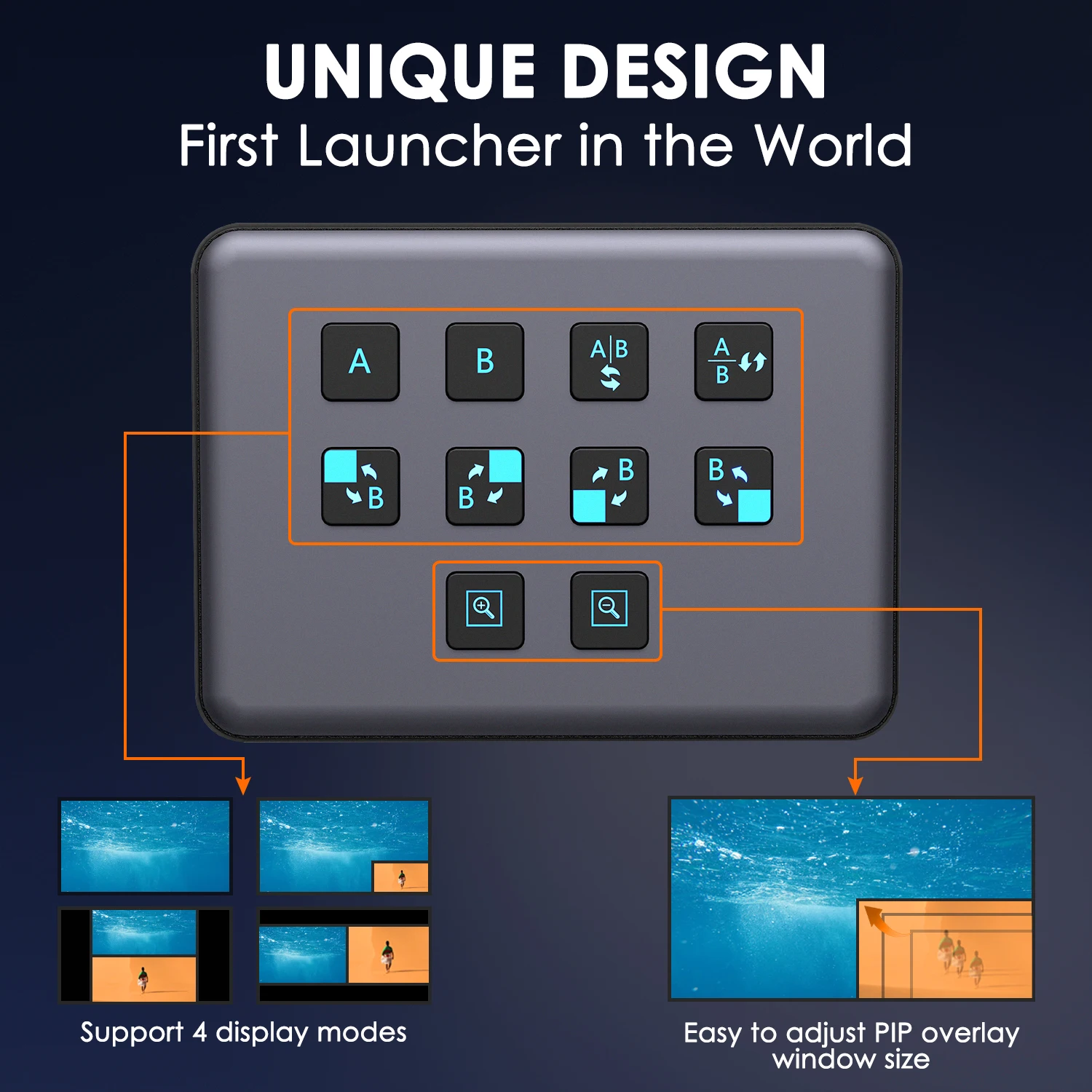

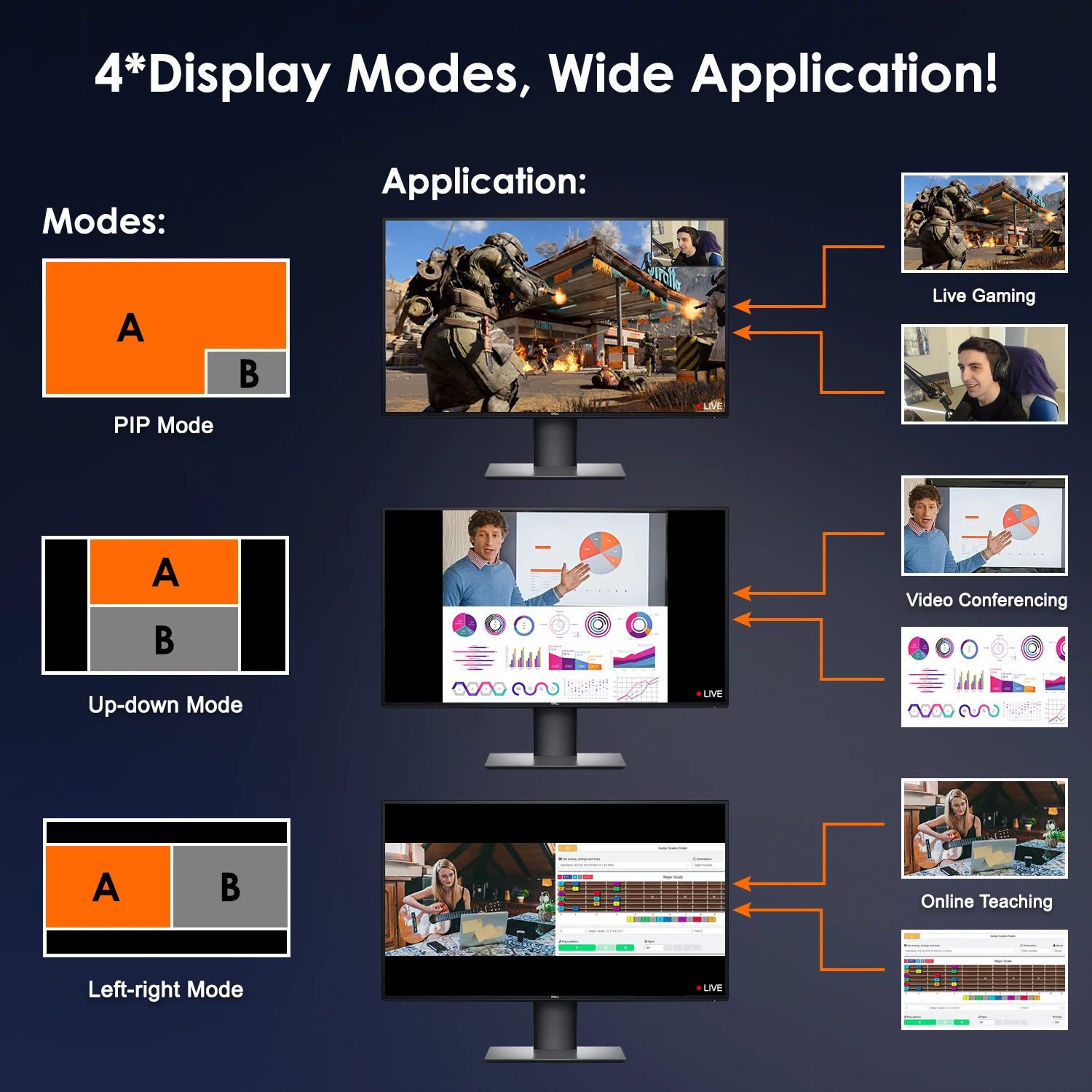

2 Channel HDMI USB 3.0 Video Capture Card PIP PBP Equipment Device Video with Loop, Video Mixer HDMI Switcher for live Streaming & Recording
The USB 3.0 dual channel HDMI video capture card can simultaneously capture dual 4K HDMI input video signals, while supporting HDMI 1080P loop out, as a video mixer and HDMI switcher. compatible with Windows7/8/8.1/10/11, Linux and Mac OS, and backward compatible with USB2.0, by USB 3.0/Type‐C interface to connect to the computer, through play/capture software to achieve preview, recording, live streaming and other functions.
Specification
1. The input can support up to 4K@60Hz, loop out and capture recording resolution up to 1080P@
2. Recording video format support RGB/24bit, YUY2/
3. Support UAC / UVC protocol, support for 48KHz audio sampling rate.
4. No driver required, compatible with Windows 7/8/8.1/10/11, Linux and Mac OS.
5. Support HDR color input, loop out and capture.
6. Support microphoneaudio input, line audio input, and headphone monitoring.
7. Low power consumption, ultra-low latency, clearer picture quality, RGB color range 0~255.
2. Recording video format support RGB/24bit, YUY2/
3. Support UAC / UVC protocol, support for 48KHz audio sampling rate.
4. No driver required, compatible with Windows 7/8/8.1/10/11, Linux and Mac OS.
5. Support HDR color input, loop out and capture.
6. Support microphoneaudio input, line audio input, and headphone monitoring.
7. Low power consumption, ultra-low latency, clearer picture quality, RGB color range 0~255.
ITEM | Specification |
USB-C | USB 3.0, 5Gb/s transfer bandwidth |

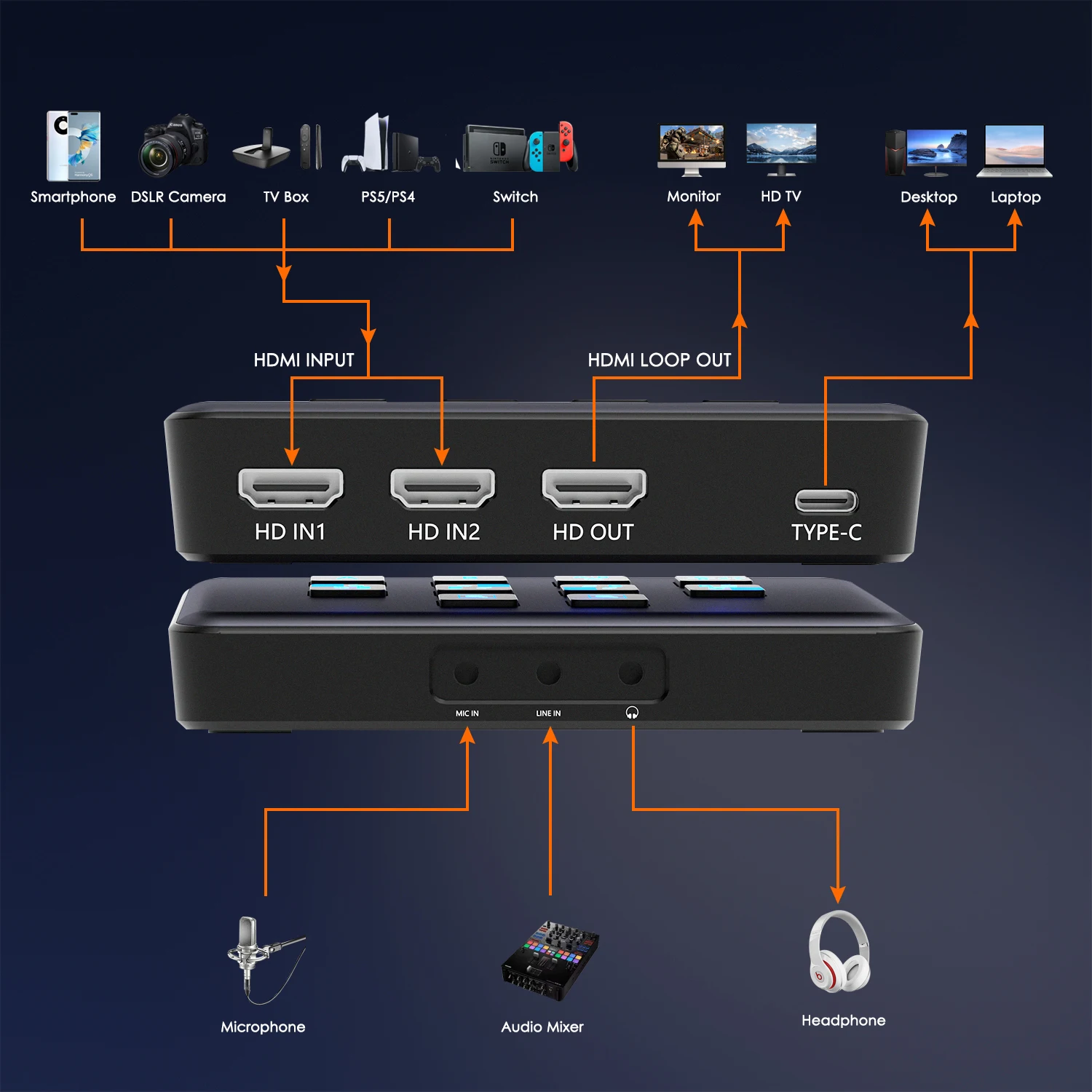

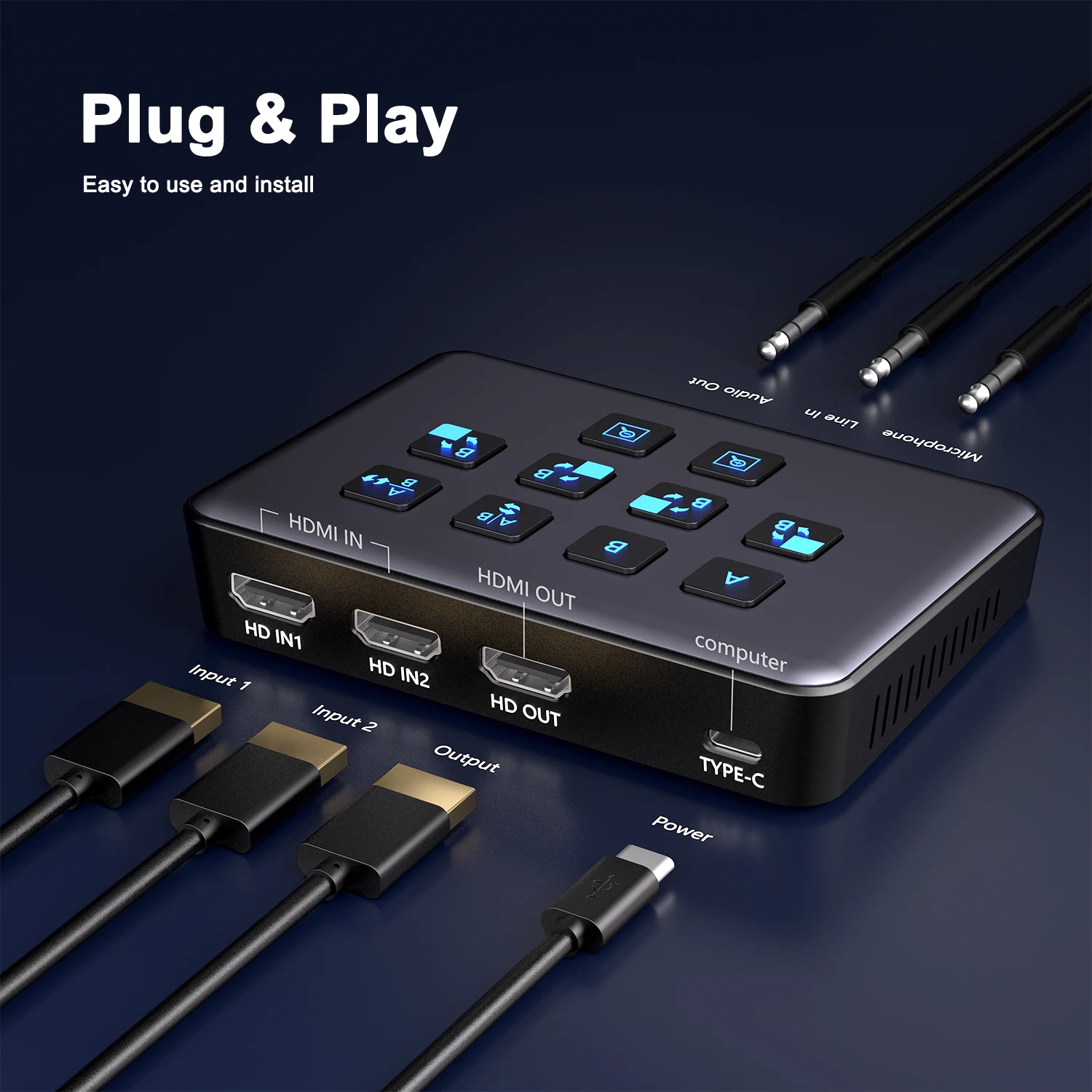

Input | 2*HDMI video input, 1*Line in audio input, 1*Microphone audio input. |
Output | 1*HDMI loop-out, 1*USB-C to computer, 1*Headphone audio |
Capture | Compliant with UVC(USB Video Class) and UAC (USB Audio Class) standards. |
Input Format | HDMI 2.0 |
Capture Video Format | RGB, YUY2 |
Input Resolution | 720P, 1080P, 4K@30Hz, 4K@60Hz |
USB3.0 Capture Video Format | YUY2 16bit, RGB 24bit |
HDCP | Support |
HDR | Support 4K/60Hz HDR input as well as ring out, support capture HDR color degree, backward compatible. |
Compatible Software | Windows Media Encoder, Adobe Flash Media Live Econder, Reel Producer Plus QuickTime Player, VLC, OBS, vMix, PotPlayer... |
