Спутниковый приемник двухсторонний оптический CATV 40 ~ 2600 МГц
- Категория: Satellite TV Receivers >>>
- Поставщик: Zibo,Hensure,Electronic,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 17.62 $* | 17.3 $* |
| Jul-15-2025 | 13.30 $* | 13.28 $* |
| Jun-15-2025 | 16.58 $* | 16.84 $* |
| May-15-2025 | 16.83 $* | 16.47 $* |
| Apr-15-2025 | 13.83 $* | 13.70 $* |
| Mar-15-2025 | 16.67 $* | 16.86 $* |
| Feb-15-2025 | 16.59 $* | 16.17 $* |
| Jan-15-2025 | 16.24 $* | 16.53 $* |
Характеристики
Product Description

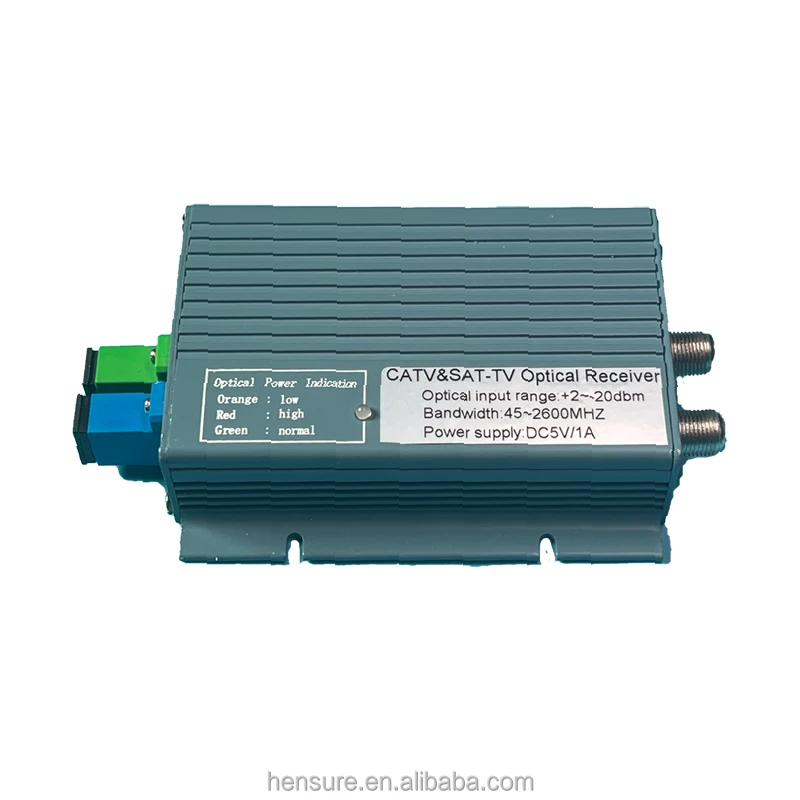

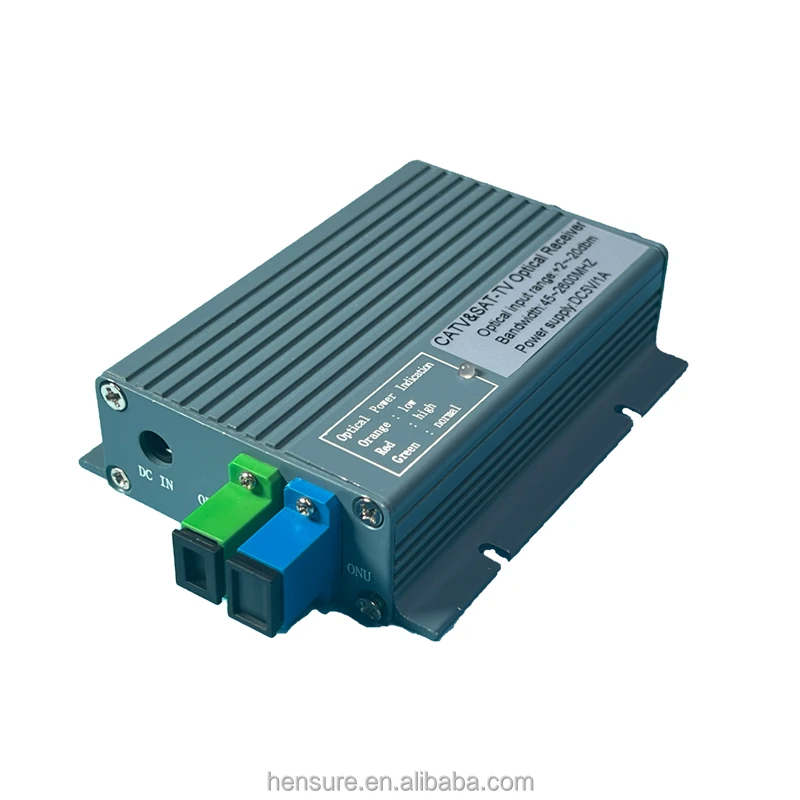

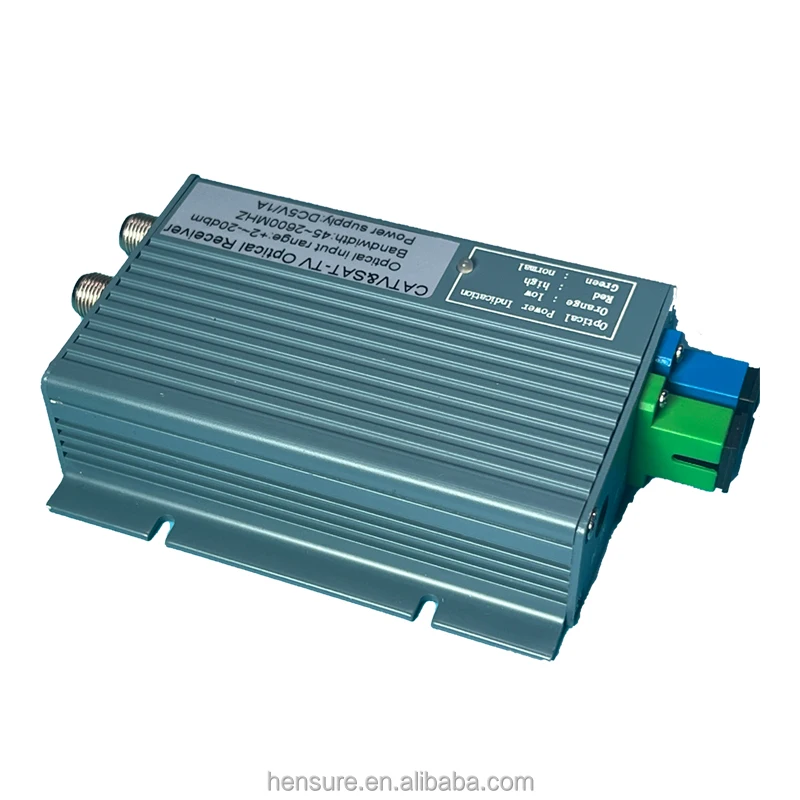

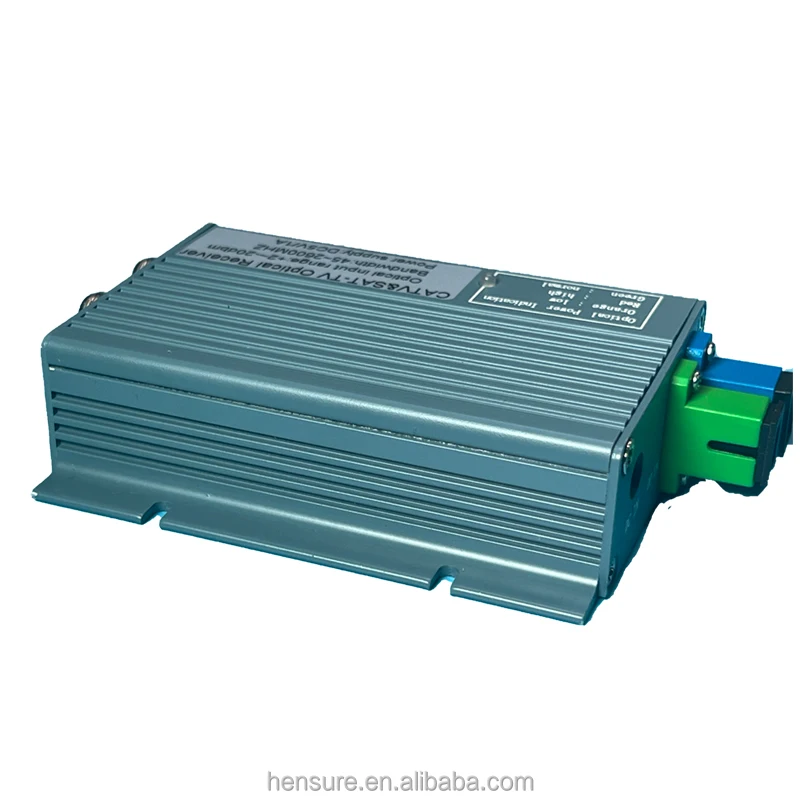

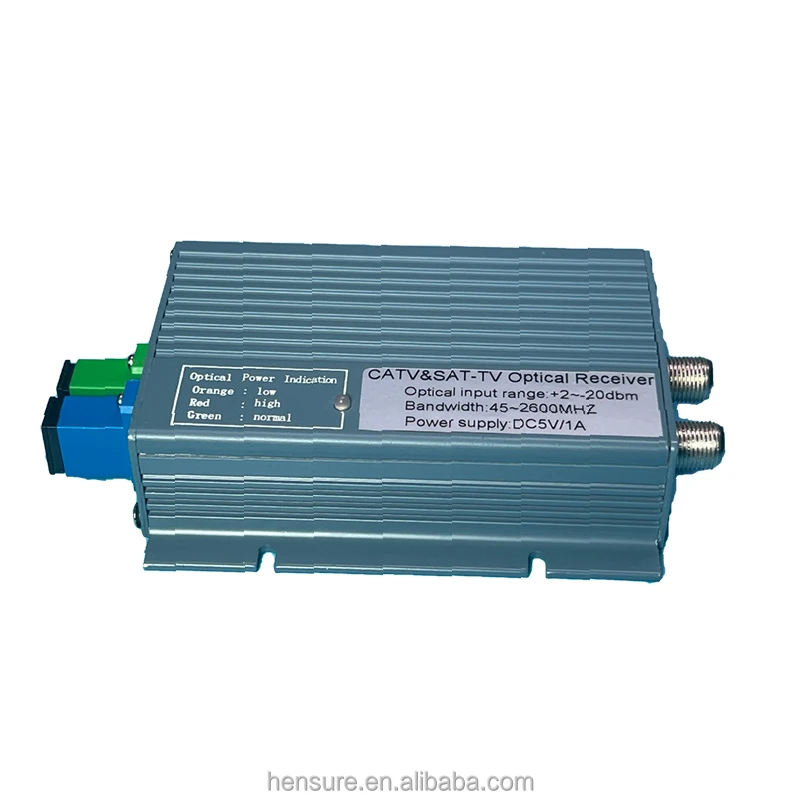

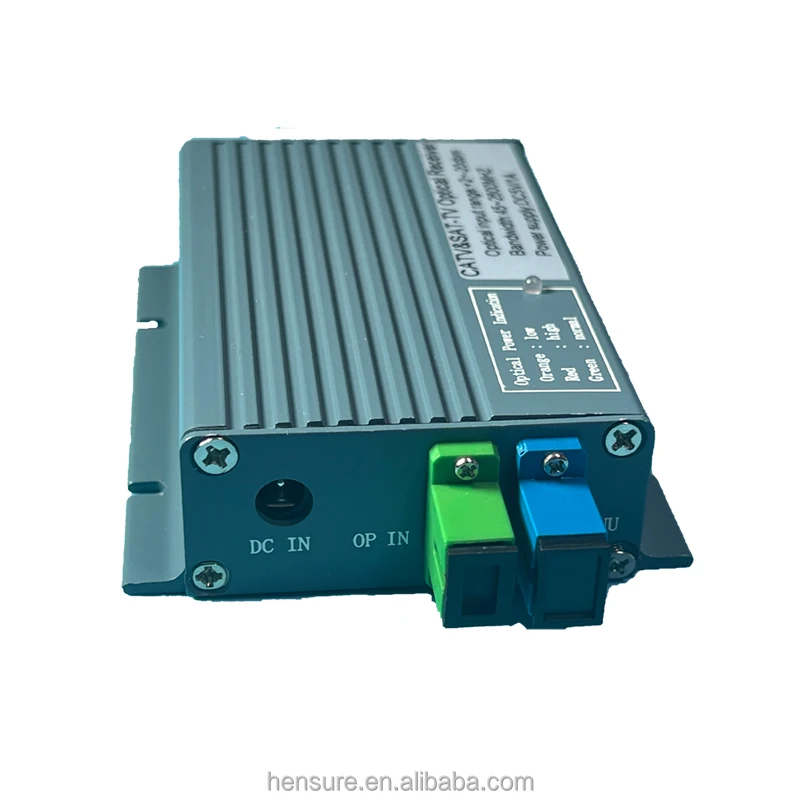

OR23S-W is our specialty products that specially developed for the CATV and satellite
direct TV transmission in one network. With small shell, compact and reasonable internal
circuit structure and excellent performance, is compatible with FTTxPON technology.
Realize FTTH and the integration of Analog TV, Digital TV (DBS-C, DBS-T) and Satellite
Performance Characteristics
High linearity, suitable for Analog TV&SAT-IF application.
Bandwidth: 45~2600MHZ.
Simultaneously receive CATV and SAT-IF signal, can be compatible with FTTxPON
technology.
Analog TV, Digital TV and Satellite TV have excellent performance:
Analog TV: (84CH PAL-D, OMI=3.8%, Pin=-1dBm) C/N>51dB, CTB≤ -66dB, CSO≤
-62dB;
Digital TV: (Original signal MER=38.6dB, BER<1.0E-9) Pin=-14dBm, MER≥33dB (MER
degrade 5dB), Pin=-19dBm，BER<1.0E-9；
Satellite TV: (Original signal quality =64%) Pin=-20dBm, signal quality >38%.
direct TV transmission in one network. With small shell, compact and reasonable internal
circuit structure and excellent performance, is compatible with FTTxPON technology.
Realize FTTH and the integration of Analog TV, Digital TV (DBS-C, DBS-T) and Satellite
Performance Characteristics
High linearity, suitable for Analog TV&SAT-IF application.
Bandwidth: 45~2600MHZ.
Simultaneously receive CATV and SAT-IF signal, can be compatible with FTTxPON
technology.
Analog TV, Digital TV and Satellite TV have excellent performance:
Analog TV: (84CH PAL-D, OMI=3.8%, Pin=-1dBm) C/N>51dB, CTB≤ -66dB, CSO≤
-62dB;
Digital TV: (Original signal MER=38.6dB, BER<1.0E-9) Pin=-14dBm, MER≥33dB (MER
degrade 5dB), Pin=-19dBm，BER<1.0E-9；
Satellite TV: (Original signal quality =64%) Pin=-20dBm, signal quality >38%.
Ordering Guide
Product model:
OR23-XX-YY
XX: W: with Wdm,
WF: with Filte r, only receive1550nm.
B: high level output (dual output mo re than 96dbuv)
BW: high level output and with WDM
S:CATV&SAT-TV
YY: Connectors : :SC/APC;FA:FC/APC;SP :SC/PC;FP:FC/PC，customized.
MODEL: OR23W-SA-SP OR23 FTTH optical receiver with WDM, connector is SC/APC-SC/UPC
Product model:
OR23-XX-YY
XX: W: with Wdm,
WF: with Filte r, only receive1550nm.
B: high level output (dual output mo re than 96dbuv)
BW: high level output and with WDM
S:CATV&SAT-TV
YY: Connectors : :SC/APC;FA:FC/APC;SP :SC/PC;FP:FC/PC，customized.
MODEL: OR23W-SA-SP OR23 FTTH optical receiver with WDM, connector is SC/APC-SC/UPC
Application link
Specification
item | value |
Private Mold | Yes |
Place of Origin | China |
Shandong | |
Brand Name | HENSURE |
Model Number | OR23S |
FTA(Free To Air) | NO |
Type | Digital |
Packing & Delivery
1 pcs/bag
Company Profile
Founded in 2006, the company has more than 10 years of professional experience in research and development and production of CATV equipment, and 6 years of professional devotion to research and development and production of CATV equipment. The company has reliable product quality and excellent quality. After several years of statistics, the repair rate is less than 0.3%! We have 99 signal sources, all kinds of imported testing equipment, to ensure product quality and index. The company mainly deals with 1550 nm optical transmitter, EDFA optical amplifier, multi-channel high-power Yb-doped erbium fiber amplifier, optical platform, optical switch, 1310 nm optical transmitter, four-channel cable TV optical receiver, trunk amplifier, user amplifier, amplifier module, optical receiver module and other system accessories. Customer satisfaction. Company philosophy: sincere business, sincere friends.
FAQ
1. who are we?
We are based in Shandong, China, start from 2015,sell to North America(15.00%),South America(15.00%),Eastern Europe(15.00%),Southeast Asia(15.00%),Northern Europe(10.00%),Africa(10.00%),Oceania(5.00%),Southern Europe(5.00%),Eastern Asia(5.00%),Mid East(5.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Transmitter, EDFA, EYDFA, Optical Receiver , Ftth Receiver
4. why should you buy from us not from other suppliers?
The boss is of technical origin.
Reliable quality
The rate of repair is less than 0.3%
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese
We are based in Shandong, China, start from 2015,sell to North America(15.00%),South America(15.00%),Eastern Europe(15.00%),Southeast Asia(15.00%),Northern Europe(10.00%),Africa(10.00%),Oceania(5.00%),Southern Europe(5.00%),Eastern Asia(5.00%),Mid East(5.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Transmitter, EDFA, EYDFA, Optical Receiver , Ftth Receiver
4. why should you buy from us not from other suppliers?
The boss is of technical origin.
Reliable quality
The rate of repair is less than 0.3%
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese
