Shantui официальный 23 тонны SR23MR уплотнитель для мусора
- Категория: Compactors >>>
- Поставщик: Shandong,Gt,International,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.55 $* | 0.82 $* |
| Aug-16-2025 | 0.10 $* | 0.34 $* |
| Jul-16-2025 | 0.80 $* | 0.2 $* |
| Jun-16-2025 | 0.80 $* | 0.49 $* |
| May-16-2025 | 0.97 $* | 0.89 $* |
| Apr-16-2025 | 0.1 $* | 0.57 $* |
| Mar-16-2025 | 0.79 $* | 0.81 $* |
| Feb-16-2025 | 0.25 $* | 0.68 $* |
| Jan-16-2025 | 0.56 $* | 0.43 $* |
Характеристики
Products Description

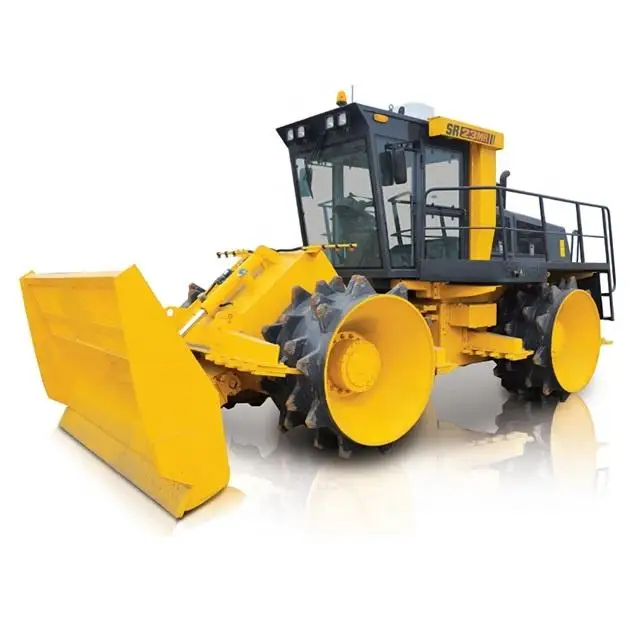

SR23MR trash compactor mainly utilizes own weight to bulldoze, crush, and compact the trashes, in which the lifting and lowering of the blade is controlled by mechanic connecting rods, featuring simple and practical operations. This machine is applicable for the landfilling, leveling, and compacting of various bulk trashes as well as the compacting of viscous materials in city landfill sites and can be used as landfill compactor and high-speed compactor. "
ENGINE MODEL WEICHAI WP10G220 |
GROSS POWER 162kW @ 2200rpm |
OPERATING WEIGHT 23000kg |
The cab is equipped with air conditioning and heating, air purification device and rear vision monitor, providing the driver with a comfortable, fresh and full-view operating environment.
The fully enclosed fuselage is adopted to eliminate the fire hazard, dirt cannot invade the fuselage, keep the machine tidy, and improve the service life of the machine.
The service brake is enclosed in a fully enclosed cavity to prevent garbage from corroding the brake and improve driving safety.
The articulated steering mechanism uses a slewing ring to keep the pressure wheel on the waste at all times without additional stress on the frame, and ensures that the four wheels are in contact with the ground in poor landfill sites.

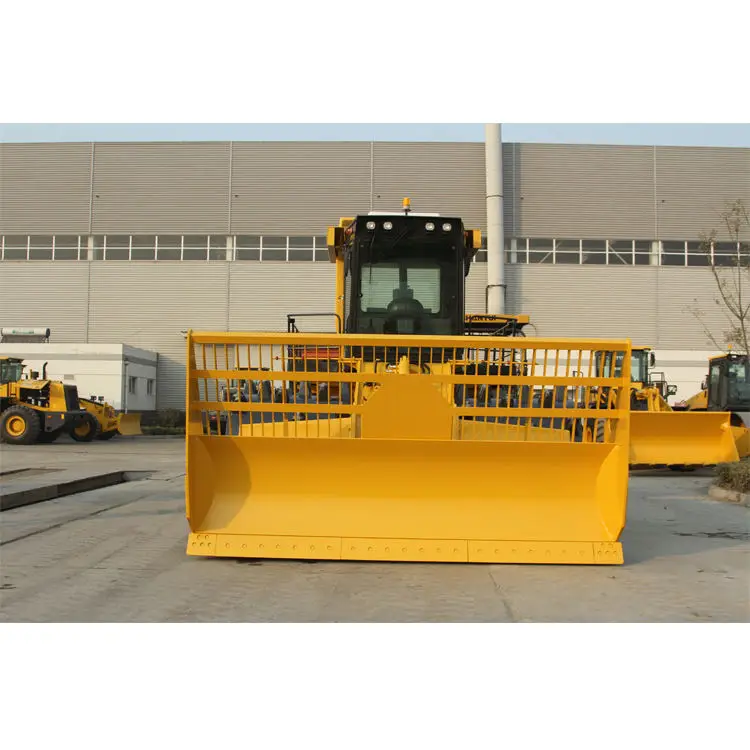

The blades are interchangeable, increasing the life of the shovelhead. The connection with the front frame adopts the unique connection method of the support screw cover and the ball head of the bulldozer, which is easy to assemble and easy to replace after wear
The SR23MR is a lightweight hydromechanical drive waste compactor. The weight of the whole machine is 23 tons, the engine adopts Yuchai YC6M water-cooled engine, the emission reaches the national II standard, and the power is 162KW. It mainly meets the needs of small and medium-sized landfills.
WEICHAI WP10G220
WG180 Hydraulic transmission
Drive axle: fengyi drive axle factory
The polygonal compaction wheel design has excellent compaction results for many different types of waste. Tapered rims to avoid the accumulation of garbage and other materials.
Technical Specifications
Parameter name | SR23MR (Standard version) |
Performance parameters | |
Operating weight (Kg) | 23000 |
Exciting force (KN) | - |
Vibration frequency (Hz) | - |
Nominal amplitude (mm) | - |
Ground pressure (KPa) | - |
Gradeability (%) | - |
Engine | |
Engine model | WP10 |
Rated power/rated speed (kW/rpm) | 162/2200 |
Overall dimensions | |
Overall dimensions of machine (mm) | 7360*3200*3640 |
Driving performance | |
Forward speed (km/h) | 4.37/6.82/10 |
Reversing speed (km/h) | 4.37/6.82 |
Chassis System | |
Wheelbase (mm) | - |
Tank capacity | |
Fuel tank (L) | 400 |
Working device | |
Compacting width(mm) | 3090 |
More Types

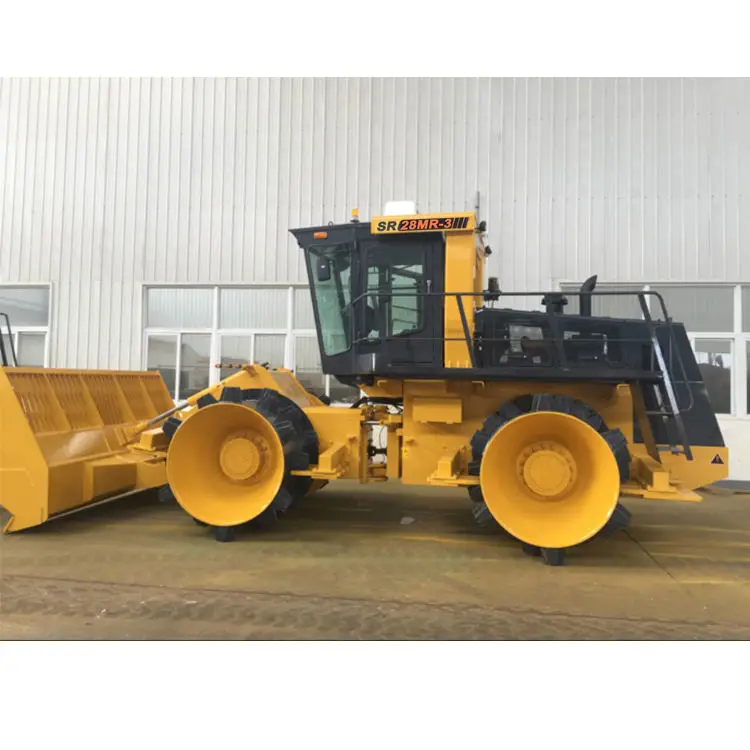

SR26MR-3 garbage compactor has a dead weight of 26 tons, and SR28MR-3 garbage compactor has a self-weight of 28 tons. The two products are identical except for the difference between the compactor wheel and the transaxle. The engine adopts a diesel engine with a power of 187KW. It mainly meets the needs of medium-sized landfills
Shangchai SCC11CB255G2B1
Emission standards: China II
Type: in-line, water-cooled, turbocharged
Rated power: 187kw/2200rpm
Emission standards: China II
Type: in-line, water-cooled, turbocharged
Rated power: 187kw/2200rpm
Hang chi WG180
The hydraulic transmission consists of a torque converter and a gearbox;
electronically controlled power shifting;
3 gears forward and 2 gears backward.
The hydraulic transmission consists of a torque converter and a gearbox;
electronically controlled power shifting;
3 gears forward and 2 gears backward.
SR26MR-3: Fengyi Drive Axle Factory
SR28MR-3: Yito pioneered the transaxle factory
SR28MR-3: Yito pioneered the transaxle factory

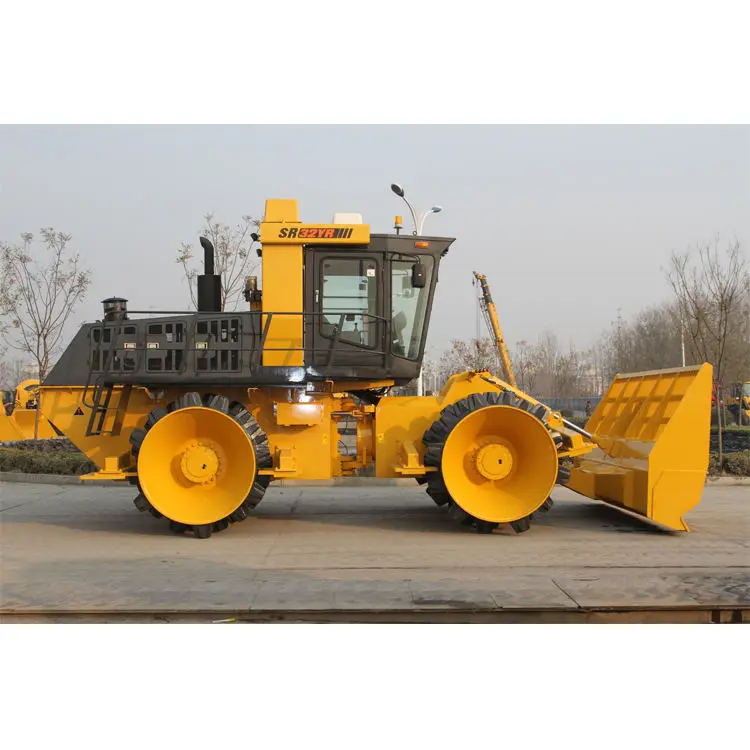

SR32YR is a heavy-duty full hydraulic transmission waste compactor with a total weight of 32 tons. The engine adopts imported Cummins engine, the emission reaches the Euro III standard, the power is 250KW, and the travel system adopts Rexroth four-pump four-motor closed drive system. It mainly meets the needs of large landfills.
QSM11
Fully electronically controlled/Euro III
250KW/2200r/min
Fully electronically controlled/Euro III
250KW/2200r/min
Transfer case
Flexible coupling
The diameter of the compactor wheel is 1700mm, the width of the front wheel is 1350mm, and the width of the rear wheel is 1125mm. There are two kinds of tooth blocks, BMW tooth block and Carter tooth block, for users to choose
Projects Example
Packing & Shipping
Why Choose Us
Company Profile
After-sale Service
Six Free Services
Free technical enquiries with our experts.
Free repair service during warranty period.
Free special services for all key construction projects.
Free 0 hour service upon deliver of machine.
Free training of operators and repairs staff.
Free maintenance service tracking (customer to provide resources)
Free repair service during warranty period.
Free special services for all key construction projects.
Free 0 hour service upon deliver of machine.
Free training of operators and repairs staff.
Free maintenance service tracking (customer to provide resources)
Product and Technical Inquiries
We have established a team of specialists, knowledgeable in our products and services, in order to provide information and answers to our customers on technical issues.
Special Services for Key Projects
If Shantui machinery is in operation in key projects on a provincial level or higher, the customer will receive special services from Shantui (free special coating service, on-site service, extended on-site service). These special services will allow customers to work more freely without any worries.
