Недорогие геодезические приборы FOIF LT402LTheodolite
- Категория: Theodolites >>>
- Поставщик: Huipu,Opto-Electronic,Instrument,(Zhenjiang),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 714.69 $* | 750.97 $* |
| Aug-15-2025 | 708.34 $* | 743.8 $* |
| Jul-15-2025 | 594.70 $* | 624.63 $* |
| Jun-15-2025 | 696.17 $* | 731.8 $* |
| May-15-2025 | 606.87 $* | 636.11 $* |
| Apr-15-2025 | 684.35 $* | 718.28 $* |
| Mar-15-2025 | 678.19 $* | 712.82 $* |
| Feb-15-2025 | 672.44 $* | 706.60 $* |
| Jan-15-2025 | 666.80 $* | 699.0 $* |
Характеристики
Products Description

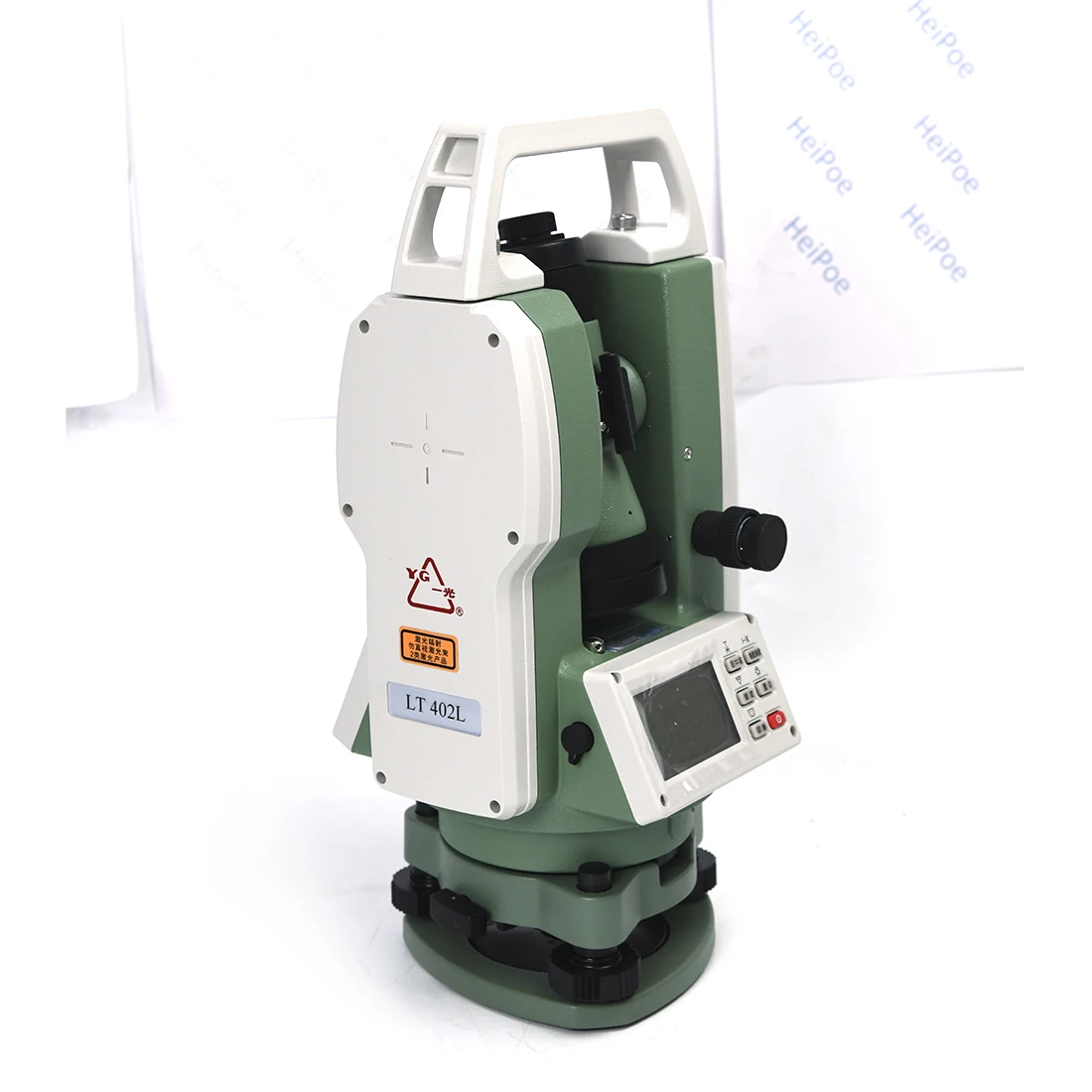

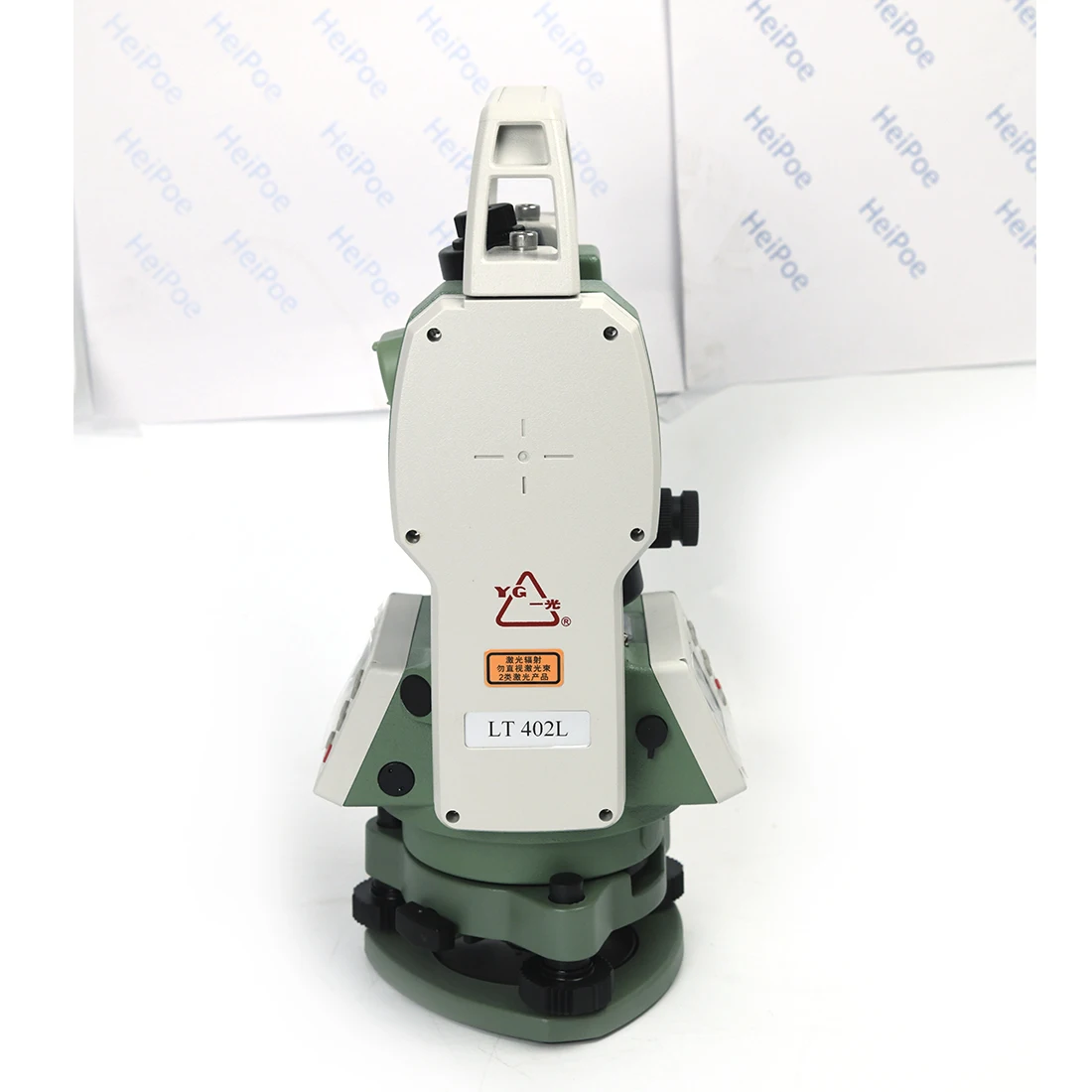

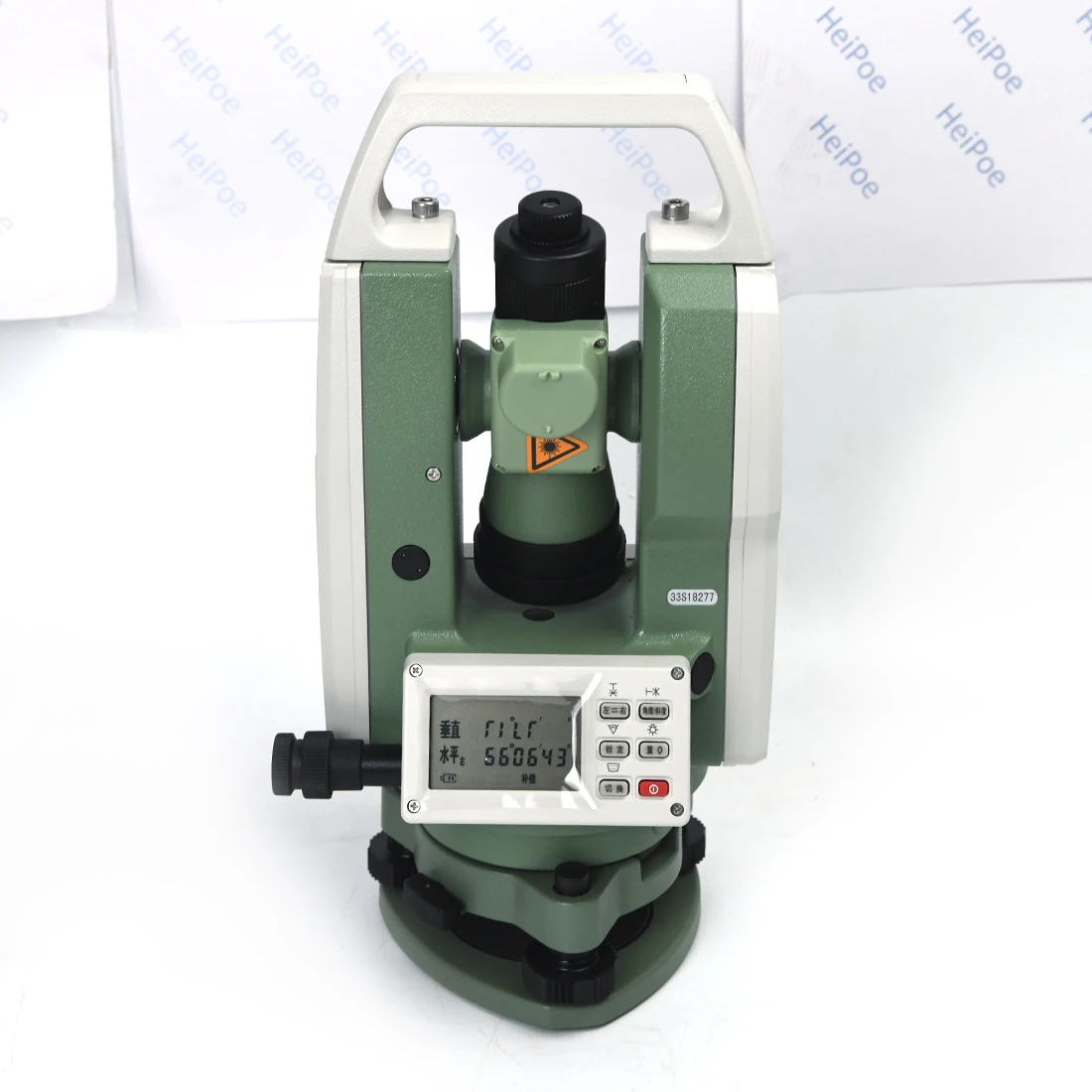

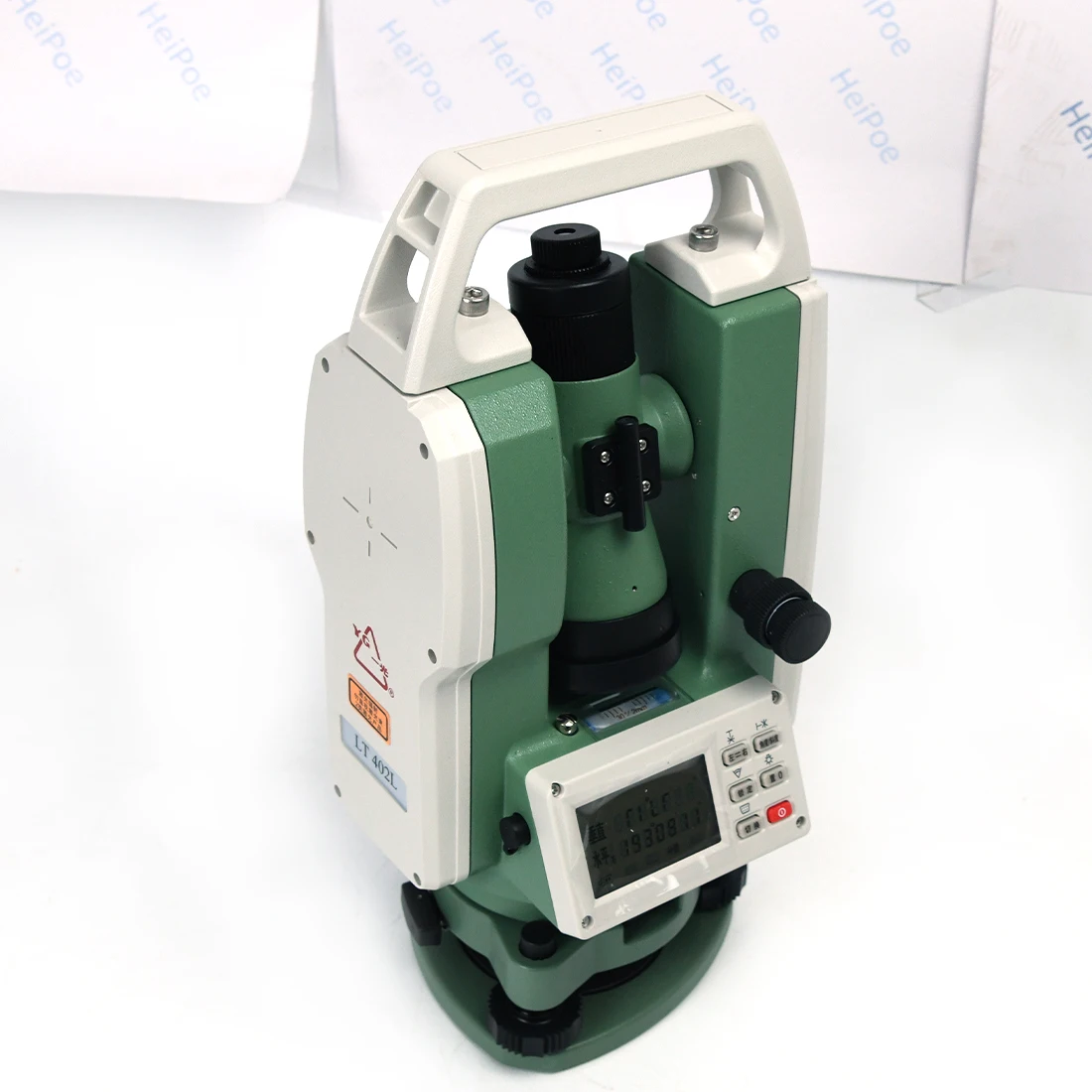

LT402L Digital Theodolite |
The LT402L laser electronic theodolite is widely used in high precision angular coordinate measurement and directional collimation measurement, such as the manufacture of large ships; Displacement measurement of small and medium-sized DAMS; Heavy machine window body correction, parts deformation measurement; Port and bridge engineering; Laying of large pipelines and pipelines; Tunnel and tunnel engineering; High-rise buildings, large pylons; Aircraft rack installation; Vertical measurement in zenith direction; Leveling and so on. |
FEATURES AT A GLANCE |
Product features: ◆Laser point with pointing function (invisible) ◆ Laser point counter Conventional laser point counter is prepared, optical point counter can be selected. |
Specification
LT402L Electronic Theodolite | ||
Angle measurement | ||
Minimum reading | 1" | |
Precision | 2" | |
Telescope | ||
Objective aperture | 47mm | |
Magnification | 30X | |
Imaging | positive | |
Field Angle | 1 ° 30 ' | |
Minimum visual distance | 1.0 m | |

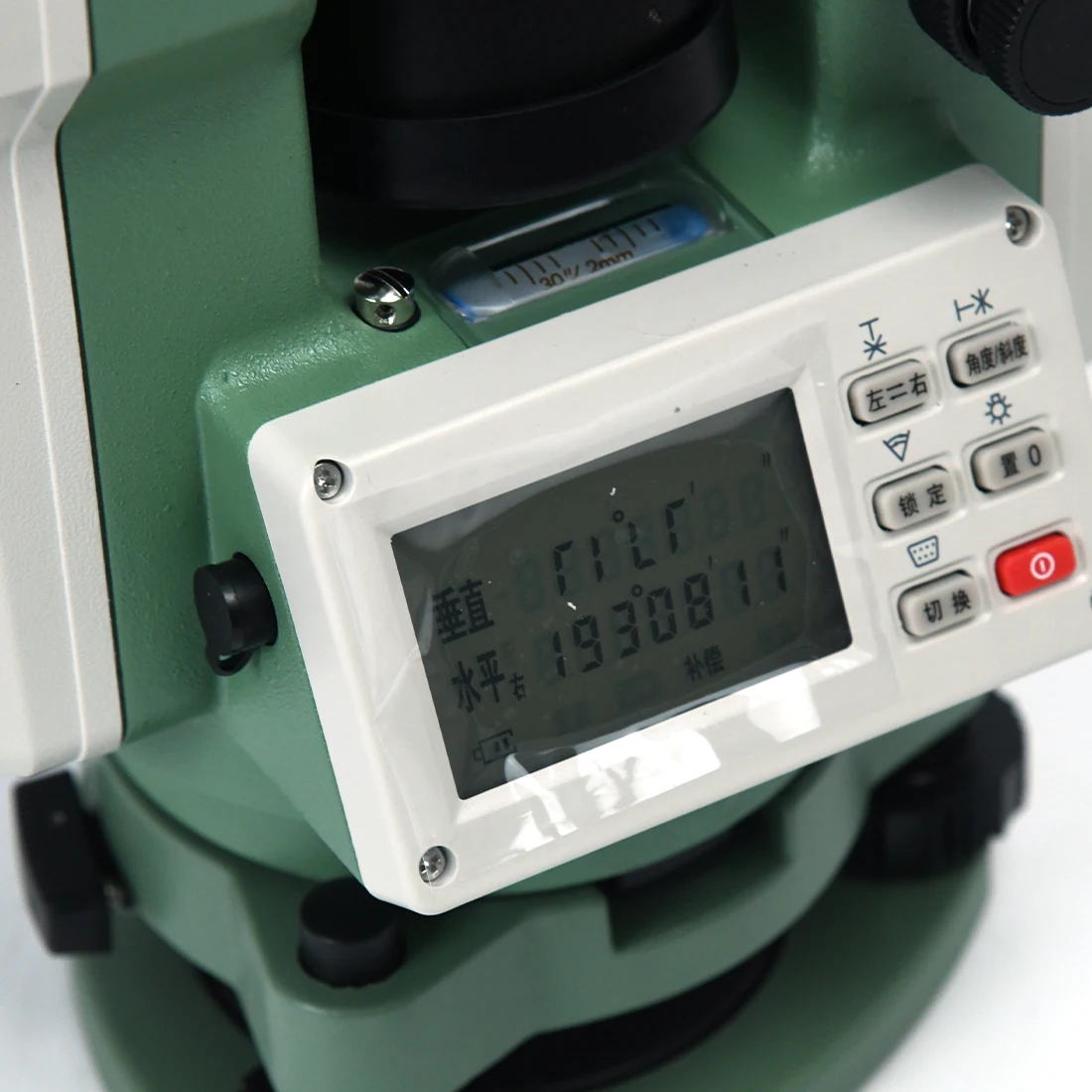

Display | ||
Display screen | double-sided | |
Lighting | have | |
Laser emission system | ||
Laser tube type | Semiconductor laser | |
Laser wavelength | 635nm | |
Effective range (daytime) | 200m | |
The light spots are big and small | 5mm/100m | |
The center of the spot deviates from the telescope's alignment axis when the laser beam gathers | ≤5″ | |
Point counter | ||
Optical point counter (optional)LT402 | Field Angle :4°, magnification :3X | |
Laser point counter (standard)LT402L | Wavelength: 635nm; Minimum focusing distance: 0.5m; Laser emission Distance :80m | |
Compensator | ||
Tilt sensor | Automatic vertical compensation | |
Compensation range | Plus or minus 3 ' | |
leveller | ||
Long level | 30″/2mm | |
Circular leveller | 8′/2mm | |
Power supply | ||
Battery | 6V rechargeable nickel-hydrogen battery | |
Working time | 15h | |
Other | ||
Point counter | LT402L (Laser point Counter) | |
Data interface | RS-232C | |
Instrument size | 153×175×328 mm | |
Operating temperature | -20℃ to + 50℃ | |
Instrument weight | 4.5 kg | |

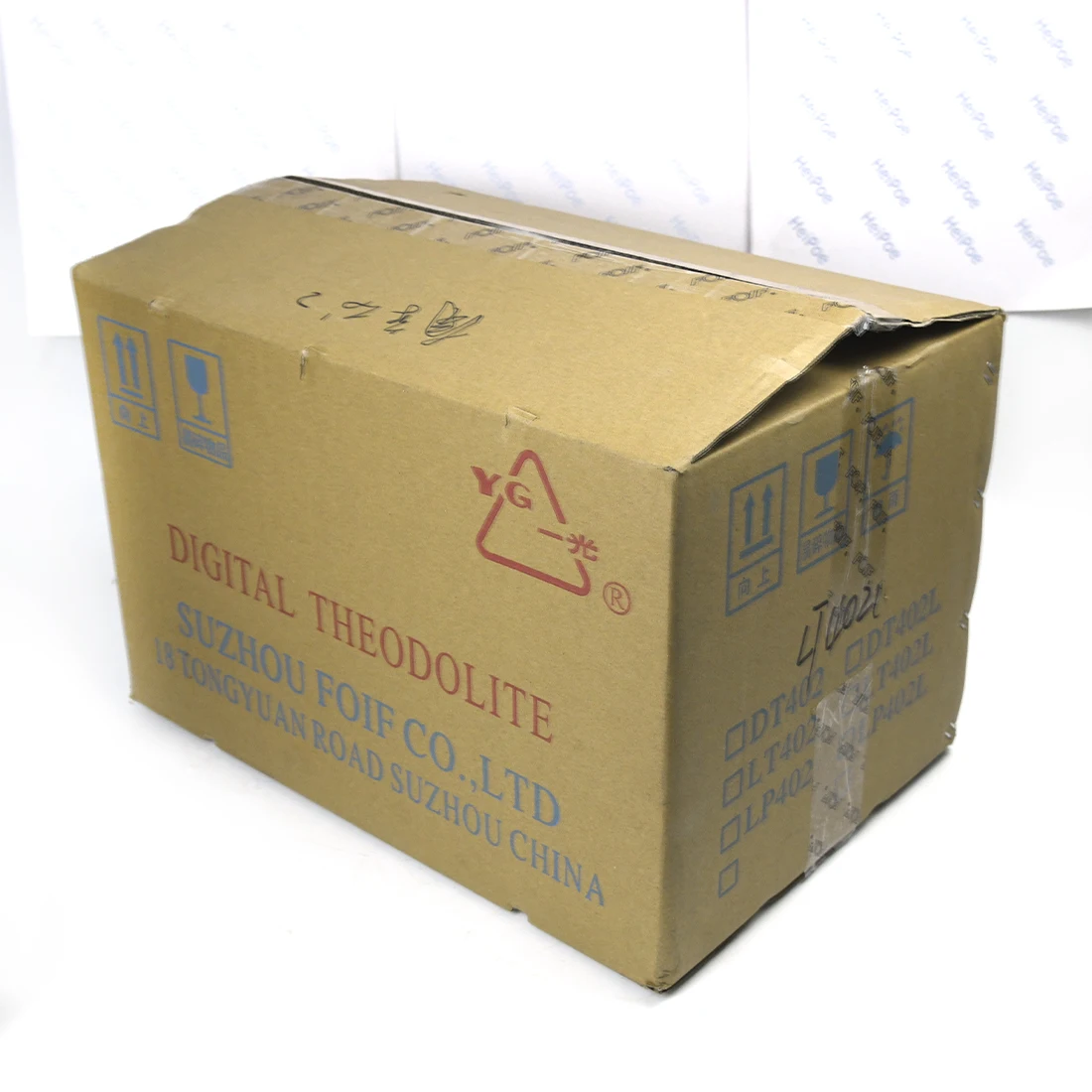

Product packaging
