Китайский бренд строительные инженерные башенные краны
- Категория: Other Used Cranes >>>
- Поставщик: Wuhan,Haomiao,Cable,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 29750.78 $* | 31238.91 $* |
| Aug-20-2025 | 29500.89 $* | 30975.57 $* |
| Jul-20-2025 | 24750.55 $* | 25988.68 $* |
| Jun-20-2025 | 29000.46 $* | 30450.90 $* |
| May-20-2025 | 25250.56 $* | 26513.74 $* |
| Apr-20-2025 | 28500.30 $* | 29925.49 $* |
| Mar-20-2025 | 28250.43 $* | 29663.37 $* |
| Feb-20-2025 | 28000.71 $* | 29400.39 $* |
| Jan-20-2025 | 27750.77 $* | 29138.32 $* |
Характеристики
Feature: Tower Crane
Machinery Test Report: Provided
Core Components: PLC, Engine, Bearing, Gearbox,
Machinery Test Report: Provided
Core Components: PLC, Engine, Bearing, Gearbox,
insulation material: Rubber /neoprene/EPR
Rated Lifting Moment: 100T.M
After-sales Service Free spare parts
Rated Lifting Moment: 100T.M
After-sales Service Free spare parts
Provided:
Weight (KG): 29600 kg
Certification: CE/ISO9001
Applicable Industries: Construction works
Marketing Type: Hot Product 2019Provided
Marketing Type: Hot Product 2019Provided
Video outgoing- Provided
inspection:
Application: Industrial
Rated Loading Capacity: 6 TON
Max. Lifting Height: 40m
sheath material: rubber /neoprene/CPE
After Warranty Service: Field maintenance and repair
Application: Industrial
Rated Loading Capacity: 6 TON
Max. Lifting Height: 40m
sheath material: rubber /neoprene/CPE
After Warranty Service: Field maintenance and repair
service
Product Overview

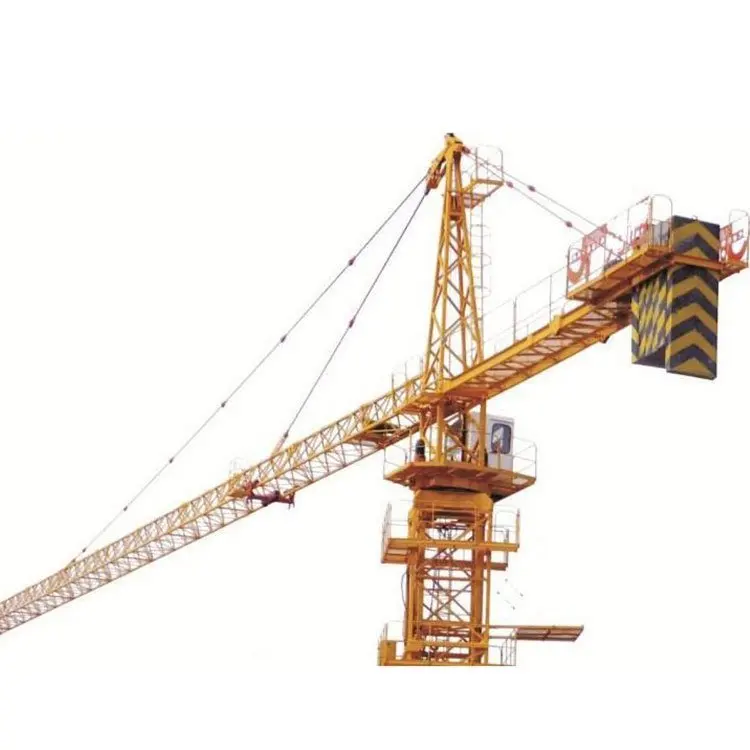

XGA6012-6S model tower crane 6ton flat-top tower crane
XCMG Tower Crane used PLC control.Hoisting mechanism using high-power motor, lifting power stronger, more stable operation;Rotating mechanism block torque is relatively large, relative to other equivalent models, the torque is more powerful. Machinemodeling and painting for specialized industrial design, beautiful appearance coordination.
1. Stronger and better lifting performance.
2. Self-pressure counter weight technology, safe and reliable.
3. Aviation plugs,prevent misconnection; high system reliability and low maintenance cost.
4. Compact design of whole machine, transfer operation is convenient and efficient.
PRODUCT SPECIFICATIONS
Item | Unit | Parameter |
Rated lifting moment | t.m | 100 |
Maximum lifting capacity/working range | t/m | 6.0/16.4 |
m/tMaximum boom length/boom end hoisting weight | m/t | 60/1.2 |
Independent height | m | 40 |
Maximum attachment height/overhang height | m | 199.6/32.4 |
Lifting capacity rope | m | 400 |
Tower configuration | Square tube integral section 1.6m×1.6m×2.8m | |
Lifting speed | m/min | 80(2α) |
Luffing speed | m/min | 50/26 |
Swing speed | m/min | 0～0.6 |
Lifting power | KW | 24/24/5.4 |
KLuffing power | KW | 3.3/2.2 |
Rotation power | KW | 2×3.7 |
KWTotal power (excluding jacking) | kW | 34.7 |

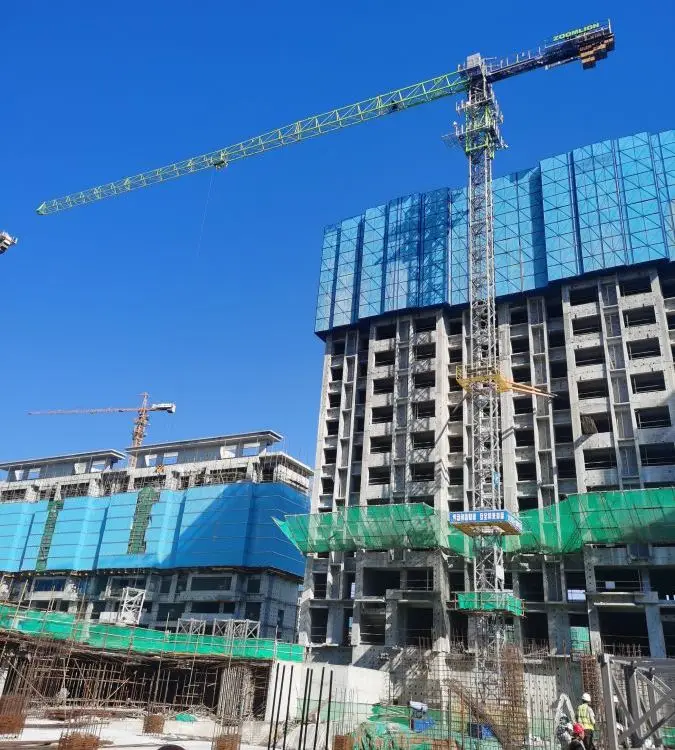

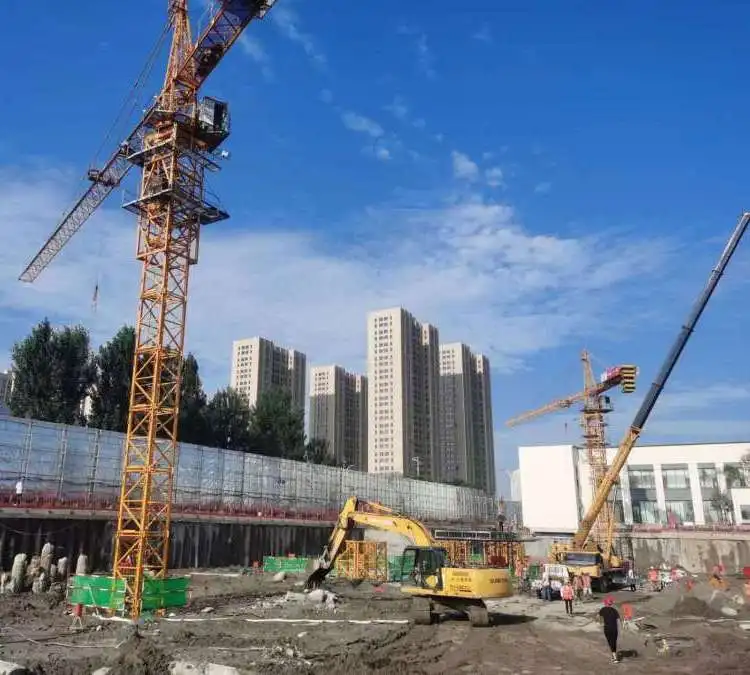

Construction site
1. Q: Height of the Tower Crane:our building will be 20 layers, then how much meters would be the height of tower crane?
A:Calculation:20*3+5~7m=53~55m
2. Q:What is the Free Standing Height of your tower crane? What is the maximum height of your tower crane with attached collars?
A: Please check the corresponding catalogue according to the model type.
3. Q: How about the Max Rope Capacity? Length of the steel rope?
A: Please check the corresponding catalogue according to the model type.
4. Q: This is the architechtural drawing,please advise where to set the tower crane / construction hoist?
A: Please send it to me. I shall ask my architechtural engineer to confirm it for you.
5. Q: How about the after-sale quality guarantee?
A: Please read our detailed warranty terms.
6. Q: Would you go abroad to help us with the installation?
A: Lately we are mainly doing the on-line guidance for installation work. If the customers are in need,
we may recommend our local partners there to help.
7. Q: What qualified certificates do you have?
A: We have almost all of them.
8. Q: The environment here is special, can your tower crane be used here?
A: We may make specific design for you according to you specific requests.
A:Calculation:20*3+5~7m=53~55m
2. Q:What is the Free Standing Height of your tower crane? What is the maximum height of your tower crane with attached collars?
A: Please check the corresponding catalogue according to the model type.
3. Q: How about the Max Rope Capacity? Length of the steel rope?
A: Please check the corresponding catalogue according to the model type.
4. Q: This is the architechtural drawing,please advise where to set the tower crane / construction hoist?
A: Please send it to me. I shall ask my architechtural engineer to confirm it for you.
5. Q: How about the after-sale quality guarantee?
A: Please read our detailed warranty terms.
6. Q: Would you go abroad to help us with the installation?
A: Lately we are mainly doing the on-line guidance for installation work. If the customers are in need,
we may recommend our local partners there to help.
7. Q: What qualified certificates do you have?
A: We have almost all of them.
8. Q: The environment here is special, can your tower crane be used here?
A: We may make specific design for you according to you specific requests.
