Product Description
Brief Introduction of FRP Pipe Fittings
FRP pipe fitting is manufactured by the hand lay-up, contact molding and spray-up process. In hand lay-up and contact molding processes veil and alternate layers of mat and woven roving saturated with resin are applied on the mold. In spray-up process continuous strand roving is fed through a chopper gun, combined with catalyzed resin, and sprayed onto the mould surface.
We can offer various specifications and materials flanges, elbows, reducer and tees, 3 way and 4 way.
Specification List
1 Dimensions
Flange, hub, and neck thicknesses meet or exceed ASME Sec. X, ASME RTP-1, ASTM D3299, and PS 15-69.
a. Diameter: DN15-DN5000 (mm)
b. Pressure rating: 0.1MPa-2.5MPa/PN1-PN25
c. Hardness level: SN1250-SN10000 (N / m²)
d. Other pressure levels, stiffness grade, non-standard length of the pipe can be custom processing and we can also do
2 Pressure Rating
Flanges are stocked in 50psi, 100psi, and 150psi. All bolt holes and bolt circles are per ANSI B16.5 150 lb. drilling.
3 Resin Coating
All bolt holes and spot facing are resin coated.
c. Hardness level: SN1250-SN10000 (N / m²)
d. Other pressure levels, stiffness grade, non-standard length of the pipe can be custom processing and we can also do
2 Pressure Rating
Flanges are stocked in 50psi, 100psi, and 150psi. All bolt holes and bolt circles are per ANSI B16.5 150 lb. drilling.
3 Resin Coating
All bolt holes and spot facing are resin coated.
Product Advantages
A. High Intensity
B. Corrosion Resistance
C. Flame retardant, heat resistance and good antifreeze
D. Good electric insulation properties
E. Flexible System
F. Finish highly
G. Installation of the convenient
H. Light weight, ease of installation and transport
I. A wide range of applications
G. Lightness and high strength, expedient method of connection and operation specification.

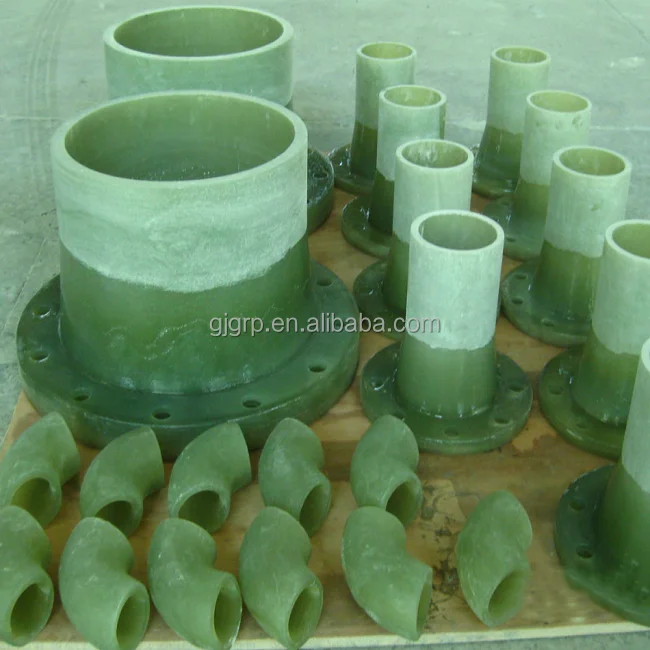

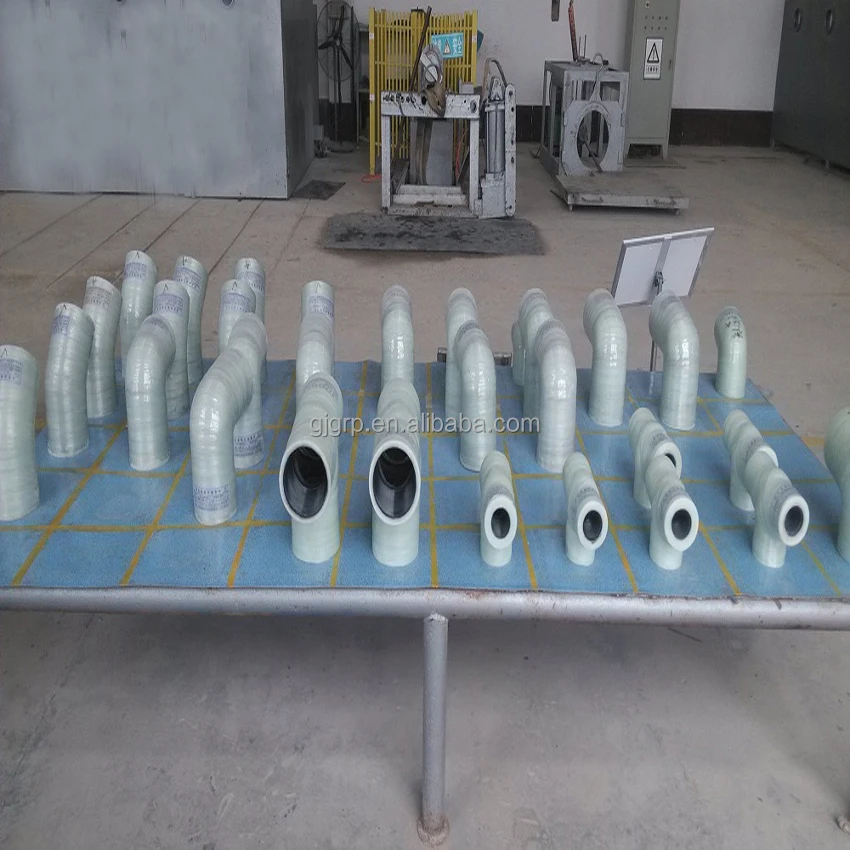

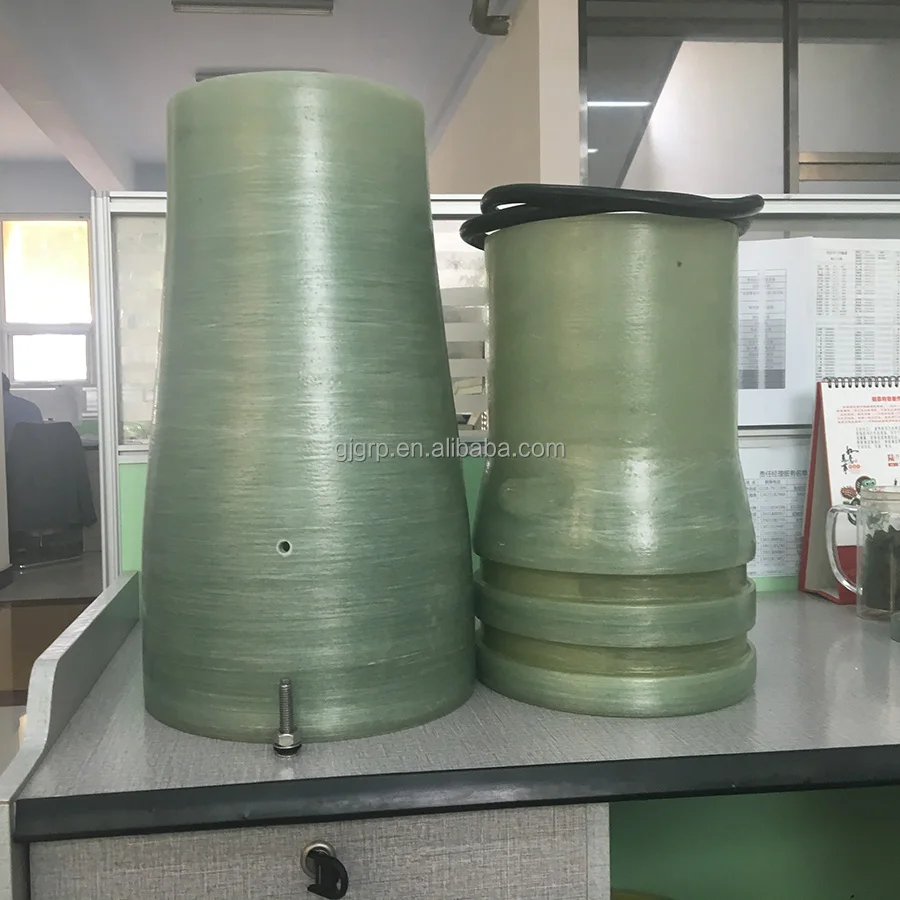

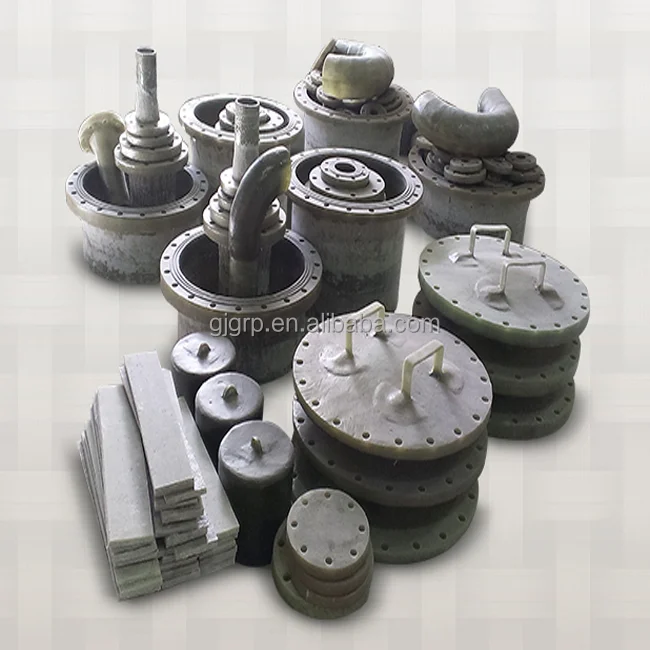

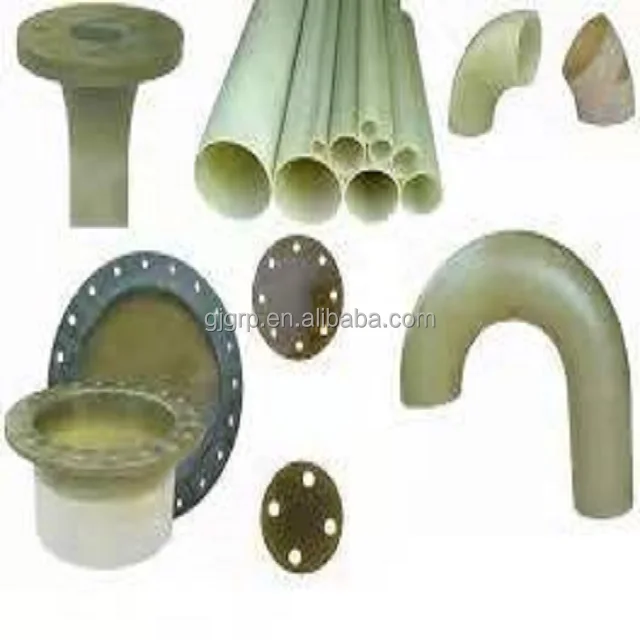

Detailed Images
Project Cases
Company Profile
Brief Introduction of Hengshui Gains Trade Co., Ltd.
Hengshui Gains Trade Co., Ltd. located in Hengshui City, Hebei Province - biggest FRP products base in China, is one combines advantages of local different industries and consists of several large-scale manufacturers, we can provide one-stop solution including design, manufacturing, shipping, installation, commissioning and technical consultation service with over 20-year industry experience.
Our main products:
1. FRP vessel and towers
2. High, medium and low pressure FRP pipe & fittings
3. PVC / FRP, CPVC / FRP, PP / FRP, PVDF / FRP, PE / FRP, HDPE / FRP vessel, tower and pipe
4. Polymer concrete tank
5. S&F double-layer oil storage tank
6. FRP pultruded profiles
7. FRP moulded products
8. FRP cooling tower
9. Assembly panel water tanks
10. full series of frp product manufacturing machine, such as frp grating production line, frp winding tank/pipe production line, FRP pultruded machine, hydraulic press machine, etc.
With great quality, professional service and high credit, our company has gained clients and projects from USA, Brazil, Mexico, Ecuador, Australia, Poland, Italy, Negria, Congo, South Africa, India, the Philipines, Indonesia, Thailand, etc.
Workshop and Client Visit
Certification
