300kW портативный банк нагрузки для решения генератора с
- Категория: Battery Testers >>>
- Поставщик: Hebei,Kaixiang,Electrical,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.23 $* | 0.4 $* |
| Aug-18-2025 | 0.46 $* | 0.82 $* |
| Jul-18-2025 | 0.71 $* | 0.8 $* |
| Jun-18-2025 | 0.30 $* | 0.80 $* |
| May-18-2025 | 0.60 $* | 0.8 $* |
| Apr-18-2025 | 0.92 $* | 0.74 $* |
| Mar-18-2025 | 0.38 $* | 0.51 $* |
| Feb-18-2025 | 0.65 $* | 0.13 $* |
| Jan-18-2025 | 0.88 $* | 0.82 $* |
Характеристики

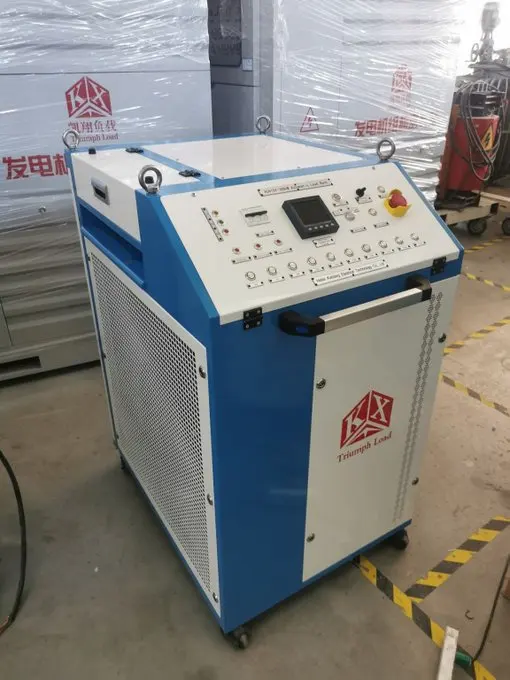

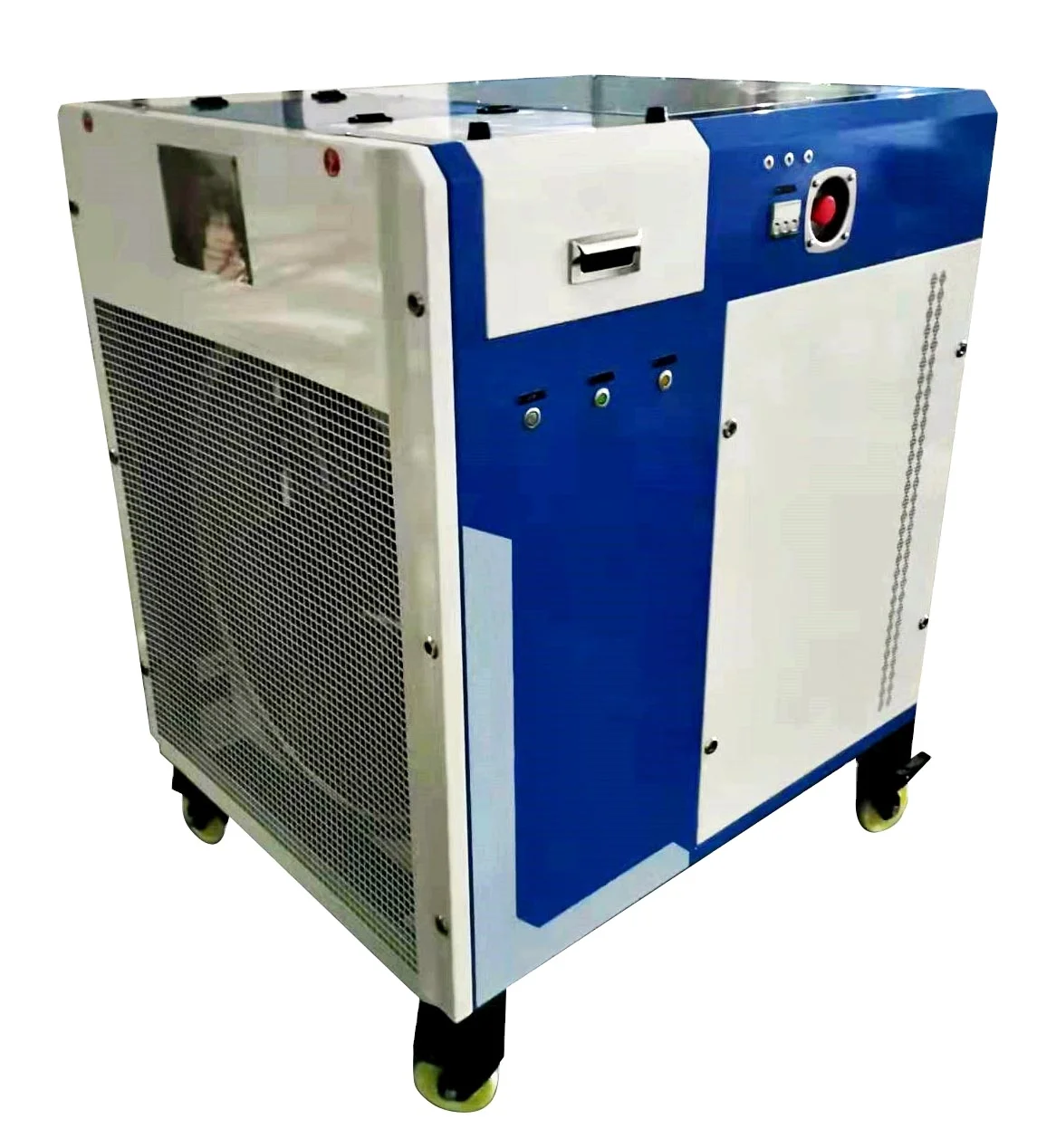

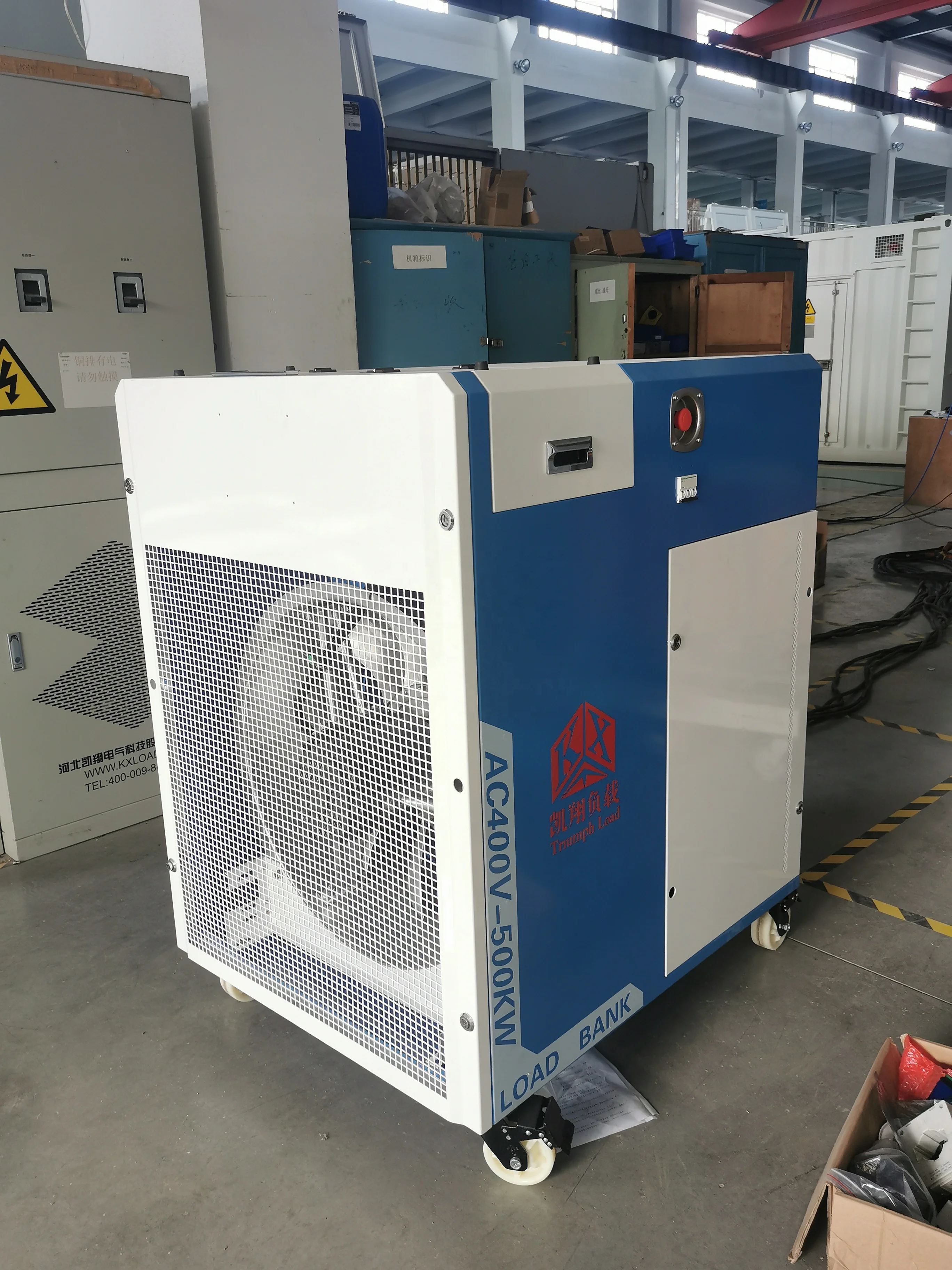

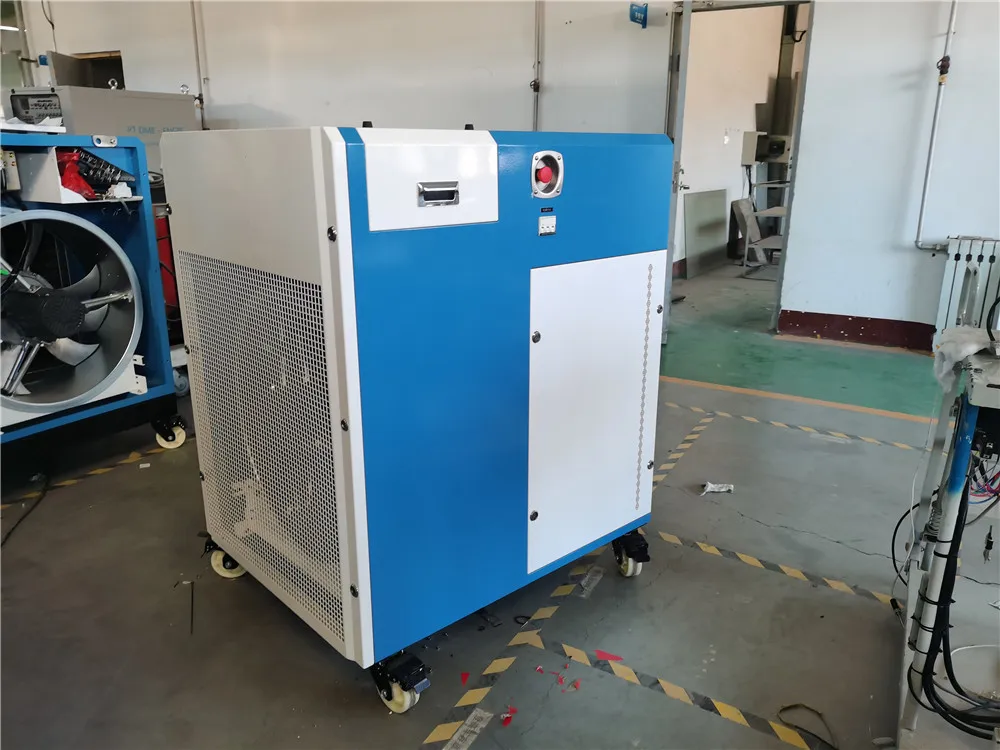

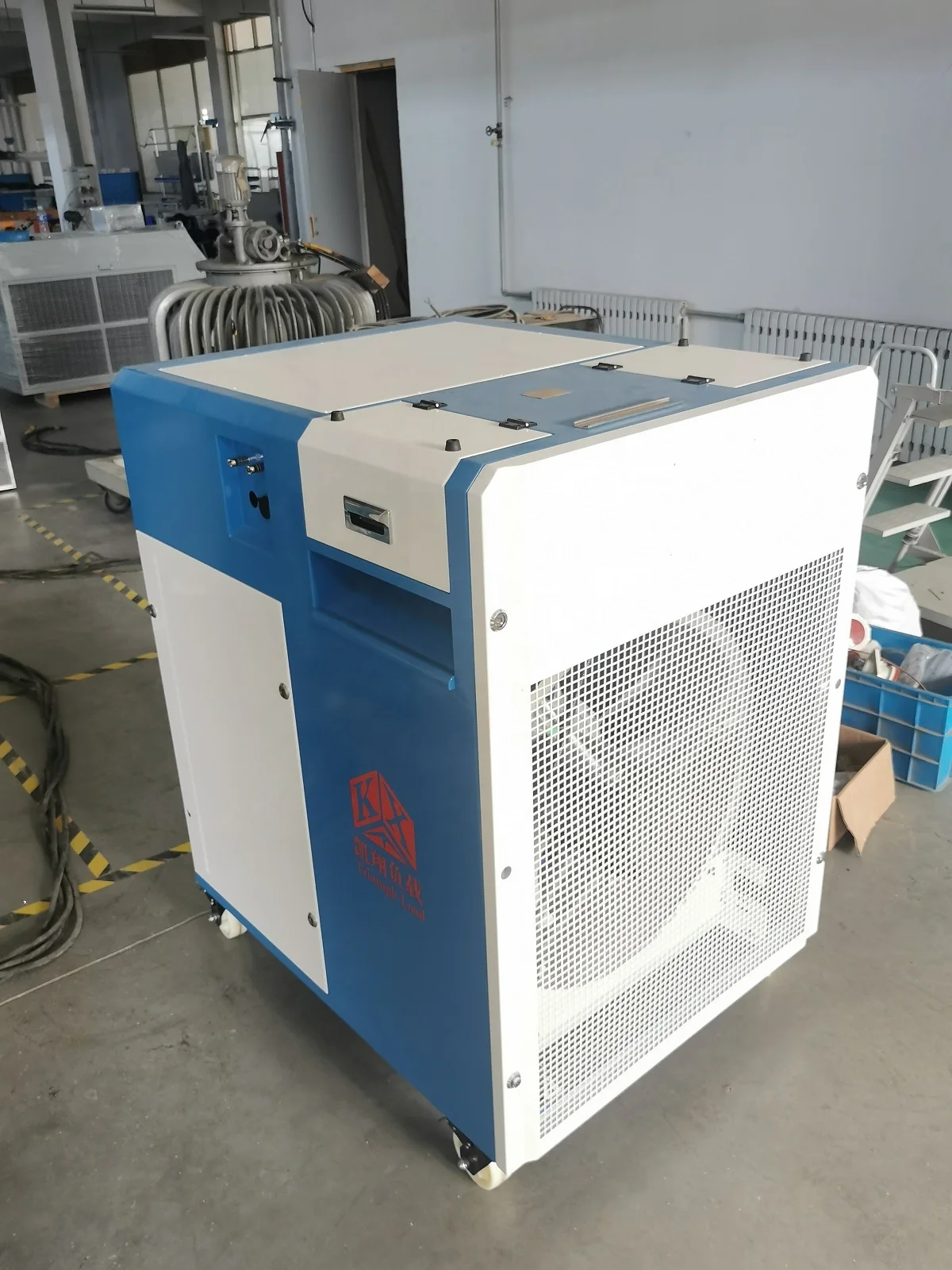

Portable Load Bank
Products Description
Introduction
Portable Load Banks Direct, Kaixiang is a leading manufacturer of high-capacity Load Banks. The Series of Portable Indoor Load Banks offers the most robust, high-capacity designs in the industry. It is setting the standard with intelligent operator controls, safety indication layouts, adjustable load step resolution, and lightweight designs. The Series of portable products is the perfect solution for regularly scheduled maintenance testing and commissioning of mission-critical standby emergency power systems.
Main features
1. Latest in digital metering
2. Manual or remote control
3. Castors and lifting rings
4. Continuous duty
5. Data logging software included
6. Branch circuit fuse protection
7. High velocity cooling fans
8. Rugged construction frame
9. Over-temperature protection
10. Customized to meet your specifications
11. Weather proof enclosure
12. Self contained / external control voltage
2. Manual or remote control
3. Castors and lifting rings
4. Continuous duty
5. Data logging software included
6. Branch circuit fuse protection
7. High velocity cooling fans
8. Rugged construction frame
9. Over-temperature protection
10. Customized to meet your specifications
11. Weather proof enclosure
12. Self contained / external control voltage
Specification
Company Profile
Technical Parameters | ||
Rated Voltage /Frequency | AC400V 3 phase 4 wire /50Hz | |
Load Power | Resistive load:300kW@400VAC | |
Load Step AC400V/50Hz | Resistive Load:10 steps 1、2、2、5、10、10、20、50、100、100kW. Noted: When input voltage is lower than rated voltage, gears power changes according to Ohm's law. | |
Power Factor | 1 | |
Load Tolerance (each step) | ±5% | |
Load Tolerance (overall) | ±3% | |
Display Precision | 0.5 class | |
Control Power Supply | External 230VAC single phase /50Hz,about 2kW | |
Wire Connection | Load power input - copper bar (star connection); Control power input - aviation socket. | |
Communication Interface | RS485、RS232 | |
Insulation Class | F | |
Duty Cycle | Continuous | |
Cooling | Forced air cooling,horizontal air inlet and horizontal air outlet. | |
Transportation | For hoisting, there are lifting lug on the top and castors at the bottom. | |
Casing Color | Blue-white | |
Dimension | About 900mm*690mm*1100mm（L*W*H) | |
Weight | About 260kg | |
Operating Environment Parameter | ||
Workplace | Indoor | |
Work Temperature | -20℃～+50℃； | |
Relative Humidity | ≤95%； | |
Altitude | ≤2500M； | |
Atmospheric Pressure | 86～106kPa； | |
Hebei Kaixiang Electrical Technology Co., Ltd is a leading manufacturer in emergency power supply test & maintenance industry.Specialized in the design, R&D, manufacture of the high capacity AC & DC load bank, it owns the professional intelligent power supply testing equipment R&D centre in China. Kaixiang offer one-stop solutions to generator set & battery & UPS power manufacturers.
Its products are widely used in data centre, shipbuilding, offshore platform, state grid, nuclear power, hospital, communication, railway etc filed. Kaixiang is strategy partner of many famous company, such as Cummins, Caterpillar, Kohler,Jiangnan Shipyard, CSSC,CSIC, State grid, China mobile, Tecent, Baidu, Sinopec, CETC etc. Some of its products have been exported to America, Singapore, Israel, Japan, United Kingdom, Saudi Arabia, Australia, South Korea, Thailand, Sri Lanka, Angola etc. Through years of development, “Triumph Load” already famous brand in power supply detection industry in China.

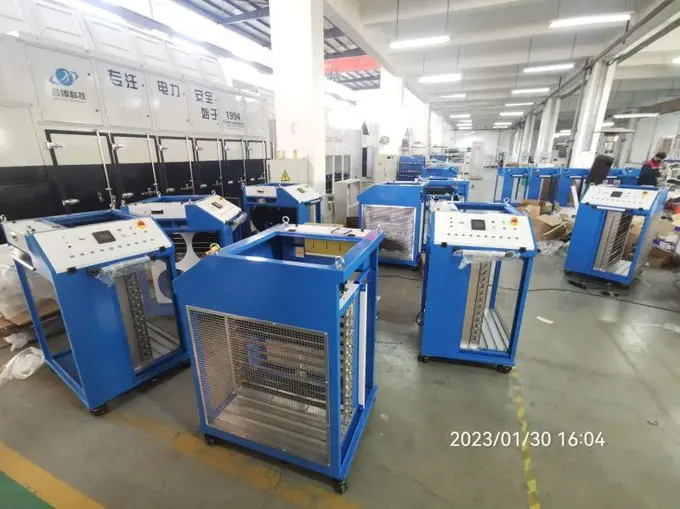

Workshop
Package and Transportation
Exhibition
Certifications
FAQ
Why choosing us
1. Professional manufacturer of AC/DC Load Bank in China, dedicated to this industry for more than 20 years.
2. Lot of patent technology and scientific research awards gainer in China.
3. Advanced detection method and strict inspection procedure build the qualified quality.
4. Customized production meet the individual requirement.
5. Prompt delivery & excellent after sales service.
6. Cooperate with many well-known enterprise, offer OEM and ODM service to world famous brands.
7. Certified with China Classification Society (CCS) and ISO9001:2015 Quality Certificate.
8. Triumph Load is the famous brand in the emergency power supply test & maintenance industry in China.
2. Lot of patent technology and scientific research awards gainer in China.
3. Advanced detection method and strict inspection procedure build the qualified quality.
4. Customized production meet the individual requirement.
5. Prompt delivery & excellent after sales service.
6. Cooperate with many well-known enterprise, offer OEM and ODM service to world famous brands.
7. Certified with China Classification Society (CCS) and ISO9001:2015 Quality Certificate.
8. Triumph Load is the famous brand in the emergency power supply test & maintenance industry in China.
