Электрический вилочный погрузчик литий-ионный аккумулятор контроллер двигателя постоянного тока
- Категория: Forklifts >>>
- Поставщик: SOCMA,INTERNATIONAL,TRADE,CO.,LTD.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 13328.82 $* | 13994.58 $* |
| Aug-16-2025 | 13216.49 $* | 13877.13 $* |
| Jul-16-2025 | 11088.66 $* | 11642.54 $* |
| Jun-16-2025 | 12992.58 $* | 13642.0 $* |
| May-16-2025 | 11312.75 $* | 11878.22 $* |
| Apr-16-2025 | 12768.92 $* | 13406.79 $* |
| Mar-16-2025 | 12656.35 $* | 13289.48 $* |
| Feb-16-2025 | 12544.38 $* | 13171.4 $* |
| Jan-16-2025 | 12432.83 $* | 13054.54 $* |
Характеристики
Product Overview

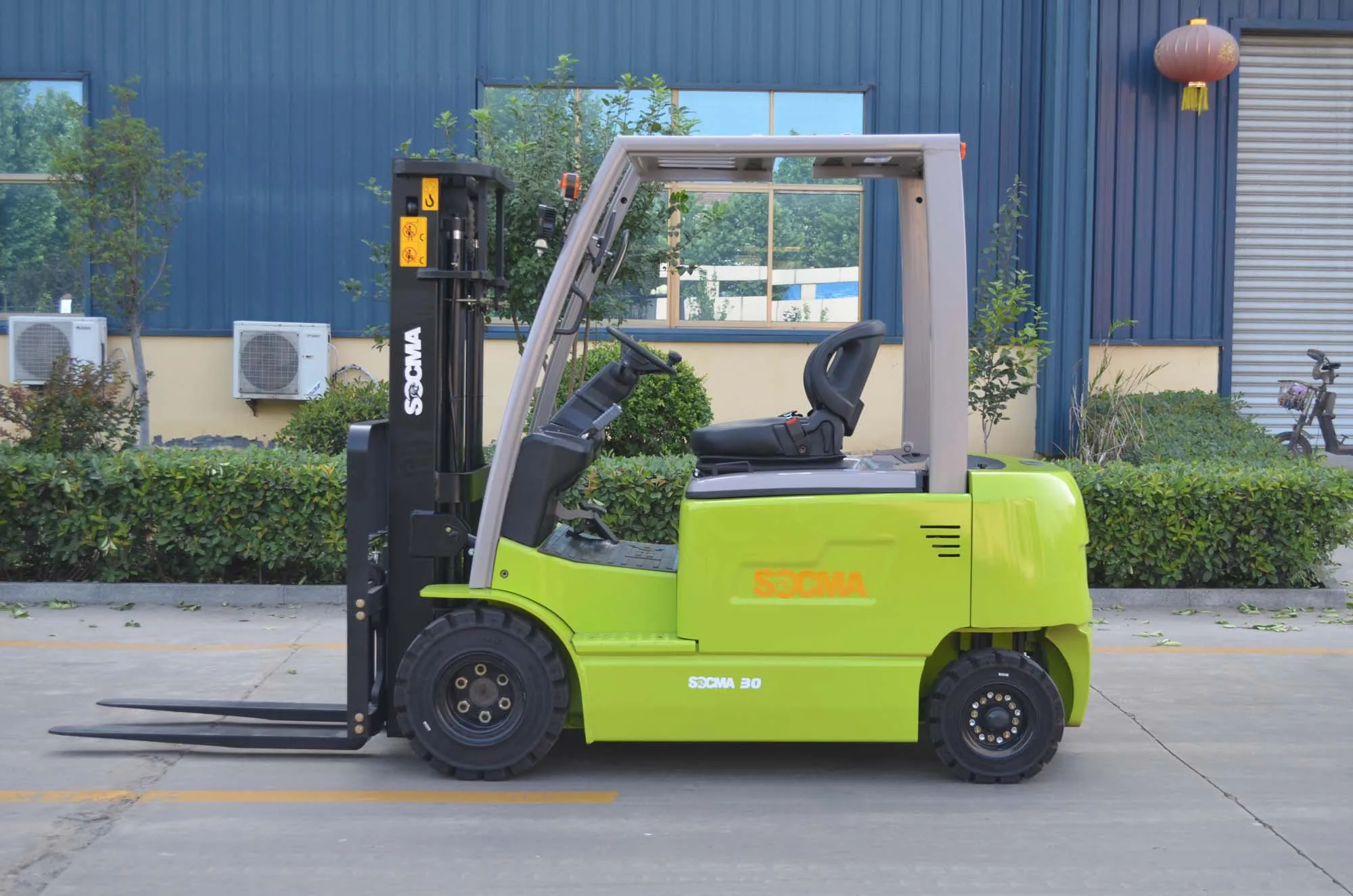

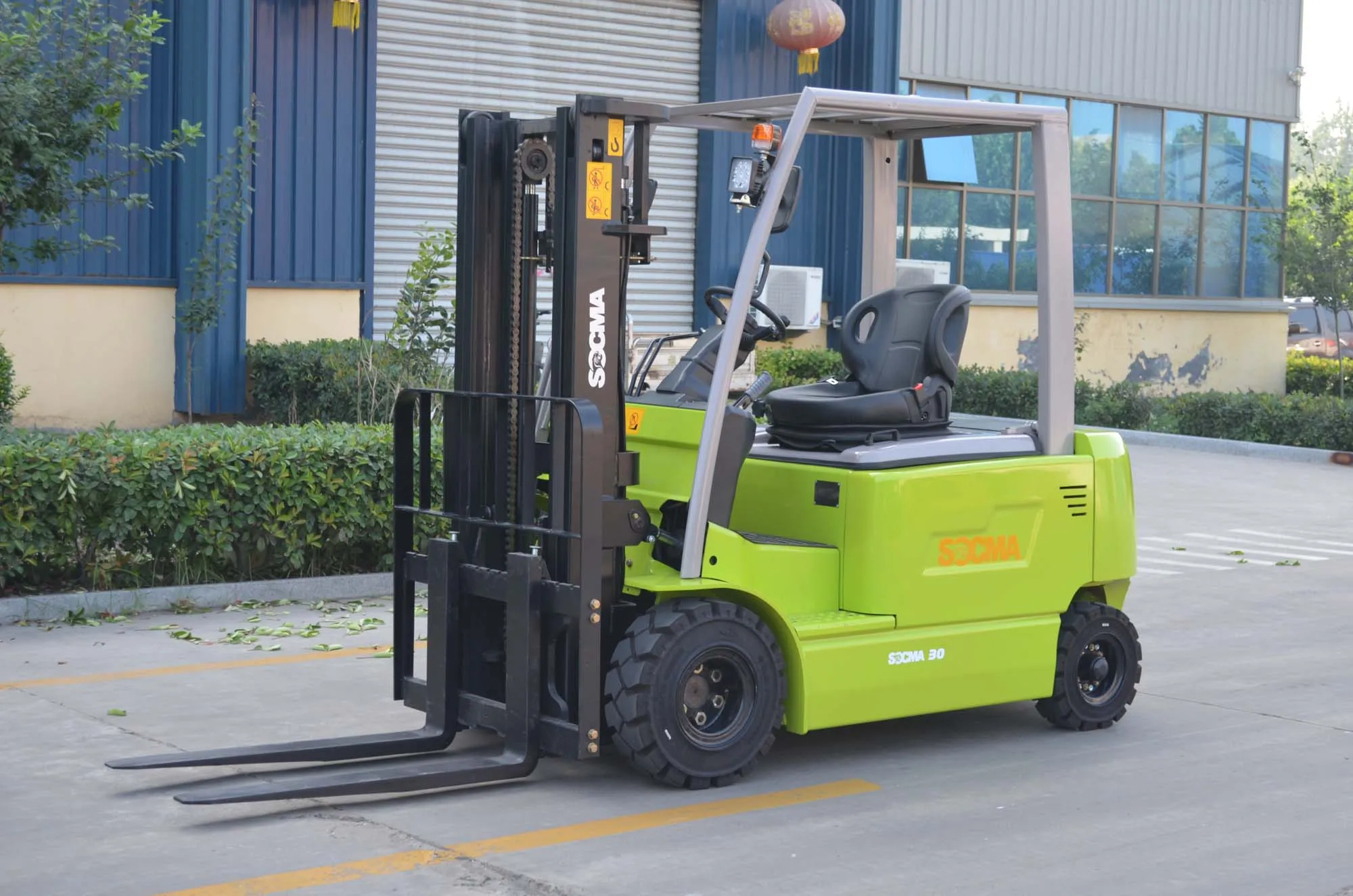

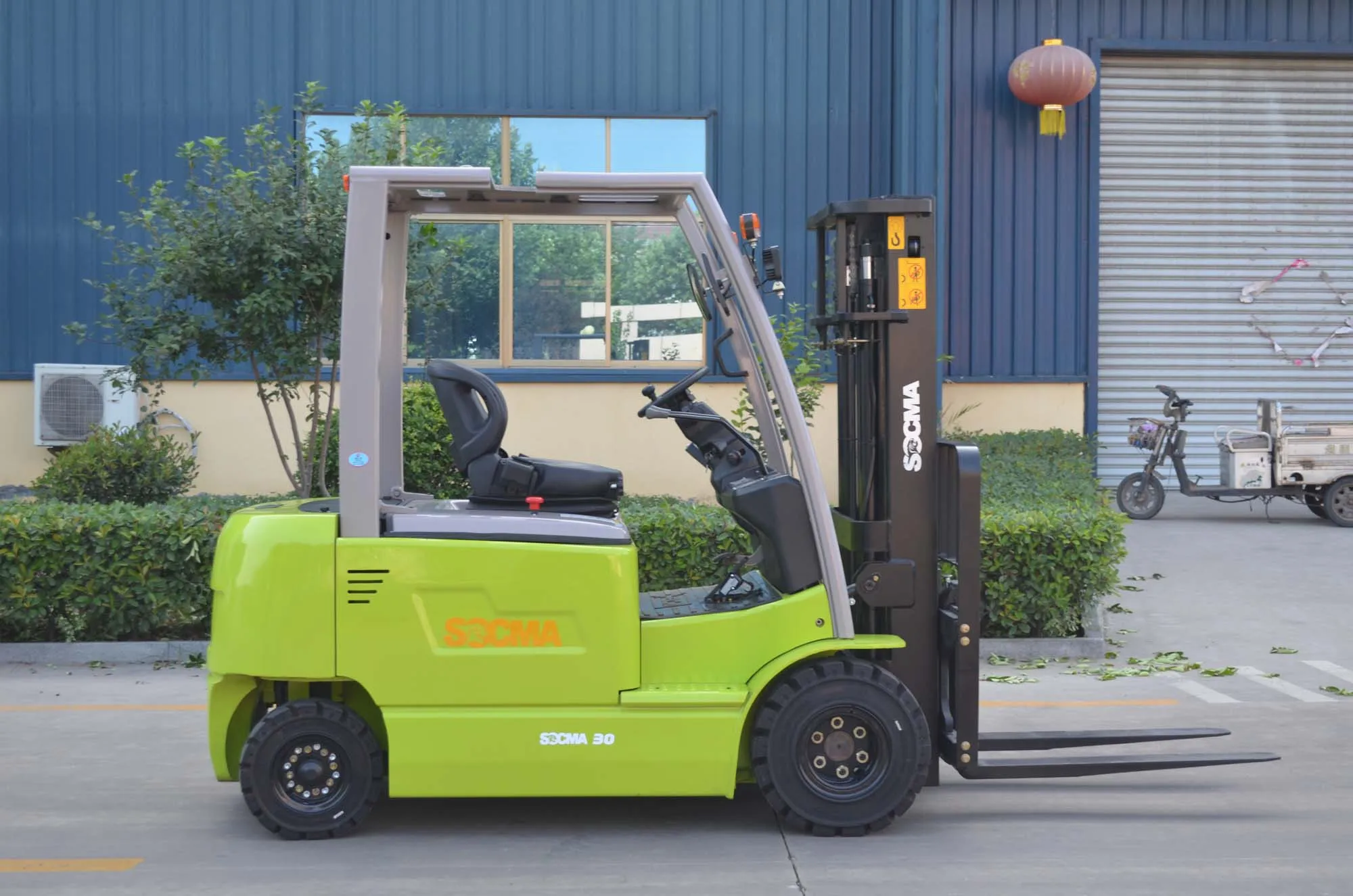

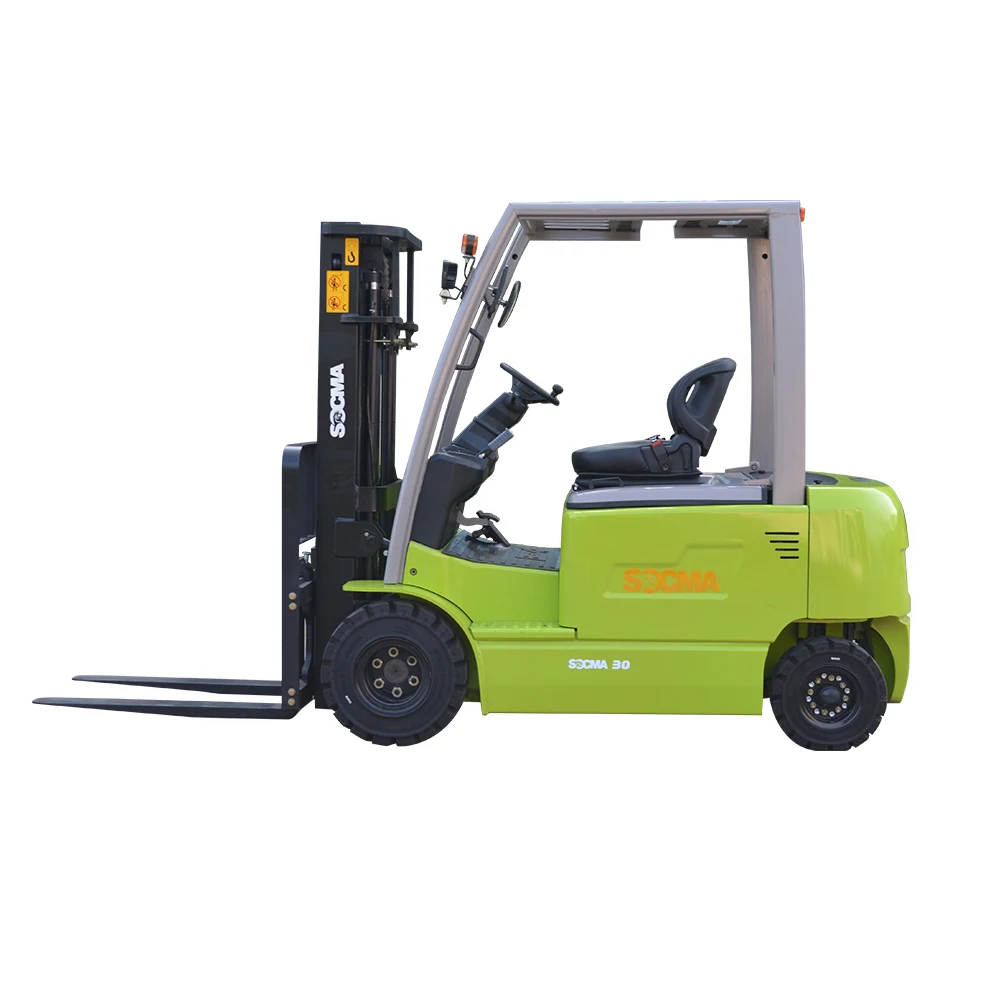

FB430 3 Ton Electric Froklift
PRODUCT SPECIFICATIONS
Model | FB430 | ||||||
Characteristic | Rated lifting weight | kg | 3000 | ||||
Load center distance | mm | 500 | |||||
Overhang | mm | 350 | |||||
Front overhang | mm | 494.5 | |||||
Wheelbase | mm | 1800 | |||||
total weight (No load With battery) | kg | 5150 | |||||
size | Total length (To vertical surface of fork) | mm | 2595 | ||||
Total width | mm | 1274 | |||||
Height of overhead guard | mm | 2140 | |||||
Standard mast height that does not rise | mm | 2120 | |||||
Standard mast Maximum stretch height | mm | 4080 | |||||
Maximum fork height (Rated lifting weight) | mm | 3000 | |||||
Standard mast inclination( Lean forward/Reclining) | deg | 7/7 | |||||
Ground clearance of frame | mm | 130 | |||||
Standard mast Free lifting height | mm | 140 | |||||
Turning radius (Smallest outside) | mm | 145 | |||||
Minimum theoretical width of right-angle channel | mm | 2280 | |||||
Minimum theoretical width of right-angle stacking channel | mm | 2340 | |||||
Fork pitch range | mm | 4280 | |||||
The smallest x The largest | mm | 250x1100 | |||||
performance | Maximum travel speed (No load) | Km/h | 19/17.5 | ||||
Lifting speed (fully loaded/No load) | Mm/s | 450/550 | |||||
speed of decent(fully loaded/No load) | Mm/s | 500/500 | |||||
Largest traction(fully loaded/No load) | N | 17760\\16800 | |||||
Maximum grade (fully loaded) | % | 20 | |||||
Tires | Front wheel | 23x9-10 | |||||
rear wheel | 18x7-8 | ||||||
powersystem | Battery(Optional lithium battery) | Voltage | v | 80 | |||
Capacity (Optional range) | ah | 400 ~ 720 | |||||
Travel power of walking motor | KW/RPM | 2X7.5 | |||||
Lifting motor rated power | KW/RPM | 23.5 | |||||
Controller form | AC | ||||||
