Новейшие электровозы для
- Категория: Locomotive >>>
- Поставщик: Shandong,China,Coal,Industrial,&,Mining,Supplies,Group,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 688567.1 $* | 702338.72 $* |
| Jul-17-2025 | 558444.25 $* | 569613.6 $* |
| Jun-17-2025 | 677724.41 $* | 691278.84 $* |
| May-17-2025 | 672302.81 $* | 685748.9 $* |
| Apr-17-2025 | 536757.26 $* | 547492.6 $* |
| Mar-17-2025 | 661458.2 $* | 674687.71 $* |
| Feb-17-2025 | 656037.71 $* | 669158.16 $* |
| Jan-17-2025 | 650615.61 $* | 663627.98 $* |
Характеристики
Products Description

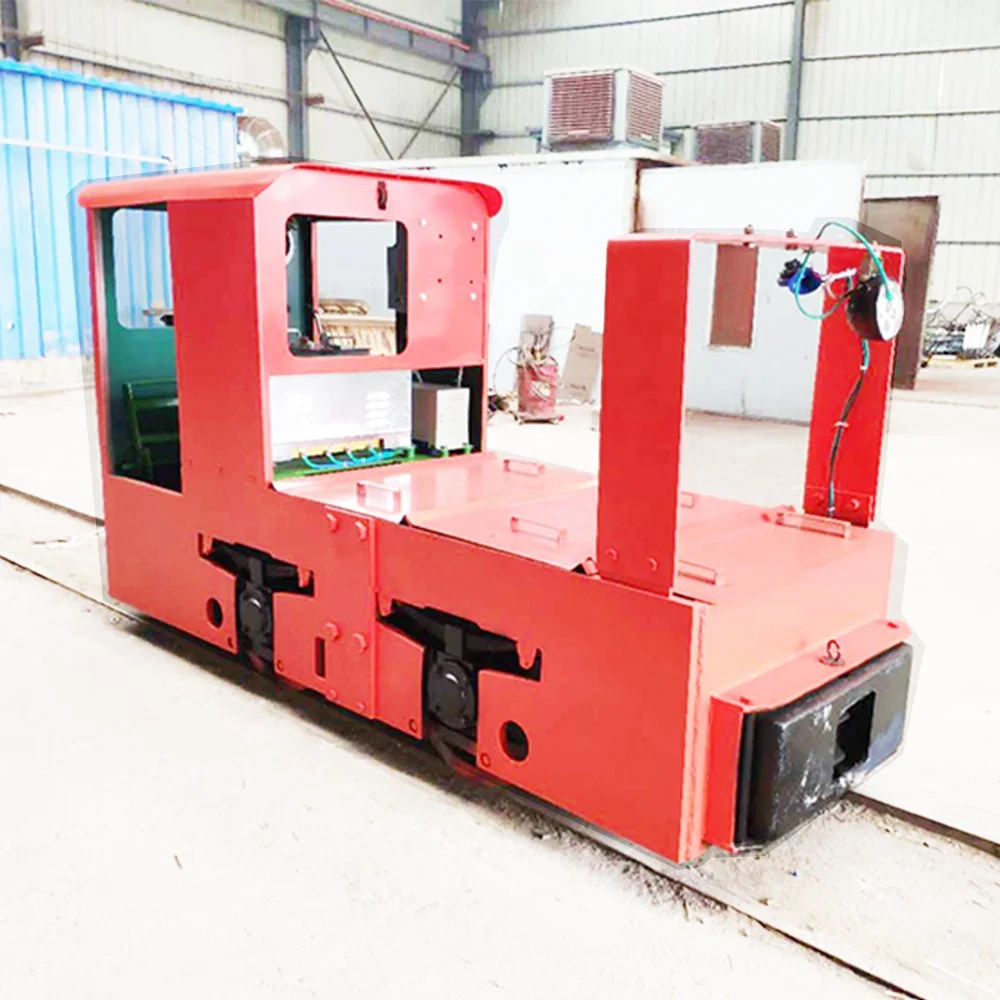

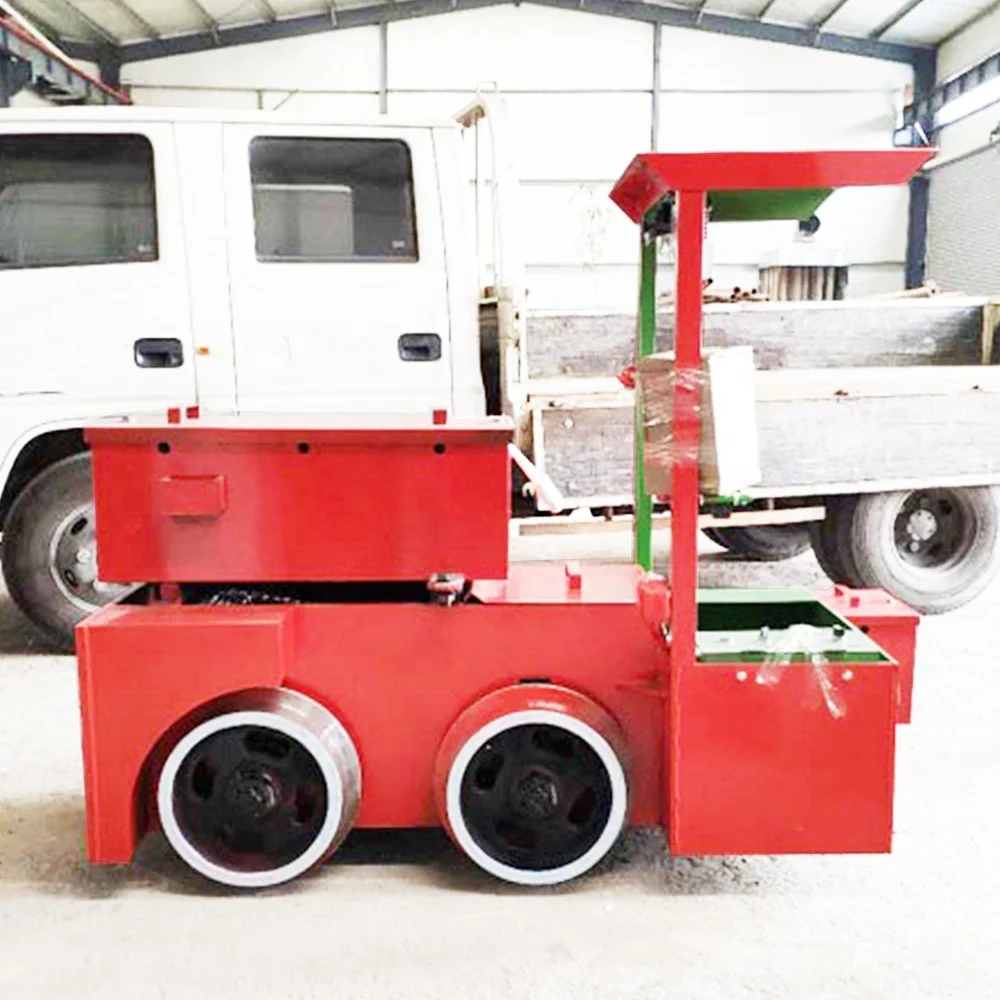

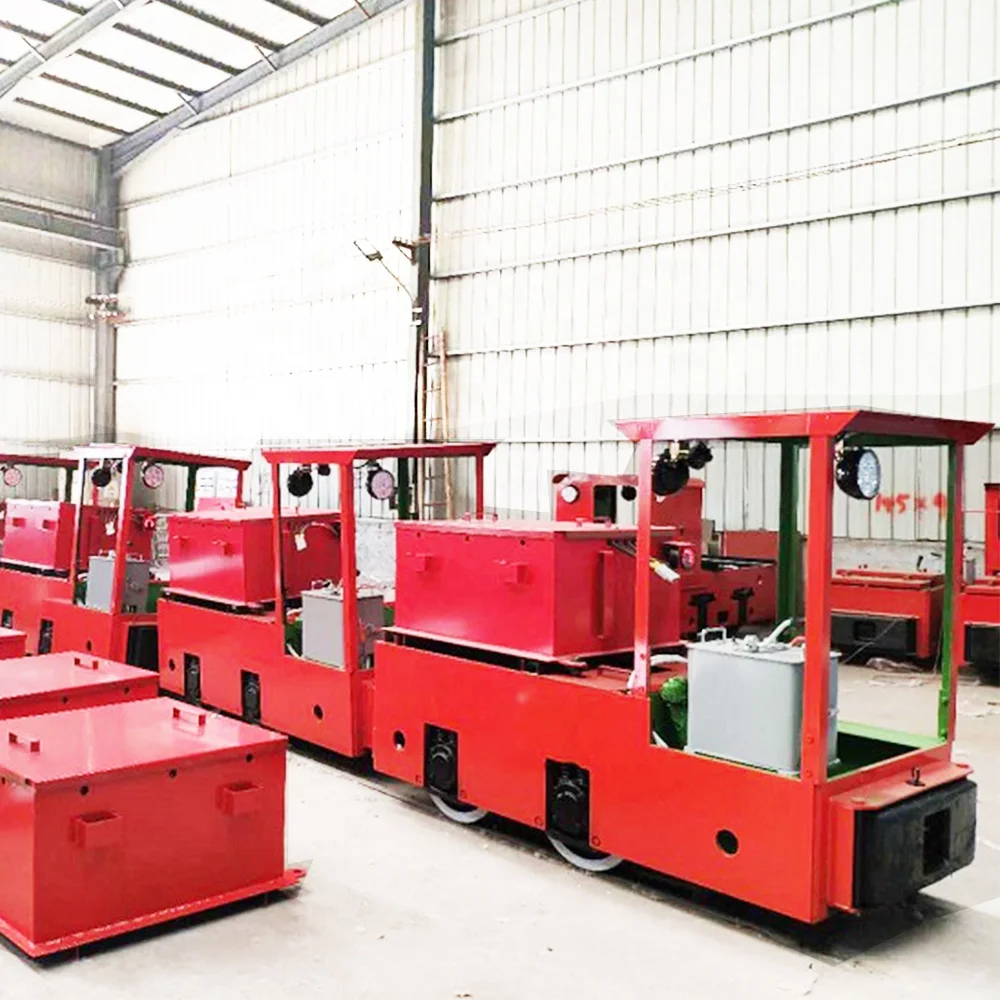

Introduction of Brand New Coal Mine Electric Locomotives Strong Climbing Ability Mining Battery Locomotives With CE
Mining battery locomotive has two types: general and explosion-proof special type. The motor car adopts IGBT chopper speed regulation and frequency conversion speed regulation technology. Stable start, stable operation, small size, short wheelbase, fast brake and reliable braking; low maintenance, electric brake function, safe and reliable locomotive performance; simple structure and easy maintenance, suitable for roadway small mine transportation and medium and small mine dispatching vehicles.zmwm15
Product Paramenters
Model | CTY2.5/6,7,9G | CTY5/6,7,9G | CTY8/6,7,9G(B) | CTY(L)12/6, 7, 9G | CTY18/6,7,9G(B) | CTY18/6,7,9G(B) | ||||
Self Weight(t) | 2.5 | 5 | 8 | 12 | 15 | 18 | ||||
Track Gauge(mm) | 600, 762 or 900 | 600,762 or 900 | 600,762,900 | 600, 762 or 900 | 600,760 or 900 | 600,762 or 900 | ||||
Traction(kN) | 2.55 | 7.06 | 11.18 | 12.83 | 16.48 | 18.47 | 29.4 | |||
Ma* Speed(km/h) | 4.54 | 7 | 6.2 | 7.8 | 8.7 | 9.6 | 9.8 | |||
Ma*. Traction(kN) | 6.13 | 12.26 | 19.62 | 29.43 | 36.18 | 44.15 | ||||
Power Supply Device | Voltage(V) | 48 | 90 | 110,132 | 140,144 | 192 | 256 | 208 | ||
Capacity(Ah) | 308 or 330 | 385 | 440 | 560 | 620 | 730 | ||||
Power(kW) | 3.5kW*1 | 7.5kW *2 | 11kW*2 | 15kW*2 | 22kW*1 | 30Kw * 2 | 45Kw * 2 | |||
Size | Length(mm) | 2330 | 2850 | 44,704,490 | 5100 | 5200 | 5100 | |||
Width(mm) | 914,1076 or 1212 | 920,1082/1220 | 1062/1190/1212/1350 | 1050, 1212 or 1350 | 1500 | 1500 | ||||
Height(mm) | 1550 | 1550 | 1600 | 1600 | 1920 | 1900 | ||||
Traction Height(mm) | 320 | / | / | / | / | / | / | |||
Wheelbase(mm) | 650 | 850 | 1100 | 1150 | 1220 | 1400 | 2100 | |||
Wheel Diameter(mm) | Φ460 | Φ520 | Φ680 | Φ600,Φ680 | Φ680 | Φ680 | Φ600 | |||
Min. Turning Radius(m) | 5 | 6 | 7 | 10 | 15 | 20 | ||||
Controller | Resistance or Pulsing speed regulation | Resistance or Chopped wave | Resistance,IGBT or Frequency conversion | Resistance, IGBT or AC Converter | Resistance, IGBT or AC Converter | Frequency conversion or chopper speed regulation | ||||
Brake Mode | Mechanical | Mechanism or hydraulic pressure | Mechanical | Mechanical and Pneumatic Brake | Mechanical and Pneumatic Brake | Mechanical, electrical, air brake | ||||
Details Images
Company Profile
Our Advantages
FAQ
1.Factory
Q: Are you Electric Locomotive manufacturer?
A: We are the Electric Locomotive manufacturer. China Coal Group Battery Electric Locomotive factory address is:Jining cirty, Shandong province, China.
2. Packing
Q: What is the container size of Battery Locomotive?
A: The actual size can adjust with how many you need.
3. Lead time
Q: How many days it takes before you deliver the Coal Mine Locomotives to us?
A: For these Mine Locomotives, we need 1 or 2 more days to order wooden boxes or pallets, and 3 days to book flight/vessel and ship the goods to named port/airport.
4. Quality
Q: How do your quality control systems operate?
A: We have professional designer team, and employ experienced engineers to strictly guarantee the production. Meanwhile our factory owns ISO9001 and is CE and SGS certified.
5. Warranty
Q: How to identify the quality about Underground Coal Mine Locomotive for sale?
A: Our Narrow Gauge Locomotive have a 12 months warranty after sale.
