LTMG бульдозер 160 л.с. 180 220 320 дешевый мини-бульдозер с угловым
- Категория: Bulldozers >>>
- Поставщик: Shandong,Ltmg,Heavy,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 5852991.44 $* | 6145641.81 $* |
| Aug-16-2025 | 5803806.96 $* | 6093996.56 $* |
| Jul-16-2025 | 4869295.71 $* | 5112760.40 $* |
| Jun-16-2025 | 5705437.25 $* | 5990709.40 $* |
| May-16-2025 | 4967665.3 $* | 5216048.33 $* |
| Apr-16-2025 | 5607067.24 $* | 5887420.75 $* |
| Mar-16-2025 | 5557882.57 $* | 5835776.0 $* |
| Feb-16-2025 | 5508698.40 $* | 5784133.92 $* |
| Jan-16-2025 | 5459513.0 $* | 5732489.21 $* |
Характеристики

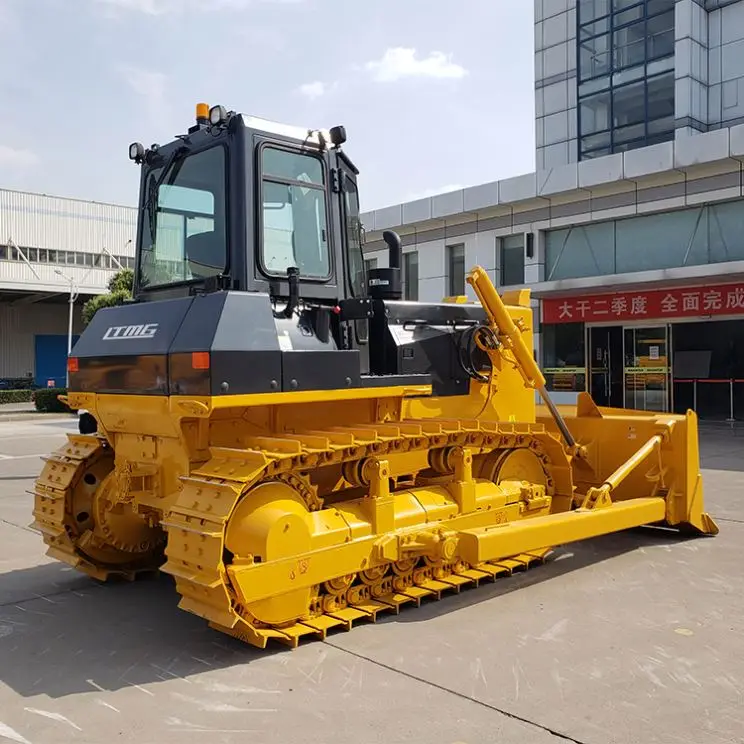

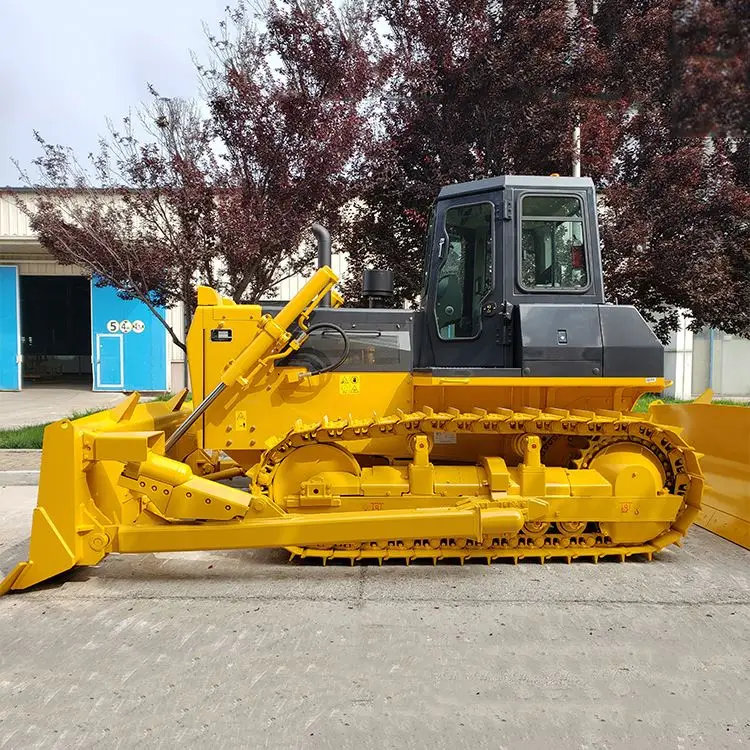

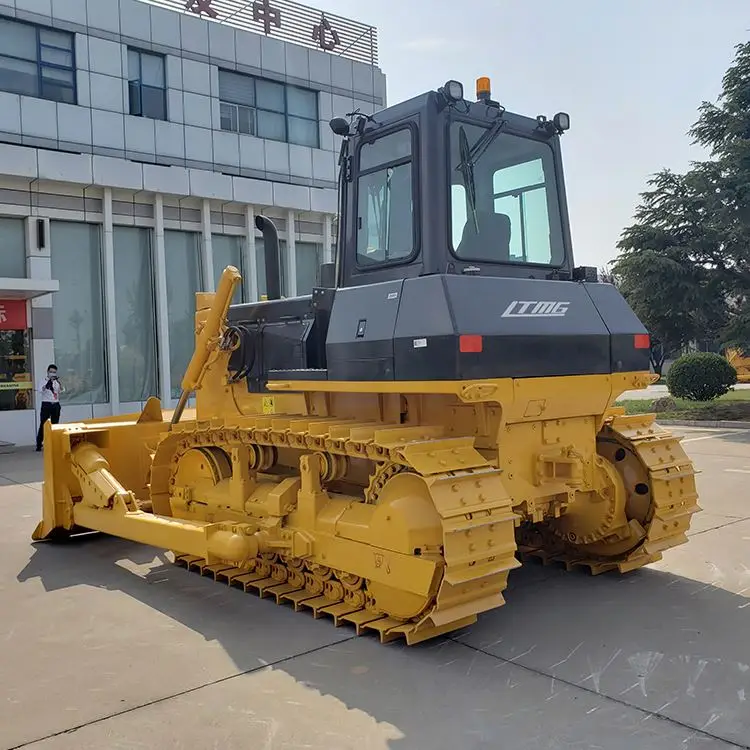

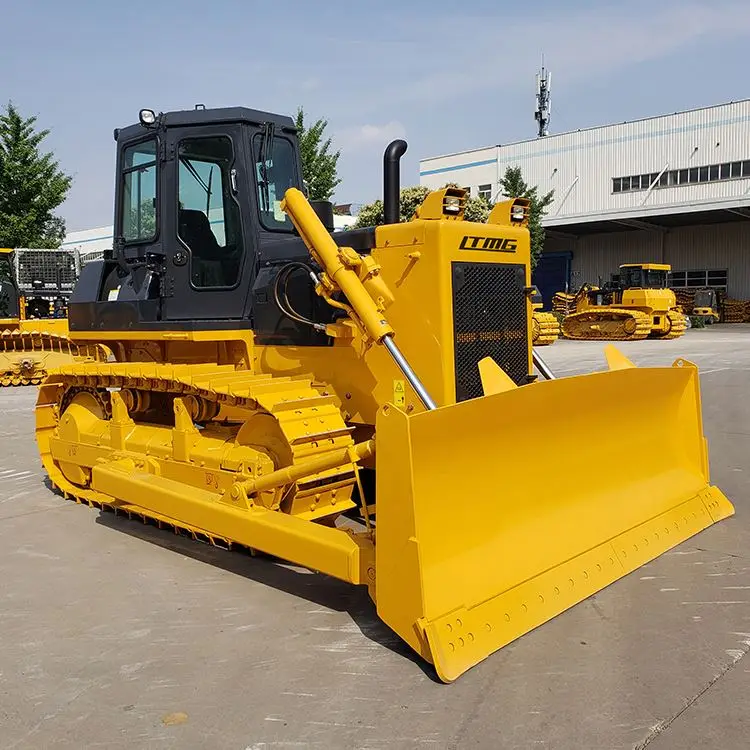

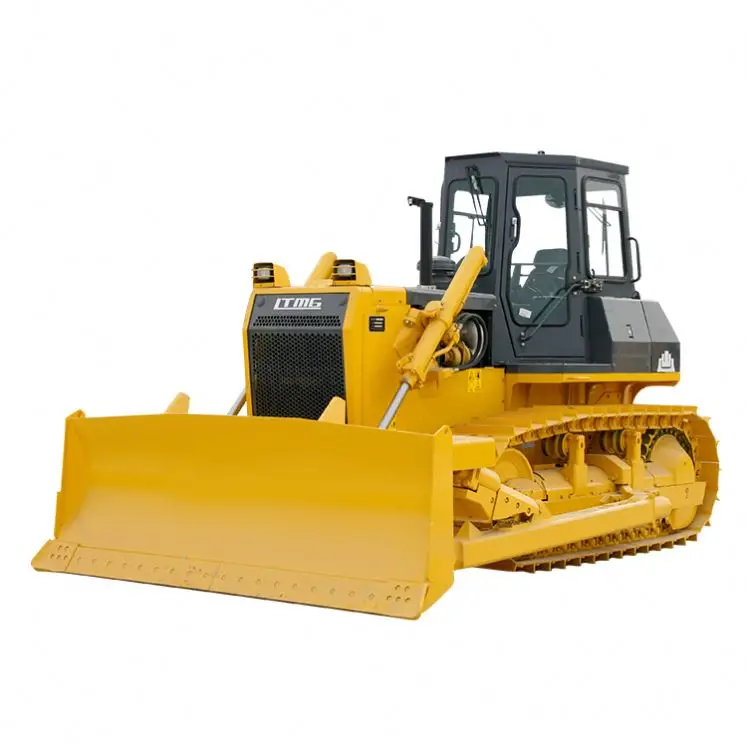

LTMG 160hp mini crawler tractor bulldozer
Products Specifications
Model | T160 | |||||||
SPECIFICATION | Unit | |||||||
Blade type | / | Straight-tilt | Angle | U-Blade | ||||
Operating Weight | kg | 16900 | 16700 | 17900 | ||||
Min.Ground Clearance | mm | 400 | 400 | 400 | ||||
Min.Turning Radius | m | 3.1 | 3.1 | 3.1 | ||||
Ground Pressure | Mpa | 0.066 | 0.064 | 0.067 | ||||
Track Gauge | mm | 1880 | 1880 | 1880 | ||||
Max. Pulling Force | KN | 144 | 144 | 144 | ||||
Grade Ability | ° | 30 | 30 | 30 | ||||
Overall Dimensions(L*W*H) | mm | 6530*3416*3130 | 6530*3970*3130 | 6530*4164*3130 | ||||
Forward Travel Speed | km/h | 3.8-10.6 | ||||||
Reverse Travel Speed | km/h | 4.9-13.6 | ||||||
WORK EQUIPMENT | ||||||||
Blade Capacity | m3 | 4.5 | 4.3 | 8.6 | ||||
Blade Width X Height | mm | 3416×1149 | 3970×1037 | 4064×1386 | ||||
Max.Lift | mm | 1110 | 1095 | 1095 | ||||
Max.Depth | mm | 530 | 545 | 545 | ||||
Max.tilt Adjustment | mm | 860 | 400 | 400 | ||||
Pitch Adjustment | ° | 55 | 55 | 55 | ||||
Capability (Theoretical value 40m) | m3/H | 247 | 247 | 260 | ||||
Weight Of Blade | kg | 2218 | 2015 | 2223 | ||||
ENGINE | ||||||||
Model & Type | / | Weichai WD10G178E25 | ||||||
Rated Revolution | rpm | 1850 | ||||||
Flywheel Horsepower | HP | 160 | ||||||
Cylinder Number-BoreX Stroke | mm | 6-126X 130 | ||||||
Piston Displacement | L | 9.726 | ||||||
Min. Fuel Consumption | g/kW.h | 215 | ||||||
Max.Torque | Nm/rpm | 830/1150 | ||||||
Starting Method | / | Starting motor 24V 5.5kW | ||||||
COOLANT AND LUBRICANT CAPACITY | ||||||||
Fuel Tank Capacity | L | 320 | ||||||
Hydraulic Tank Capacity | L | 108 | ||||||
Engine oil Capacity | L | 20 | ||||||
Torque Converter ,Transmission, Bevel Gear, Steering Clutch Capacity | L | 122 | ||||||
Final Drive Capacity | L | 31 | ||||||
Carrier Rollers | 2(each side) | |||||||
Track Rollers | 6/each side (4-single flange, 2-double flange) | |||||||
Track Type | Sealed, assembled single- grouser | |||||||
Number Of Track Shoes | 37(each side) | |||||||
Width Of Track Shoes | (mm) | 510 | ||||||
Pitch | (mm) | 203.2 | ||||||
Length Of Track 0n Ground | (mm) | 2430 | ||||||
WORK EQUIPMENT | ||||||||
Specification/Blade type | Straight-tilt | Angle | Angle | |||||
Blade Capacity | (m3) | 4.5 | 4.3 | 8.6 | ||||
Blade Width X Height | (mm) | 3416×1145 | 3970×1037 | 4064×1386 | ||||
Max.Lift | (mm) | 1110 | 1095 | 1110 | ||||
Max.Depth | (mm) | 530 | 545 | 530 | ||||
Max.tilt Adjustment | (mm) | ≥860 | ≥400 | ≥400 | ||||
Pitch Adjustment | ( ° ) | 55 | 55 | 55 | ||||
Capability | (m3/H) | 247 | 247 | 260 | ||||
Weight Of Blade | (kg) | 2350 | 2450 | 2560 | ||||
COOLANT AND LUBRICANT CAPACITY | ||||||||
Fuel Tank Capacity | L | 320 | ||||||
Hydraulic Tank Capacity | L | 108 | ||||||
Engine oil Capacity | L | 45 | ||||||
Torque Converter ,Transmission, Bevel Gear., Steering Clutch Capacity | L | 122 | ||||||
Final Drive Capacity | (L) | 33(each side) | ||||||
RIPPER(OPTIONAL) | ||||||||
3-Shank Ripper: | ||||||||
Max.Digging Depth | (mm) | 572 | ||||||
Max.Lift | (mm) | 702 | ||||||
Shank Of Distance | (mm) | 950 | ||||||
Weight | (kg) | 1700 | ||||||
