Телескопическая подъемная платформа 21 м
- Категория: Truck >>>
- Поставщик: Xiamen,LTMG,co.,ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 65388.42 $* | 68657.3 $* |
| Aug-20-2025 | 64839.92 $* | 68081.93 $* |
| Jul-20-2025 | 54399.82 $* | 57119.46 $* |
| Jun-20-2025 | 63740.56 $* | 66927.15 $* |
| May-20-2025 | 55497.89 $* | 58272.69 $* |
| Apr-20-2025 | 62641.59 $* | 65773.79 $* |
| Mar-20-2025 | 62091.14 $* | 65196.86 $* |
| Feb-20-2025 | 61542.17 $* | 64619.78 $* |
| Jan-20-2025 | 60992.49 $* | 64042.54 $* |
Характеристики
Product Features
Product Features
- strong load capacity with the max platform occupancy being 230KG.
- Flexible turning ability enables workers to easily reach the right workplaces.
- Excellent off-road performance makes the vehicle go through complex terrains smoothly.
- Complete safety devices and compact Structure.
- strong load capacity with the max platform occupancy being 230KG.
- Flexible turning ability enables workers to easily reach the right workplaces.
- Excellent off-road performance makes the vehicle go through complex terrains smoothly.
- Complete safety devices and compact Structure.
Modelo | LTZD1618 | LTZD2022 | LTZD2224 | LTZD2628 | LTZD2830 | LTZD3234 | LTZD3840 | |||||||
Medidas | ||||||||||||||
Altura máxima de trabajo (M) | 18.2m | 22.3m | 24.1m | 28m | 30m | 34m | 40.4m | |||||||
Altura máxima de la plataforma | 16.2m | 20.3m | 22.1m | 26m | 28m | 32m | 38.4m | |||||||
Radio de trabajo máximo | 15m | 18m | 18m | 22m | 22m | 21.4m | 21.4m | |||||||
(LxA) Dimensiones de la plataforma | 1.83m x 0.76m | 2.44m x 0.91m | ||||||||||||
Longitud (estibada) | 7.9m | 9.3m | 10.97m | 11.55m | 13.5m | 14.1m | 14.1m | |||||||
Anchura (estibada) | 2.39m | 2.49m | 2.49m | 2.5m | 2.5m | 2.5m | 2.5m | |||||||
Altura (estibada) | 2.69m | 2.75m | 2.75m | 2.83m | 2.83m | 3.08m | 4.17m | |||||||
Distancia entre ejes | 2.45m | 3m | 3m | 3m | 3m | 3.66m | 3.96m | |||||||
Distancia al suelo (centro) | 0.43m | 0.43m | 0.43m | 0.43m | 0.43m | 0.43 | 0.43 | |||||||
Productividad | ||||||||||||||
Max. load capacity | 300KG | |||||||||||||
Platform occupancy maximum | 2 | |||||||||||||
Platform rotation | ±80° | |||||||||||||
Vertical jib rotation | 140° | \\ | 140° | \\ | 140° | 140° | 140° | |||||||
Turntable rotation | 360 | |||||||||||||
Turntable tailswing | 0.8m | 1.32m | 1.32m | 1.4m | 1.4m | 1.34m | 1m | |||||||
Drive speed (stowed) | 4.4 km/h | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 | |||||||
Drive speed (raised) | 1.1 km/h | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | |||||||
Gradeability | 40% | |||||||||||||
Working slope maximum | 3°/3° | |||||||||||||
Turning radius (inside) | 2.66m | 3m | 3m | 3.59m | 3.59m | 4.14m | 4.14m | |||||||
Turning radius (outside) | 5.66m | 5.2m | 5.2m | 5.59m | 5.59m | 6.56m | 7.02m | |||||||
Drive & steer mode | 4x4x2 | 4x4x4 | ||||||||||||
Tire type | 33x12-20 | 36x14-20 | 385/65-22.5 | 385/65-22.5 | ||||||||||
Potencia | ||||||||||||||
Motor | Chinese engine | |||||||||||||
Potencia nominal | 36.8kW/2500rpm | 55.4kW/2600rpm | ||||||||||||
Capacidad del depósito de combustible | 151 L | |||||||||||||
Capacidad del depósito de aceite hidráulico | 110 L | 150 L | ||||||||||||
Tensión de control | 12V DC | |||||||||||||
Peso | 10000KG | 12500KG | 13000KG | 16500KG | 17000KG | 18650KG | 23000KG | |||||||
Cumplimiento de normas | EN280：2013+Al：2015 GB25849-2010 | |||||||||||||
Product Details
The Product complete safety devices and compact Structure.
The boom is made of high strength steel board and has sufficient strength and capacity to prevent flexural deformation.
Larger up clearance & horizontal reach.
Equipped with tiresskid-proofand explosion-proof with longer lifetime providing a stable and labor-saving operation.

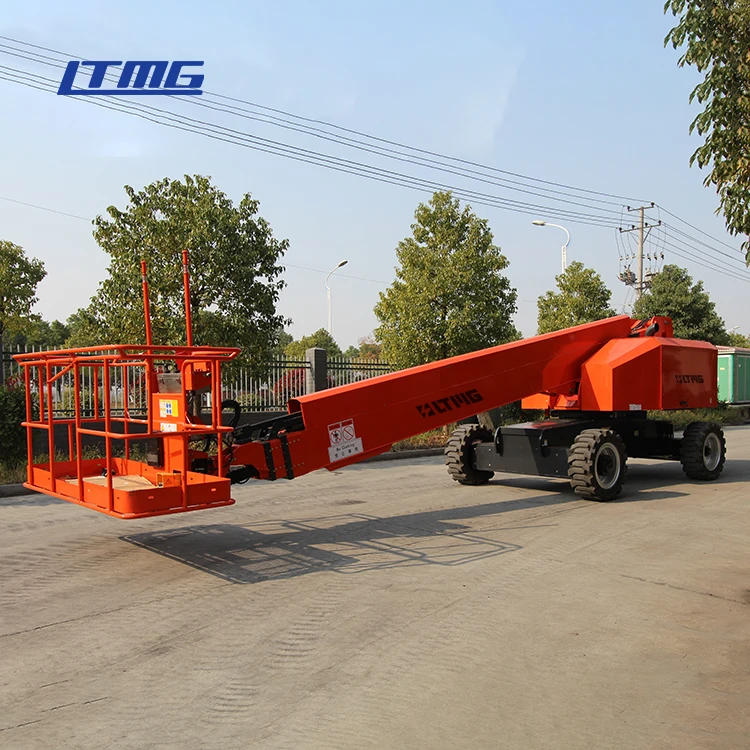

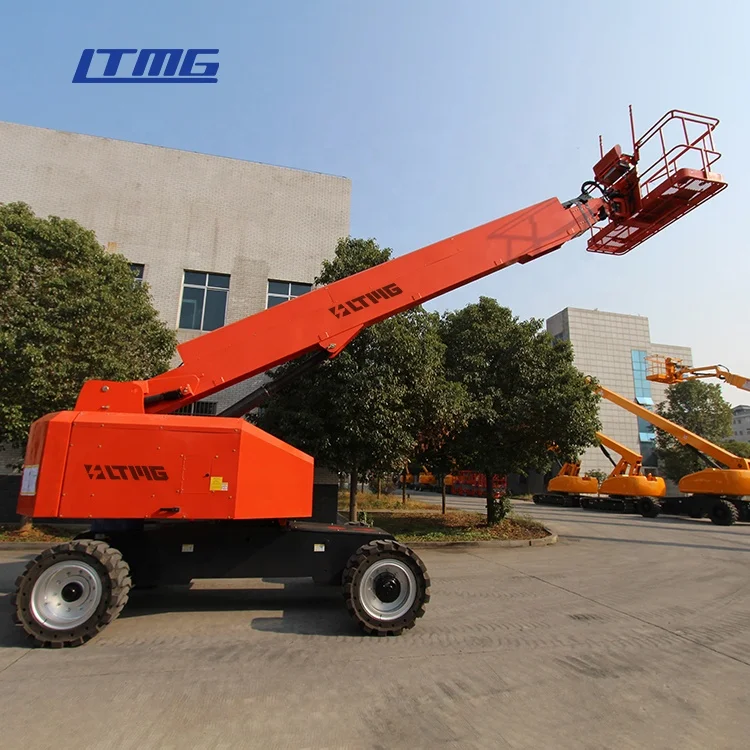

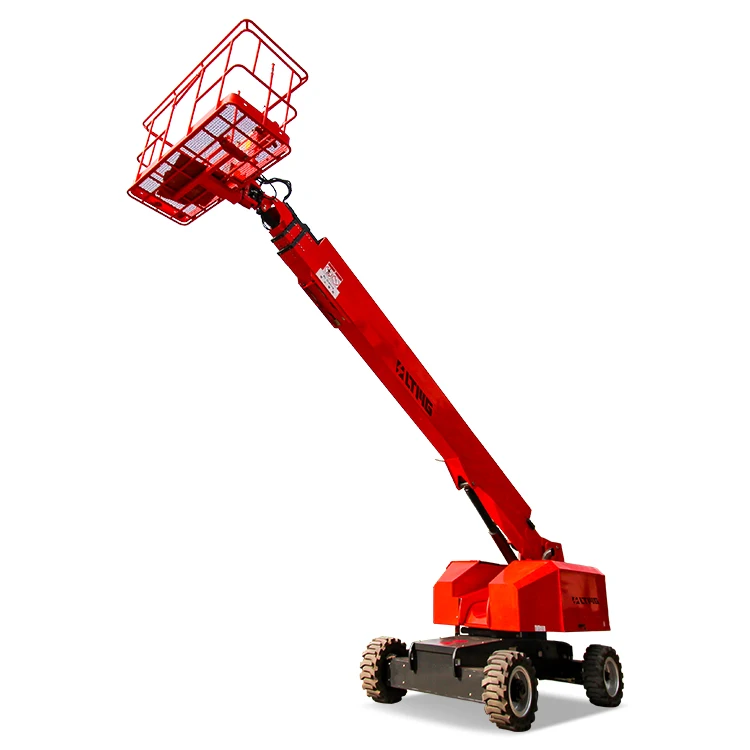

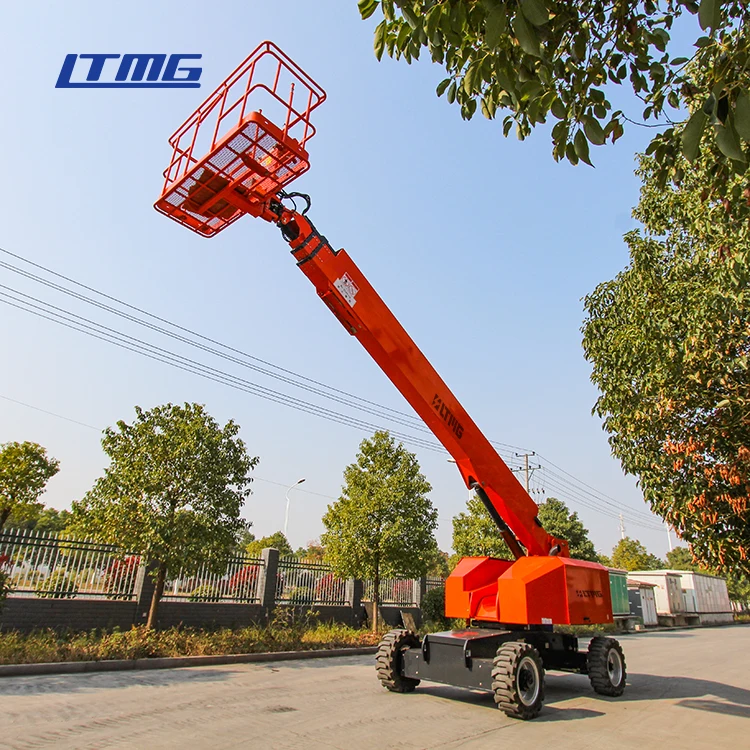

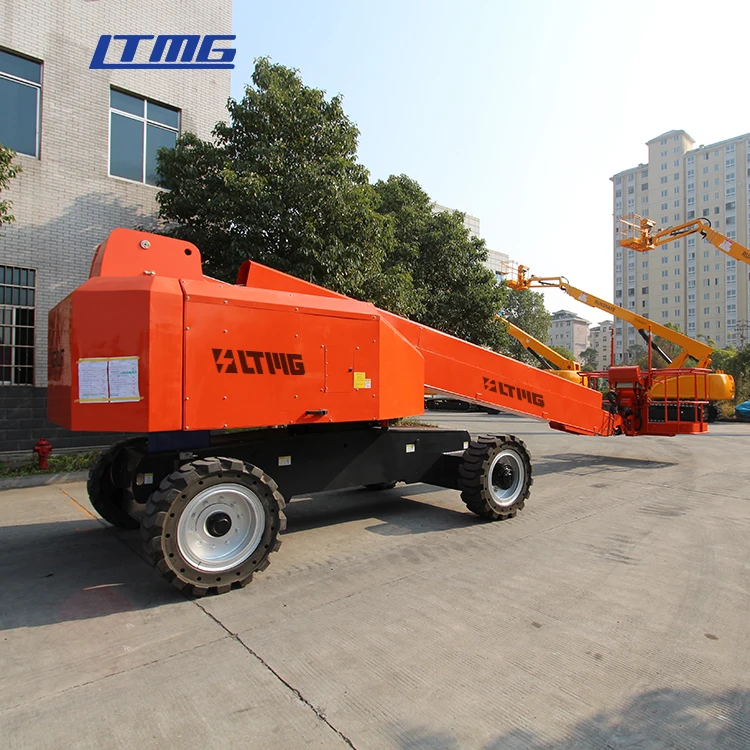

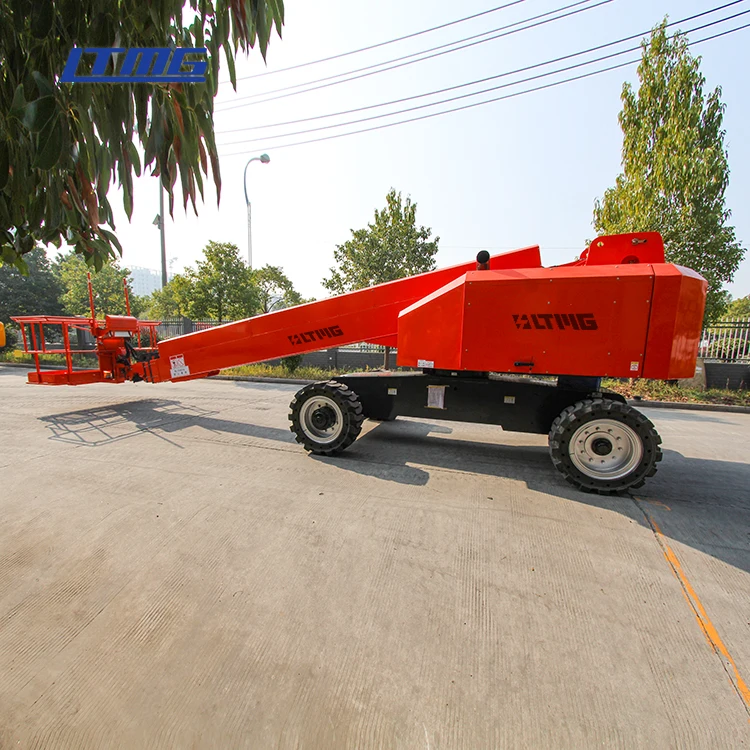

Product Shows
Product Applications
OEM/ODM
Shipping Plan
Factory Introduction
Certificate
Hot Product
FAQ
1. Why choose us?
As a manufacturer, LTMG industrial is committed to offer not only high quality product and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory?
LTMG industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying loaders, forklift
trucks, excavator, articulating boom lift and related attachments. We can also customize non-standard products according to customer's requirements.
trucks, excavator, articulating boom lift and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate.
5. How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
6. Can we provide OEM service?
LTMG industrial can provide customized products according to customers' requirements,both OEM and ODM are acceptable.
