Линейный реактор SIEMENS SINAMICS для 36 кВт модуль интеллектуальной линии входной Входной волновой фильтр
- Категория: Reactors >>>
- Поставщик: Shanghai,Juge,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 40.70 $* | 42.3 $* |
| Aug-18-2025 | 40.10 $* | 42.38 $* |
| Jul-18-2025 | 34.31 $* | 36.63 $* |
| Jun-18-2025 | 39.33 $* | 41.22 $* |
| May-18-2025 | 34.76 $* | 36.71 $* |
| Apr-18-2025 | 39.3 $* | 41.1 $* |
| Mar-18-2025 | 38.84 $* | 40.84 $* |
| Feb-18-2025 | 38.93 $* | 40.48 $* |
| Jan-18-2025 | 38.66 $* | 40.2 $* |
Характеристики
Product Profile

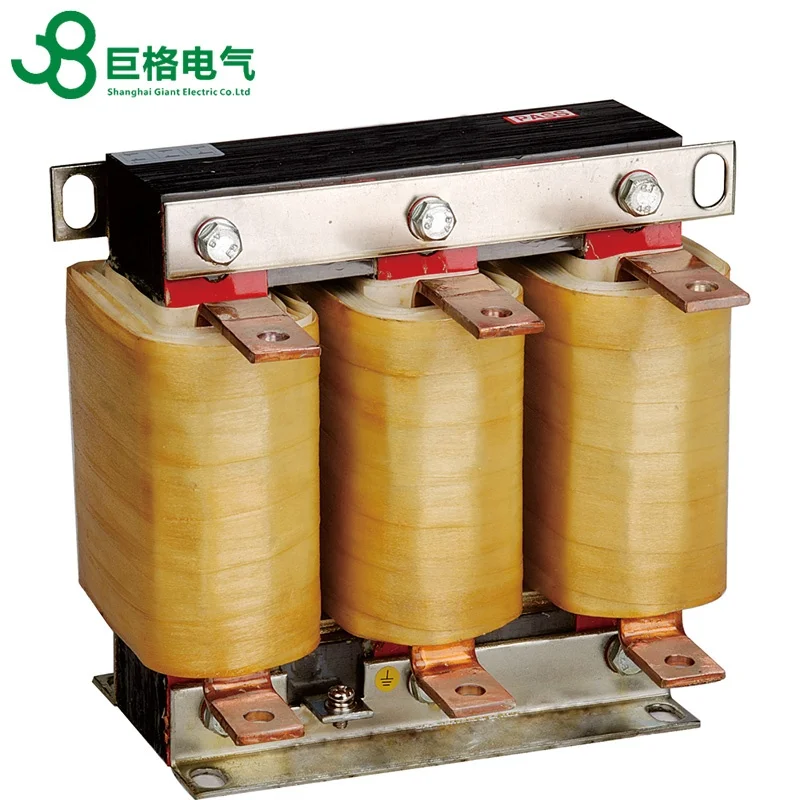

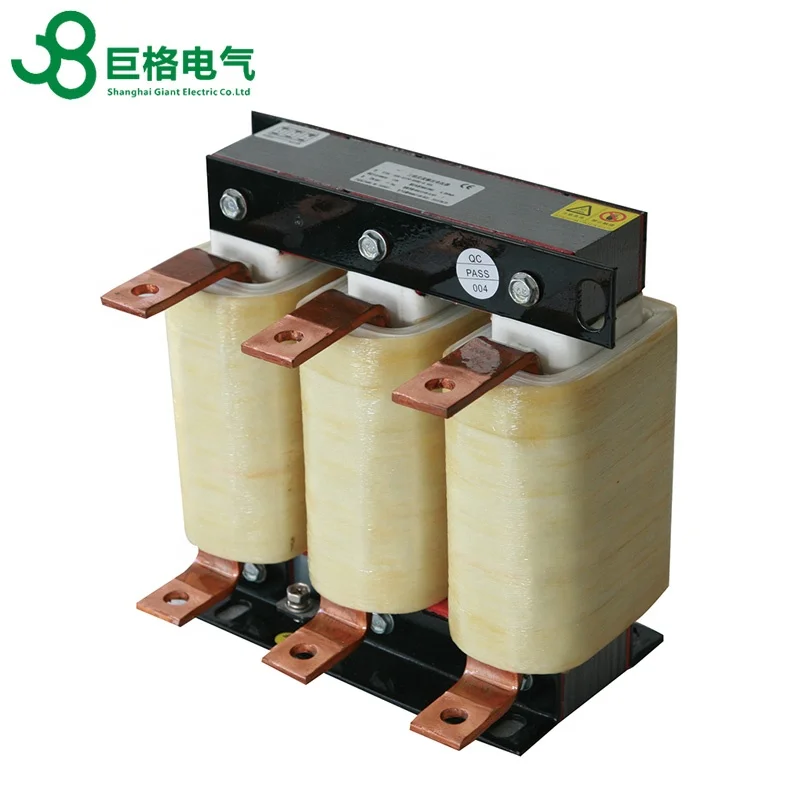

ACL Three-phase line reactor is also called phase reactor, used in power grid into the line, by alternating current, the effect is
a limit on either side of the converter commutation into power grid voltage drop, the suppression of harmonic wave and switching
current rising rate di/dt), as well as the parallel converter of decoupling. She can limit jumping and grid system operation of
the power grid voltage generated by the impact of the current, in order to protect the terminal electrical equipment, and radio
interference suppression.
a limit on either side of the converter commutation into power grid voltage drop, the suppression of harmonic wave and switching
current rising rate di/dt), as well as the parallel converter of decoupling. She can limit jumping and grid system operation of
the power grid voltage generated by the impact of the current, in order to protect the terminal electrical equipment, and radio
interference suppression.

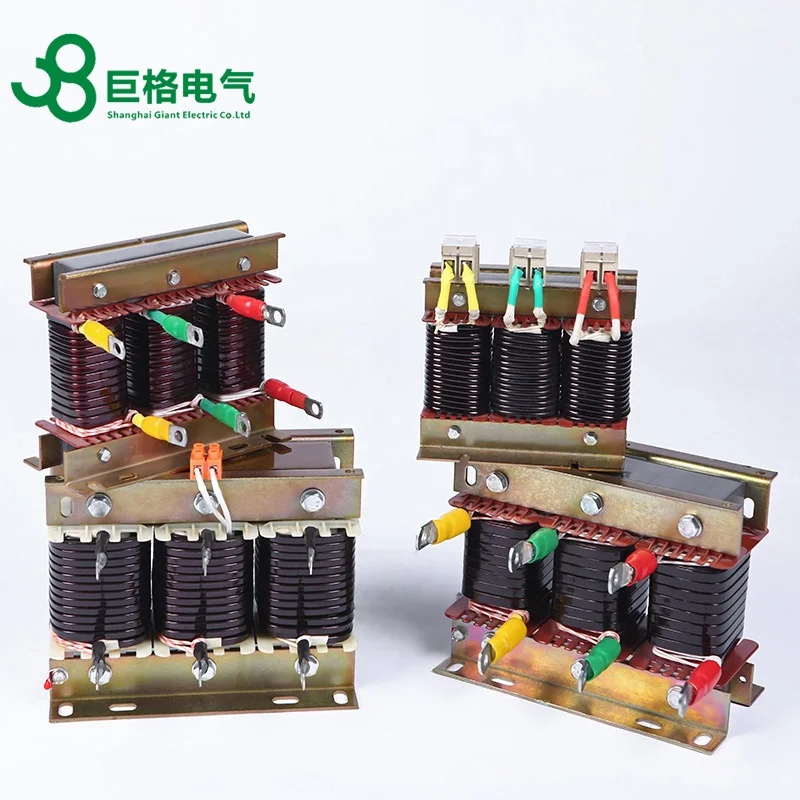

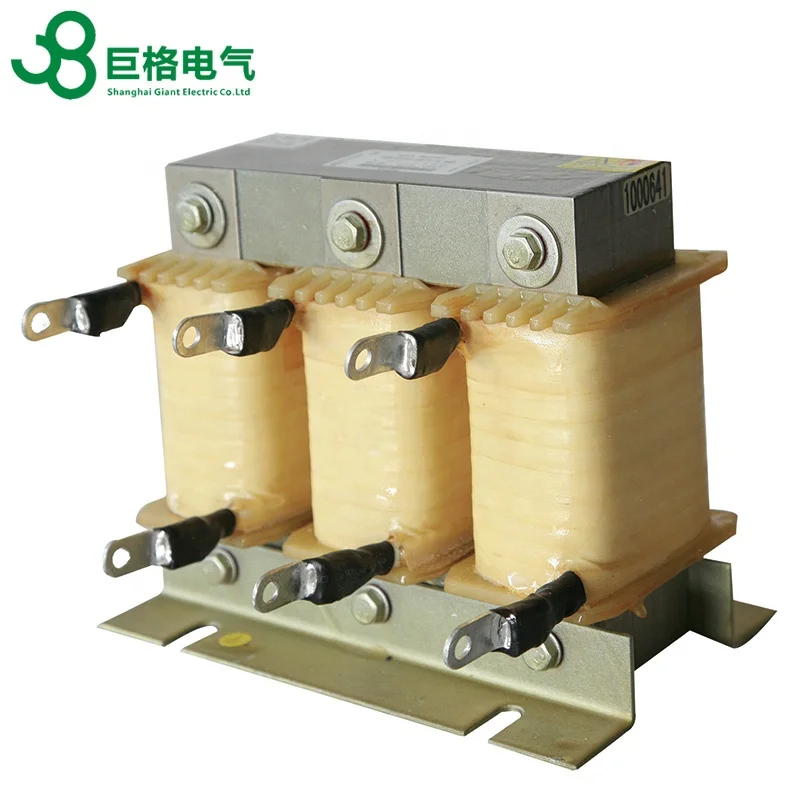

Detail display
Product Features
1.Multiple frequency inverters in close paraller connection;
2.Power switch device protect the converter internal;
3.Power supply for other equipment has obvious interference (interference, overvoltage);
4.The power line voltage unbalance > 1.8% rated voltage;
5.The extremely low impedance line (power transformer for inverter rated worth more than 10 times);
5.The extremely low impedance line (power transformer for inverter rated worth more than 10 times);
6.Power supply for other
equipment has obvious interference (interference, overvoltage);
equipment has obvious interference (interference, overvoltage);
7.Use the cosine phi (power factor correction converter or power factor, correction unit;
The performance index and parameters
1.The rated working voltage: 380 V / 50 Hz - 1140 V / 50 Hz
2.Rated current: 5 A to 1600 A / 40 °C
3.Insulation class: F/H
4.Protection grade:IP00-IP22
4.Protection grade:IP00-IP22
5.Voltage drop:<4%Exceeding this range will cause torque loss
6.Max Current:1.5 times rated current for 60s
7.Reactor noise: < 65 dB (1 meter test and reactor horizontal distance point)
8.Temperature Rise:≤90K
9.The electric strength: core and winding 3000 VAC / 50 Hz / 5 mA / 10 s, no arcing breakdown (factory)
10.Insulation resistance: 1000 VDC insulation resistance ♡ 100 M or more
11.Product standards: REC289:1978 reactor
GB10229-88 reactor (eqv IEC289:1987)
JB9644-1999semiconductor electric transmission in reacto
Product Identification Code
Product Size
Selection Table
