Model

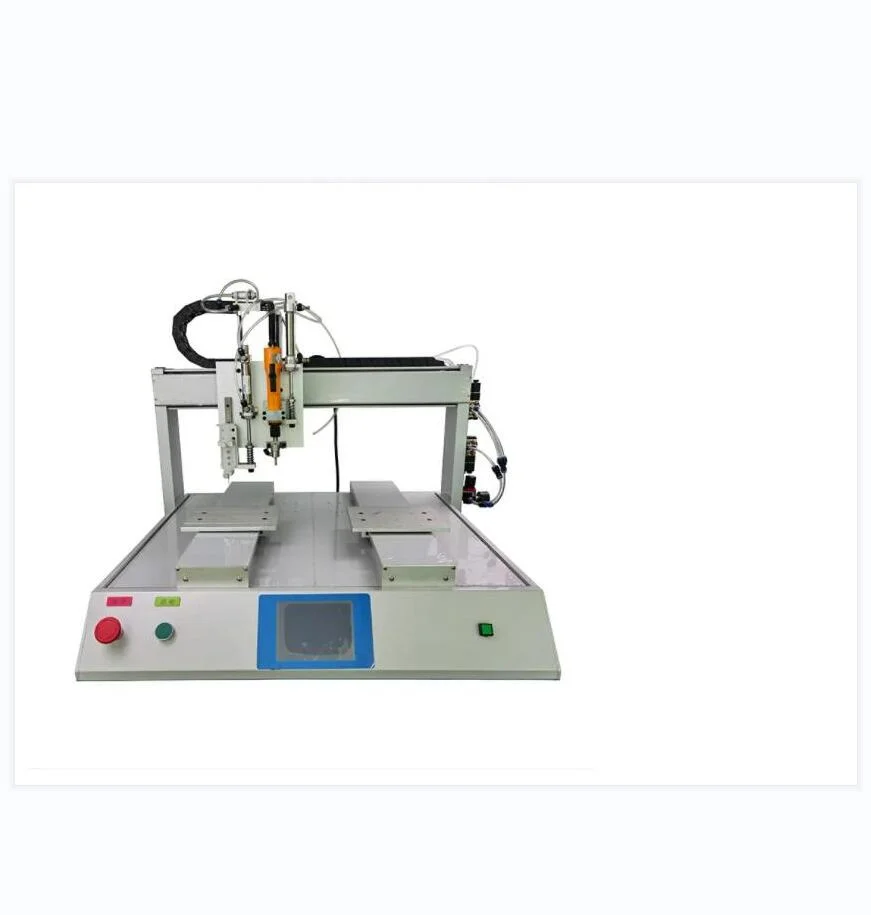

5331 Automatic Screw Fastening Robot

Power

AC 110-220V AC

Controllable Axis

4

Movable Range

X

500mm

Y1

300mm

Y2

300mm

Z

100mm

Max Moving Speed

X

600mm/s

Y1

600mm/s

Y2

600mm/s

Z

400mm/s

Driving Method

Steper Motor + Timing Belt

Repeatability Accuracy

±0.02 mm

Air pressure

0.5 ~ 0.7 Mpa

Programs Type

Teach Pendant

Storage for Programs

Up to 100 Programs, single Programs up to 1000 points

Working Temperature

0-40℃

Working Humidty

20%-90%(no condensation)

Weight

75

Size

830*650*800mm

Universal Screws

M1-M5(Cross, plum blossom, hexagon socket, etc.)
