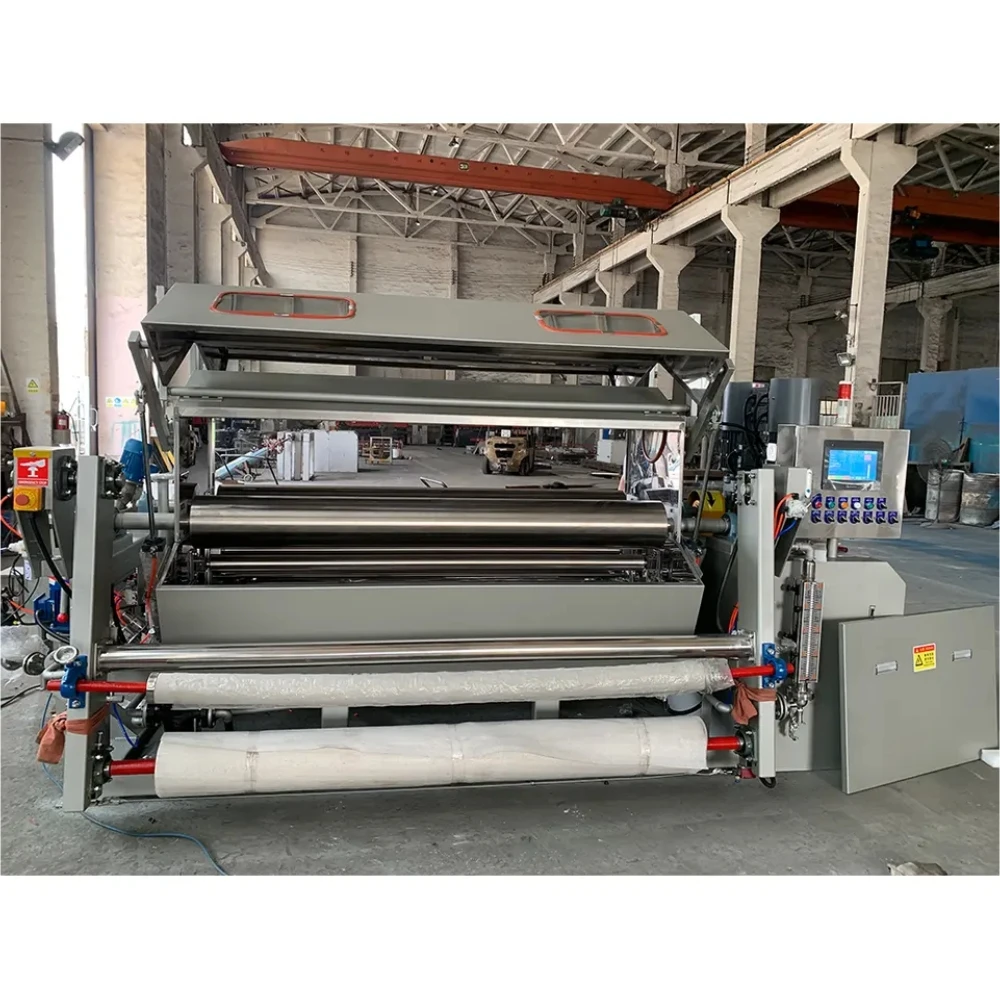

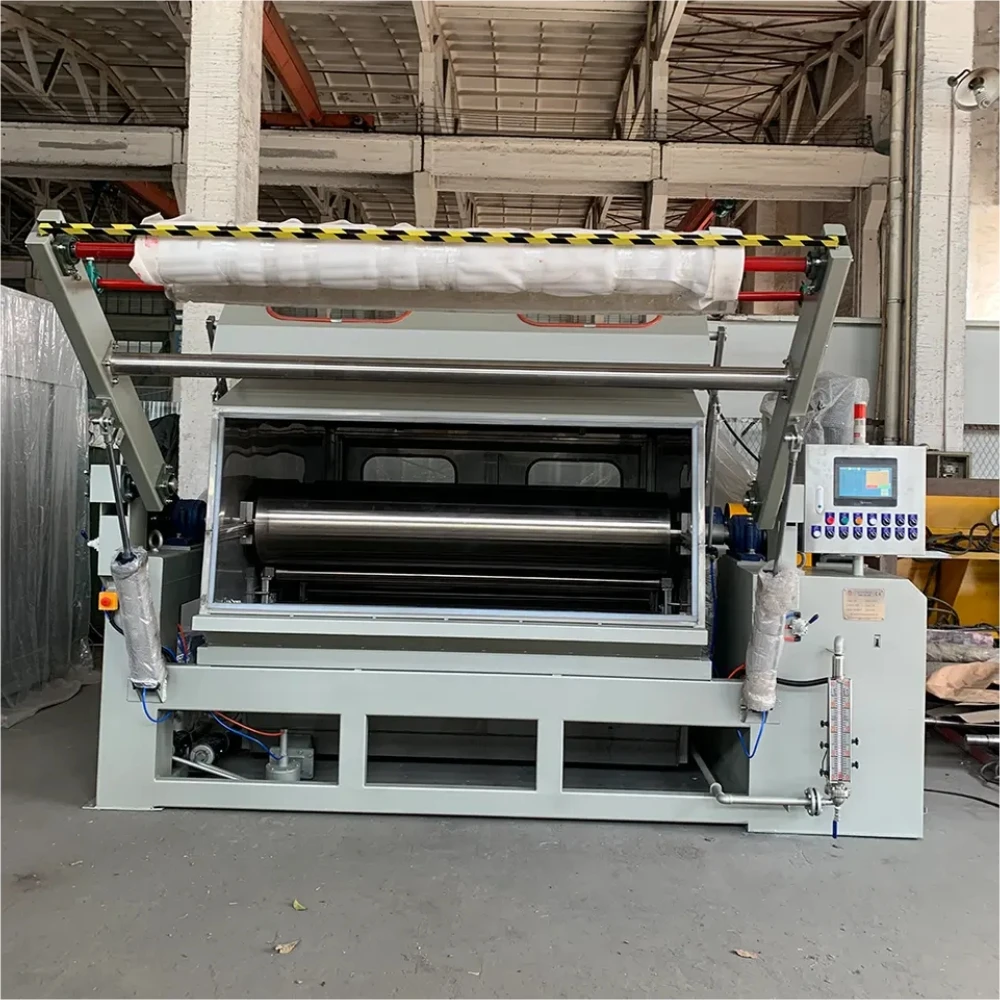

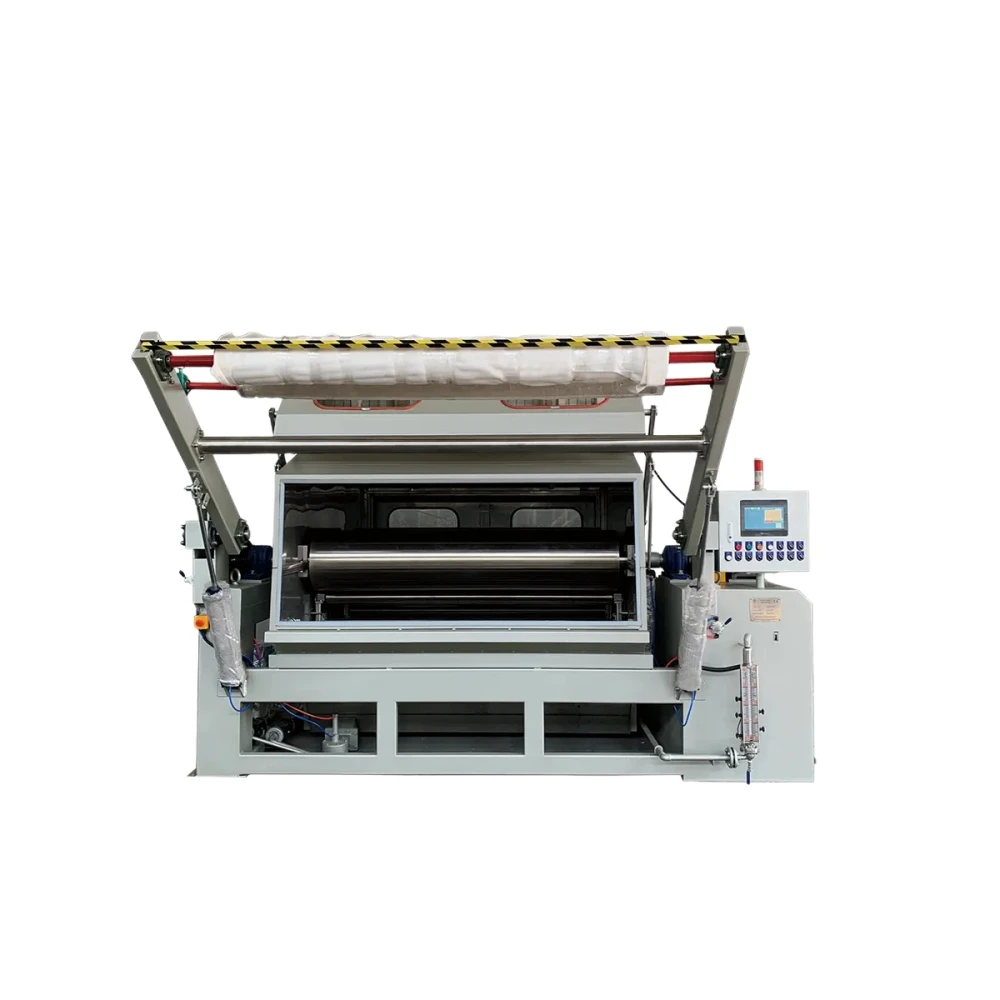

Заводская цена поддержка видео Дистанционная установка автоматическая машина для окрашивания

Заводская цена поддержка видео Дистанционная установка автоматическая машина для окрашивания

Категория: Textile Dyeing Machines >>>
Поставщик: Wuxi,Hongda,Dye-Finishing,Equipment,Producing,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	0.57 $*	0.59 $*
Aug-17-2025	0.88 $*	0.15 $*
Jul-17-2025	0.86 $*	0.27 $*
Jun-17-2025	0.66 $*	0.91 $*
May-17-2025	0.44 $*	0.68 $*
Apr-17-2025	0.19 $*	0.11 $*
Mar-17-2025	0.39 $*	0.66 $*
Feb-17-2025	0.72 $*	0.28 $*
Jan-17-2025	0.32 $*	0.69 $*

Характеристики

Technical features

•AC frequency converted transmission, PLC ＆ Digital communication technique.

•Real direct detection for cloth surface tension, linear speed; the closed loop control.

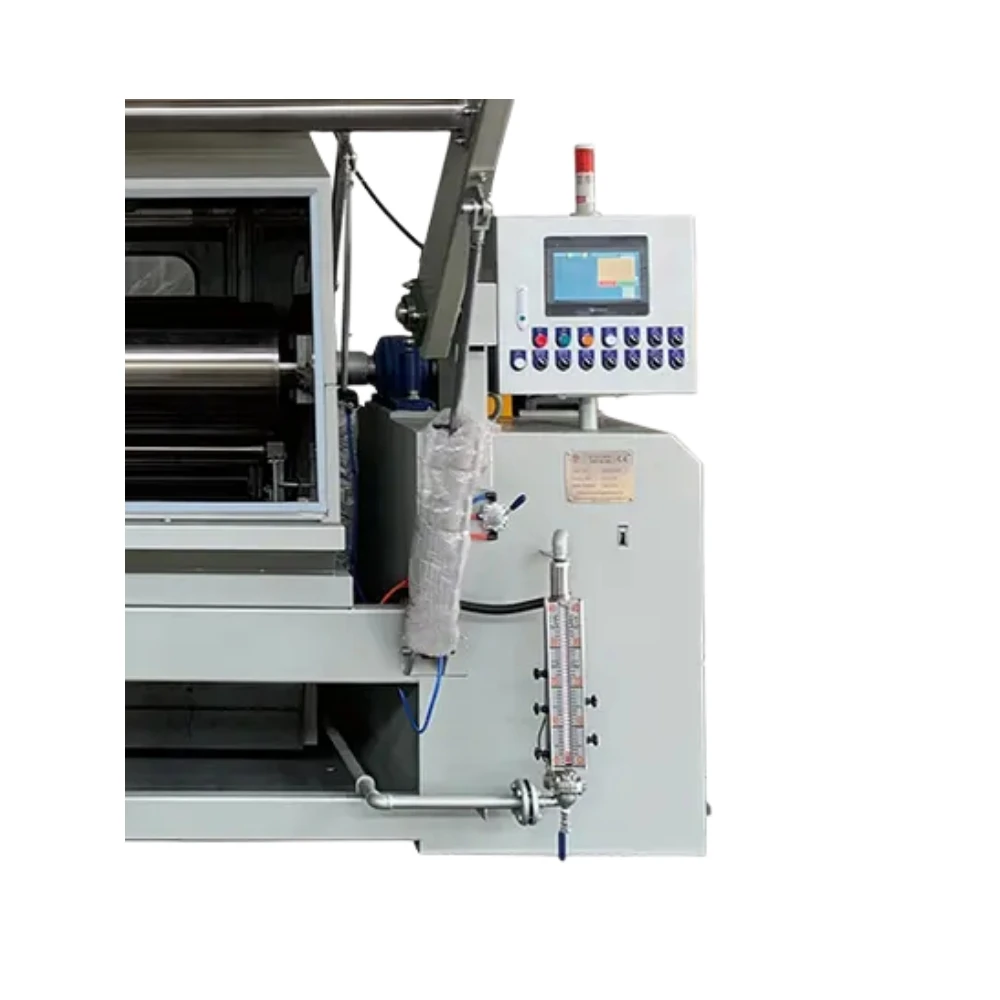

•Touch-Screen technique, good human-machine interface for communication.

•Temperature auto-control, auto-reverse, auto-record cycles, auto-change direction, auto-stop and

auto-swing function.

•Liquor circulating system can maintain uniform temperature of dye liquor and homogeneous dye
distribution; liquor filter device is fixed in the circulating system to avoid pipes being clogged.

•A top heating and heat-insulating apparatus is installed for temperature rise rate and increasing
productivity.

•Auxiliary devices such as top illuminating light, warning light, emergency stop lever are equipped to
provide safe operation and easy maintenance.

•Discharge valve, gas shaft, delivery cross arm are pneumatically controlled.

•All key parts are imported to ensure the performance of the machine stable and reliable.

•Fully automatic control for the production procession, easily compile multi-technology combinations.

Diameter of main roller			Φ245 - 400mm
Max. Diameter of cloth roll			Φ1000 / Φ1200 / Φ1400 / Φ1500mm
Mechanical width			1600 - 3800mm
Max. Working fabric width			1400 - 3600mm
Adjustable fabric rate			0 - 130m/min
Tension of fabrics			0 - 60kg
Max. Working temperature			100℃
Overall dimension	NSWR1000	(Mechanical width+1650)19002100
		NSWR1200	(Mechanical width+1650)21002200
		NSWR1400	(Mechanical width+1850)28002300
		NSWR1500	(Mechanical width+1850)29002350
