Автоцистерна для


Поделиться:


Цена:5 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 5950.15 $* 6248.9 $*
Aug-18-2025 5900.40 $* 6195.80 $*
Jul-18-2025 4950.36 $* 5198.90 $*
Jun-18-2025 5800.25 $* 6090.23 $*
May-18-2025 5050.5 $* 5303.87 $*
Apr-18-2025 5700.9 $* 5985.13 $*
Mar-18-2025 5650.82 $* 5933.39 $*
Feb-18-2025 5600.46 $* 5880.48 $*
Jan-18-2025 5550.32 $* 5828.83 $*

Характеристики


Construction Machinery Heavy Duty Cement Tank Concrete Pump Mixer Vibrator Truck for Sale In Concrete Mixing Plant


--Options for engine: 336hp/371HP/420HP.

--Truck body from 6cbm~25cbm.
--
Options for tires: 12.00R20 radial tire, 12R22.5 and 315/80R22.5 tubeless tire.

--Standard color: White, Red, Yellow (Other color is optional)

--What is Concrete Mixer?
HOWO Shacman 336 430 HP Concrete Mixing Plant Construction Machinery Heavy Duty Cement Tank Concrete Pump Mixer Vibrator Truck for Sale

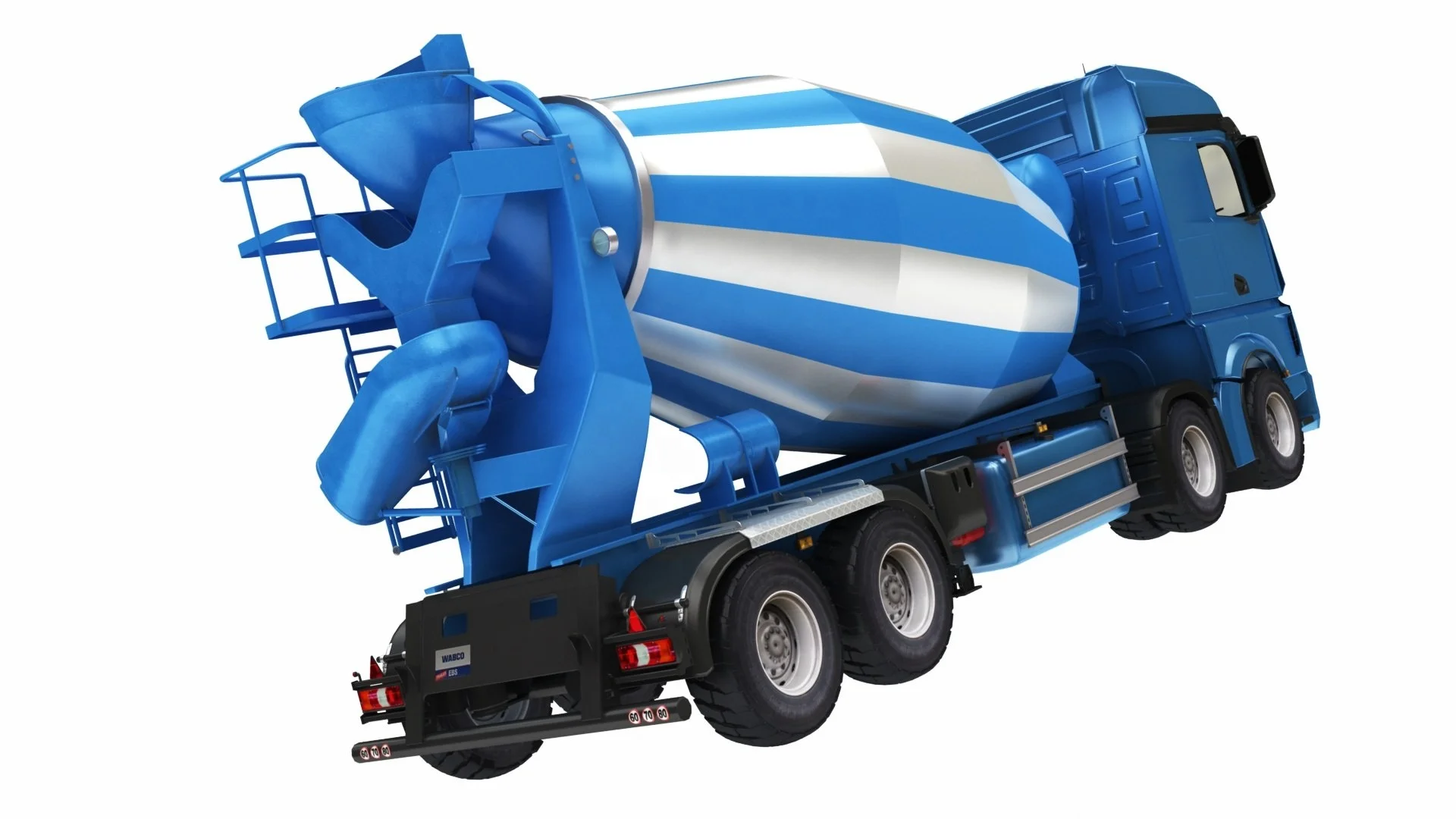

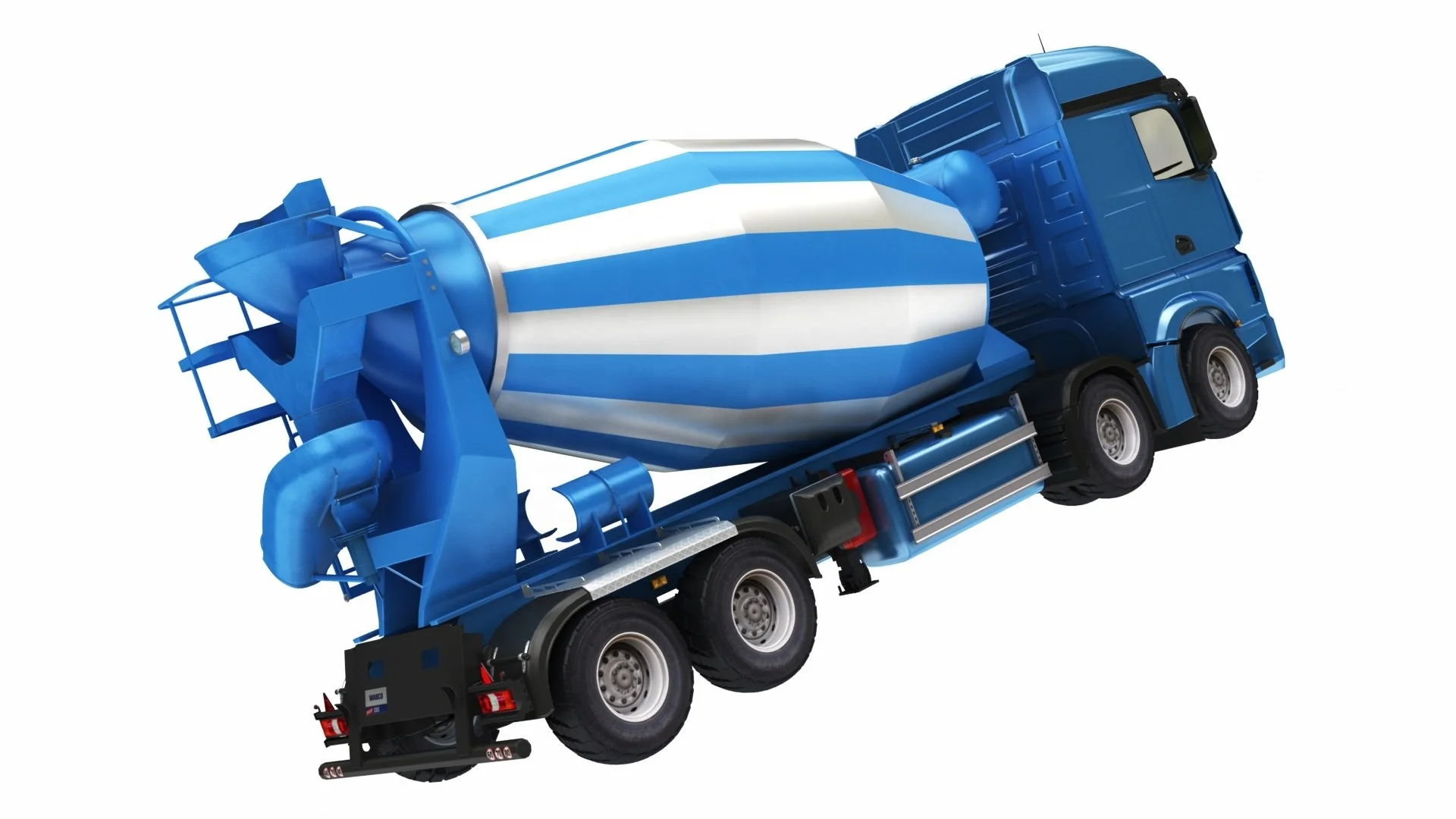

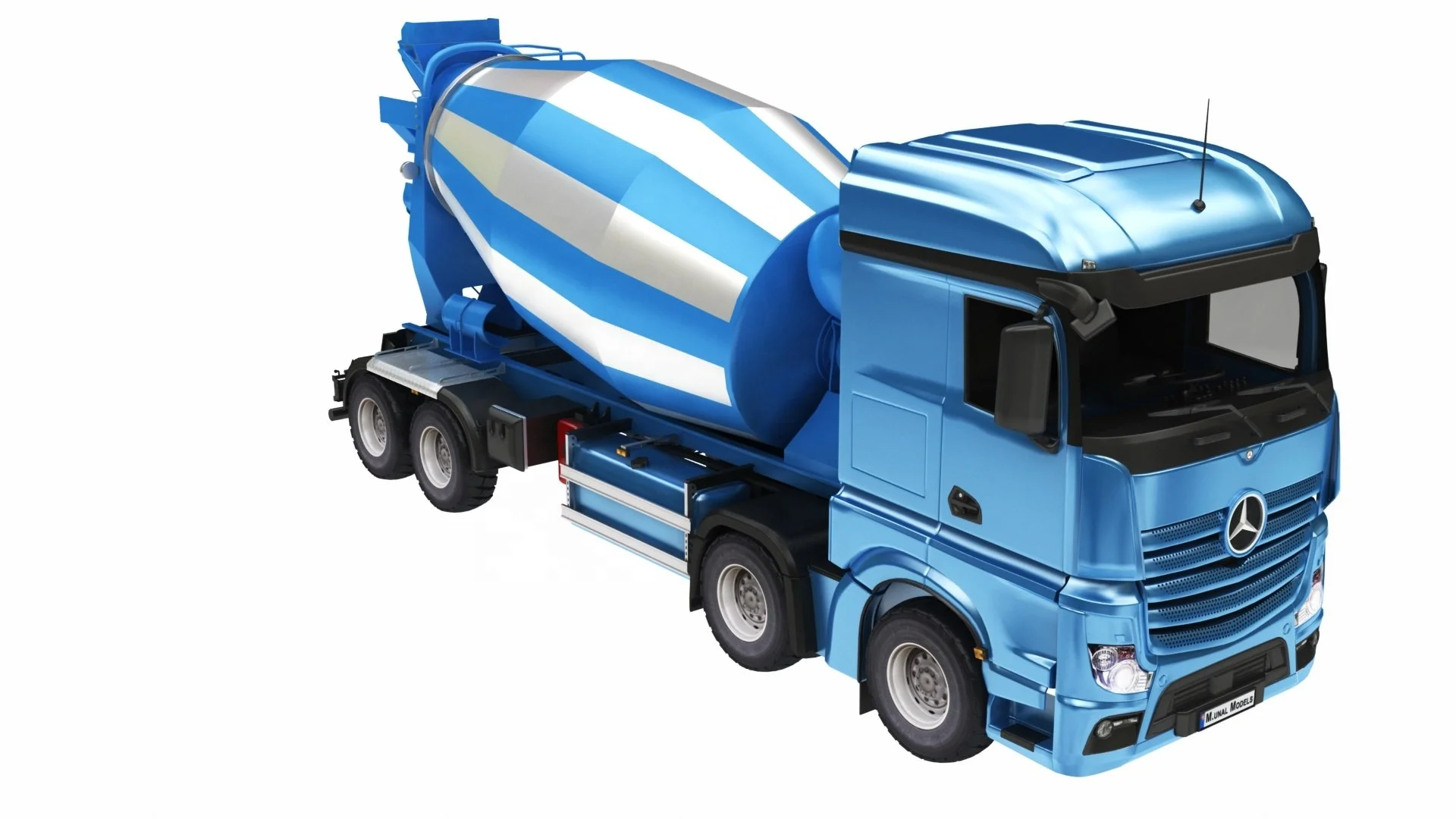

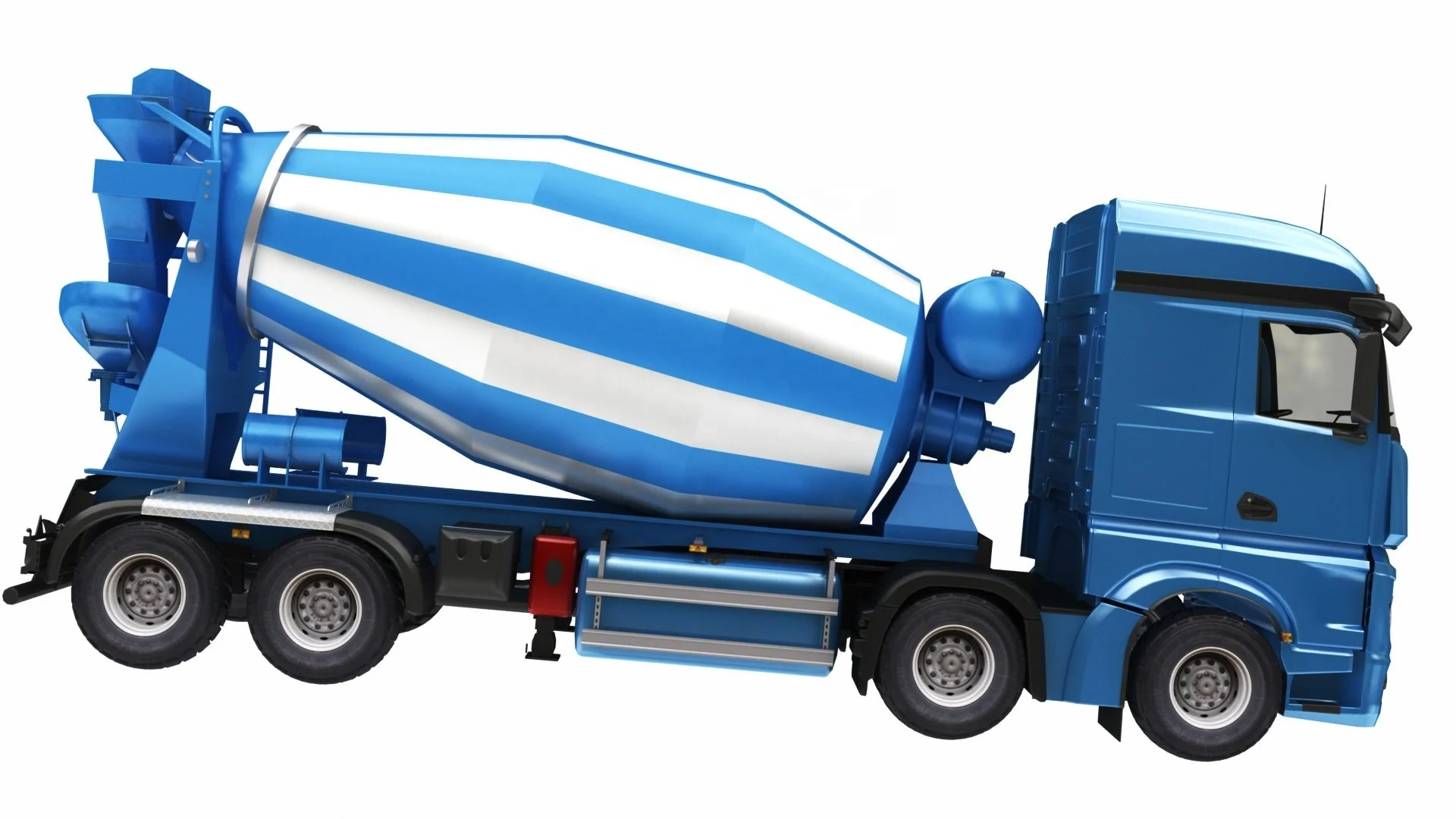

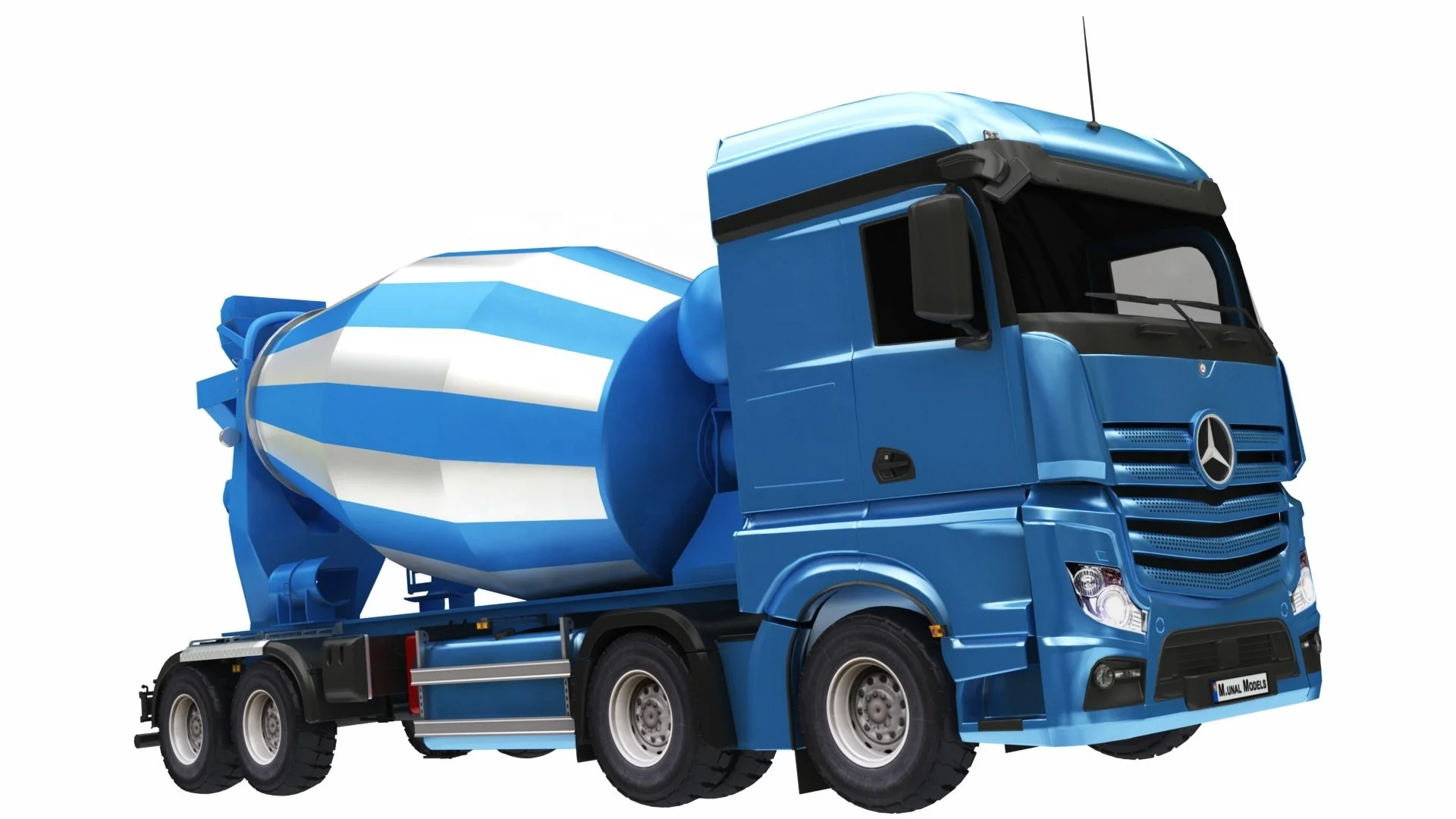

Special concrete transport trucks (in-transit mixers) are made to mix concrete and transp port it to the construction site. They can be charged with dry materials and water, with the mixing occurring during transport. They ca an also be loaded from a "central mix" plant with this process, the material has already been mixed prior to loading.The concrete mix king transport truck maintains the material's liquid state through agitation, or turning of the drum, until delivery.

--What Does Concrete Mixer Applicated to ?


A mixer truck is a special truck used to transport concrete for construction; because of its shape, it is also often called a snail truck and an olive truck. These trucks are equipped with cylindrical mixing drums to carry the mixed concrete.





During transportation, the mixer drum is kept rotating to ensure that the concrete carried does not solidify. After the concrete is transported, the inside of the mixing drum is usually washed with water to prevent the residual concrete from hardening and occupying space, so that the volume of the mixing drum becomes less and less.


Product Parameters




























































































Typical Truck ModelZ25257GJBN364 1WZZS257GJBNB84 1WZZ5257GJ8WM 1WZZS257GJBN4M 1W
CabModelHW76
TypeHW76 extend cab. one berth, with A/C all steel forward control. 55, hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with tasted-in radio aerial, hydraulically 1" damped adjustable driver" s seat and rigid adjustable co-driver's seat, healing & ventilation system, adjustable roof flap, with stereo radio/cassette recorder, sun visor, and adjustable steering wheel. air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt
EngineModelWD615.87WD615.69WD615.47
Rated power290HP (213Kw/rpm)336HP (247Kw/rpm)371 HP (273Kw/rpm)
Displacement4 stroke direct injection diesel engine
type6 cylinder in-line with water cooling. turbo charging & inter-cooling
Wheelbase3600*1400mm3800+ 1400mm4000+1400mm4500+1400mm
Mixer tanker size8CBM9CBM10CBM12CBM
ClutchSingle- plate dry diaphragm spring dutch, diameter 430(C) mm, hydraulically opera ling with air assistance.
TransmissionSINOTRUK HW series 10/12/16 speed transmission, 10 forward and 2 reverse
Front axleSteering axle with double T-cross section HF9
Drive axlePressed axle housing. Central single reduction HC16 Ratio:5.73
ChassisFrame:U-profile parallel ladder type with section of 320×90×8 mm. all cold riveted cross members and reinforced tube frame.
Front suspension: 9 semi-elliptic leaf spring with hydraulic telescopic double-action shock absorbers and stabilizer.
Rear suspension: 9+6 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Spare wheel carrier: with one spare wheel
Aluminum fuel tank: with 400 L fuel tank with locking fuel cap
SteeringGermany ZF. hydraulic steering with power assistance
BrakesService brake: dual circuit compressed air brake
Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake
Option: ABS
Wheel & TypesRims: 8.0-20,10 hole •steel
Types 11 <00-20 tube;
Option: 12.00-20 tube, 12.00 R20tube
ElectricsOperating voluge24V,  negative grounded: Starter: 24V , 5.4KW
Alternator: 28V. 1540W;  Batteries: 2×12.    165AH
Cigar lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp


PRODUCT DETAILS

HOWO Shacman 336 430 HP Concrete Mixing Plant Construction Machinery Heavy Duty Cement Tank Concrete Pump Mixer Vibrator Truck for Sale


HOWO Shacman 336 430 HP Concrete Mixing Plant Construction Machinery Heavy Duty Cement Tank Concrete Pump Mixer Vibrator Truck for Sale




HOWO Shacman 336 430 HP Concrete Mixing Plant Construction Machinery Heavy Duty Cement Tank Concrete Pump Mixer Vibrator Truck for Sale




LEGENDS OF MILLIONS GLOBALLY
most popular model and top one market share in Africa,is grand , fortitude and fluency side by side, majestic and graceful , show his unique leadership temperament ,especially in the comfort, safety and convenience of human design to target the world - class heavy truck level.By the end of 2021, more than one million  heavy trucks had been sold.









HOWO Shacman 336 430 HP Concrete Mixing Plant Construction Machinery Heavy Duty Cement Tank Concrete Pump Mixer Vibrator Truck for Sale


ENGINE


High reliability,Surging Power,Low Consumption
Great adaptability of fuel oil makes it suitable for Africa road condition, reduces maintenance and service fees with lower cost of using.










TRANSMISSION


Classic, mature and reliable
  series transmissions are adopted, offering high capacity and reliable quality.










HOWO Shacman 336 430 HP Concrete Mixing Plant Construction Machinery Heavy Duty Cement Tank Concrete Pump Mixer Vibrator Truck for Sale

AXLE
Reliable Axles for Every Application

Our innovative state-of-art engineering and our quality-driven plantsin China give our axles outstanding performance in:Durability,Fuelefficiency,Noise behavior.








HOWO Shacman 336 430 HP Concrete Mixing Plant Construction Machinery Heavy Duty Cement Tank Concrete Pump Mixer Vibrator Truck for Sale





CLASSIC CABIN








 heavy truck cab is based on the absorption of the famous heavy truck cab in Europe, which is designed with great care, in line with the international trend and unique




















cement Tanker Semi truck 11.jpegcement Tanker Semi truck 7.jpegcement Tanker Semi truck 9.jpegcement Tanker Semi truck 10.jpegcement Tanker Semi truck 8.jpegCement Truck .jpeg
