Лидер продаж бортовой погрузчик

Цена:*

Количество:

Product Description

Rated operating capacity: 1500kg
Bucket capacity: 0.7m3
Hydraulic pump flow: 80/ 130L/ min
Operating weight: 4800kg
Net power: 93kw/ 2500rpm

Product Paramenters

Specifications
Rated operating capacity(kg)	1500
Tipping load(kg)	2400
Bucket capacity(m3)	0.7
Operating weight(kg)	4800
Max. travel speed(km/h)	12/18
Hydraulic pump flow(L/min)	80/140
Fuel tank capacity(L)	90
Overall dimensions(mm)	3700×1990×2150
Dimensions
Height at maximum extension(mm)	4070
Height to bucket hinge pin(mm)	3150
Width with bucket(mm)	1990
Track width(mm)	450
Wheelbase(mm)	1185
Ground clearance(mm)	260
Dump angle	40°
Dumping height(mm)	2450
Maximum reach(mm)	710
Rollback at ground	26°
Angle of departure	20°
Engine
Maker/Model	Weichai WP4.1G102E301
Net power	140HP/2200rpm
Type	4 Cylinder in-line, Water cooled, 4 stroke, Diesel engine
Displacement(L)	4.1
Standard
Standard bucket	Enclosed operator cab
Hydraulic joystick controls	Auxiliary hydraulic couples
Optional
Air conditioner	Preheat starting assist system for extreme cold weather
Cab fitted with a heater as standard	2-speed transmission system
High-flow hydraulic system

Details Images

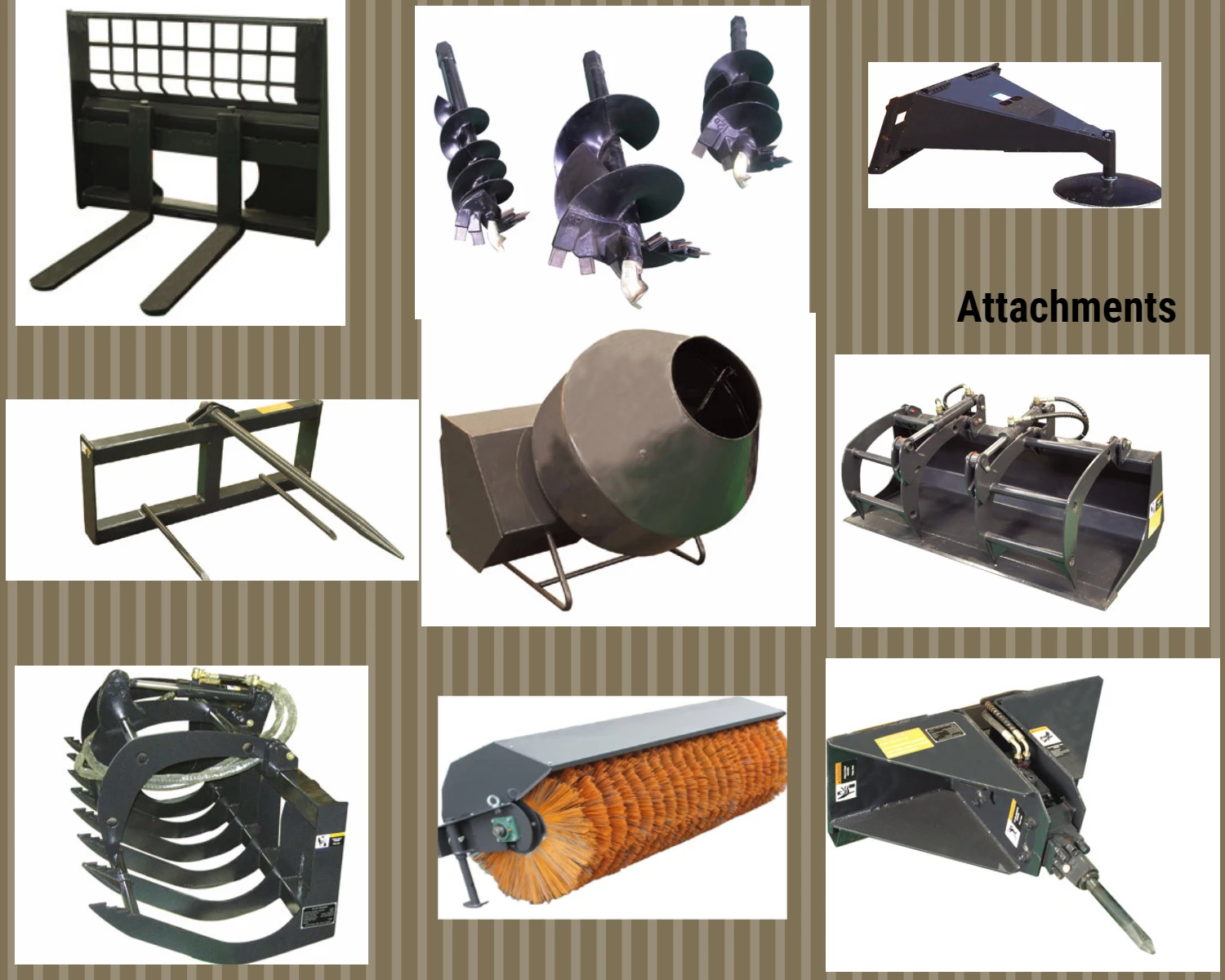

Attachments
