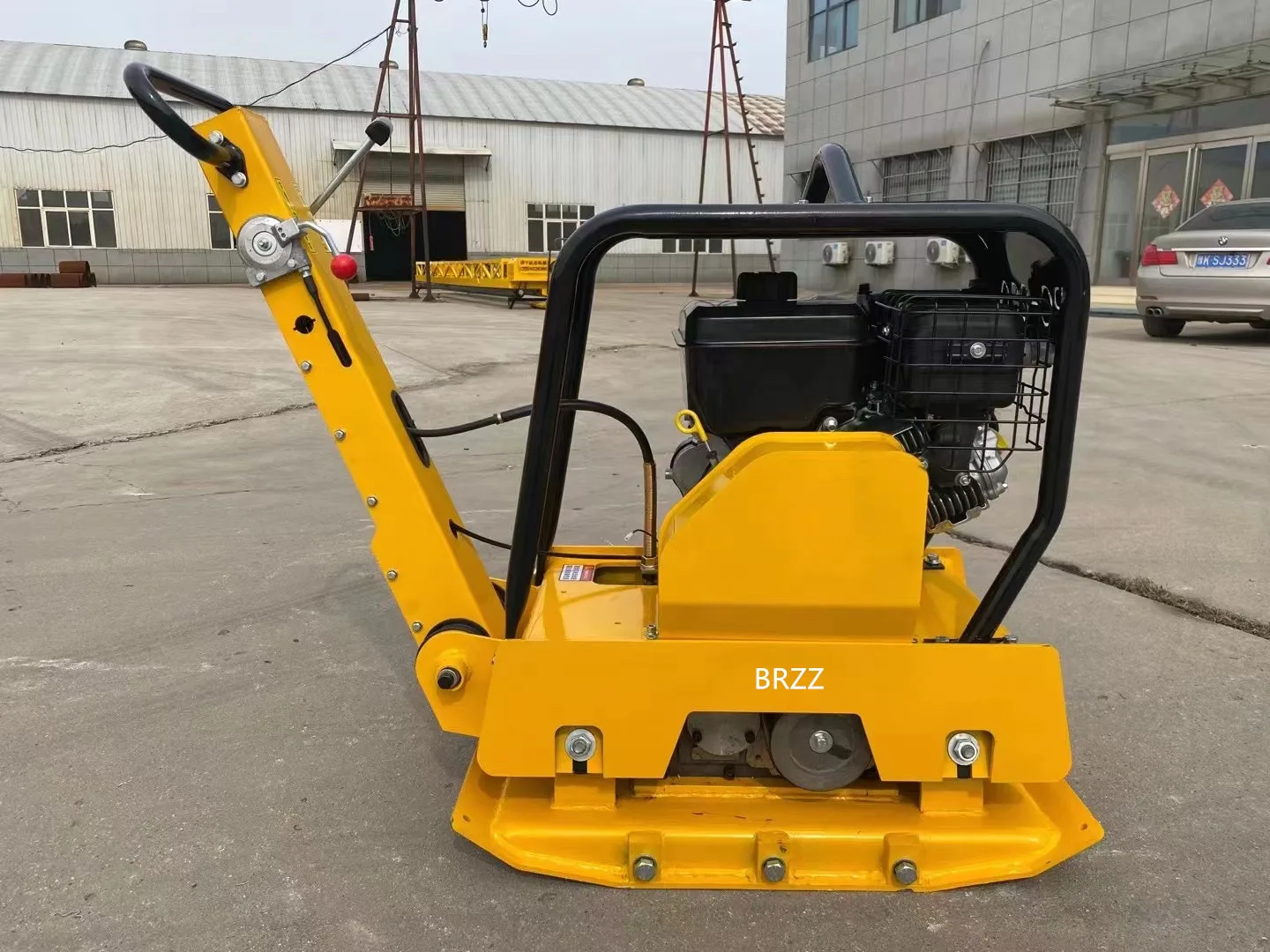

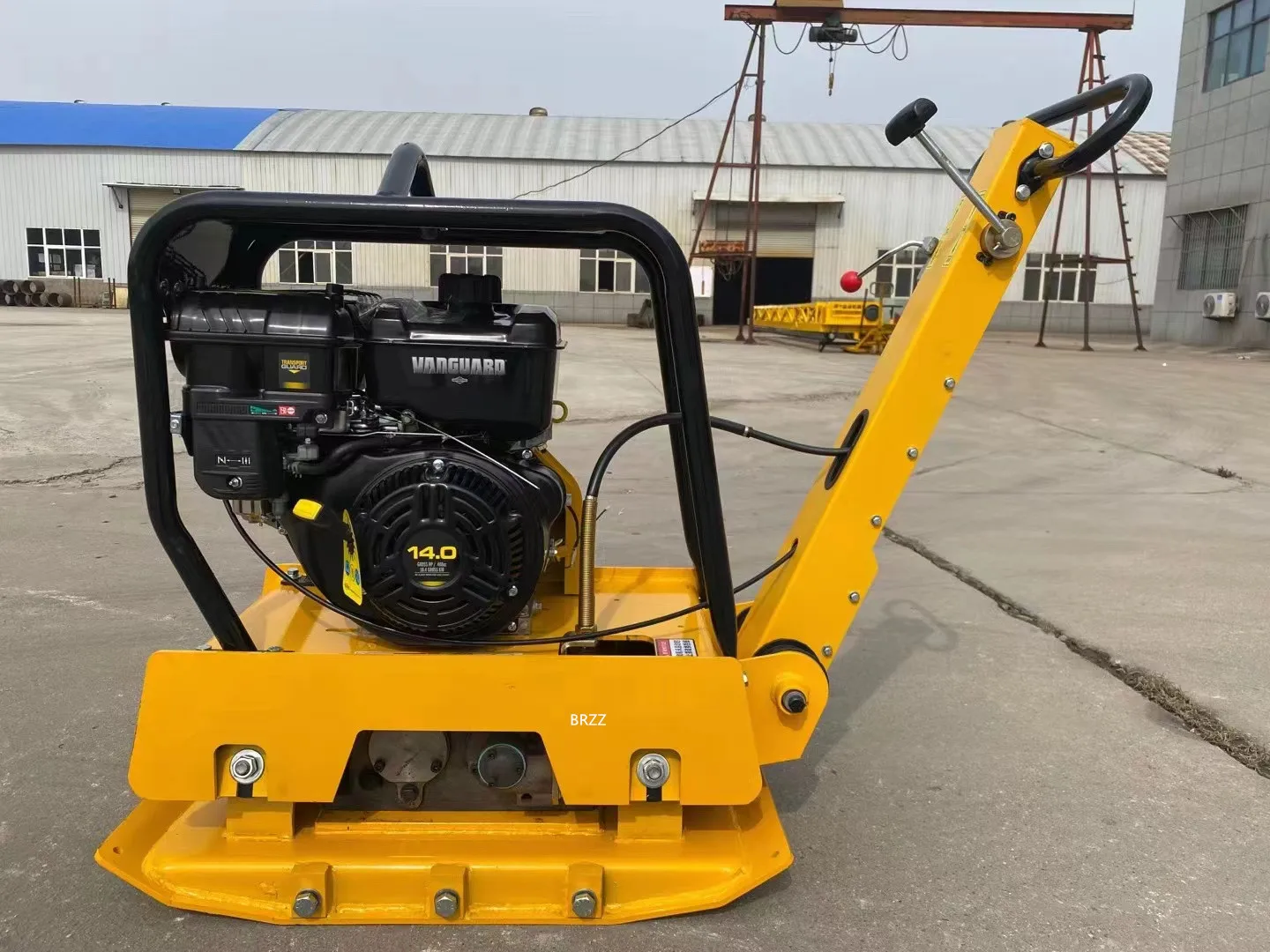

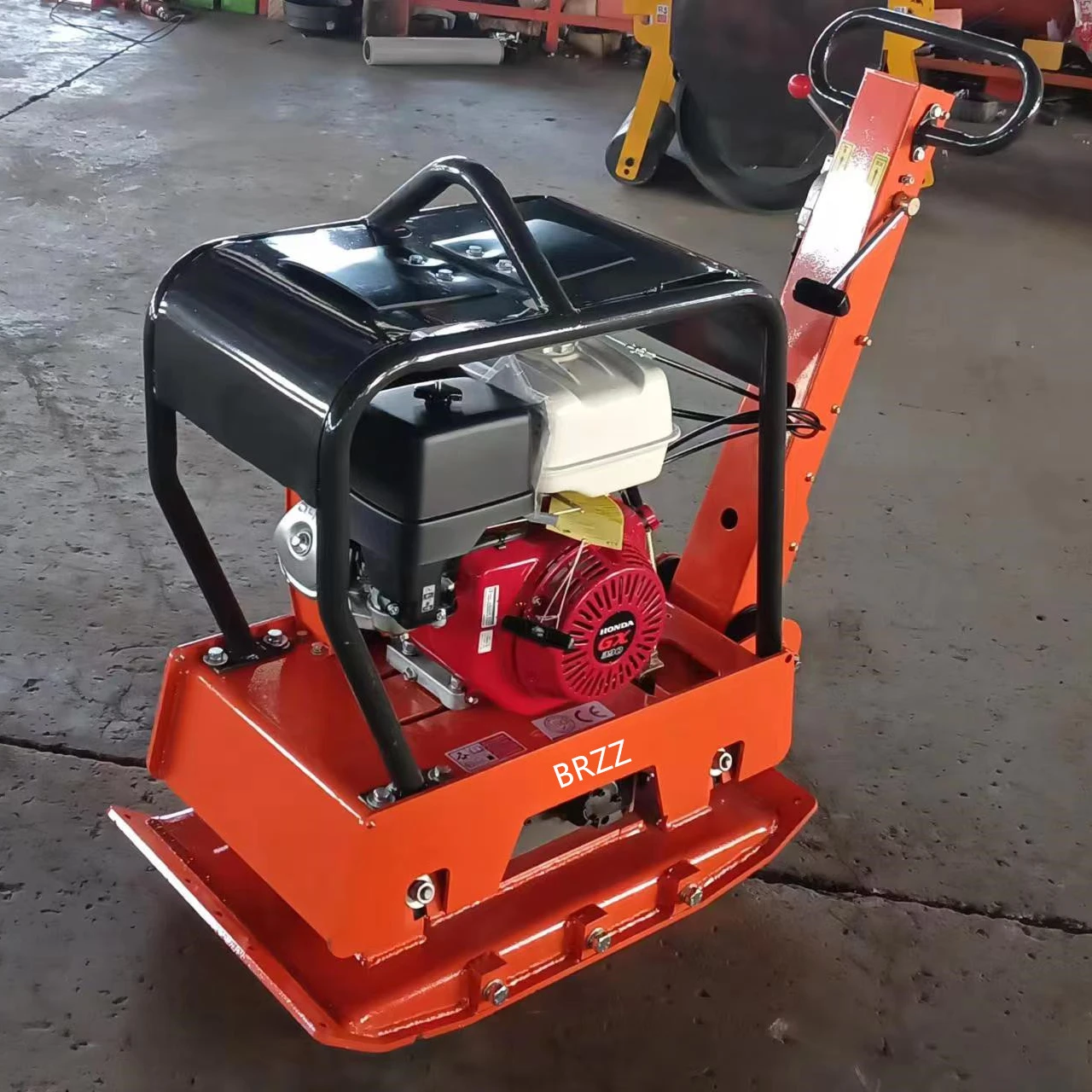

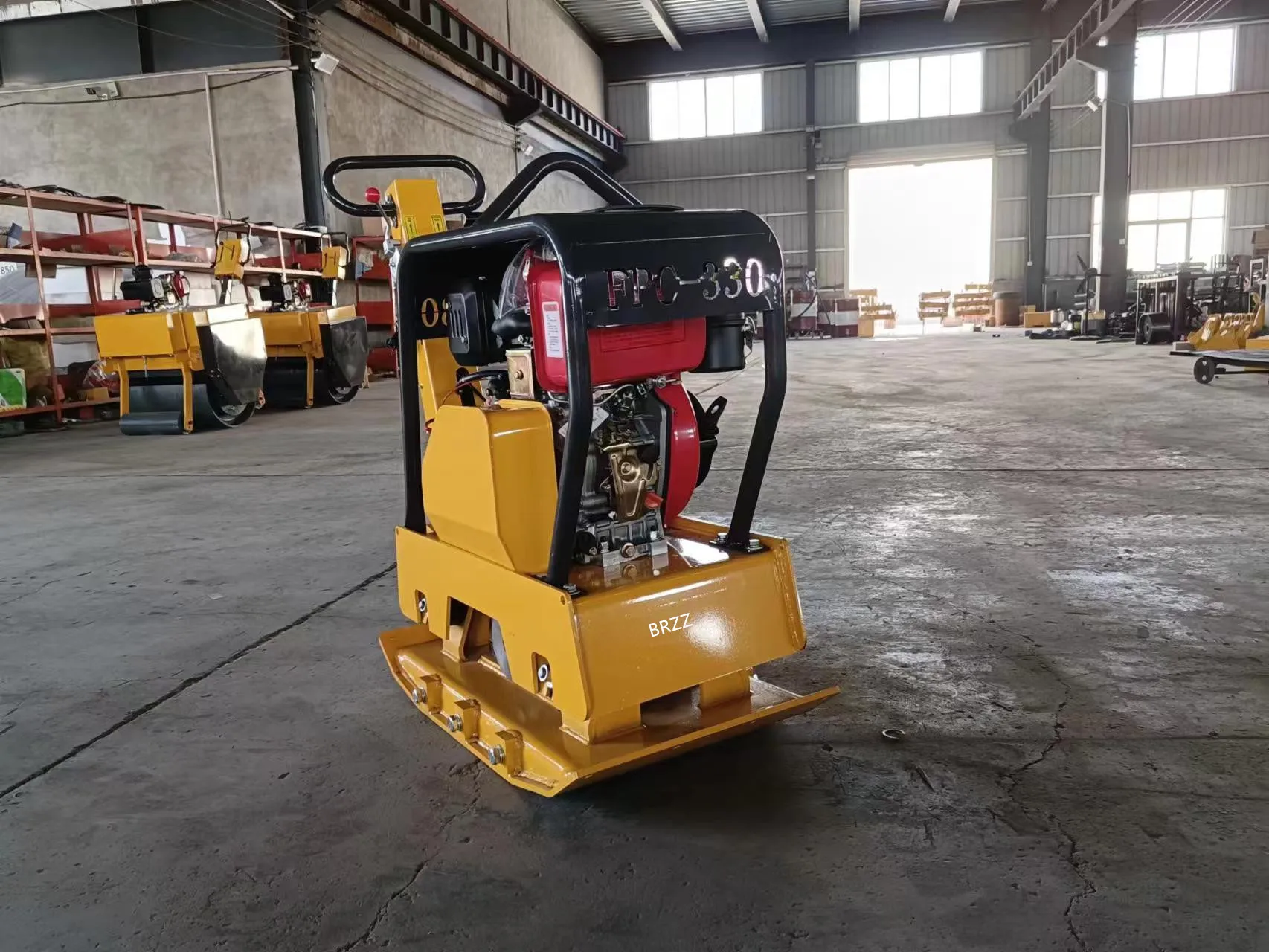

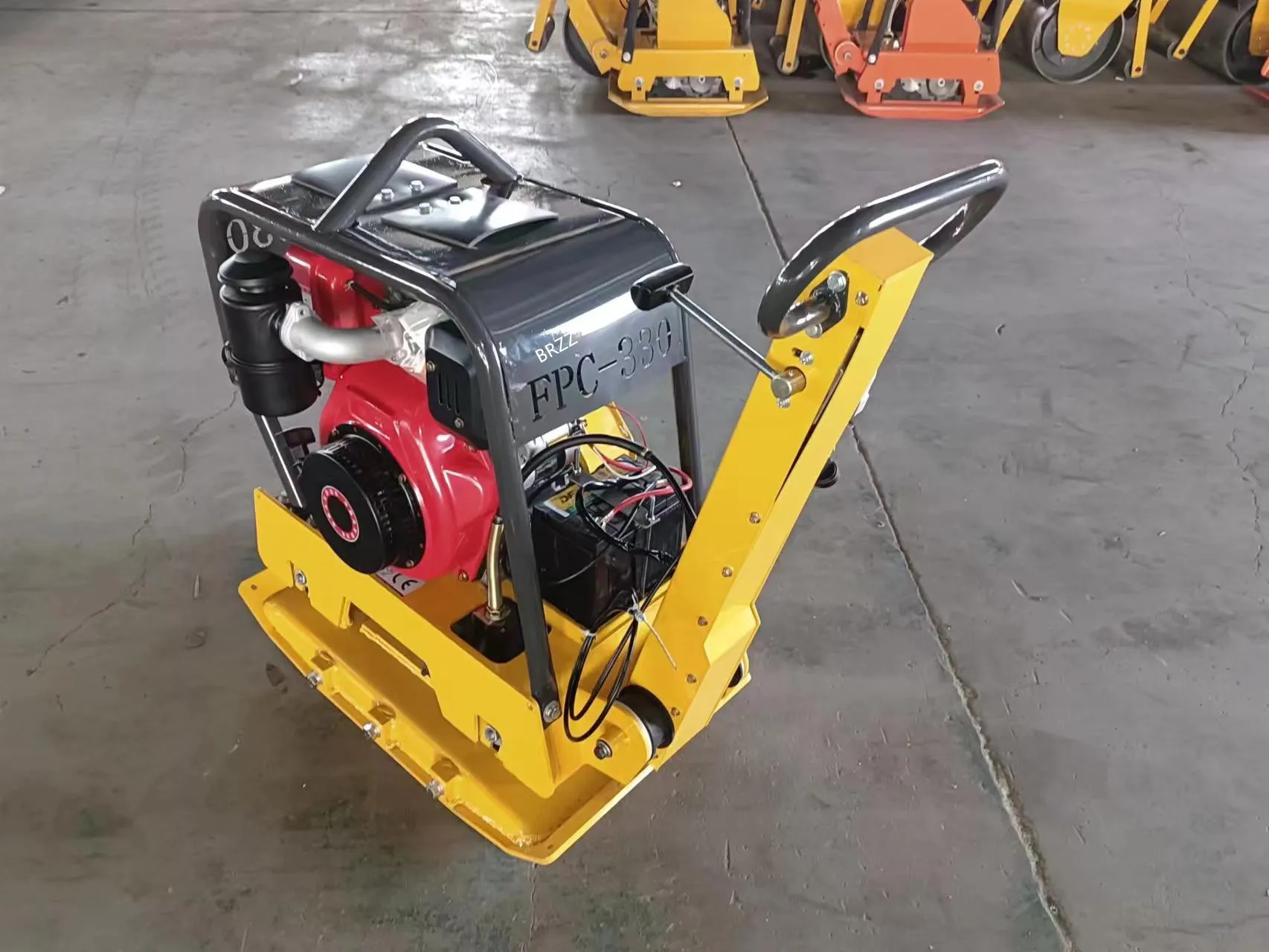

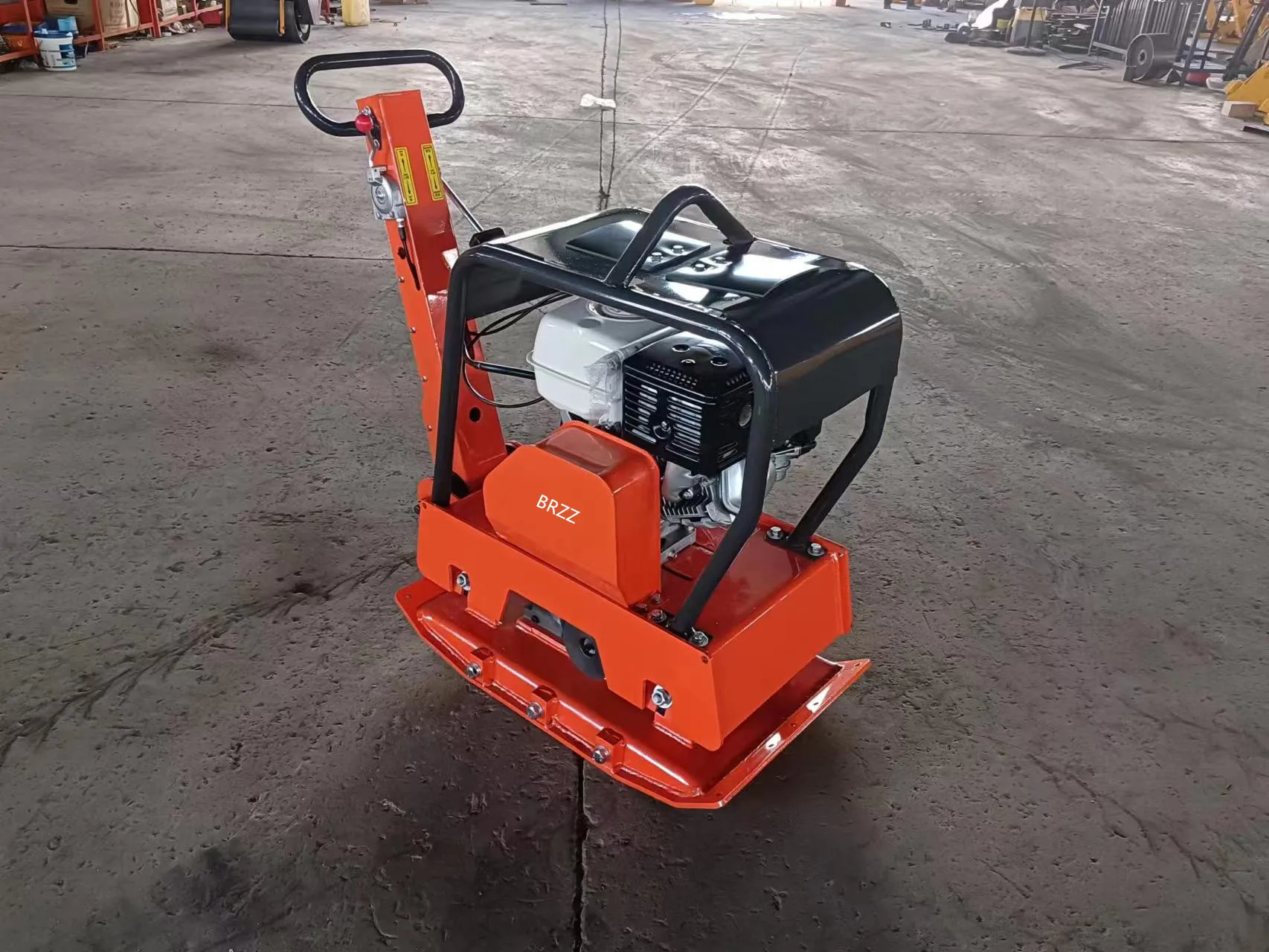

    The vibrating plate compactor is mainly suitable for compacting materials with low adhesion and friction between particles, such as river sand, crushed stone, and asphalt. The main working parameters of a vibrating plate compactor include: bottom area of the working plate, overall mass, excitation force, and excitation frequency. In general, the bottom plate area of the same specification of flat plates is similar, so the performance of flat plate impact compactors is mainly affected by the overall quality, excitation force, and excitation frequency of the machine.

    The excitation force is mainly used to maintain the forced vibration of the compacted material;        The excitation frequency affects the compaction efficiency and degree, that is, under the same excitation force, the higher the excitation frequency, the higher the compaction efficiency and compactness.

























Model Name	FPC330 Gasoline	FPC330 Diesel
Weight	260KG(Standard Plate) 270KG(Plate Widen)	270KG(Standard Plate) 280KG(Plate Widen)
External Dimensions	L970*W580*H1180mm(Standard Plate) L970*W740*H1110mm(Plate Widen)	L970*W580*H1180mm(Standard Plate) L970*W740*H1110mm(Plate Widen)
Ramming Plate Size	480*830mm(Standard Plate) 640*830mm(Plate Widen)	480*830mm(Standard Plate) 640*830mm(Plate Widen)
Pressure Strength	38KN	38KN
Forward Speed	6-16m/min	6-16m/min
Characteristic	Single cylinder, air-cooled, four stroke	Single cylinder, air-cooled, four stroke
Motor Type	HONDA-GX390	Amet
Maximum Output Power	13HP/9.6KW	8.5HP/6.3KW
Reversible Direction	Reversible	Reversible






Model Name	FPC160 Gasoline	FPC160 Diesel
Weight	160KG	160KG
External Dimensions	L865 * W415 * H1120mm	L865 * W415 * H1120mm
Ramming Plate Size	L650xW370mm	L650xW370mm
Pressure Strength	30KN	30KN
Forward Speed	20-23m/min	20-23m/min
Characteristic	Four stroke air-cooled	Four stroke air-cooled
Motor Type	Honda Gx160	Hairun Diesel
Maximum Output Power	4KW	5.5HP
Reversible Direction	Reversible	Reversible





















1.Who are we?



    We are Henan Baorun Machinery Co., Ltd,it is a large joint-stock enterprise specializing in the development and manufacture of construction machinery, construction machinery, profile cold processing machinery and prestressed equipment. The company was founded in 2009 and has nearly 15 years of design and development experience.There are total about 30-80 people in our office,Covering an area of 6500 square meters,having certain strength and reputation both domestically and internationally.



2. How can we guarantee quality?

    Always final Inspection before shipment.



3.What can you buy from us?

  There are 4 major categories: mud pumps, electric ground cows, steel reinforcement equipment, road equipment .
  The products such as:CNC steel bar bending centers, CNC hoop bending machines, bending machines, cutting muchine,upsetting machines, grouting machines, impact compactors,impact compactors, flat compactors, etc.

4.Where the partners from?

    In the past decade, most products have been exported to Russia, Pakistan, Arabia, South Africa, Southeast Asia and other places. Welcome to our company for cooperation and negotiation.



5. Why should you buy from us not from other suppliers?



1.We are a professional manufacturer of industrial construction equipment. We have our own brand "XUGONG" in the domestic market and have enjoyed a high reputation for many years.

2. We can guarantee quality, good after-sales service and competitive prices.

3. We are close to Zhengzhou Xinzheng International Airport, which is convenient for customers to visit; We are located in Changge City, Henan Province, central China. We are leading in all aspects of logistics, and we can guarantee fast delivery time.



6.What can we do for you?



1. We can change the color according to your actual requirements.
2. Customize the voltage motor based on your country standard.
3. Choose different wheels according to your needs.



7.Common problem:

1.Minimum order quantity: 1 set

2.Packaging: wooden case or according to customer requirements

3.Shipping port: Shanghai/Ningbo/Qingdao or other acceptable ports

4.Service: 1 year warranty
