Вертикальная молотковая мельница коромысло запасные части используемые в
- Категория: Cement Making Machinery >>>
- Поставщик: Xuzhou,Boshitong,Heavy,Industry,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 25851.72 $* | 26368.75 $* |
| Jul-19-2025 | 20966.17 $* | 21385.78 $* |
| Jun-19-2025 | 25444.13 $* | 25953.0 $* |
| May-19-2025 | 25240.54 $* | 25745.85 $* |
| Apr-19-2025 | 20151.19 $* | 20554.40 $* |
| Mar-19-2025 | 24833.58 $* | 25330.67 $* |
| Feb-19-2025 | 24630.63 $* | 25123.48 $* |
| Jan-19-2025 | 24426.94 $* | 24915.65 $* |
Характеристики
Product Description
BOSHITONG Vertical mill is an ideal large-scale grinding equipment, widely used in cement, power, metallurgy, chemical industry, non-gold mining and other industries.It integrates crushing, drying, grinding and grading transportation into one, with high production efficiency. It can grind block, grain and powder materials into required powder materials.
Name | Roller shell |
Weight | 3--25T |
Hardness | HRC58-65 |
Vertical Mill Model | HRM/LM/ZGM |
Work temperature | 500℃-1000℃ |
Material | High chromium cast iron，ZG45,ZG30Mn,steel or customers requirement |
Thickness | base+layer=3+3,5+5,6+4,6+5,,8+4,,8+8,10+10,16+10,20+20,40+10,or customize |
Technology | Hardfacing, open arc welding, submerged arc welding |
Output | Cement :55~250 t/h Raw Material :70~720 t/h Coal :5~70 t/h Slag :50~180 t/h |
Rocker Arm Technical Parameters:
1.Weight: 10-25T
2.Material: ZG270-500, ZG30SiMnMo or Customer's requirement
3.Application: Vertical roller mill
4.Machining:
rough machined, semi-finished machined, finished machined Heat treatment:Normalized, Normalized and Tempered, Quench and Tempered.
5.Test:
Chemical composition, mechanical property, UT, MT, PT and X-ray inspection
3.Application: Vertical roller mill
4.Machining:
rough machined, semi-finished machined, finished machined Heat treatment:Normalized, Normalized and Tempered, Quench and Tempered.
5.Test:
Chemical composition, mechanical property, UT, MT, PT and X-ray inspection
6.Production Process
a.Wooden pattern Production b.Molding
c.Pouring
d.First cleaning
e.Heat treatment – grinding (inspection)
f.Rough machining (inspection)-finishing machining (inspection)
g.Packing-delivering
a.Wooden pattern Production b.Molding
c.Pouring
d.First cleaning
e.Heat treatment – grinding (inspection)
f.Rough machining (inspection)-finishing machining (inspection)
g.Packing-delivering
Introduction:

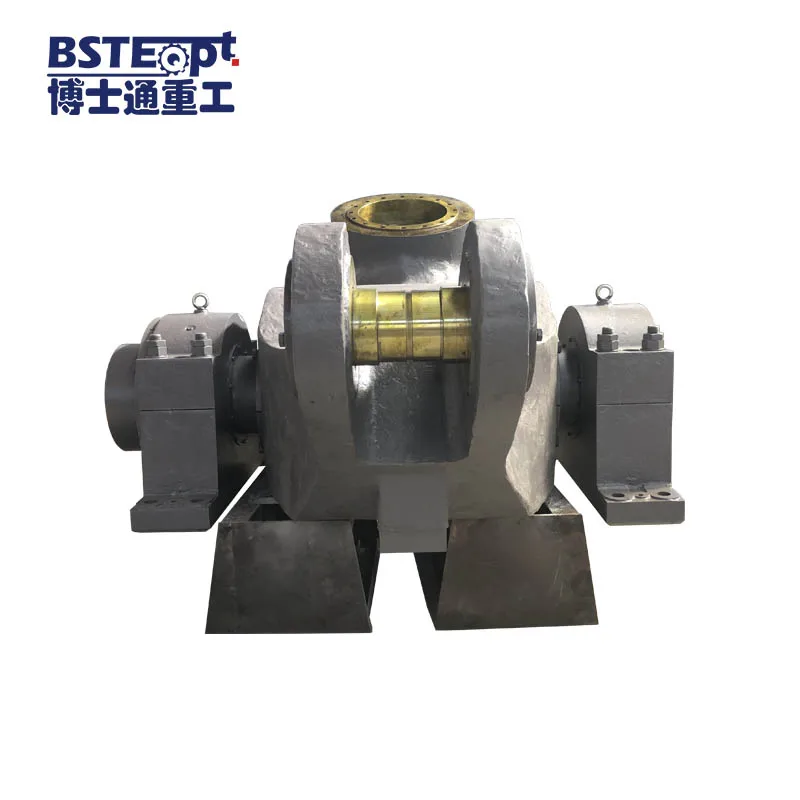

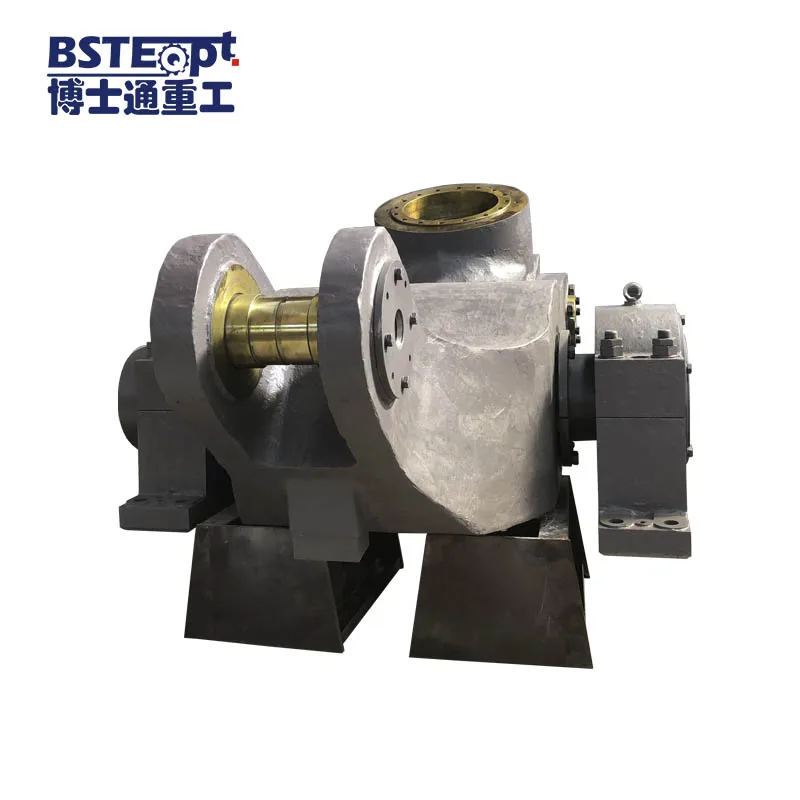

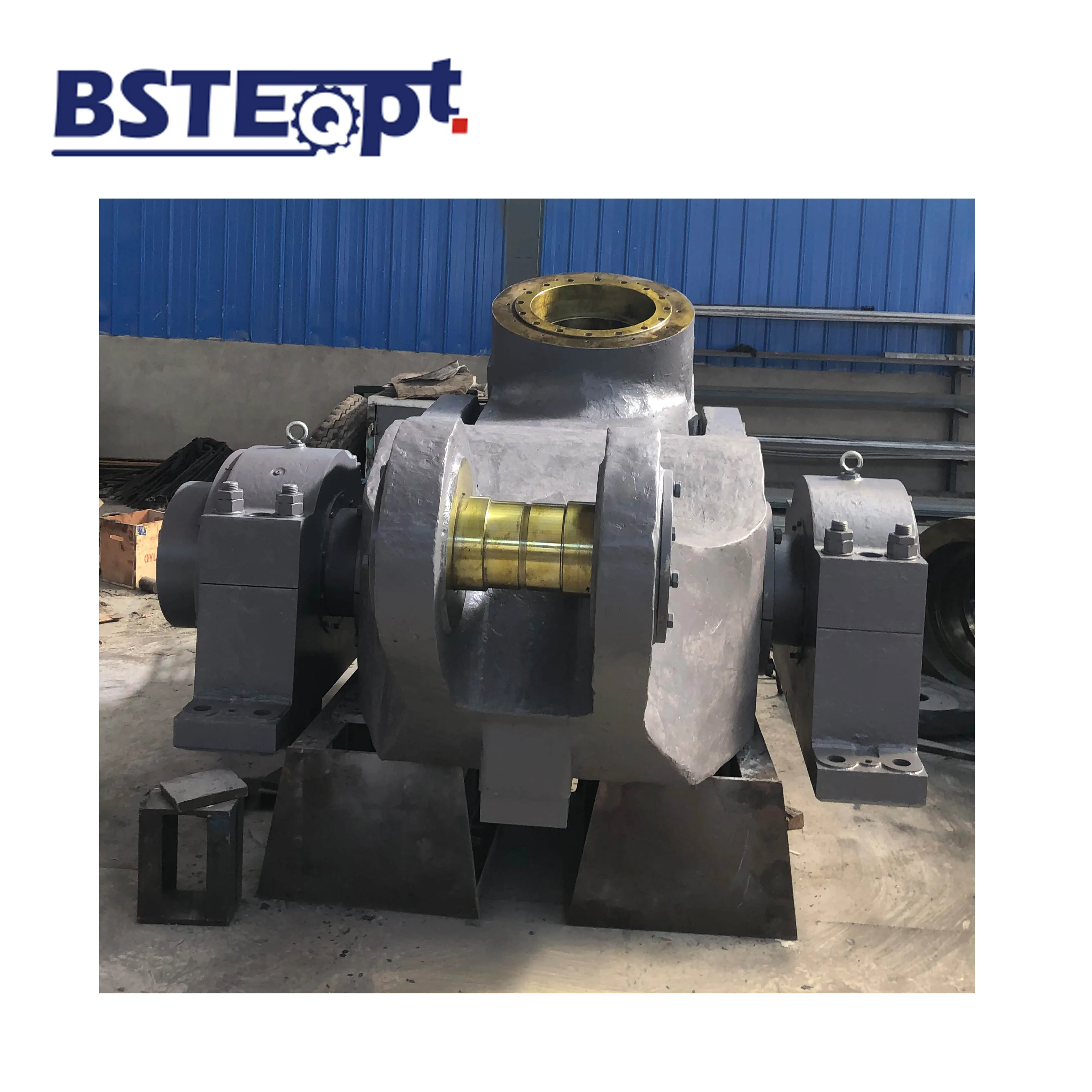

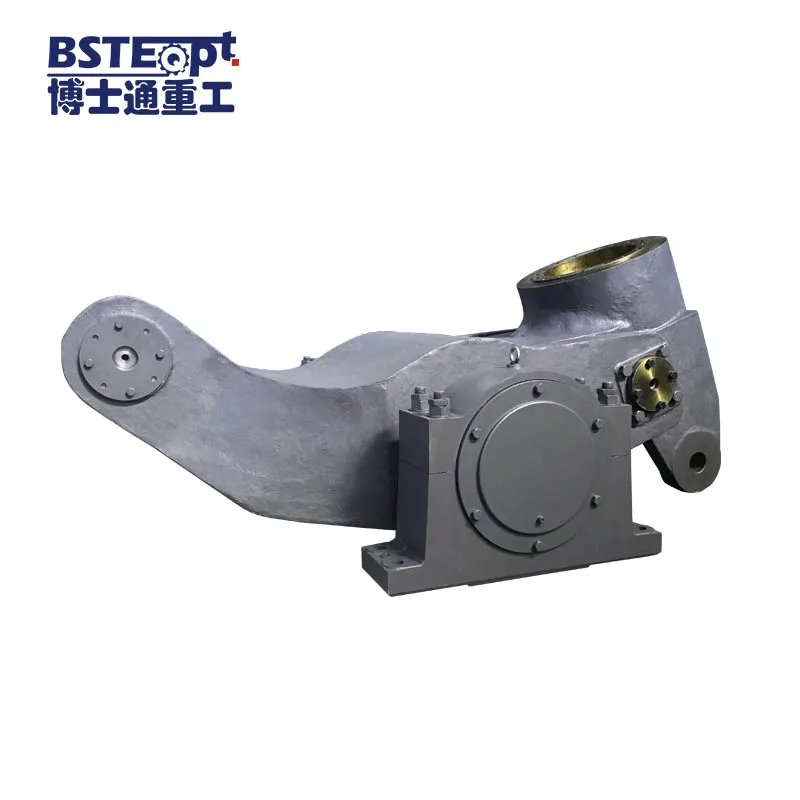

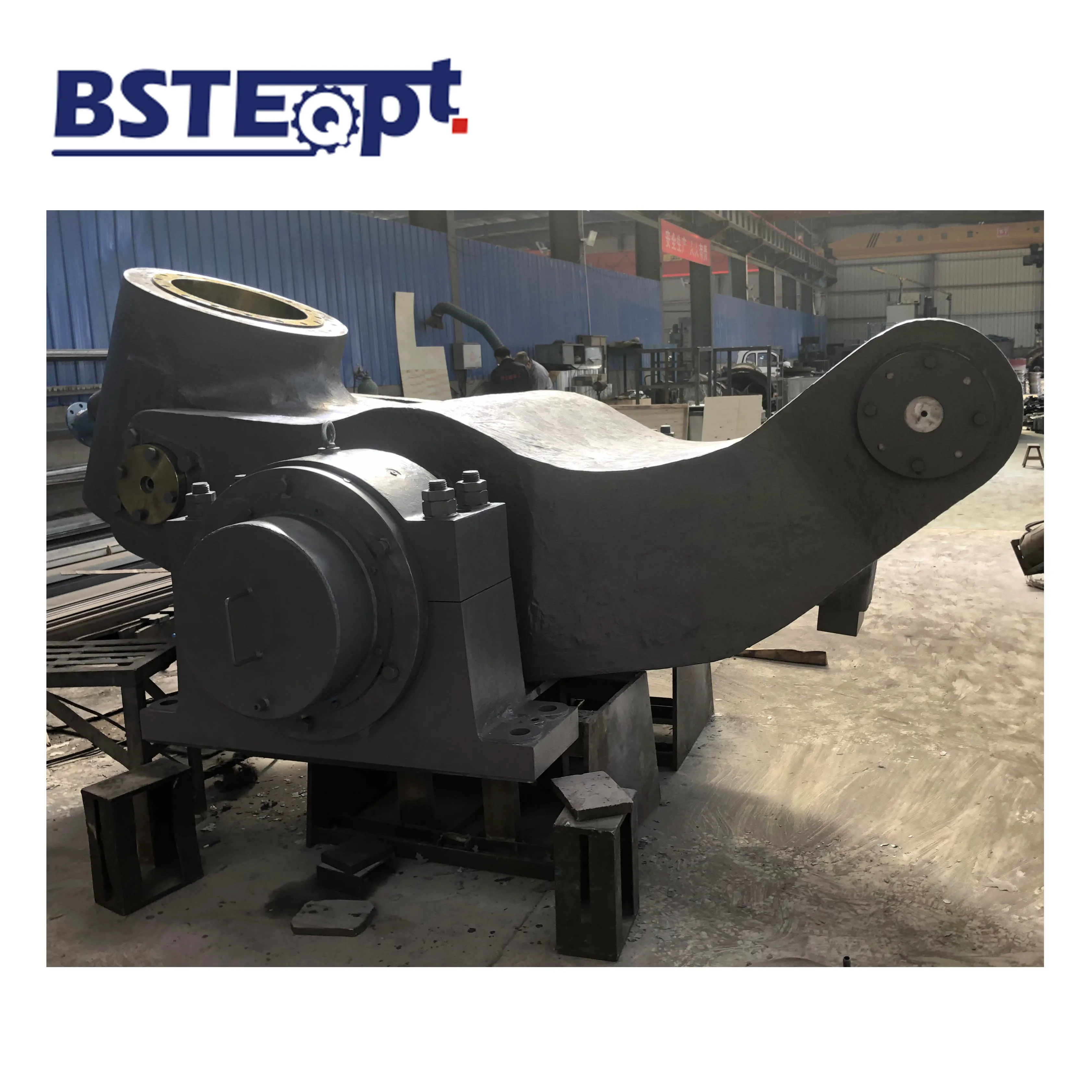

The rocker arm is one of the main components of vertical roller mill. Each set of rocker arm includes upper rocker, lower rocker,a center shaft, a bearing seat and a bearing, mainly to transfer hydraulic pressure to the grinding roller, and turn it into the grinding force to material bed.
Packaging Details:
Anti-rust surface protection, non-fumigation wooden case OR per customer's requirement
Delivery Detail:
60-90 days according to the order/depends on order quantity
The rocker arm is one of the main components of vertical roller mill. Each set of rocker arm includes upper rocker, lower rocker,a center shaft, a bearing seat and a bearing, mainly to transfer hydraulic pressure to the grinding roller, and turn it into the grinding force to material bed.
Packaging Details:
Anti-rust surface protection, non-fumigation wooden case OR per customer's requirement
Delivery Detail:
60-90 days according to the order/depends on order quantity

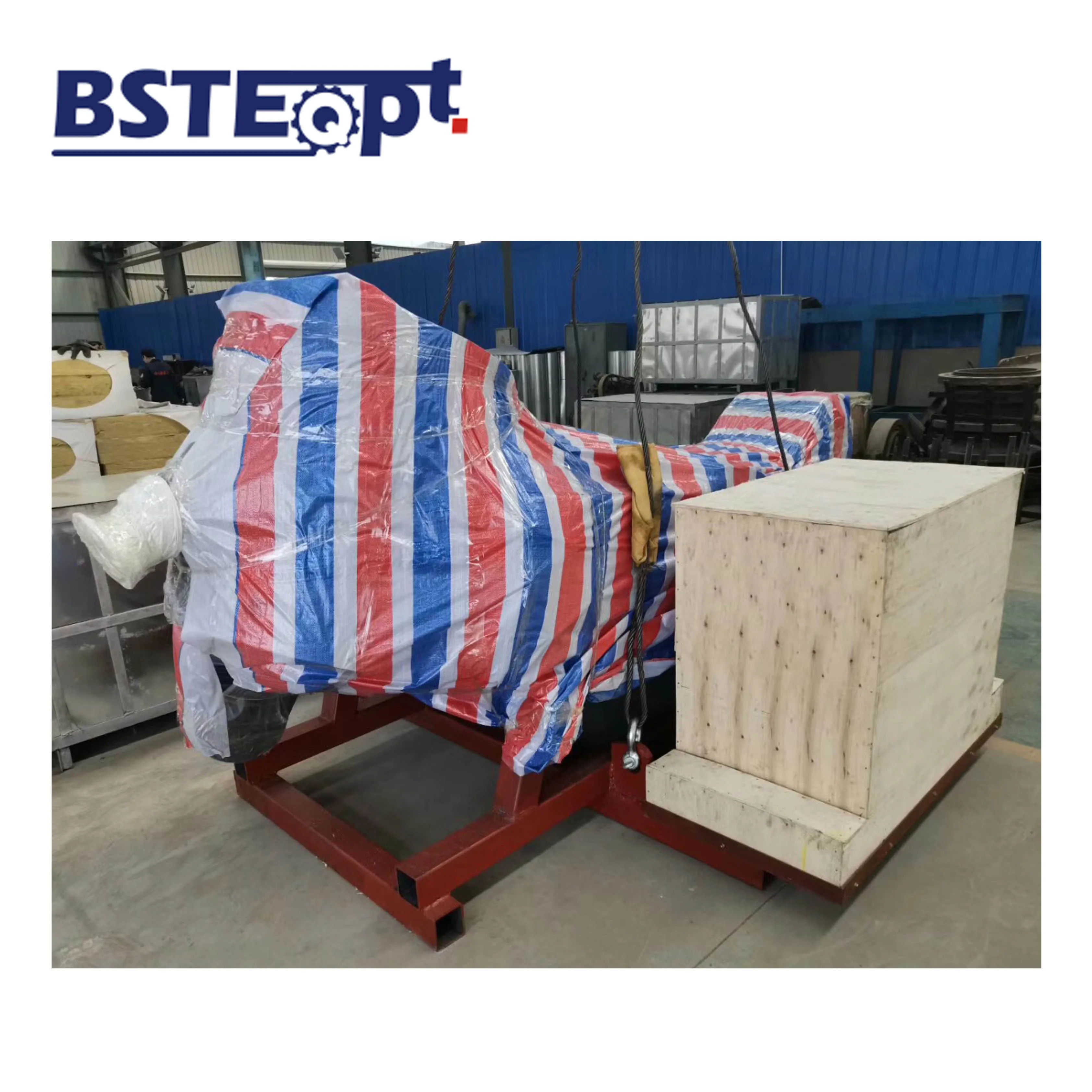

Packing&Shipping
Packaging Details:
We will load different sizes of packing according to different machine sizes, and the normal packing is in wooden/iron cases. If exported to European countries, wood frame will be fumigation. If the container is too tight, we will pack according to the customer's special requirements.Delivery Time:
We are based on the actual needs of customers, to carry out tailor-made sales. By senior engineer to design scheme, after receipt of customer deposits began production, We guarantee the delivery time according to the size of the equipment, delivered the balance after delivery.
After Sales Service
Company Introduction
Xuzhou Boshitong Heavy Industry Equipment Co., Ltd. is a manufacturing and sales enterprise specializing in the design, development, production equipment and accessories of cement and mining production lines.well known agent and manufacturers. The products are exported to many countries at home and abroad, and have established a complete set of sales network channels.
Xuzhou Boshitong Heavy Industry Equipment Co., Ltd mainly relies on TCDRI, NCDRI, HCDRI, SINOMA, CITIC and other units to provide technical support, mainly providing accessories and maintenance services for cement production lines. It can provide equipment spare parts for cement production lines of various specifications, such as rotary kiln、vertical mill、roller press、ball mill、grate cooler、preheater、crusher、conveyor、dryer and fan spare parts other equipment. At the same time, it can provide equipment and accessories for overflow mills、semi-self-grinding, etc. for mine production lines, as well as drawings and processing services.
Our products are implemented in strict accordance with international quality standards and are highly regarded in different markets around the world.
Sophisticated products、thoughtful after-sales、first-class equipment、reasonable prices、and strive to build global sales network channels, currently foreign sales have covered India、Vietnam、Laos、the Philippines、Pakistan、Saudi Arabia、Indonesia、Syria and other countries.
2.100% CAD through Bank
3.100% LC at sight
4.As Requested
