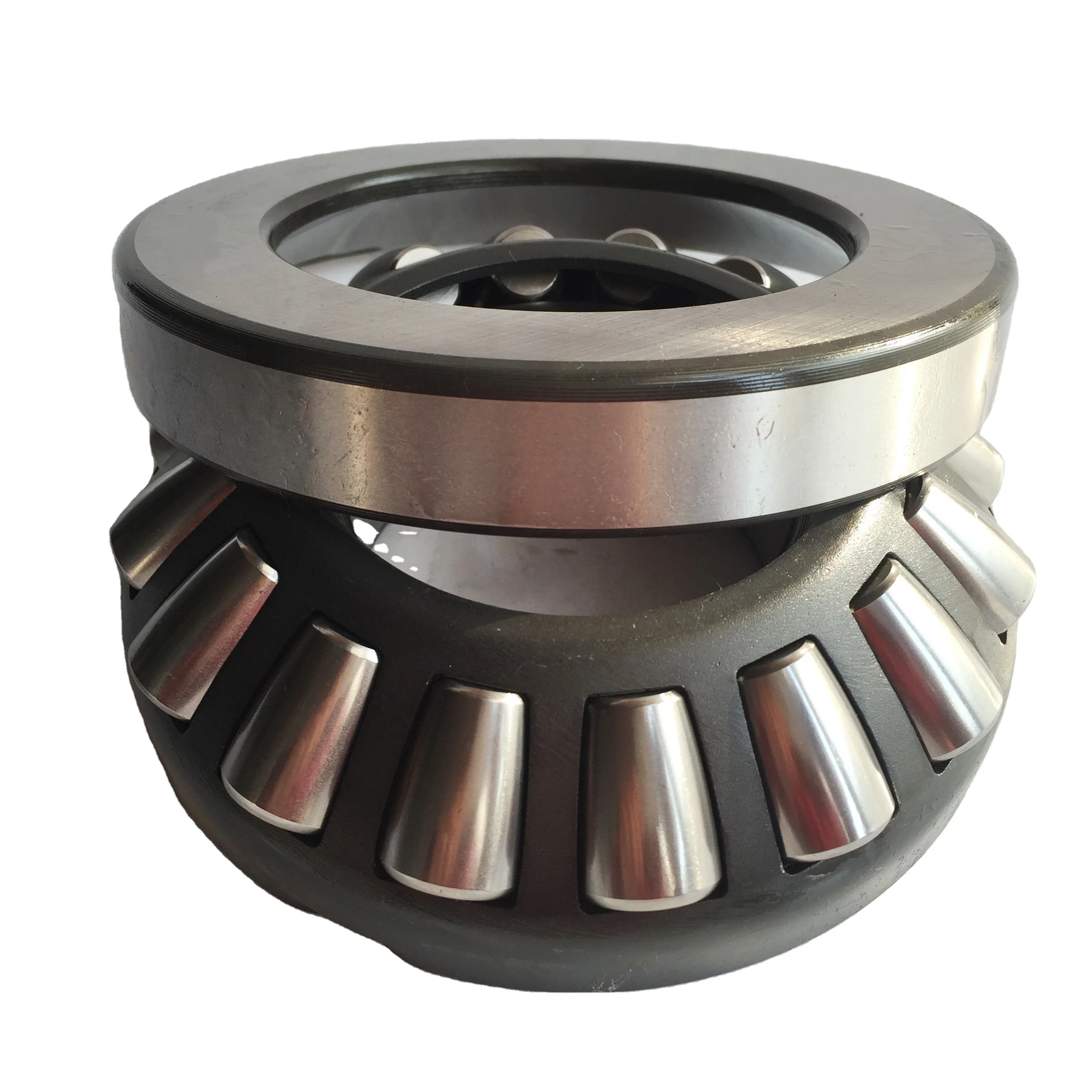

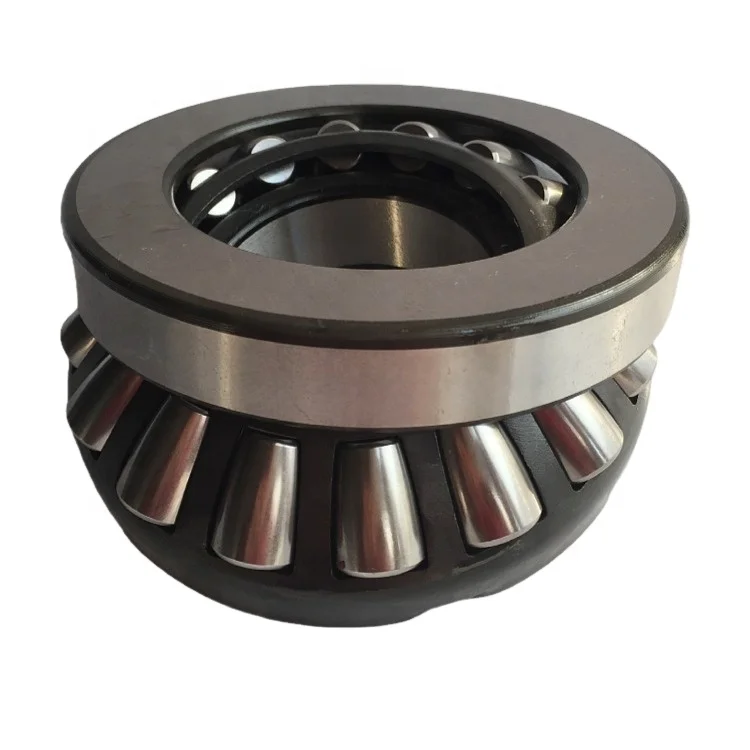

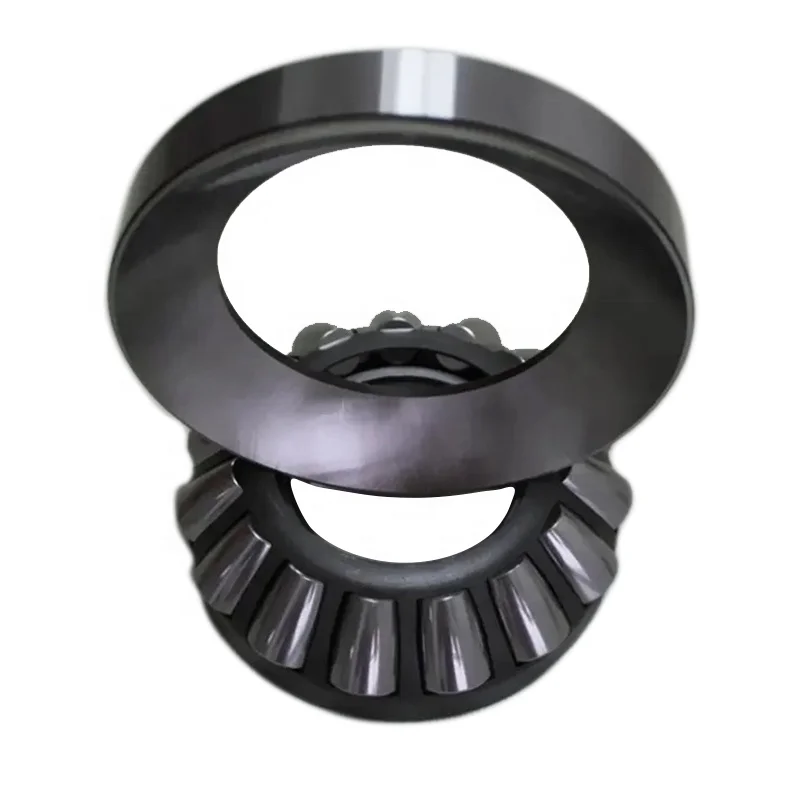

Тяжелый осевой сферический роликовый упорный подшипник 29417E с штампованной стальной клеткой 29417 E

Описание и отзывы

Трекер стоимости

Характеристики

Thrust roller bearing

This thrust roller bearing composed of a thrust roller and cage assembly, wherein needle rollers or cylindrical rollers are configured radially in the cage, and a bearing ring of disc form is intended to support one-directional axial load. In mounting, it is possible to use a shaft or a housing as the direct raceway surface without using the bearing. Thrust Roller Bearings ring, whereby design of a low height and lightweight compact construction is enabled. This type of thrust roller bearing results in slipping on raceway surface because in most cases it is practically trouble-free and can rotates at comparatively high speed.



Types

1.Cylindrical roller thrust bearings

2.Needle roller thrust bearings

3.Tapered roller thrust bearings

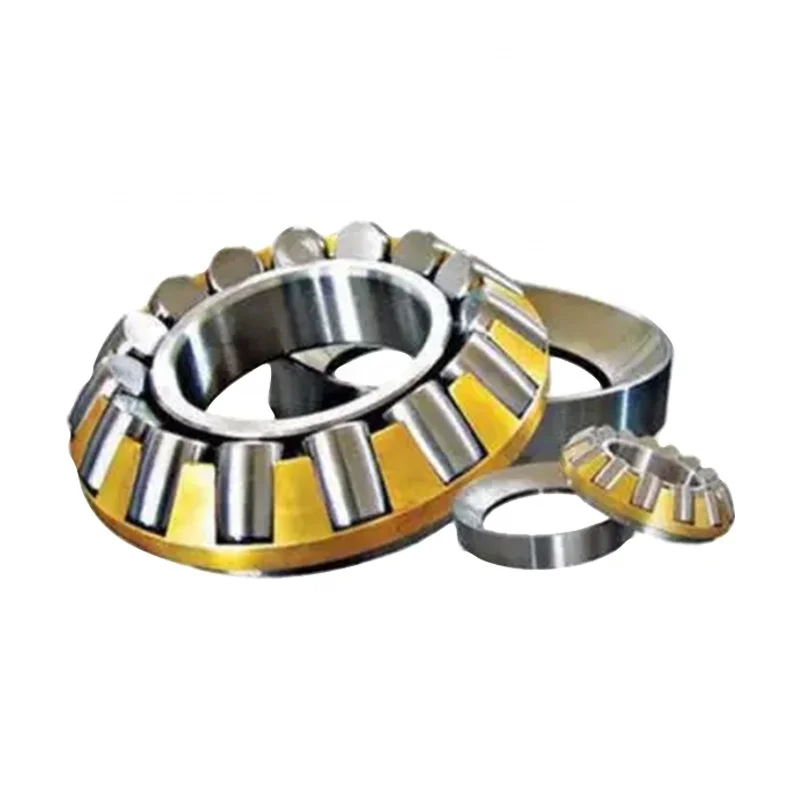

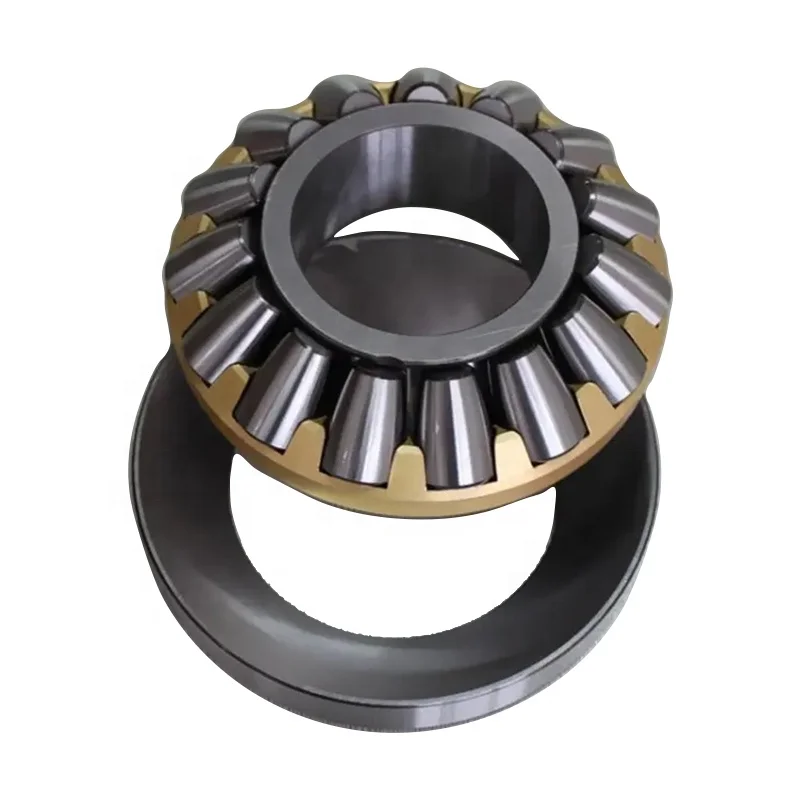

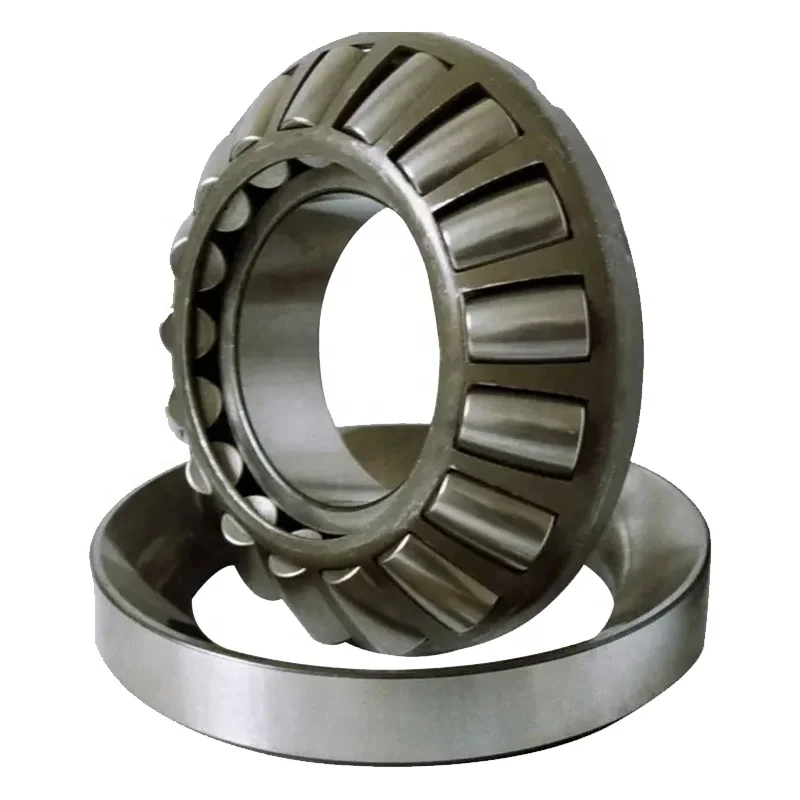

4.Spherical roller thrust bearings



Spherical roller thrust bearings accommodate very heavy axial and considerable radial loads. They have the highest load rating of all thrust bearings, enabling compact, high power density bearing arrangements. By combining two or more spherical roller thrust bearings, it is possible to create a bearing arrangement that is either self-aligning, allowing misalignment of the shaft, or very stiff.

Features

• High load carrying capacity


• Can accommodate combined loads


• Allow misalignment or create very stiff bearing arrangements


• Long service life and low friction


• Separable design







Type	Thrust roller bearing
Model No.	29417E
Material	Chrome Steel Gcr15
Bore diameter	85mm
Outside diameter	180mm
Ball Material	Steel
Precision	P5Static Load Rating
HS code	84825021
Weight	6.75kg



































Applications

1.Gearboxes

2.hoisting equipment

3.rolling mills

4.Machines

5.combined loads

6.Industrial fans

7.Industrial pumps

8.Metals

9.Industrial transmissions

10.Mining, mineral processing and cemen







Bearing Process:

1.Forging material

2.Heat treatment

3.Grinding workshop

4.Rollers workshop

5.Cage inspection

6.Quality control test

7.Bearing assembly

8.Bearing complete

9.Bearing packing





Company information:

Shanghai SY Bearing CO., LTD is a professional global supplier of bearings and Linear Motion System .We are Founded in 1999 and located in Shanghai city, We have our own factory,mainly provide and customize our own brand SYBR bearings and linear guide systems to meet the different needs of customers.Meanwhile We stock world famous brands of bearings and linear

guide system from different countries.

Famous brand bearings come from CHINA, GERMANY, SLOVAKIA, SWEDEN, JAPAN, AUSTRIA, MALAYSIA,FRANCE, USA, ITALY and so on. Famous brand Linear Motion System com from GERMANY, JAPAN, CHINESE TAIWAN, ROMANIA, KOREA, CHINA and so on.

We have complete warehousing & logistics system and best after-sale service, therefore we got to know many clients in the world like America, Europe, Africa and the Middle East.By ceaselessly improve our product and service, we have confidence in cooperating with every potential customer.
