BB одностороннее подшипника BB20 BB20-1K 20x47x14 мм трактор Выжимной Подшипник Сцепления
- Категория: Bearings >>>
- Поставщик: Shandong,Bohong,Bearing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.28 $* | 0.14 $* |
| Aug-19-2025 | 0.87 $* | 0.76 $* |
| Jul-19-2025 | 0.51 $* | 0.51 $* |
| Jun-19-2025 | 0.49 $* | 0.61 $* |
| May-19-2025 | 0.92 $* | 0.8 $* |
| Apr-19-2025 | 0.79 $* | 0.52 $* |
| Mar-19-2025 | 0.66 $* | 0.13 $* |
| Feb-19-2025 | 0.21 $* | 0.58 $* |
| Jan-19-2025 | 0.52 $* | 0.42 $* |
Характеристики

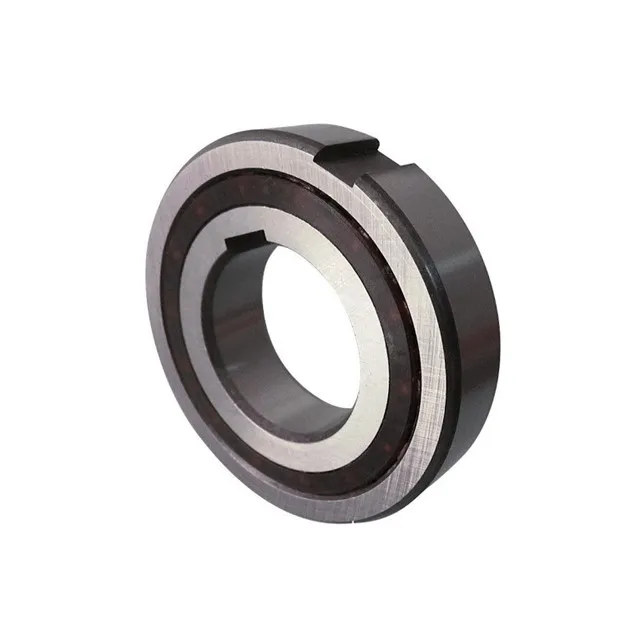

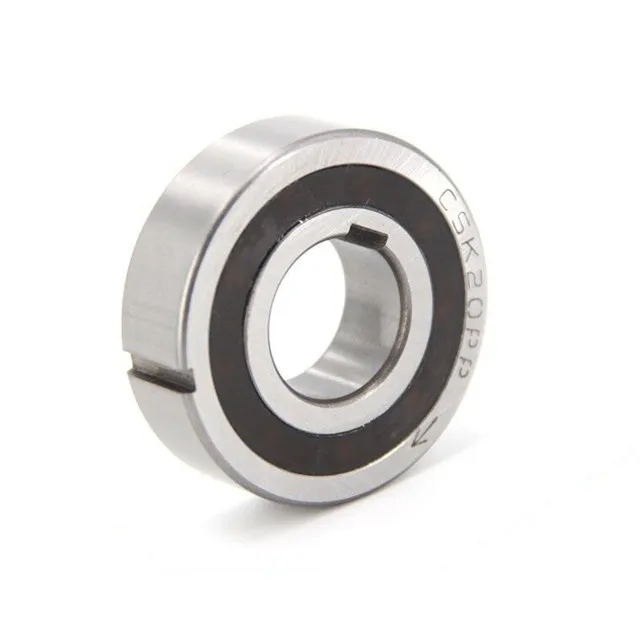

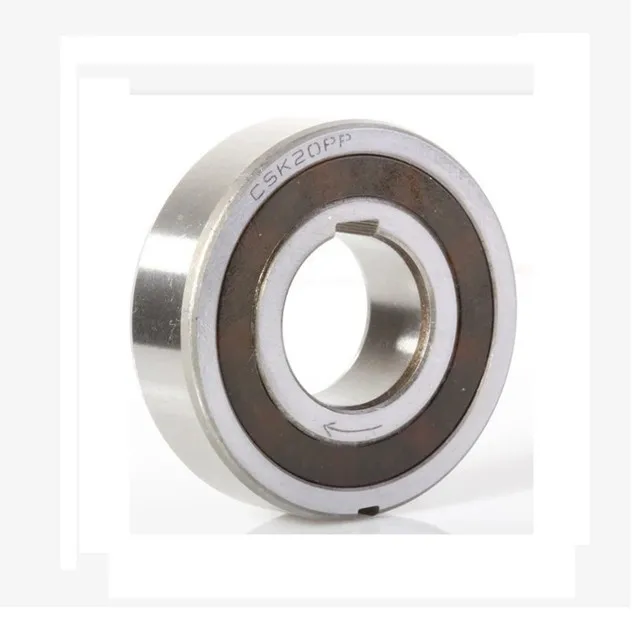

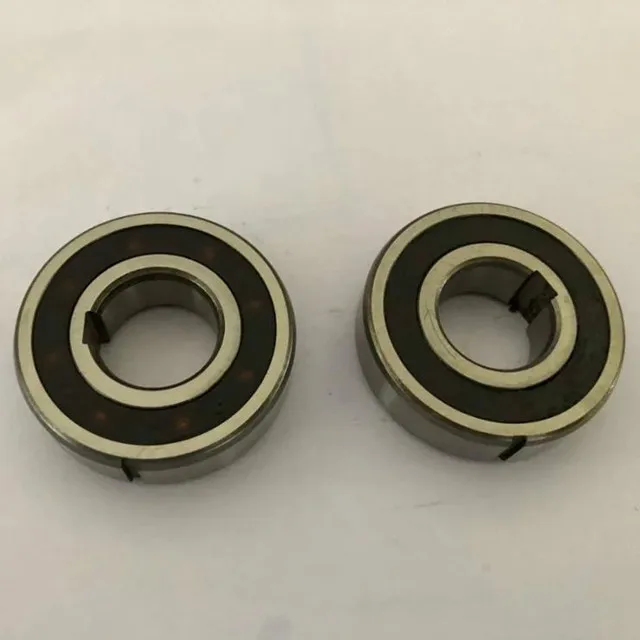

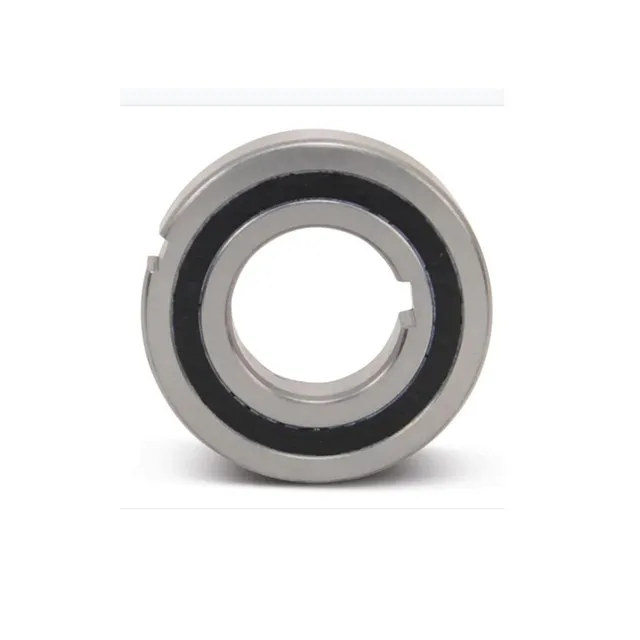

BB one way bearing BB20 BB20-1K 20x47x14mm tractor clutch release bearing 6204 BB20-1K-K
Product Description
Deep groove ball bearings are available in a variety of sizes and are the most popular of the rolling bearings. This type of bearing supports radial load and a small degree of axial load in both directions simultaneously. Deep groove ball bearings are popular due to their versatility, affordability, and capability to run at high speeds. Most bearings in the 6000 series up to 60mm bore can be made available in stainless steel (AISI 440C material) upon request. Contact a BHR sales engineer for details.
Specifications: BB one way bearing clutch bearing BB20-1K | |
Clearance | C3 C4 C0 |
Bearing type | deep groove ball bearing |
Seal type | pp bearing |
Number of row | single row |
Material | Gcr15 steel bearing |
Precision rate | grade p4 p5 p6 p0 abec5 |
Features | Z1V1 Z2V2 |
Dimensions: | |
Bore size d | 20.000 mm |
Outside Diameter D | 47.000 mm |
Outside Ring Width B | 14.000 mm |
one way clutch bearing catalogue:
Model No | Dimensions (mm) | Bearing Loads | Torque Tkn(N.m) | Weight (KG) | |||
| d | D | W | C[Kn] | Co[Kn] | |||
| CSK8 2RS | 8 | 22 | 9 | 3.28 | 0.86 | 2.5 | 0.015 |
| CSK12 2RS | 12 | 32 | 14 | 6.1 | 2.77 | 7.5 | 0.05 |
| CSK15 2RS | 15 | 35 | 16 | 7.4 | 3.42 | 13.5 | 0.07 |
| CSK17 2RS | 17 | 40 | 17 | 7.9 | 3.8 | 24.5 | 0.09 |
| CSK20 2RS | 20 | 47 | 19 | 9.4 | 4.46 | 40 | 0.145 |
| CSK25 2RS | 25 | 52 | 20 | 10.7 | 5.46 | 68 | 0.175 |
| WCB6205-2RS | 25 | 52 | 15 | 14 | 7.85 | 60 | 0.14 |
| OW6006-2RS | 30 | 55 | 14 | 13.23 | 8.30 | 120 | 0.14 |
| CSK30 2RS | 30 | 62 | 21 | 11.7 | 6.45 | 110 | 0.270 |
| CSK35 2RS | 35 | 72 | 22 | 12.6 | 7.28 | 140 | 0.40 |
| CSK40 2RS | 40 | 80 | 27 | 15.54 | 12.25 | 260 | 0.60 |
PART NUMBERS | DIMENSIONS | TORQUE (N.m) | WEIGHT (KG) | ||||
STIEBER | /1 KEYWAY | /2 KEYWAYS | d | D | W | ||
CSK8 | CSK8-P | CSK8-PP | 8 | 22 | 9 | 2.0 | 0.015 |
CSK12 | CSK12-P | CSK12-PP | 12 | 32 | 10 | 7.5 | 0.040 |
CSK15 | CSK15-P | CSK15-PP | 15 | 35 | 11 | 13.5 | 0.05 |
CSK17 | CSK17-P | CSK17-PP | 17 | 40 | 12 | 24.5 | 0.07 |
CSK20 | CSK20-P | CSK20-PP | 20 | 47 | 14 | 40 | 0.11 |
CSK25 | CSK25-P | CSK25-PP | 25 | 52 | 15 | 68 | 0.14 |
CSK30 | CSK30-P | CSK30-PP | 30 | 62 | 16 | 110 | 0.21 |
CSK35 | CSK35-P | CSK35-PP | 35 | 72 | 17 | 140 | 0.30 |
| CSK40 | CSK40-P | CSK40-PP | 40 | 80 | 22 | 260 | 0.50 |
| CSK6304 | CSK6304-P | CSK6304-PP | 20 | 52 | 15 | 68 | 0.16 |
| CSK6305 | CSK6305-P | CSK6305-PP | 25 | 62 | 17 | 110 | 0.24 |
| CSK6306 | CSK6306-P | CSK6306-PP | 30 | 72 | 19 | 140 | 0.38 |
