Сверхмощный алюминиевый Трипод для Теодолита
US $28.61-$31.57
Высококачественный теодолит FOIF LP402L цифровой измерительный прибор для измерения
- Категория: Theodolites >>>
- Поставщик: Huipu,Opto-Electronic,Instrument,(Zhenjiang),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 750.43 $* | 788.32 $* |
| Aug-15-2025 | 743.1 $* | 780.63 $* |
| Jul-15-2025 | 624.92 $* | 655.42 $* |
| Jun-15-2025 | 731.37 $* | 768.73 $* |
| May-15-2025 | 636.97 $* | 668.30 $* |
| Apr-15-2025 | 718.64 $* | 754.95 $* |
| Mar-15-2025 | 712.42 $* | 748.44 $* |
| Feb-15-2025 | 706.80 $* | 741.6 $* |
| Jan-15-2025 | 699.50 $* | 734.44 $* |
Характеристики
Products Description

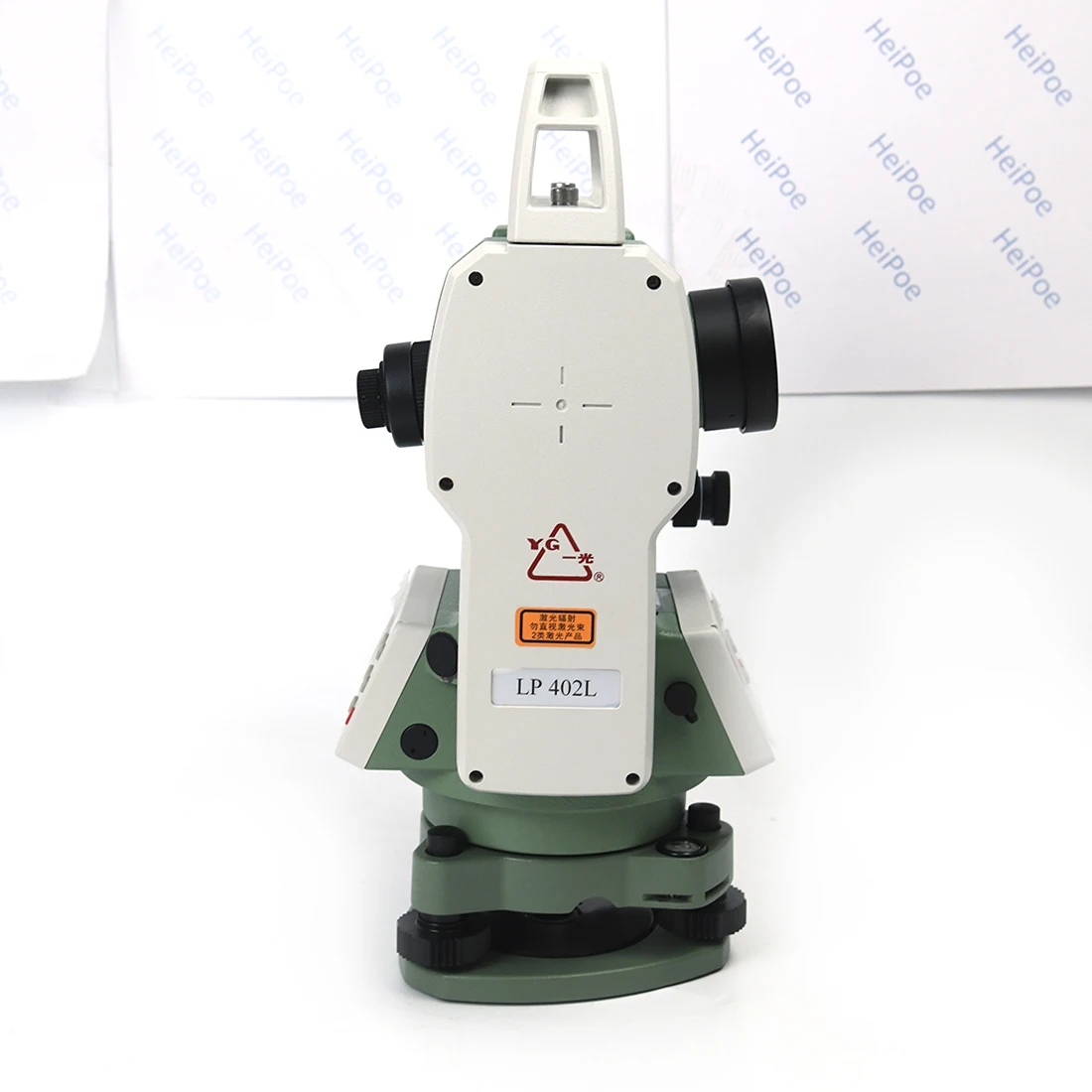

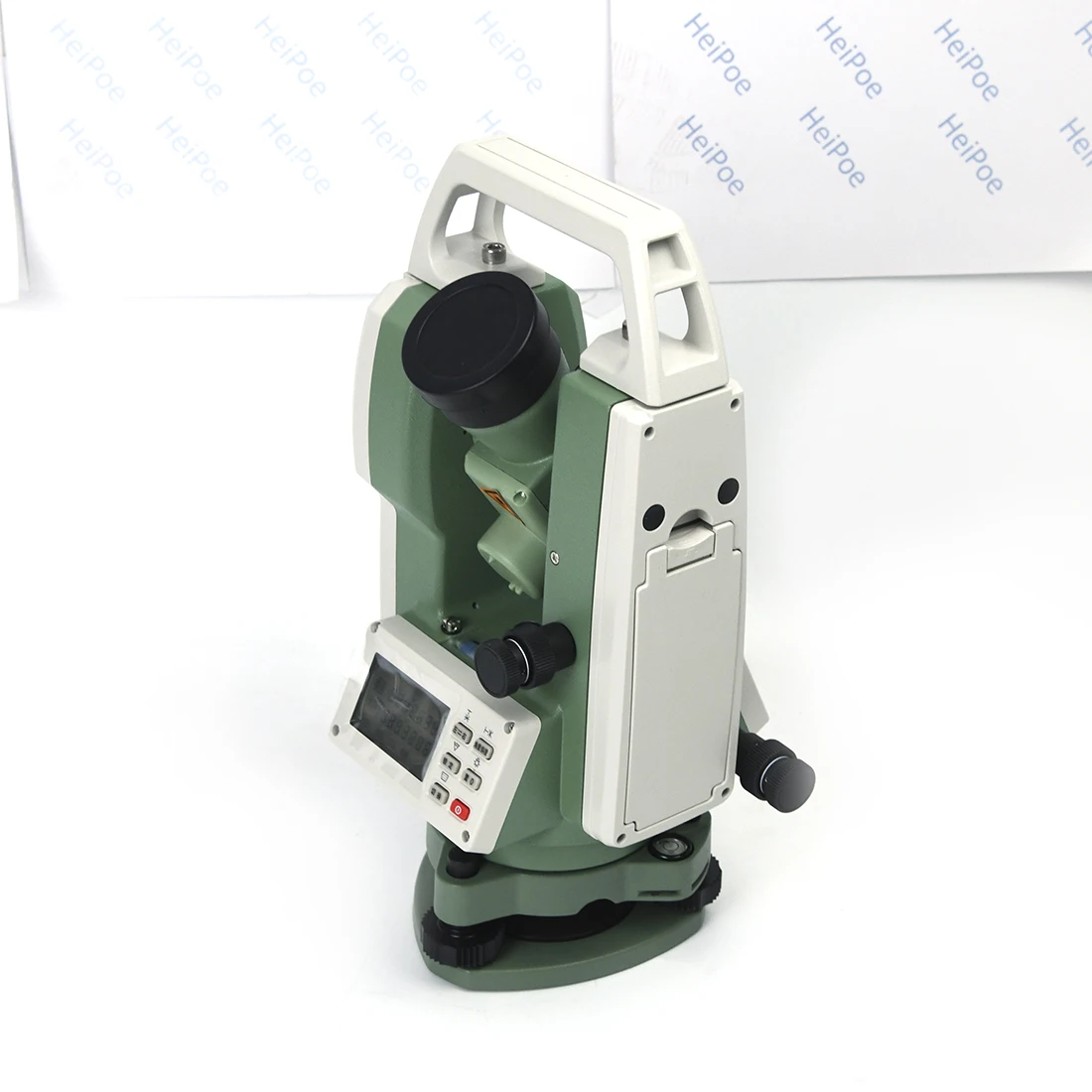

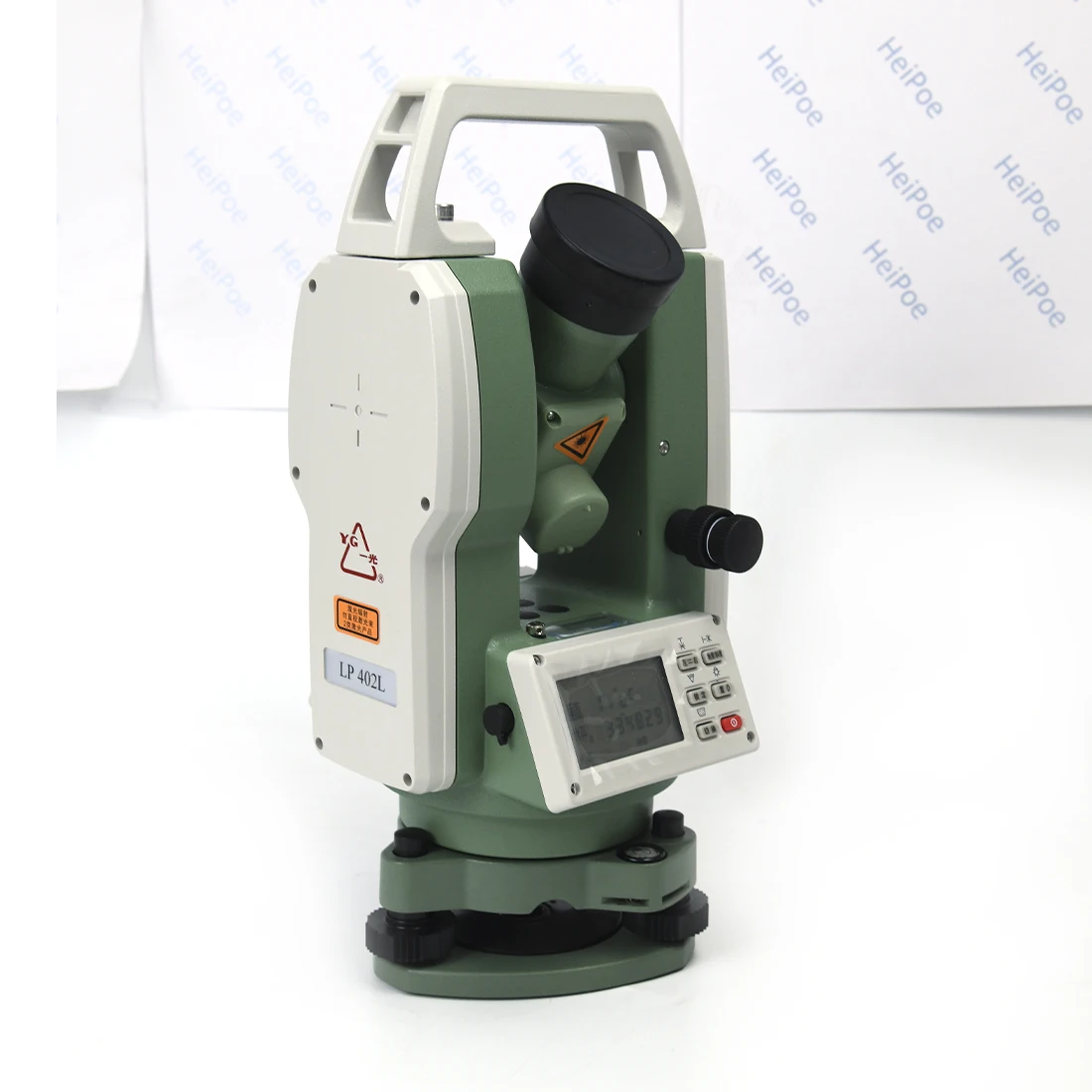

LP402L Digital Theodolite |
LP402L is the Digital Theodolite with laser pointer function. It can provide an adjustable laser beam which can be seen up to 150m away through eyepiece in daylight. The laser emitting system is integrated with telescope, resistant to dust, rain and other harsh elements. Repeated angle program carries out continuous measuring and average calculating to get high-accuracy angle value. It has lower power consumption and longer working time with one battery. |
FEATURES AT A GLANCE |
1)Compact design with wide LCD display facilitates numberical reading and operation 2)Laser pointer brightness and focus adjustable 3)Minimum reading: 1"/5"/10" 4)Lower power consumption, longer working time with one battery 5) ◆Laser point can be observed through the eyepiece In addition to directly seeing the laser spot on the target, laser pointing and telescope visual observation can be carried out at the same time. Through the telescope visual observation, clear laser beam spot can be seen in the field of view. ◆ Laser point counter Conventional laser point counter is prepared, optical point counter can be selected. ◆ The laser point brightness can be adjusted Pointing laser power adjustment range is large, according to the intensity of the use of environmental light, by adjusting the potentiometer and from the telescope visual observation, in the field of view can always see clear laser beam spot. ◆ Integrated laser The integrated design of laser pointing part and telescope makes the overall appearance of the instrument more harmonious and beautiful. |
Specification
Parameter item | Parameter index | Parameter item | |
Angle measurement | telescope | ||
Minimum degree | 1" | magnification | 30 X |
Angle measurement accuracy | ±2" | imaging | positive |
compensator | Field Angle | 1 °30 | |
Compensation range | 3 | Minimum visual distance | 1m |
leveller | Objective aperture | 45mm | |
Long level | 30"/2mm | Stadia plus constant | 0 |
Circular leveller | 8'/2mm | Stadia times constant | 100 |
Point counter | lighting | ||
Optical point counter (optional) | Accuracy is 0.8mm/0.5~1.5m; Field of view Angle: effective distance :0.5m~o; Magnification :3 | Partition board | Have |
Laser point counter (standard) | Wavelength :635nm; Minimum focusing distance: 0.5m Laser range :80m | Display screen | Have |
Laser emission system | Power supply | ||
Laser tube type | Semiconductor laser | battery | 6V nickel-hydrogen cell |
Laser wavelength | 635nm | Battery working time | 15h |
Effective range | 150m1(daytime eyepiece viewable) | Laser power supply | Share with host |
Spot size | 5mm / 100m | other | |
When the laser beam is focused, the center of the spot deviates from the telescope's visual axis | ≤5“ | Data interface | RS-232c |
display | Instrument size | 153x175x328mm | |
Display screen | Double-sided LCD | Instrument weight | 4.5kg |
Operating temperature | -20--50℃ |

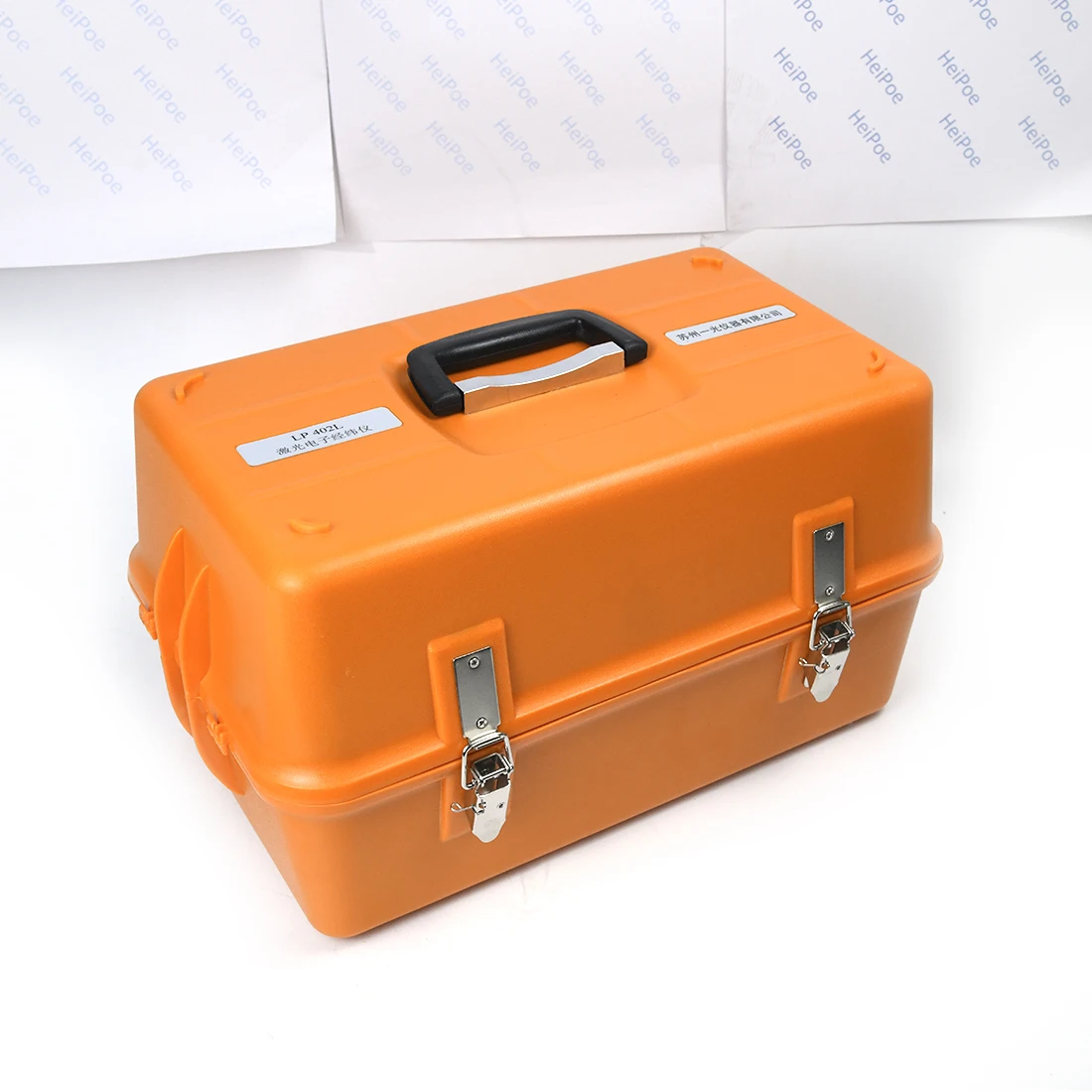

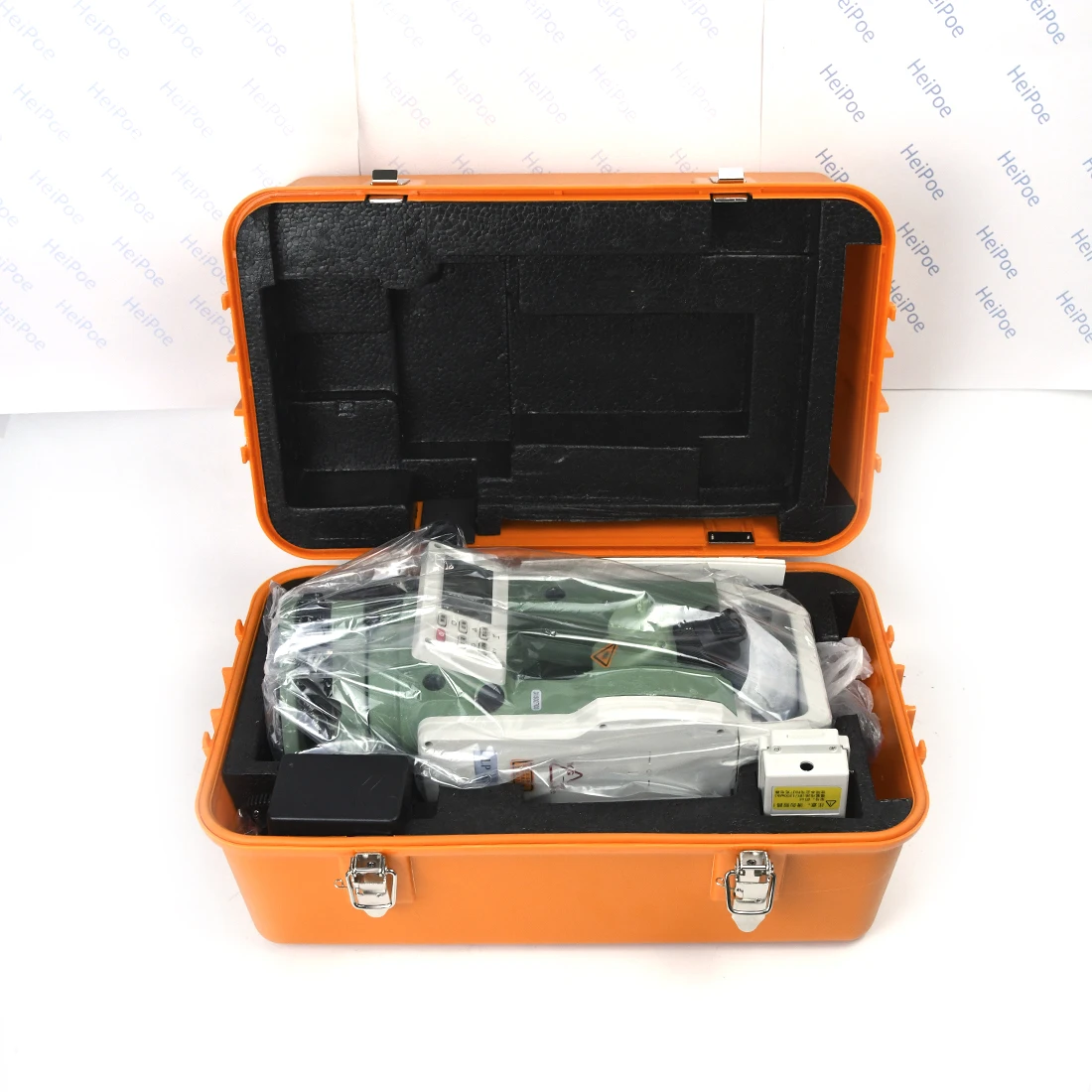

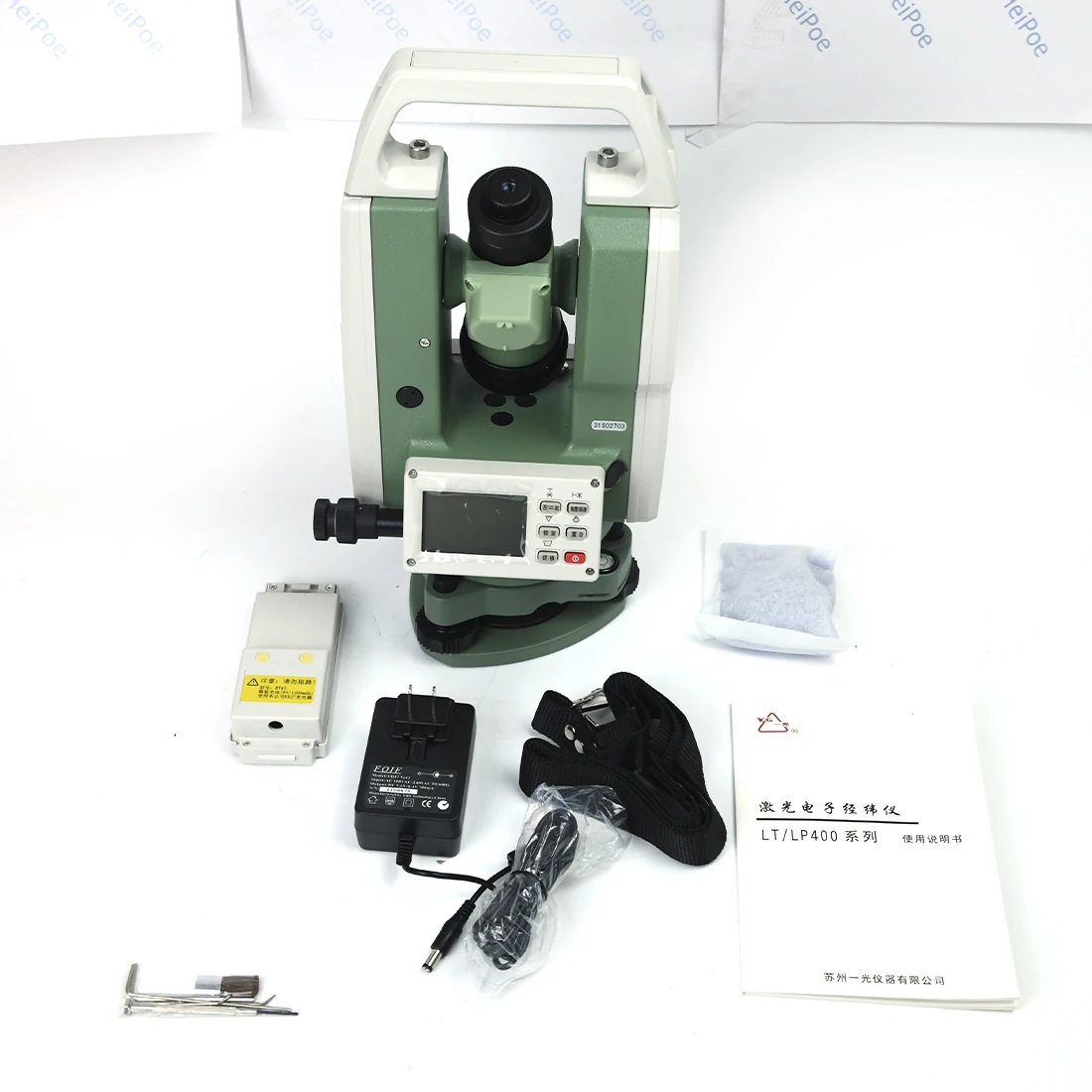

Product packaging
Company Profile
FAQ
1. What kind payment method we accept?
T/T, L/C at sight, Western Union, Trade Assurance on Alibaba, MoneyGram and PayPal
Note: Customer will be requested to pay 4% transaction fee upon total amount charged by EBAY
2. How can you guarantee payment safety?
Our company supports TRADE ASSURANCE service. If you will choose payment through ALIBABA TRADE ASSURANCE service, you payment will
be guaranteed. Because we are not able to receive payment until you confirm goods receipt
3. What kinds of shipment for goods and how long time it takes?
Our company supports DHL, FEDEX, UPS, TNT, CHINA POST, by sea and other methods. Shipping time is 3-5 days from payment receipt
4. Does your company ship battery or not?
Our company can receive battery order and ship to customer normally, except a few special countries
5. Do you have other items not displayed on your website?
Yes, our company supplies full survey range products. If you are looking for product not displayed on our website. Please contact us freely. We will reply you on time
T/T, L/C at sight, Western Union, Trade Assurance on Alibaba, MoneyGram and PayPal
Note: Customer will be requested to pay 4% transaction fee upon total amount charged by EBAY
2. How can you guarantee payment safety?
Our company supports TRADE ASSURANCE service. If you will choose payment through ALIBABA TRADE ASSURANCE service, you payment will
be guaranteed. Because we are not able to receive payment until you confirm goods receipt
3. What kinds of shipment for goods and how long time it takes?
Our company supports DHL, FEDEX, UPS, TNT, CHINA POST, by sea and other methods. Shipping time is 3-5 days from payment receipt
4. Does your company ship battery or not?
Our company can receive battery order and ship to customer normally, except a few special countries
5. Do you have other items not displayed on your website?
Yes, our company supplies full survey range products. If you are looking for product not displayed on our website. Please contact us freely. We will reply you on time
Our Advantages
Our warranty policy:
1.For GNSS/RTK products we offer one year and half a year warranty.
2.For optical instruments (total station, theodolite, Level), we offer 1 years warranty. For accessories we offer 6 months
warranty.
3.Product in warranty please sends us photos to show the problem. And then will decide to send you parts or you send the
instrument back to us to repair, We are responsible for the double-run freight and other cost, Please make sure to contact us
first instead of sending the damaged parts directly to us. Sometime, our service people can repair
your product local.
4.For problem out of the warranty period or warranty liability,we will judge the problem and quoted for you.You need to pay
double-run freight and the maintenance cost.
5.For all instrument we provide life-long technical support.Remark:Improper use of the instrument and man made damage of the
instrument is notcovered in warranty liability.Warra
Our Technical Support:
Before any shipment we will have quality check person to give the instrument a careful quality check (software installation and
test for GNSS product).
For all GNSS and optical instrument, you will get the user manual and operating video.
For green hand users we offer free online training (especially for GNSS products), regarding receiver configuration, survey
software on controller and post process software operation. If customer needed we also offer charged on site training.
For all of the products we offer lifelong and 24 hours technical support.
Special services:
If you have a survey project, and you are finding a most cost-effective and efficient way to handle it. Just tell us your project
specification, we will feedback with professional suggestions as reference. We offer GNSS raw data process and CAD drawing for
survey field end users. If you have some broken instrument, and want to re-pick up into normal use, send it to use we offer
professional repair service for all kinds of survey equipment.
1.For GNSS/RTK products we offer one year and half a year warranty.
2.For optical instruments (total station, theodolite, Level), we offer 1 years warranty. For accessories we offer 6 months
warranty.
3.Product in warranty please sends us photos to show the problem. And then will decide to send you parts or you send the
instrument back to us to repair, We are responsible for the double-run freight and other cost, Please make sure to contact us
first instead of sending the damaged parts directly to us. Sometime, our service people can repair
your product local.
4.For problem out of the warranty period or warranty liability,we will judge the problem and quoted for you.You need to pay
double-run freight and the maintenance cost.
5.For all instrument we provide life-long technical support.Remark:Improper use of the instrument and man made damage of the
instrument is notcovered in warranty liability.Warra
Our Technical Support:
Before any shipment we will have quality check person to give the instrument a careful quality check (software installation and
test for GNSS product).
For all GNSS and optical instrument, you will get the user manual and operating video.
For green hand users we offer free online training (especially for GNSS products), regarding receiver configuration, survey
software on controller and post process software operation. If customer needed we also offer charged on site training.
For all of the products we offer lifelong and 24 hours technical support.
Special services:
If you have a survey project, and you are finding a most cost-effective and efficient way to handle it. Just tell us your project
specification, we will feedback with professional suggestions as reference. We offer GNSS raw data process and CAD drawing for
survey field end users. If you have some broken instrument, and want to re-pick up into normal use, send it to use we offer
professional repair service for all kinds of survey equipment.
