Характеристики
Product Description

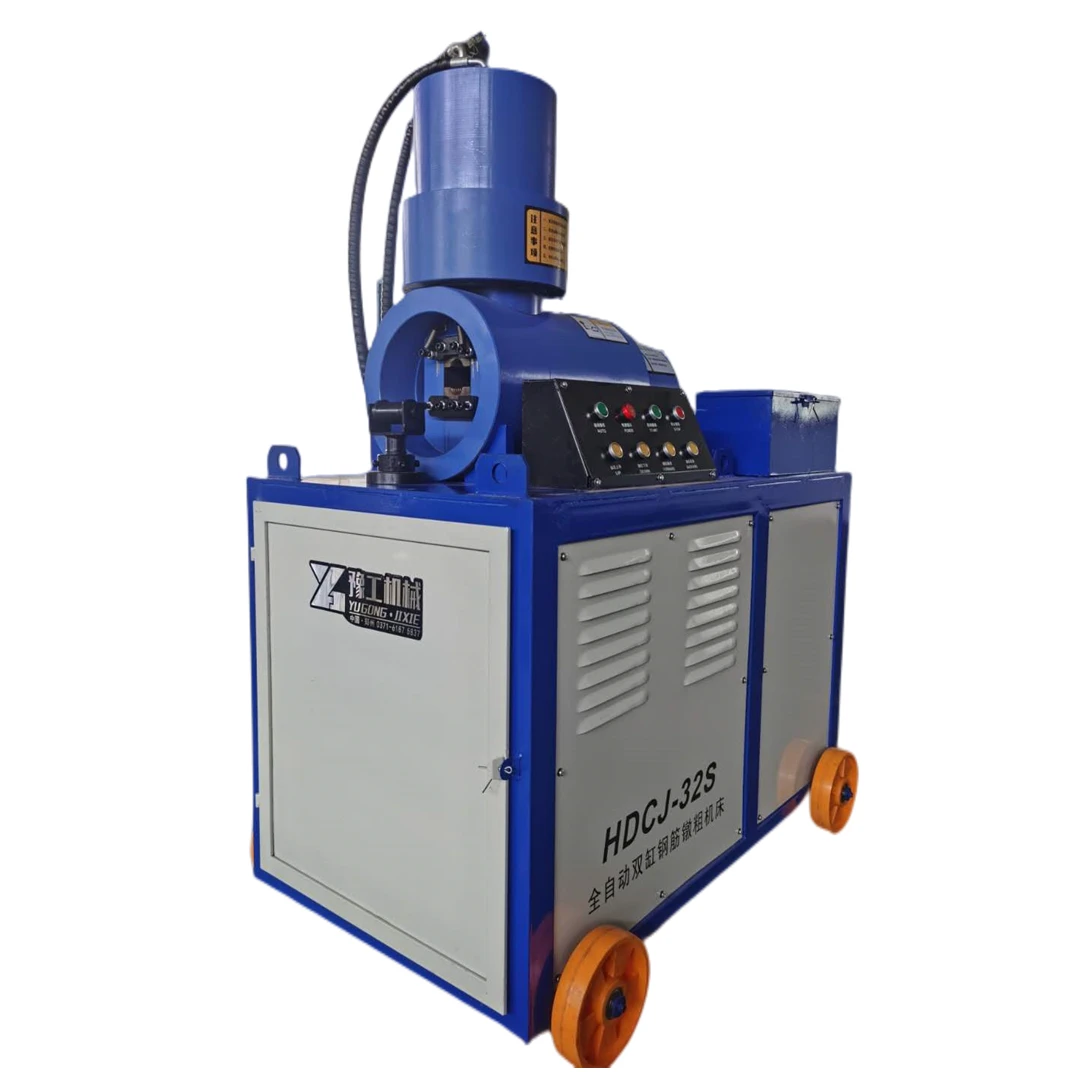

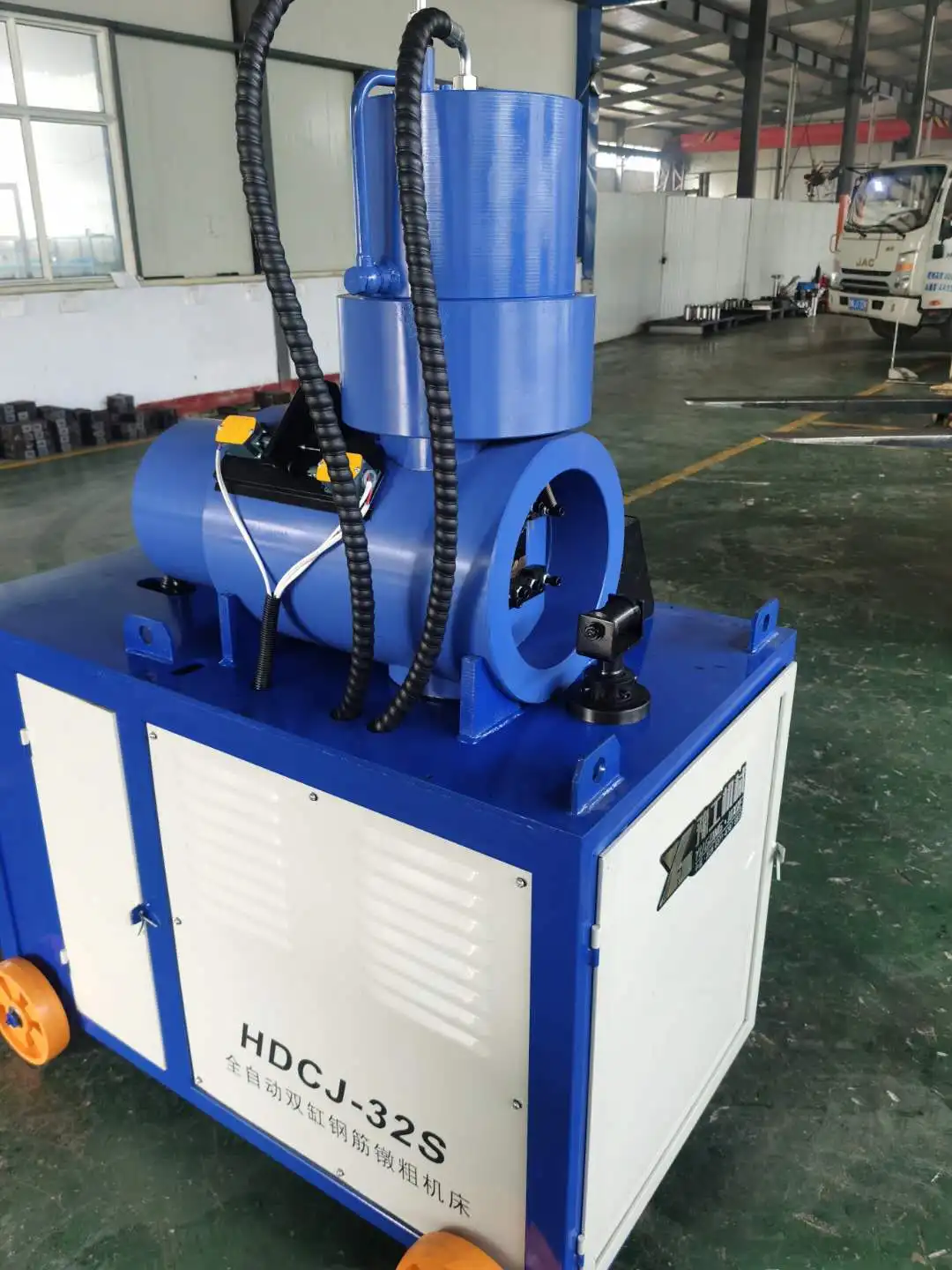

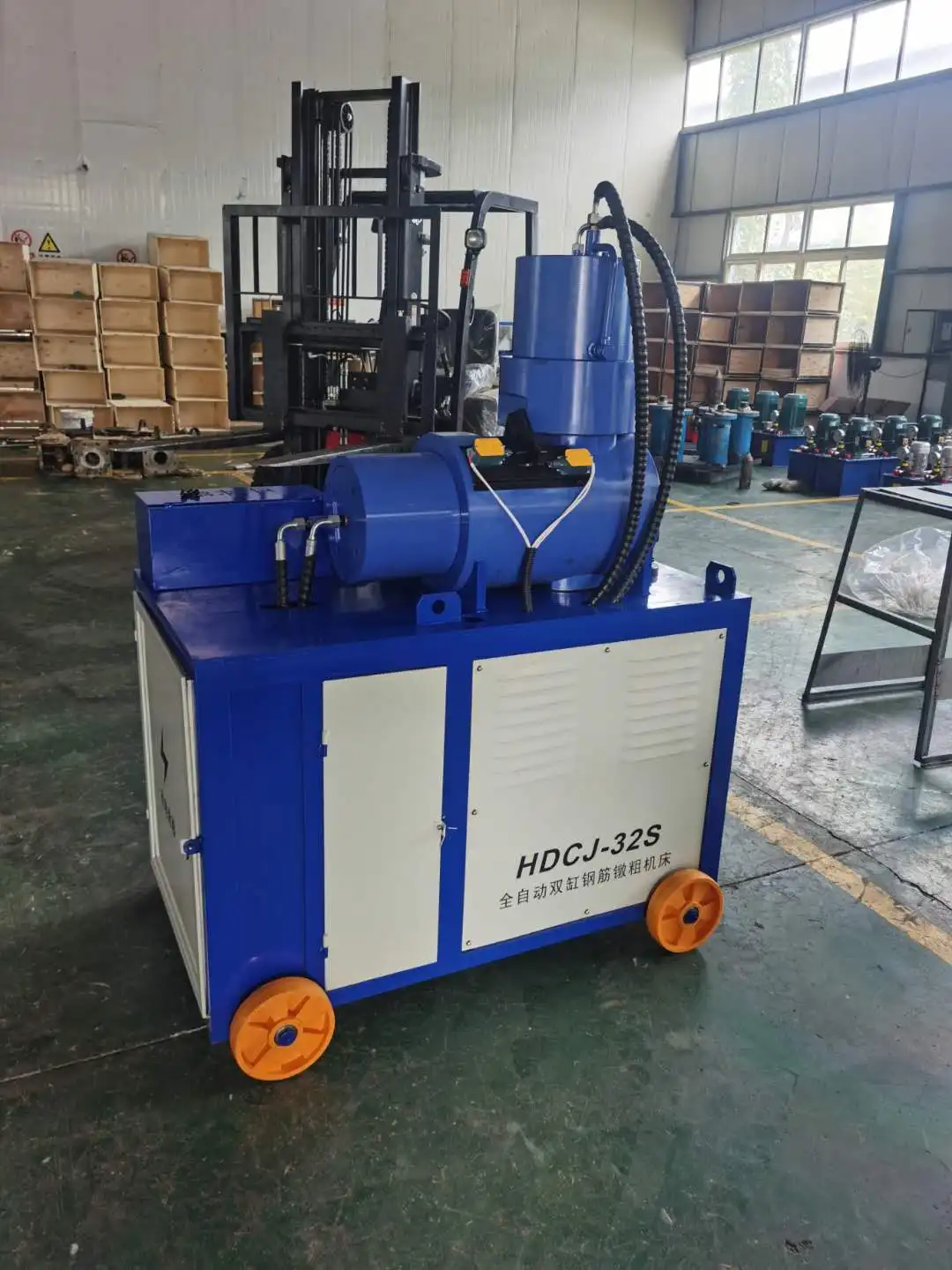

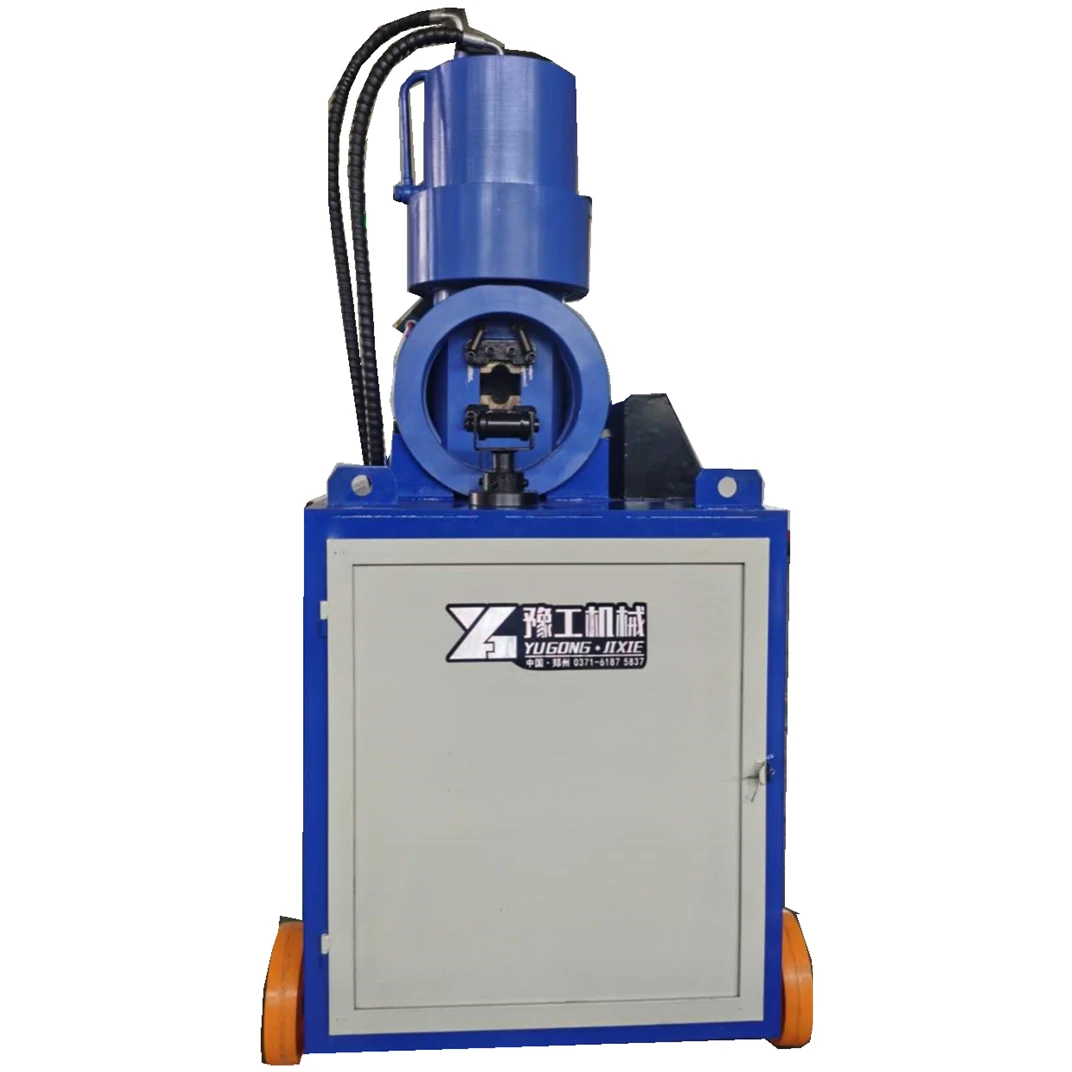

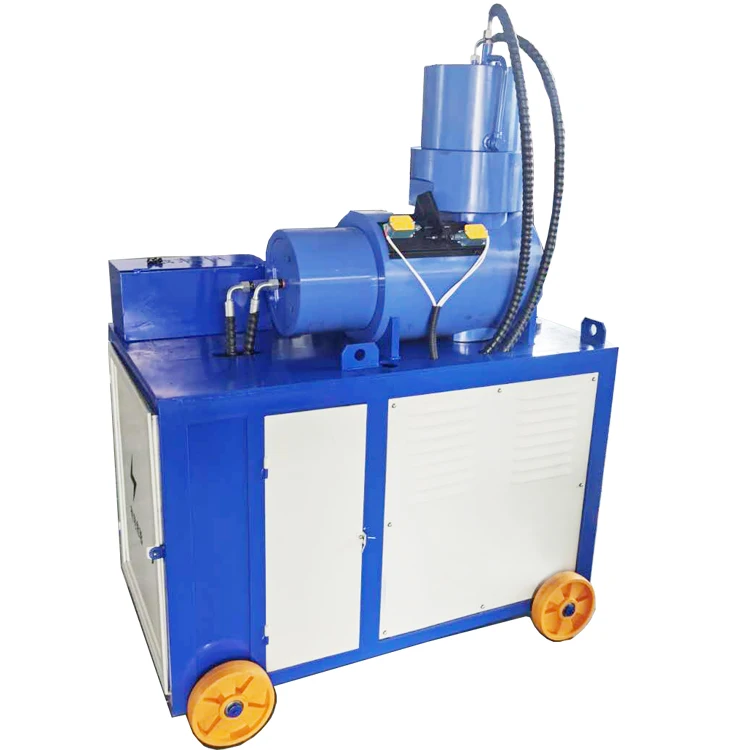

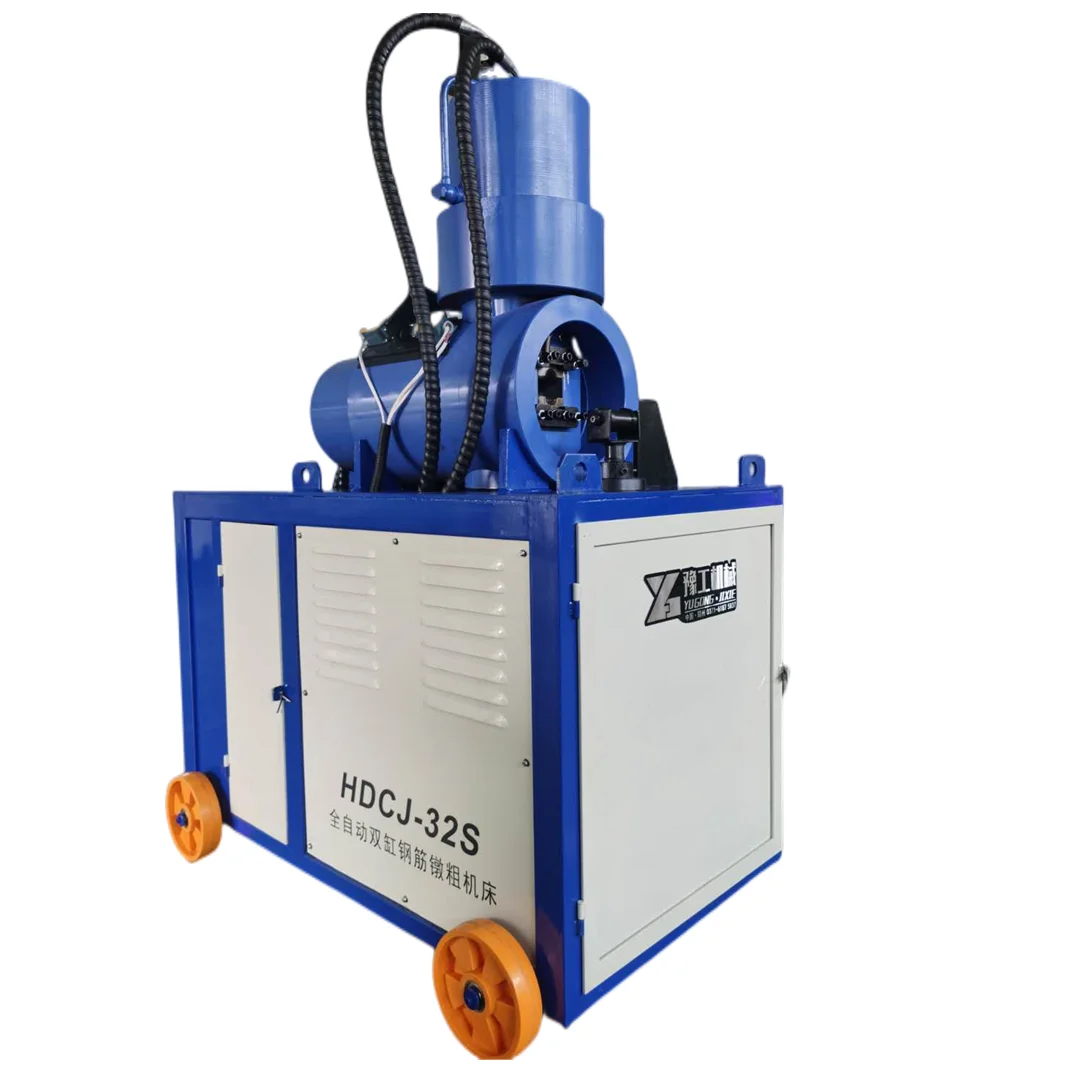

Steel upsetting machine using hydraulic cold heading of the principle of plastic deformation of steel ends, the diameter increases 4 ~ 6mm, and then processing thread. So that the actual cross-sectional area after processing thread larger than the original cross-sectional area of steel, greatly improving the tensile strength joints.
This upsetting of the threaded connector by the tensile test of all broken in the base metal for the higher requirements of
engineering steel upsetting machine hydraulic technology, upsetting steel for straight thread connection technology, the use of sleeve connector . The device is suitable for the diameter of 16 ~ 40mm HRB335 (Ⅱ grade steel), HRB400 (Ⅲ grade steel) hot-rolled ribbed steel production upsetting straight thread steel joint. steel bar forging upsetting machine
This upsetting of the threaded connector by the tensile test of all broken in the base metal for the higher requirements of
engineering steel upsetting machine hydraulic technology, upsetting steel for straight thread connection technology, the use of sleeve connector . The device is suitable for the diameter of 16 ~ 40mm HRB335 (Ⅱ grade steel), HRB400 (Ⅲ grade steel) hot-rolled ribbed steel production upsetting straight thread steel joint. steel bar forging upsetting machine
rebar upsetting machine hydraulic upsetting machine upset forging machine upset printing machine
Specification
Model | YGDC-40S | YGDC-40D |
Upsetting Range | 12-32mm | 12-32mm |
Upsetting Force | 2036KN | 3000KN |
Cylinder diameter | 220mm | 220mm |
Motor Power | 4kw | 7.5kw |
Voltage | 380V 50HZ | 380V 50HZ |
Oil Pump Pressure | 80Mpa | 31.5Mpa |
Max. Flow | 5.42L/min | 4.0L/min |
Upsetting Length | >3.5cm | >3.5cm |
Increase Size | 3-5mm | 3-5mm |
Work Efficiency | 15-20s/pieces | 15s/pieces |
Packing Size | 1020×500×965mm | 1300×830×1350mm |
Weight | 560kg | 1000kg |
Features
1.High production efficiency,each hour can be upsetting 300-500 head.
2.Processing a wide range of steel,which can be processed in line with HRB335 (Ⅱ grade steel), HRB400 (Ⅲ grade steel) standard Φ12-Φ40mm,various specifications of the steel.
3.Equipment failure rate is small,non-fragile parts construction costs low.
4.Environmental protection,security,it is not subject to environmental and climates changes.
5.The end of the steel cross-sectional area expanded into the bottom diameter of the screw thread of base metal,fully play the tensile strength.
6.Simple operation,hydraulic electrical control,do not need professional technicians training,ten minutes to boot operation.
2.Processing a wide range of steel,which can be processed in line with HRB335 (Ⅱ grade steel), HRB400 (Ⅲ grade steel) standard Φ12-Φ40mm,various specifications of the steel.
3.Equipment failure rate is small,non-fragile parts construction costs low.
4.Environmental protection,security,it is not subject to environmental and climates changes.
5.The end of the steel cross-sectional area expanded into the bottom diameter of the screw thread of base metal,fully play the tensile strength.
6.Simple operation,hydraulic electrical control,do not need professional technicians training,ten minutes to boot operation.
Packing & Delivery
1. Packaging:
2. Shipping:
1)Wrapped by protective film;
2)Packed by standard import & export wooden cases or carton boxes.
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping:
By logistics; by automobile; by train; by shipping; by air etc.
