Цена:1 550,00 $ - 1 560,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 1845.33 $* 1937.78 $*
Aug-15-2025 1829.85 $* 1920.2 $*
Jul-15-2025 1535.10 $* 1612.75 $*
Jun-15-2025 1798.36 $* 1888.67 $*
May-15-2025 1566.1 $* 1644.34 $*
Apr-15-2025 1767.41 $* 1855.87 $*
Mar-15-2025 1752.8 $* 1840.13 $*
Feb-15-2025 1736.55 $* 1823.88 $*
Jan-15-2025 1721.69 $* 1807.87 $*

Характеристики



Product Description


Large capacity 25 ~30ton silos main feeding line poultry farm used silo barley silos
▶Gongle feed silo is made of 275g/ sqm hot dip galvanized sheet and all screws are made of 8.8 grade high-strength hot-dip galvanized bolts, which are corrosion resistant, anti-oxidation, high temperature resistance, high strength, long service life, and can withstand strong storm.

▶The feed silo is mainly composed of silo body, silo cover, mounting ladder, and silo legs etc. All parts are produced in strict accordance with drawing design by the advanced laser machine and precision molds, and then undergo strict quality inspections to
make each component more standard,more precise and more convenient to install to ensure easy assembly and use.




Specification


Capacity (T)
Capacity (CBM)
Diameter(mm)
Height (mm)
legs qty
legs height
layers
3
4.7
1860
4087
4
3370
1
4.5
7.3
1860
4977
4
3370
2
6.1
9.4
1860
5867
4
3370
3
7.7
11.9
1860
6757
4
3370
4
7.2
11.1
2750
4985
6
4000
1
11
16.9
2750
5875
6
4000
2
14.1
21.7
2750
6765
6
4000
3
17.5
27
2750
7655
6
4000
4
15.5
23.9
3660
6046
8
4800
1
21.5
33.1
3660
6936
8
4800
2
27.5
42.4
3660
7526
8
4800
3
33.8
52
3660
8716
8
4800
4

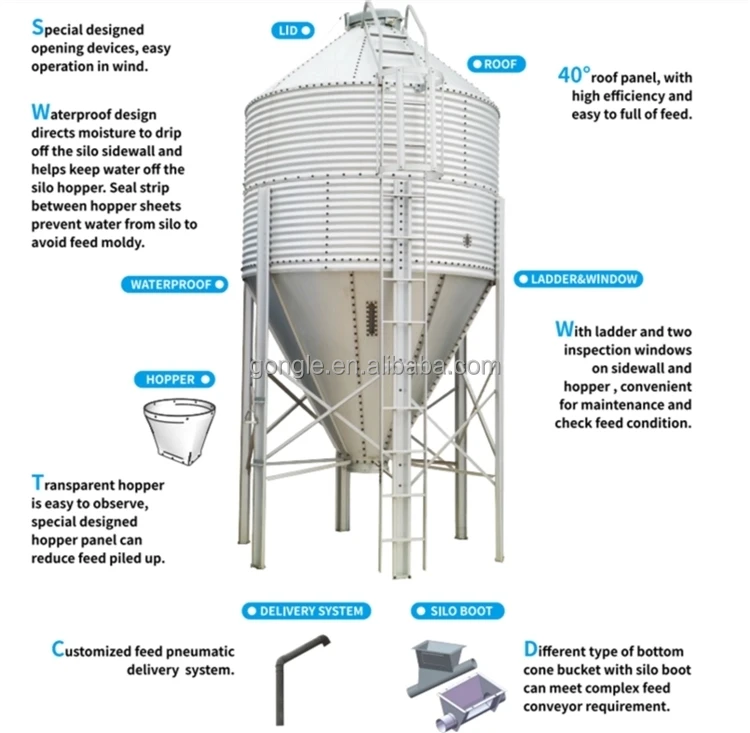

1- Roof Top:
The roof is designed to stand up even in the harshest environment of extreme snow disaster with the echo of top and down part strong structure and connecting radial ribs which is Z interconnected again itself. Roof panels incorporate with ribs with over
and under lap profiles ensuring a precise fit.
2-Roof panel & cone plate
1)Special designed 40 degree root panel,with high efficiency and easy to full of feed.
2)Special designed cone plate panel can reduce feed piled up.


3- Body Steel Plate:
A commercial 275g/m2 double galvanized steel coating increases life and durability.450g/m2 and 600g/m2 coating available for customized orders. Each sidewall sheet is manufactured from high-tensile steel that has the ability to overcome extreme power,pressure.


4-High strength bolts and screws:
Famtun’s high strength bolts paired with sealing washers, coated hardware provides added protection from rust to ensure your grain
bin stands the test of time.
5- Wide Flange H Beam Support Structure:
Wide flange H-Beam support structure has the strength and durability to support the heavy hopper silo loads long time, and with consideration of wind and seismic requirements.
The tape to avoid the leakage

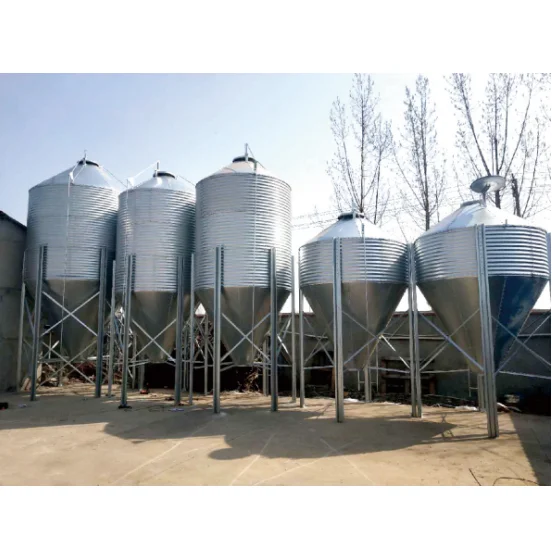

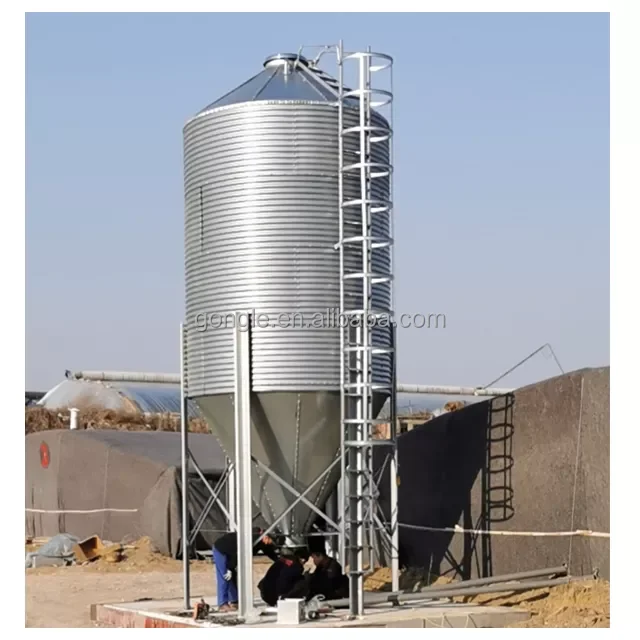

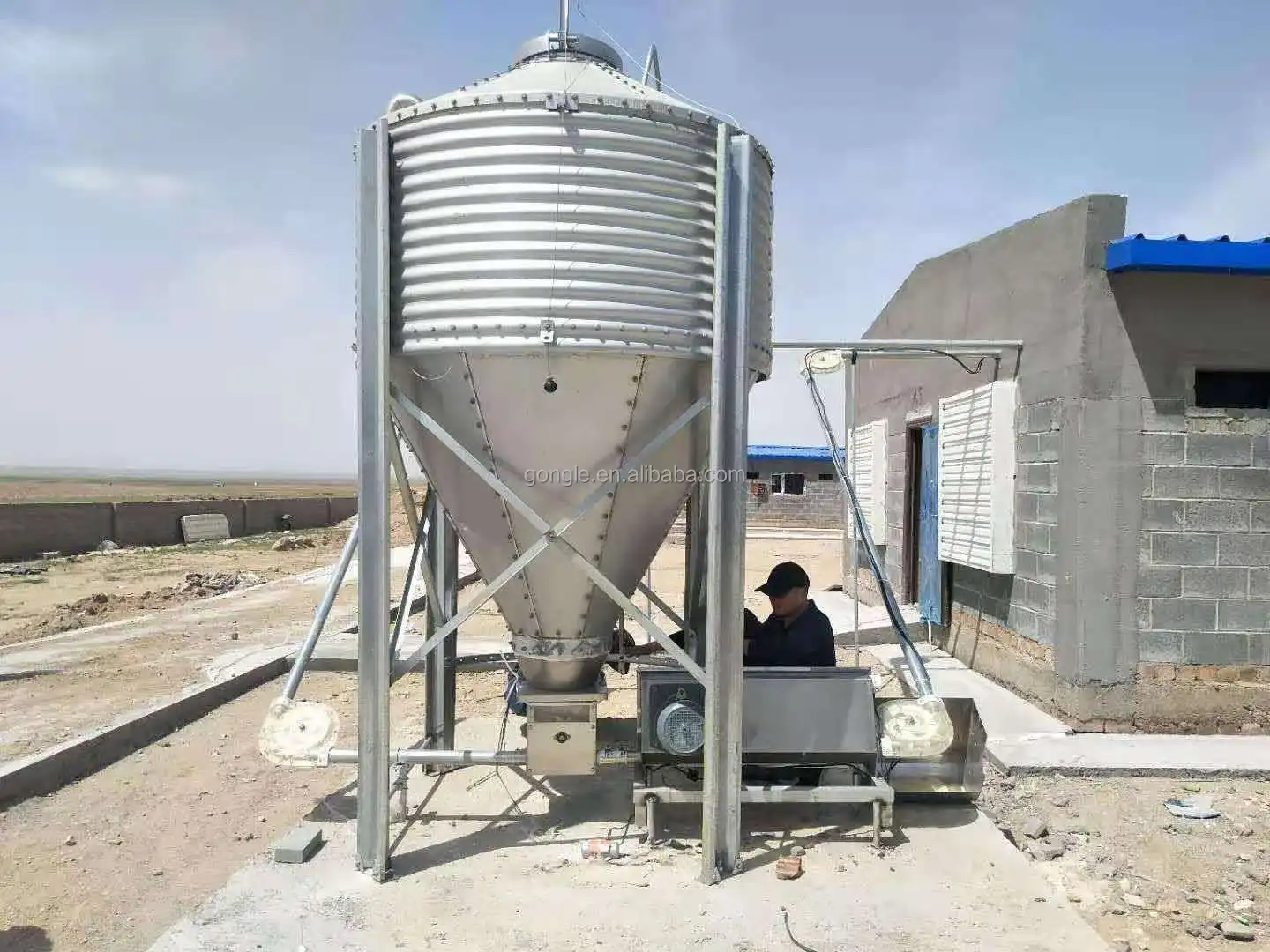

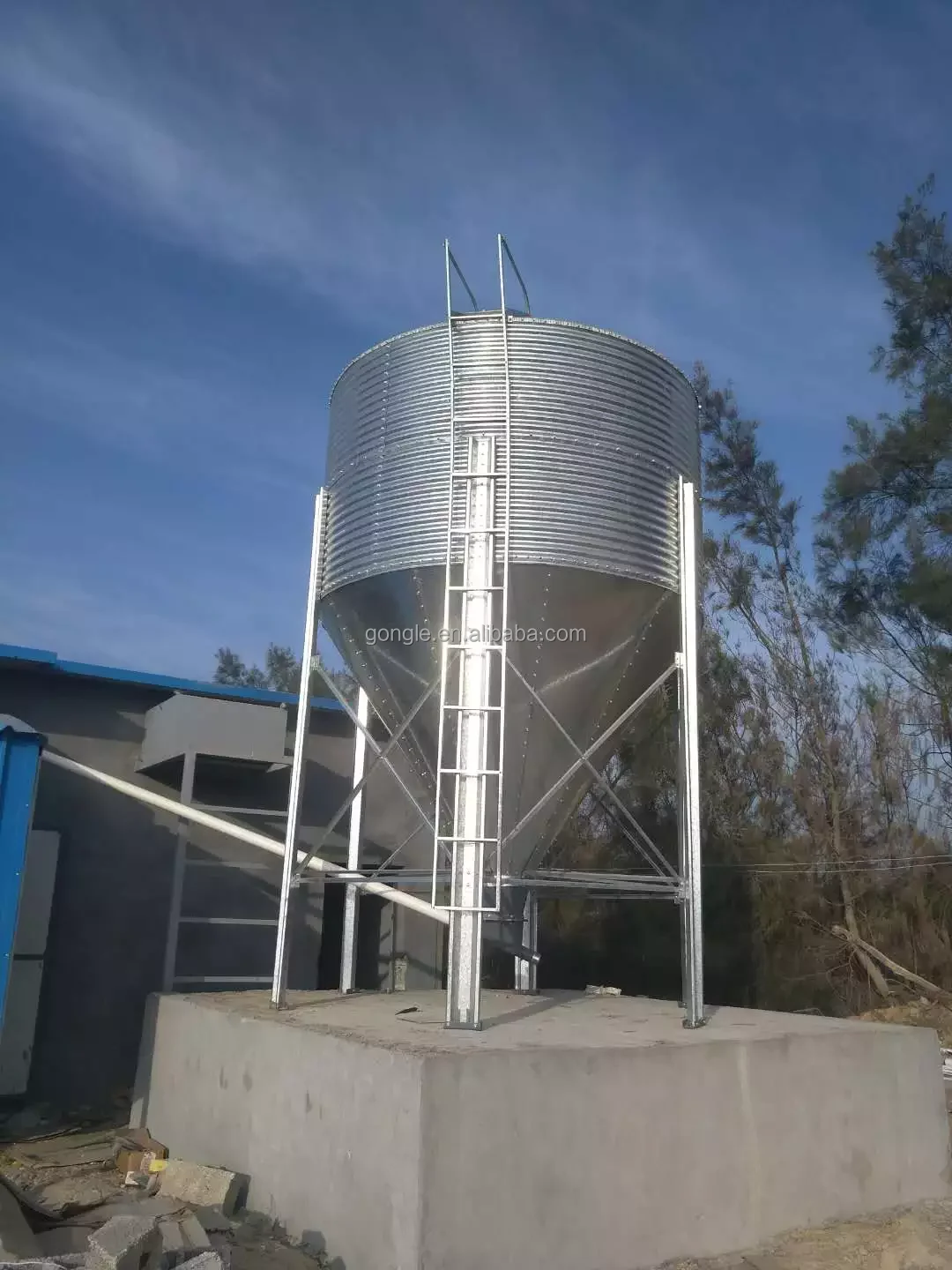

Application

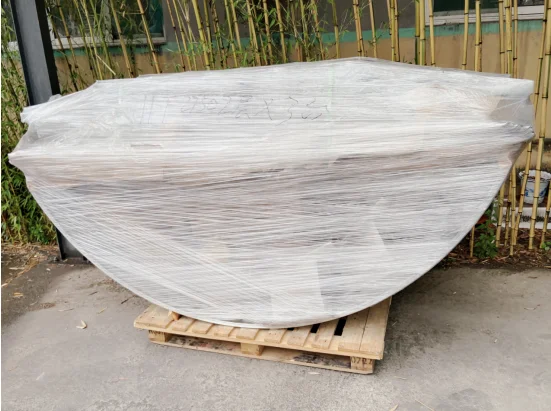

Packing & Delivery




1. Inner package is stretch film;
2. Outer package is corrugated paper cartons,Reinforced with strips.
3.Pallets




Company Profile






★ Qingzhou Gongle Electric Fan Co., Ltd. founded in 1978, is a private enterprise from primary Qingzhou City Electric Fan Company in No.1388 Industrial Road, Qingzhou City, Shandong Province, China.
★ Our company is a professional manufacturer that specializes in making ventilation fans, axial exhaust fans, industrial wall fans,standing fans,and so on.
★ They are widely used in many fields such as enterprise workshops, textile mills, garment production workshops, animal husbandry, closed poultry houses, and greenhouses, etc
★ The company possesses the strong technical power and the perfect test method. The quality of product always comes out top in previous assessments.


FAQ


1. who are we?
We are based in Shandong, China, start from 2000,sell to Mid East(25.00%),Africa(25.00%),Southeast Asia(15.00%),South America(10.00%),Oceania(8.00%),Eastern Asia(5.00%),Eastern Europe(5.00%),North America(5.00%),Western Europe(2.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
cooling pad,heater stove,9FJ-1250B exhaust fan,9FJ-1000B exhaust fan

4. why should you buy from us not from other suppliers?
null

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian


Pre-sales service
* Accept OEM & ODM, support custom products according to customer's requirement.
* partners both at home and abroad contact and visit our factory.
* give you professional suggestion, according to different market and products for new customers.
After-sales service
* All enquires will be valued and replied within 2 hours.
* Good package to protect the products.
* We return and exchange the products if the quality problems caused by manufacturing.
