Мини-Itx встроенный ПК 6COM 2Lan безвентиляторный промышленный
- Категория: Industrial Computer & Accessories >>>
- Поставщик: Dongguan,City,Tuolang,Industrial,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 552.69 $* | 580.76 $* |
| Aug-18-2025 | 548.74 $* | 575.3 $* |
| Jul-18-2025 | 459.60 $* | 482.26 $* |
| Jun-18-2025 | 538.97 $* | 565.29 $* |
| May-18-2025 | 469.4 $* | 492.64 $* |
| Apr-18-2025 | 529.61 $* | 555.91 $* |
| Mar-18-2025 | 524.14 $* | 550.2 $* |
| Feb-18-2025 | 520.92 $* | 546.33 $* |
| Jan-18-2025 | 515.57 $* | 541.15 $* |
Характеристики
Products Description

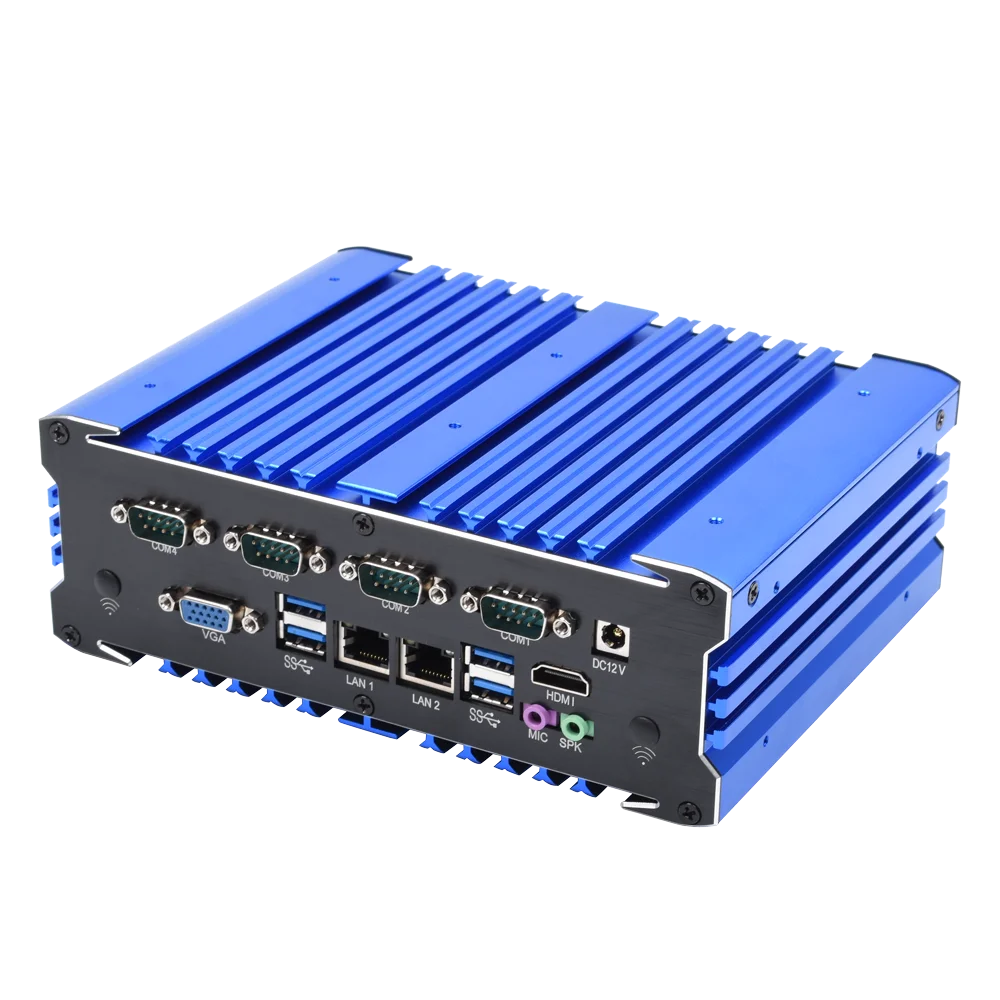

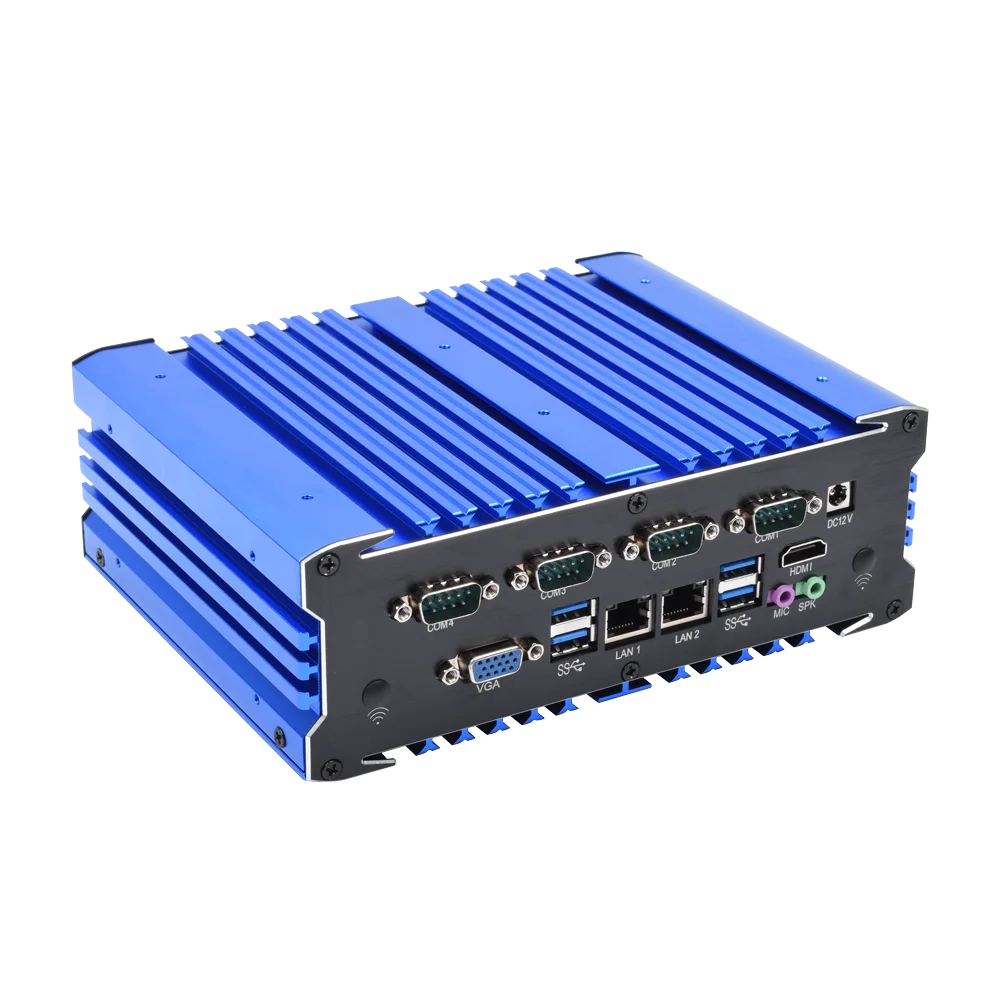

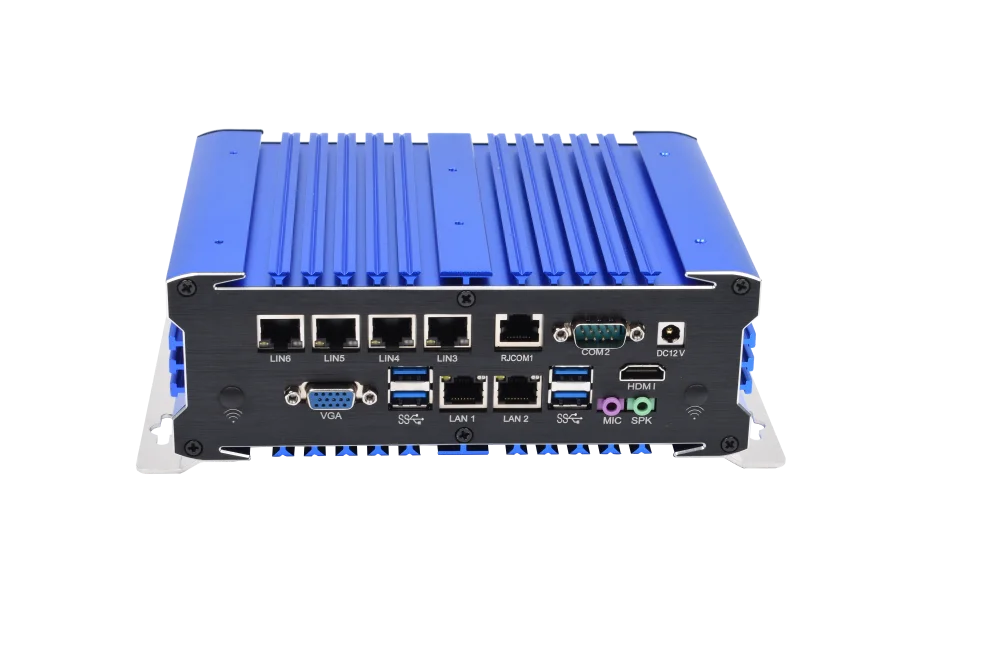

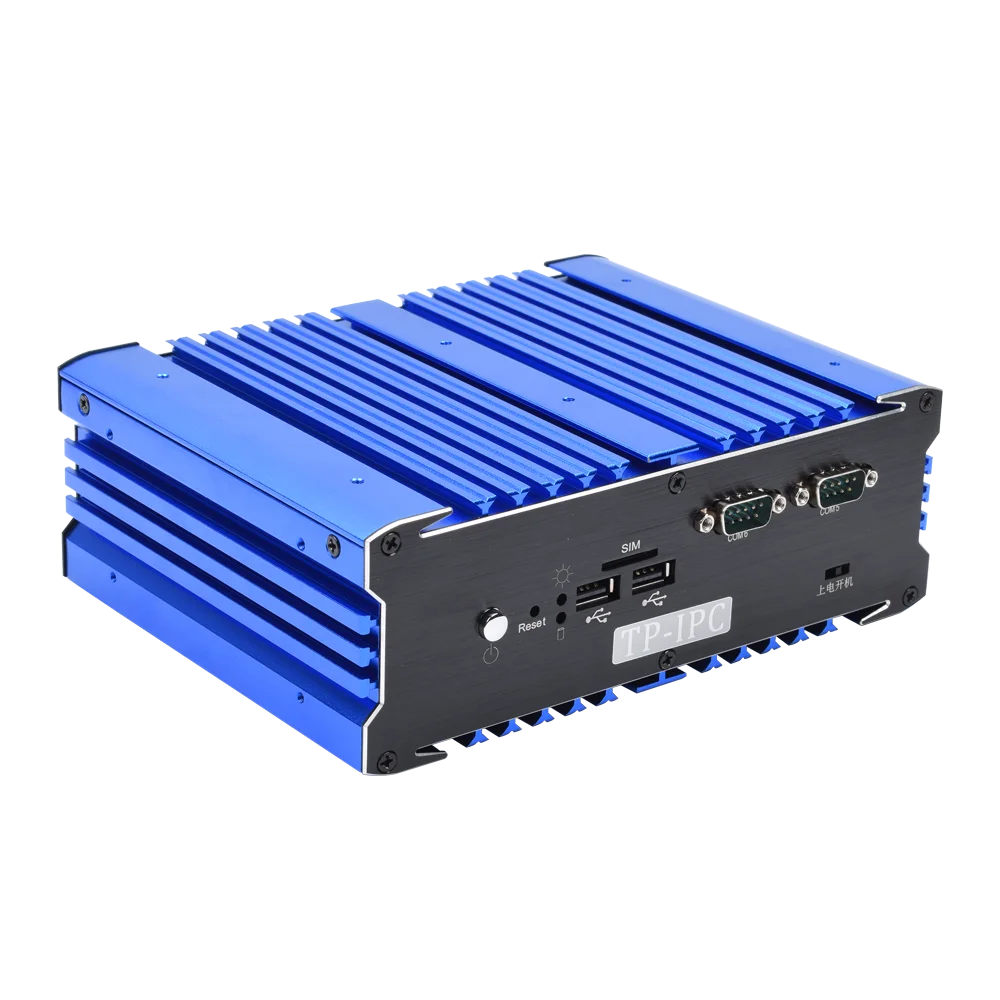

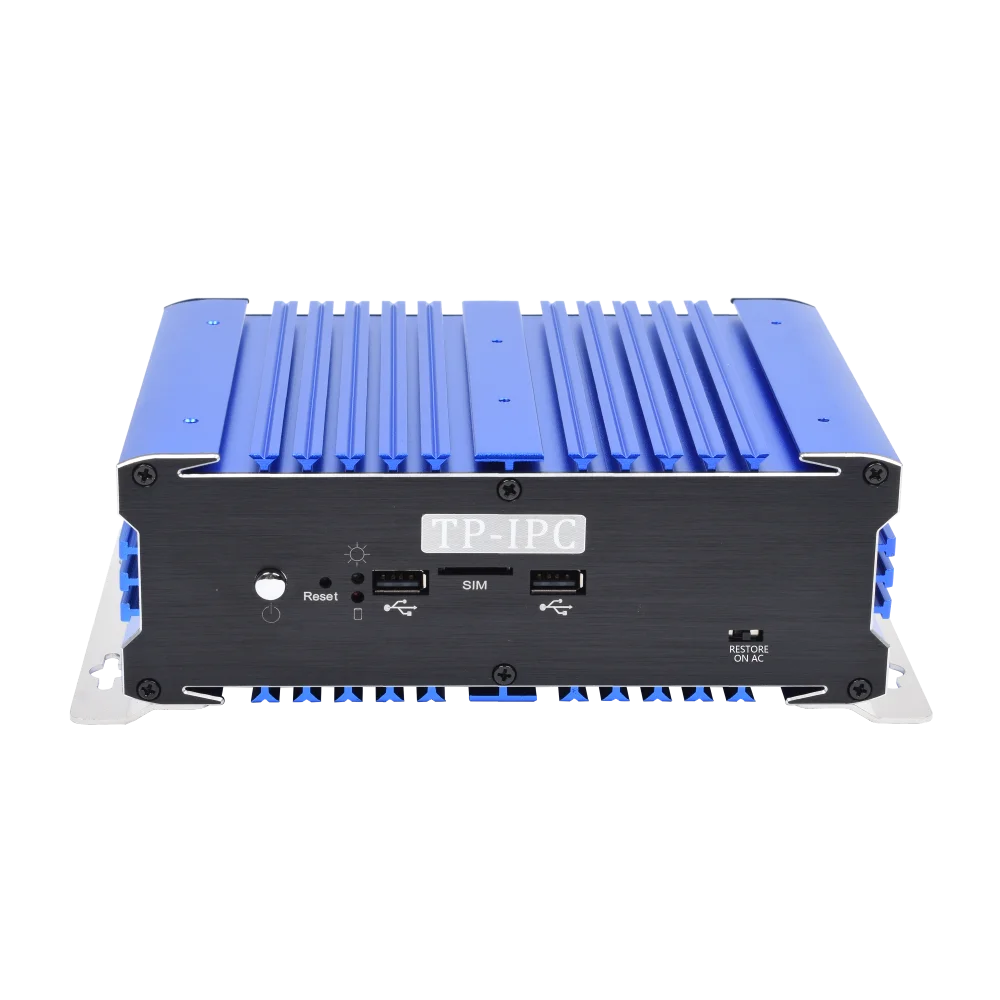

Mini Itx Embedded Pc 6COM 2Lan Fanless Industrial Pc Embedded Super Mini Pc
Notice: All products can be customized, contact us if you need, thank you.
Processors | Total Cores | Base Frequency | Max Turbo Frequency | Cache | Memory Types |
4 | 2.00 GHz | - | 2 MB L2 Cache | DDR3 | |
2 | 2.20 GHz | - | 3 MB | DDR3 | |
2 | 1.90 GHz | 2.90 GHz | 3 MB Intel® Smart Cache | DDR3 | |
2 | 1.80 GHz | - | 2 MB Intel® Smart Cache | DDR4 | |
2 | 1.90 GHz | - | 2 MB | DDR4 | |
2 | 2.00 GHz | 3.10 GHz | 4 MB Intel® Smart Cache | DDR4 | |
2 | 2.20 GHz | 3.40 GHz | 4 MB Intel® Smart Cache | DDR4 | |
2 | 2.50 GHz | 3.10 GHz | 3 MB Intel® Smart Cache | DDR4 | |
2 | 2.30 GHz | 3.60 GHz | 4 MB Intel® Smart Cache | DDR4 | |
2 | 2.80 GHz | 3.90 GHz | 4 MB Intel® Smart Cache | DDR4 | |
2 | 2.10 GHz | 3.90 GHz | 4 MB Intel® Smart Cache | DDR4 | |
4 | 1.60 GHz | 3.90 GHz | 6 MB Intel® Smart Cache | DDR4 | |
4 | 1.80 GHz | 4.60 GHz | 8 MB Intel® Smart Cache | DDR4 | |
2 | 1.80 GHz | - | 4 MB Intel® Smart Cache | DDR4 | |
4 | 2.40 GHz | 4.20 GHz | 8 MB Intel® Smart Cache | DDR4 | |
4 | 2.80 GHz | 4.70 GHz | 12 MB Intel® Smart Cache | DDR4 |
Related Info.
Notice: If you would like to know the price of device with other processors, please click the processors model directly.
Specification | ||||
MODEL | IBOX-105-6C2L | |||
Supported OS | Win 7, Win 8, Win 10, Linux (Ubantu, Dibian, Kali, CentOS, etc.); WES 7; Win 10 IoT | |||
CPU | Intel® Core™ | 4th~11th Generation I3, I5, I7 CPU | ||
Intel® Celeron® | J1900, 3865U, 5205U, 6305E | |||
RAM | S-DIMM | 1* S-DIMM, DDR3-1333/1600, up to 8GB | ||
Or 2* S-DIMM, DDR4-2400/2666 MHz, up to 32GB | ||||
ROM | SATA | 1* 2.5 inch SATA on board | ||
MSATA | 1* MSATA, support Intel protocol SSD, 6Gbps | |||
I/O INTERFACE | COM | 2* RS232/485 + 4* RS232 | ||
Ethernet | 2* Intel i211 (Gigabit RJ45 port) | |||
USB | 4* USB 3.0; 2* USB 2.0 | |||
Video & Audio | 1* HD+1* VGA+1* Line out+1* Mic in | |||
Phoenix Terminal | 8* GPIO (4* Input, 4* Output); 1* Remote Power Port | |||
SIM | 1* External SIM card slot | |||
Power Supply | DC 12V | |||
PS/2 | None | |||
Extended Capabilities | Additional Interface | 1* Mini PCIE | ||
Functionality Extension | CAN BUS, WiFi, 4G | |||
Environment | Operating Temperature | -10 ~ 55 °C w/ 0.7m/s Airflow | ||
Storage Temperature | -40 ~ 85 °C (-40~185 °F) | |||
Relative Humidity | 40 °C @ 95%, Non-Condensing | |||
Physical Characteristics | Dimensions | 192* 143* 72 mm (W* D* H) | ||
Net Weight | 2.05 KG | |||
Regulation | EMC | CE/FCC Class B, CCC | ||
Safety | CE-LVD, RoHS, CCC | |||
All products and company names listed are trademarks or trade names of their respective companies. | ||||
Related Accessories
Details & Installation Tips

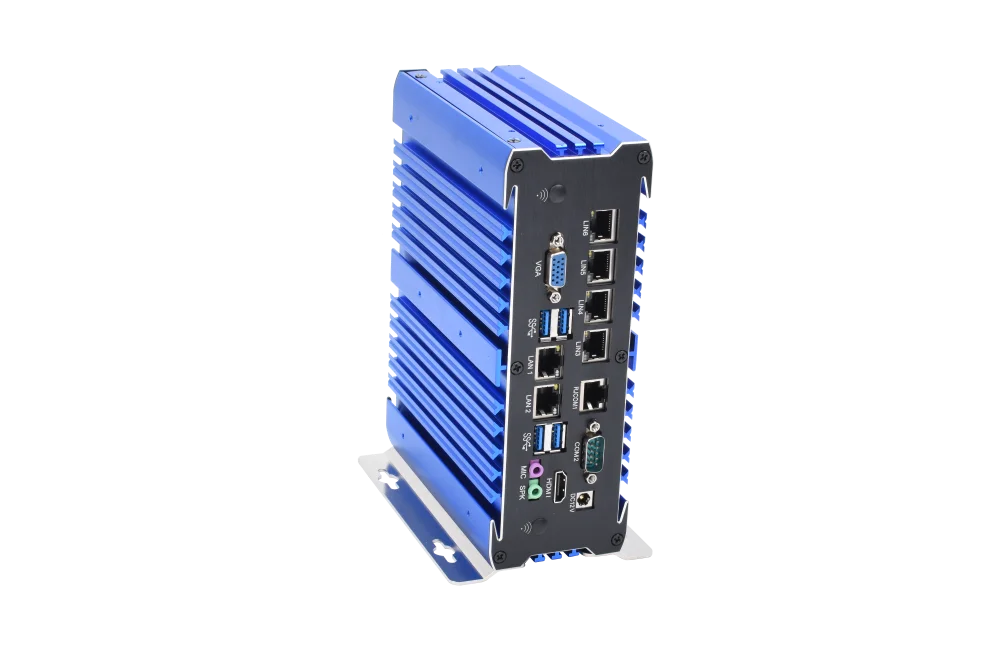

Vertical placement or mounting
Horizontal placement or mounting
Rack-mounting are supported
Package & Delivery
Packing Details | ||||||
Net Weight | 2.05 kg | Gross Weight | 3.55 kg | |||
Demension | 192*146*67mm | Packing Size | 34*11*28.5cm | |||
Delivery day | In 10 days after payment | Packing List | PC*1; Adapter*1; Installation frame | |||
Thickened anti-vibration foam
Thickened carton with handle
Custom Services
OEM SERVICE
Operation System
Do you want to make the device with your own booting logo? Do you want to short the booting time and reduce useless program of pc? Let us help you to achieve the goal.
Appearance
For example, the color, size, structure, and so on, make it different from others, make it as your own things
Configuration
Tell us the requirements of I/O and devices‘ usage scenarios, let us help you to select the best option for your business.
Appearance
For example, the color, size, structure, and so on, make it different from others, make it as your own things
Configuration
Tell us the requirements of I/O and devices‘ usage scenarios, let us help you to select the best option for your business.
Applications
Smart Transportation
Industrial computers are transforming the transportation industry by interconnecting vehicles, traffic signals and other devices, and the Internet into systems. Intelligent transportation systems improve the efficiency of the global transportation system by reducing congestion, preventing accidents, allowing vehicle tracking and reducing emissions.
Intelligent Medical
In the process of medical intelligence, Industrial PC is used to realize medical equipment equipment for network connection and collect and analyze through medical big data in order to help medical staff simplify the workflow and task volume, and finally achieve the purpose of building a smart medical network.
Industrial Automation
The hardware systems of IPCs are very rugged, and they can adapt to harsh industrial field environments such as strong vibration and high temperatures. At the same time, the use of IPC control appears to be simpler and easier to operate than program controlling.
Automatic visual positioning
In the CCD vision system, the industrial PC as the brain of the system to govern the operation of the whole system, it can not only simulate the function of human vision, but also extract information from the image of objective things and the processing of this information and understanding, and finally used for the detection, measurement and control of the driver.
Motion Control
In a common industrial robot control systems, the IPC is responsible for system file management, parameter setting, robot language interpretation, teach check, system program coordination and scheduling, fault diagnosis, robot kinematics forward and reverse solution, and interpolation operation.
Company Profile
Dongguan Tuolang Industrial Control Equipment Co., Ltd.
It is located in Dongguan city next to Guangzhou, a global manufacturing base. It is a high-tech enterprise integrating R & D, production, sales and service. Since its establishment, the company has been committed to the research and development and marketing for industrial controlling requirements.
We will keep up with the trend of era and the latest information to bring customers with the best quality product and service to turn a brand new page in the future.
We will keep up with the trend of era and the latest information to bring customers with the best quality product and service to turn a brand new page in the future.
What We Are Producting?
1. Embedded Mini IPCs
2. Desktop Compact IPCs
3. Din Rail Industrial PCs
4. All-In-One Industrial PCs
5. Handheld Industrial Pad
6. Industrial Monitor
7. Related Accessories
2. Desktop Compact IPCs
3. Din Rail Industrial PCs
4. All-In-One Industrial PCs
5. Handheld Industrial Pad
6. Industrial Monitor
7. Related Accessories
Why Choose Us?
1. Fast delivery capability
2. Extensive project experience
3. Products built with private molds
4. Strong R&D and self-design capability
5. Professional pre-sales and after-sales service team.
6. Experienced import/export specialists
2. Extensive project experience
3. Products built with private molds
4. Strong R&D and self-design capability
5. Professional pre-sales and after-sales service team.
6. Experienced import/export specialists
Over 20 engineers for R&D
Over 2000 m² production workshop
Strict quality management sys
Certifications
R&D Achievements
We have been consistently devoting 15% of our profits to our R&D department each year, and this has never changed since the company was founded. All details of the relevant patents can be found on the official website of the WIPO (World Intellectual Property Organization).
Quality Management System
We have meet the requirements of GB/T19001-2016 idt ISO9001:2015 standard applicable provisions from 2020 years.At the meantime, our products have been approved of CE, FCC, RoHS and CCC.
The following are our management system certificates and product safety certificates.
The following are our management system certificates and product safety certificates.
FAQ & Related Products
Q: What does your after-sales service include?
A: if there are quality problems in 3 years, in addition to the motherboard and screen, free replacement of other accessories.
Q: If there is a problem with the system program, how do you fix it?
A: We offer real-time one-on-one online technical support, at the same time, we will also support with video tutorials and
technical documents.
Q: Would you help us to install the machines?
A: We will provide you full set video of installation technical instruction.
Q: Can I custom the I/O interface for my project/ clients?
A: Yes, but it has a limit for every model, different model with different max limit.
Q: Are there any other configuration options for this model, such as CPU?
A: if there are quality problems in 3 years, in addition to the motherboard and screen, free replacement of other accessories.
Q: If there is a problem with the system program, how do you fix it?
A: We offer real-time one-on-one online technical support, at the same time, we will also support with video tutorials and
technical documents.
Q: Would you help us to install the machines?
A: We will provide you full set video of installation technical instruction.
Q: Can I custom the I/O interface for my project/ clients?
A: Yes, but it has a limit for every model, different model with different max limit.
Q: Are there any other configuration options for this model, such as CPU?
A: Yes, we have many models and related configurations for you to choose from.
