Заводская розетка высокоточные цепи из углеродистой стали с двойным шагом 2062HP
- Категория: Power Transmission Parts >>>
- Поставщик: Zaozhuang,Yiding,Bearing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.76 $* | 0.4 $* |
| Aug-19-2025 | 0.62 $* | 0.86 $* |
| Jul-19-2025 | 0.29 $* | 0.9 $* |
| Jun-19-2025 | 0.42 $* | 0.28 $* |
| May-19-2025 | 0.42 $* | 0.12 $* |
| Apr-19-2025 | 0.0 $* | 0.97 $* |
| Mar-19-2025 | 0.48 $* | 0.57 $* |
| Feb-19-2025 | 0.64 $* | 0.4 $* |
| Jan-19-2025 | 0.38 $* | 0.78 $* |
Характеристики

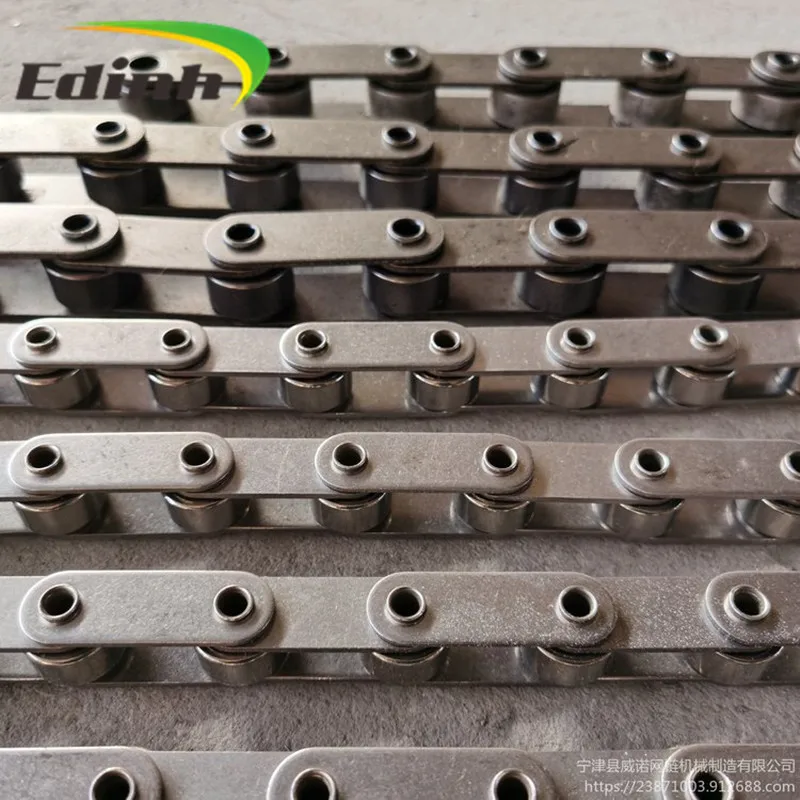

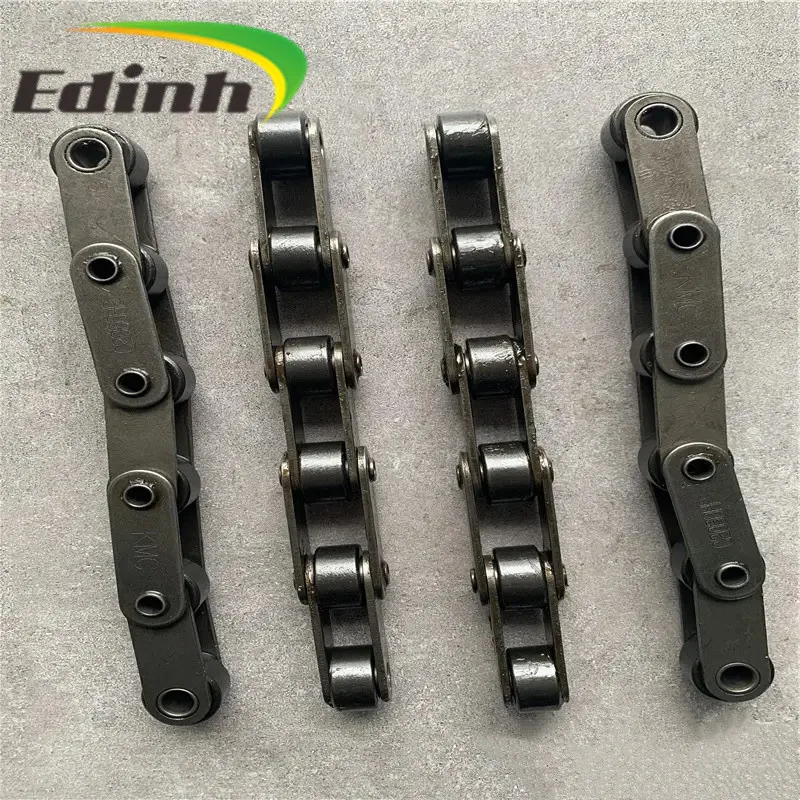

Factory Outlet Super Precision Carbon Steel Double Pitch Chains 2062HP Hollow Pin Chain
Our Services & Strength
1.High quality
We choose high quality material and use advanced CNC lathes to process our products, which means that the surface is smooth and there are no obvious processing marks and burrs. We will also oxidize the sprocket surface and quench the teeth with high frequency. so the product can prevent rust to a certain extent, so as to prolong the service life of the product.
2.High accuracy
According to the data provided by customers, the drawings are carefully checked with formulas, and then the data are input into the CNC machine for processing. After the product is made, we will use special measuring tools to further check, control the tolerance within the customer's requirements. After two reviews, the accuracy of the product is very high.
3.High performance
All items are checked and tested thoroughly during every working procedure and after the product is finally manufactured to ensure that best quality product goes out in the market.
1.High quality
We choose high quality material and use advanced CNC lathes to process our products, which means that the surface is smooth and there are no obvious processing marks and burrs. We will also oxidize the sprocket surface and quench the teeth with high frequency. so the product can prevent rust to a certain extent, so as to prolong the service life of the product.
2.High accuracy
According to the data provided by customers, the drawings are carefully checked with formulas, and then the data are input into the CNC machine for processing. After the product is made, we will use special measuring tools to further check, control the tolerance within the customer's requirements. After two reviews, the accuracy of the product is very high.
3.High performance
All items are checked and tested thoroughly during every working procedure and after the product is finally manufactured to ensure that best quality product goes out in the market.
Product Description
size information
Chain Number | p mm | b(min) mm | D(max) mm | d1(min) mm | d2 mm | L1 mm | L2 mm | q kgim |
C208BLHP | 25.4 | 7.75 | 15.88 | 4.6 | 6.38 | 8.25 | 9.25 | 0.81 |
C2042HP | 25.4 | 7.85 | 15.88 | 3.98 | 5.63 | 8.3 | 9.6 | 0.83 |
C2052HP | 31.75 | 9.4 | 19.05 | 5.1 | 7.06 | 10.25 | 11.25 | 1.22 |
C2062HP | 38.1 | 12.57 | 22.23 | 6 | 8.33 | 12.65 | 14.05 | 1.81 |
C2062HHP | 38.1 | 12.57 | 22.23 | 6 | 8.33 | 14.3 | 15.7 | 2.08 |
C2082HP | 50.8 | 15.75 | 28.58 | 8 | 11.11 | 16.35 | 17.75 | 2.97 |
C2082HHP | 50.8 | 15.75 | 28.58 | 8 | 11.11 | 17.85 | 19.25 | 3.33 |
C208BLHPSS | 25.4 | 7.75 | 15.88 | 4.6 | 6.38 | 8.25 | 9.25 | 0.8 |
C2042HPSS | 25.4 | 7.85 | 15.88 | 3.98 | 5.63 | 8.3 | 9.6 | 0.82 |
C2052HPSS | 31.75 | 9.4 | 19.05 | 5.1 | 7.06 | 10.25 | 11.25 | 1.2 |
C2062HPSS | 38.1 | 12.57 | 22.23 | 6 | 8.33 | 12.65 | 14.05 | 1.75 |
C2062HHPSS | 38.1 | 12.57 | 22.23 | 6 | 8.33 | 14.3 | 15.7 | 2.05 |
C2082HPSS | 50.8 | 15.75 | 28.58 | 8 | 11.11 | 16.35 | 17.75 | 2.93 |
C2082HHPSS | 50.8 | 15.75 | 28.58 | 8 | 11.11 | 17.85 | 19.25 | 3.29 |
Our Main Products
1 | Deep groove ball bearings |
2 | Insert bearings |
3 | Angular contact ball bearings |
4 | Self-aligning ball bearings |
5 | Thrust ball bearings |
6 | Cylindrical roller bearings |
7 | Needle roller bearings |
8 | Tapered roller bearings |
9 | Spherical roller bearings |
10 | Toroidal roller bearings |
11 | Cylindrical roller thrust bearings |
12 | Needle roller thrust bearings |
13 | Tapered roller thrust bearings |
14 | Spherical roller thrust bearings |
15 | Ball and roller screws |
16 | Linear guides and tables |
17 | Pollow block bearing |
18 | Wheel Bearings |
19 | Cam followers |
20 | Track rollers |
21 | Super-precision bearings |
22 | Plain bearings/Rod end bearings |
23 | Bearing Units |
24 | Bearing Housings |
Packing & Shipping
package | 1)Neutral package + carton package 2)Carton package + pallet 3)Wood package + pallet |
Delivery Time | 1-3 days after order |
Shipping | by air to door address / by sea to sea port |
Company Profile
Certifications
FAQ
Q:Are you factory or trading company?
A:We are factory.
Q:Where is your factory located in?
A:Shandong
Q:Could I get samples before order?
A:Yes,sure,we can send you samples,let you check quality first.
Q:What is your MOQ?
A:1 Pcs
Q:What is your delivery time?
A:For small quantity we have in the stock, D, large quantity need 10-15 days.
Q:What is your payment terms?
A:Western Union,TT,Paypal.
Q:Do you supply OEM?
A:Sure
A:We are factory.
Q:Where is your factory located in?
A:Shandong
Q:Could I get samples before order?
A:Yes,sure,we can send you samples,let you check quality first.
Q:What is your MOQ?
A:1 Pcs
Q:What is your delivery time?
A:For small quantity we have in the stock, D, large quantity need 10-15 days.
Q:What is your payment terms?
A:Western Union,TT,Paypal.
Q:Do you supply OEM?
A:Sure
