Product Description

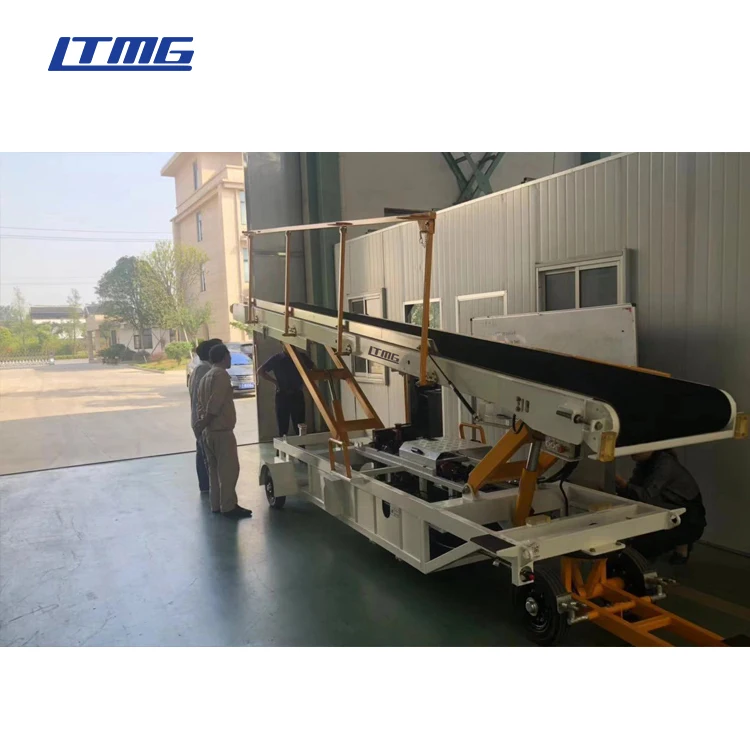

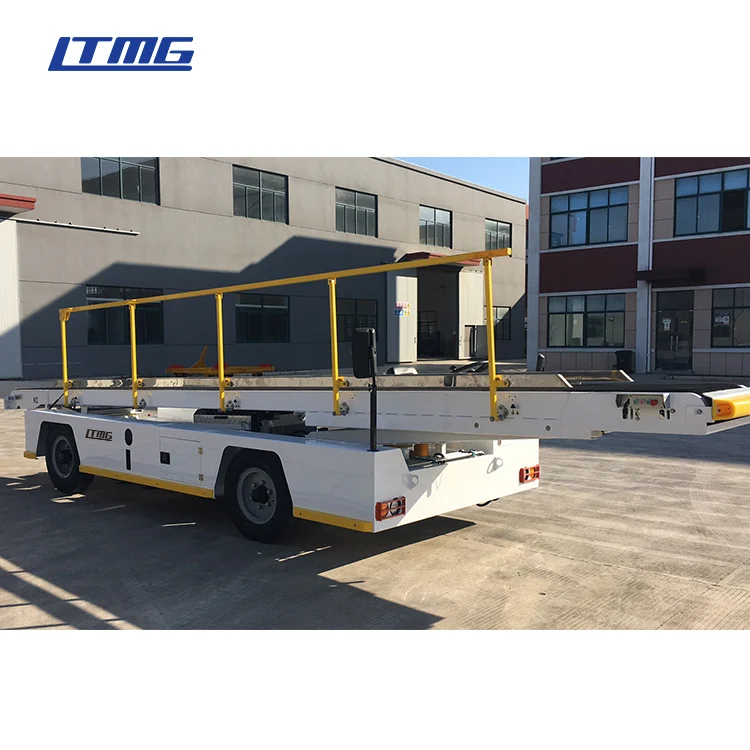

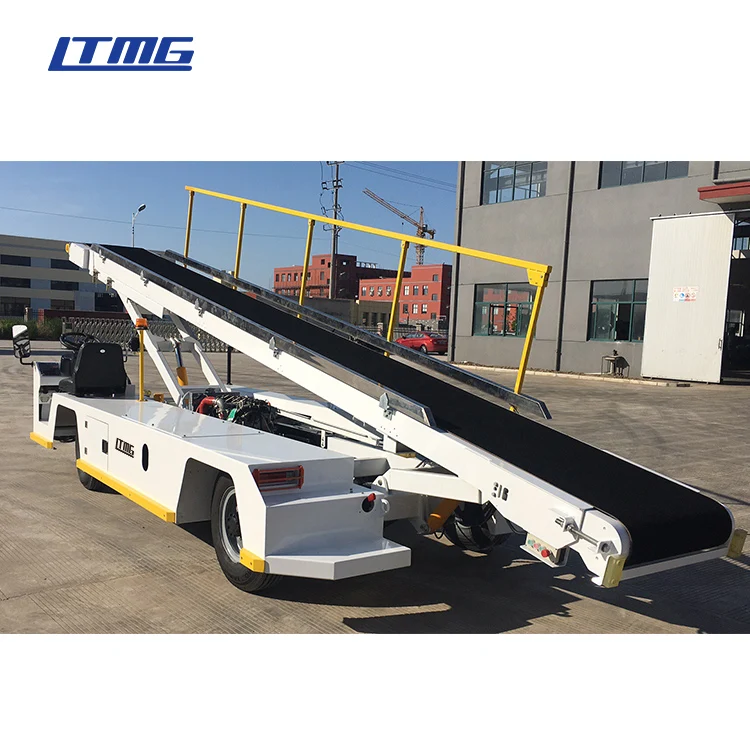

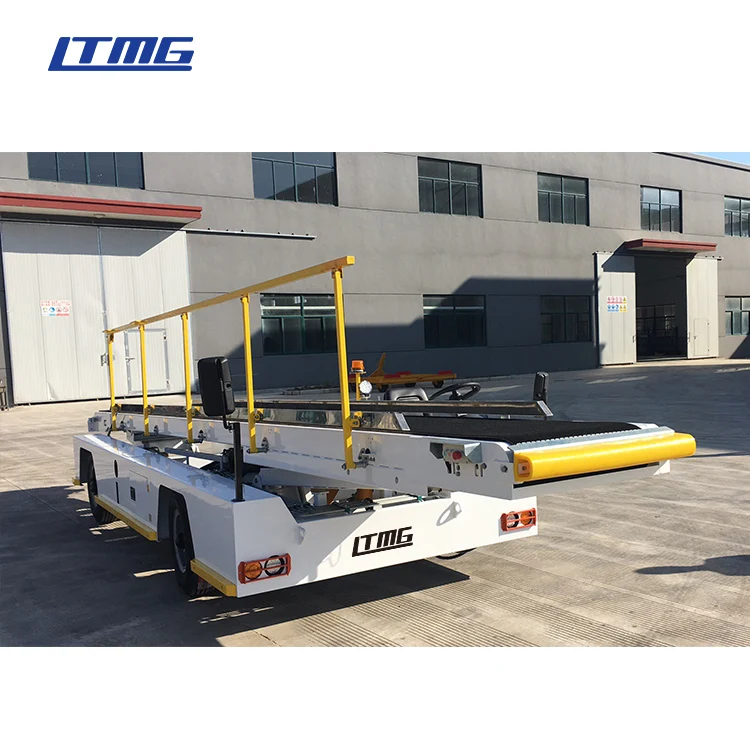

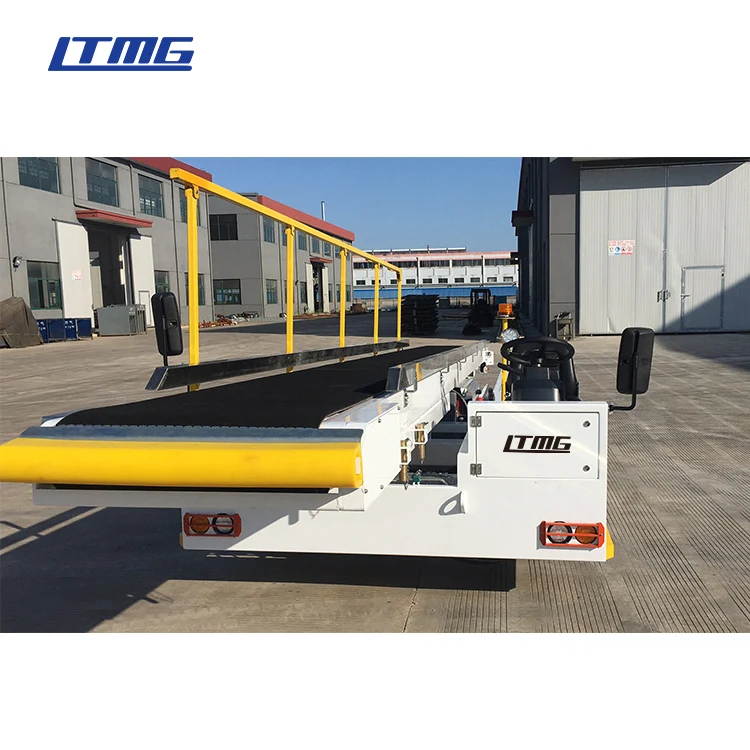

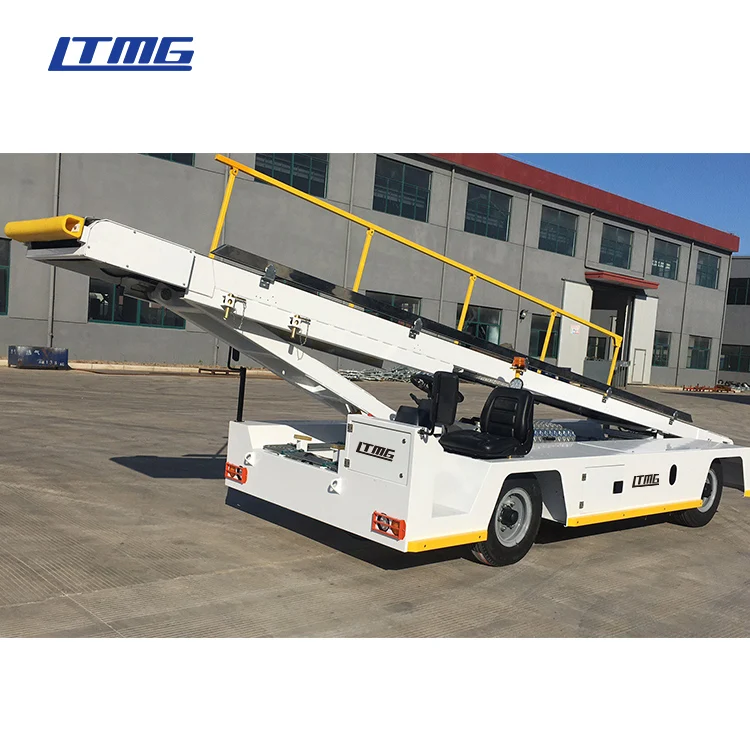

GSE Self-propelled conveyor belt loader for aviation equipment
The Model LT-BL80 Self-propelled Conveyor Belt Loader is the most up-to-date design from LTMG. The model is the universal type that is suitable for the aircraft cargo and luggage service in the airports. The configuration adopts the mature vehicle parts from technology of both China and western countries. The belt loader is reliable in performance and easily for operation and maintenance.
Product Feature
Power System (JAPANESE ISUZU ENGINE) | Engine Model: JMC JX493 (ISUZU 4JB1 OEM)Type: Four cylinders, Four strokes, Water coolant, Straight line, EU Stage II emission standard | ||||
Transmission System (OKAMURA AUTOMATIC TRANSMISSION) | Model: Y43280D, Japanese Origin Type: Hydraulic automatic transmission, single stage torque converter, 2 Phase, 3 components comprehensive type, simple structure and stable performance. | ||||
Front Axle type
Steering axle with hydraulic disc brake, single-side double-clamp twin cylinder brake, with pay load of 3ton.
Rear Axle type
Driving axle with drum type walking brake and parking brake, with 3Ton pay load.
Electric System
12V DC Electric system, negative grounded
80Ah Maintenance Free Battery, LED Light for Complete vehicle including Head light, CAN Wiring device, High qualified vehicle gear shifter, Germany original Weidmuller Relays.
1)The front drive roller is PU rubber packed in diameter of 210mm, which provides adequate friction and have long service life.
2)The rear end is belt tension assembly with 160mm adjusting range for forward and back, which makes the conveyor belt easily disassembled and maintained.
3)The load rollers are in thickness of 2mm. The distance between both front and rear ends are 700mm which can prevent luggage not being crashed during transportation. The middle distance is 180mm which makes it is easily for maintenance.
Specification
Technical Parameters | ||
Brand | LTMG | |
Overall Dimension | 8000×2100×1650 mm | |
Min. Turning Radius | 6500mm | |
Wheel base | 2900mm | |
Front Wheel tread | 1725mm | |
Rear Wheel tread | 1695mm | |
Max Grade ability (°) | 30 | |
Ground Clearance | 145 mm | |
Shipping Weight | 3200 kg | |
Belt Width | 700 mm | |
Boom Length | 8000 mm | |
Conveying speed | 0.2-0.5 m/s | |
Max distribution load of conveyor belt | 135 Kg/m | |
Work height range of front end | 1200-4350 mm | |
Height range of rear conveyor end | 1600-450mm | |
Max Inclination angle | 29° | |
Packing & Delivery
Our Company
Our Service
After-sale Service
LTMG always treat after-sale service important as the same as product quality.
LTMG grants our clients a twelve-month-period or 2000-hours warranty for any machine purchased from us.
LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.
