30 40 м 5 г Wi-Fi сигнал свободно стоящая круглая оцинкованная телекоммуникационная антенна одиночная трубчатая
- Категория: Telecommunication Towers & Accessories >>>
- Поставщик: Jiayao,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 1428.47 $* | 1499.85 $* |
| Aug-17-2025 | 1416.67 $* | 1487.71 $* |
| Jul-17-2025 | 1188.84 $* | 1247.43 $* |
| Jun-17-2025 | 1392.99 $* | 1462.30 $* |
| May-17-2025 | 1212.86 $* | 1273.4 $* |
| Apr-17-2025 | 1368.28 $* | 1436.9 $* |
| Mar-17-2025 | 1356.5 $* | 1424.64 $* |
| Feb-17-2025 | 1344.65 $* | 1411.80 $* |
| Jan-17-2025 | 1332.8 $* | 1399.21 $* |
Характеристики
Cellular Steel Tapered Radio Mono pole Tower with platforms
Products Description
1.key Details:
Place of Origin: Hebei, China (Mainland) ; Brand Name: Jaoyao or OEM ; Model Number: Telecom Tower
Surface treatment: Hot Dip Galvanizied or painted.
2.Packaging & Delivery:
Packaging Details: Telecom tower will be bundled by Galvanized strapping as per client's requirements.
Deliver:Shipped in 20 days after payment from Tianjin port
Tower members: One steel tower is separated into several bundles.
Bolts: Packing material is robust nylon bag or steel drum.
Place of Origin: Hebei, China (Mainland) ; Brand Name: Jaoyao or OEM ; Model Number: Telecom Tower
Surface treatment: Hot Dip Galvanizied or painted.
2.Packaging & Delivery:
Packaging Details: Telecom tower will be bundled by Galvanized strapping as per client's requirements.
Deliver:Shipped in 20 days after payment from Tianjin port
Tower members: One steel tower is separated into several bundles.
Bolts: Packing material is robust nylon bag or steel drum.
3. Technical Data
Design | ||||
1. Design Code | TIA/EIA-222-G/F | |||
Structure Steel | ||||
2. Grade | Mild Steel | High Tensile Steel | ||
GB/T 700:Q235B, Q235C,Q235D | GB/T1591:Q345B, Q345C,Q3455D | |||
ASTM A36 | ASTM A572 Gr50 | |||
EN10025: S235JR,S235J0,S235J2 | EN10025: S355JR, S355J0,S355J2 | |||
3. Design Wind Speed | Up to 250 km/h | |||
4. Allowable deflection | 0.5 ~1.0 degree @ operational speed | |||
5. Tension strength (Mpa) | 360~510 | 470~630 | ||
6. Yield strength (t≤16mm) (Mpa) | 355 | 235 | ||
7. Elongation (%) | 20 | 24 | ||
8. Impact strength KV (J) | 27(20°C)---Q235B(S235JR) | 27(20°C)---Q345B(S355JR) | ||
27(0°C)---Q235C(S235J0) | 27(0°C)---Q345C(S355J0) | |||
27(-20°C)---Q235D(S235J2) | 27(-20°C)---Q345D(S355J2) | |||
Bolts & Nuts | ||||
9. Grade | Grade 4.8, 6.8, 8.8 | |||
10. Standards for mechanical properties | ||||
10.1 Bolts | ISO 898-1 | |||
10.2 Nuts | ISO 898-2 | |||
10.3 Washers | ISO 6507-1 | |||
11. Standards for Dimensions | ||||
11.1 Bolts | DIN7990, DIN931, DIN933 | |||
11.2 Nuts | ISO4032, ISO4034 | |||
11.3 Washers | DIN7989, DIN127B, ISO7091 | |||
Welding | ||||
12. Method | CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) | |||
13. Standard | AWS D1.1 | |||
Marking | ||||
14. Method of marking of the members | Hydraulic Press Stamping | |||
Galvanizing | ||||
15. Galvanization standard of steel sections | ISO 1461 or ASTM A123 | |||
16. Galvanization standard of bolts and nuts | ISO 1461 or ASTM A153 | |||
Test | ||||
17. Factory test | Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending, Preece test,Hammer test | |||
Capacity | ||||
18. Maximum Production Capacity | 50,000 TON per annum | |||

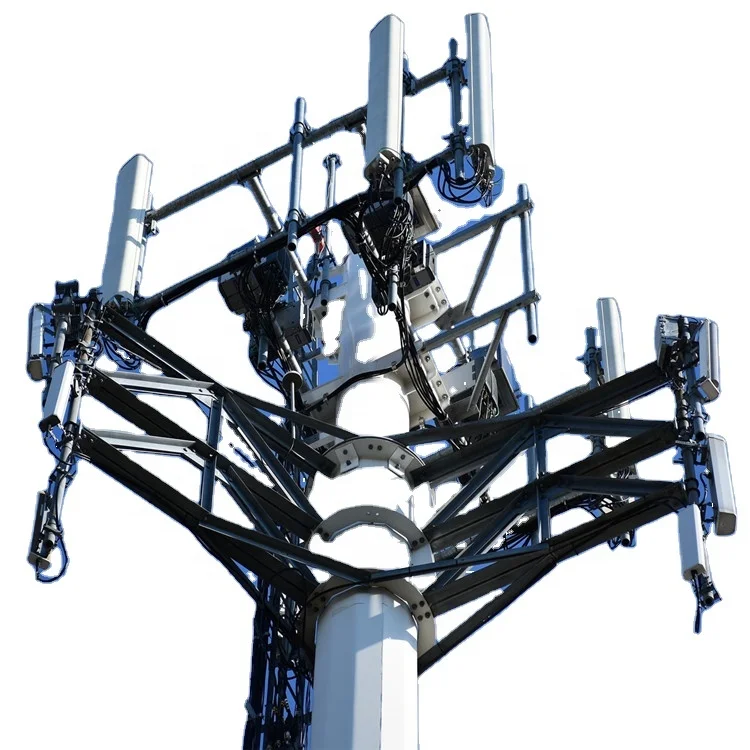

Whta is the Antenna Bracket of monopole tower?

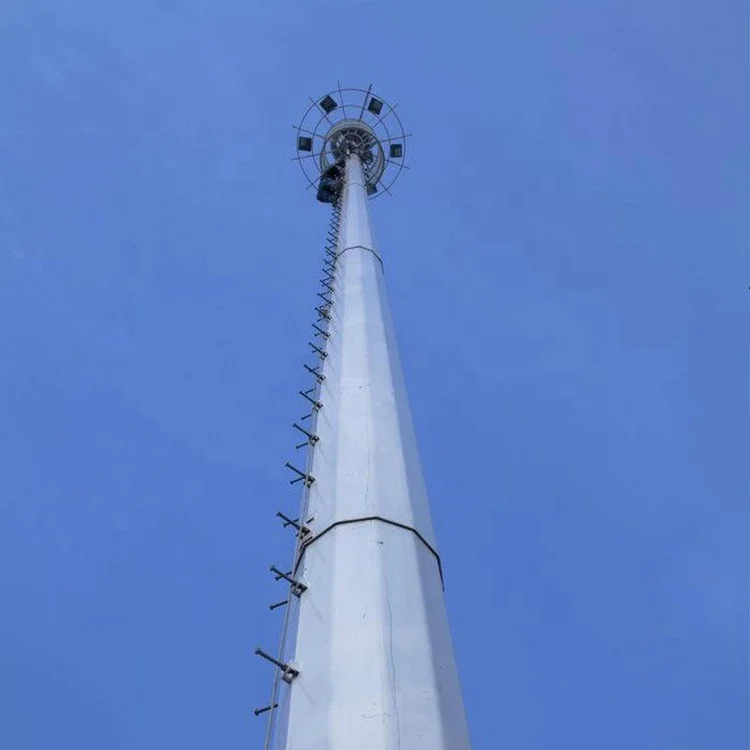

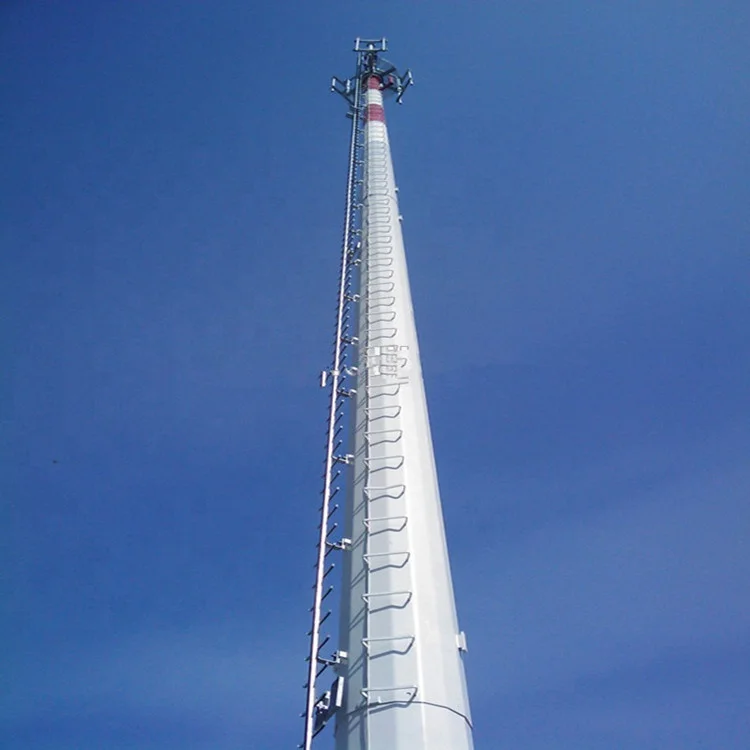

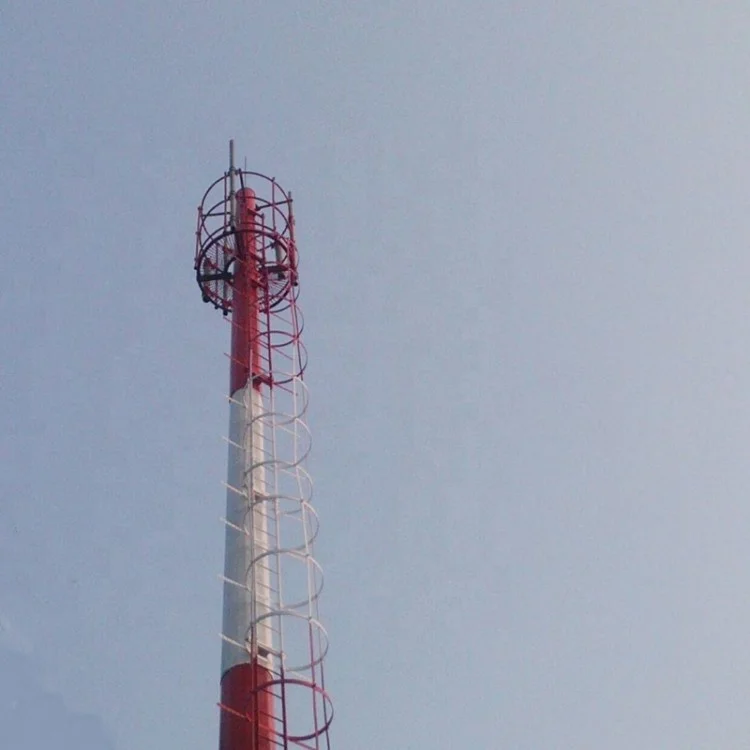

What is the Ladder of Monopole Tower?

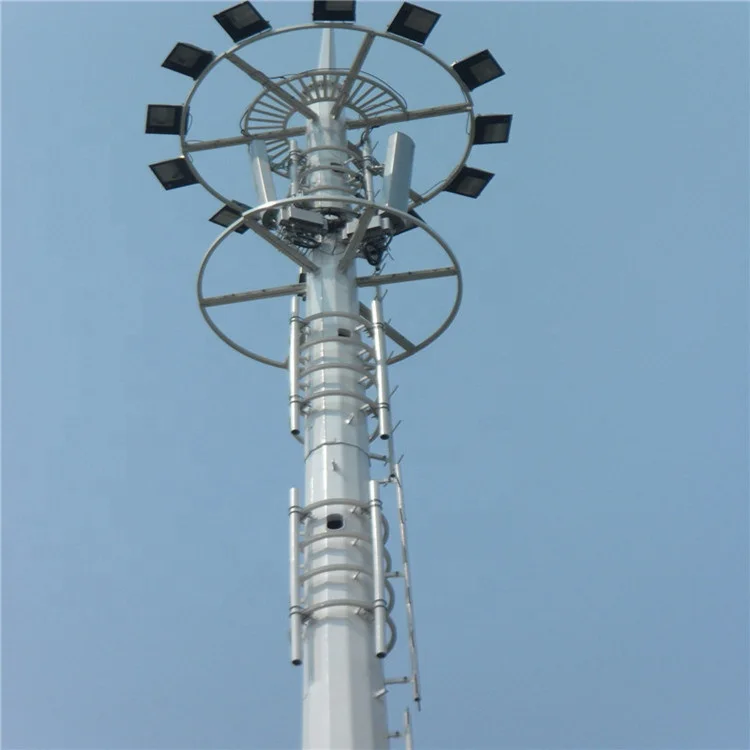

What is the cable hole and antenna bracket of monopole tower?
How to fix the feeder in the monopole tower?
How to connect monopole tower with foundation?
How to overlap and install monopole tower?
Production Flow
Trade Shows
Company Information
Welcome to JIAYAO! JIAYAO CO.,LTD. is a professional telecom tower manufacturer and approved by ISO 9001.we can supply OEM/ODM Manufacturing. JIAYAO has been qualified by SGS classification as well as we have our own import and export license,our products such as angle steel tower, tube steel tower, monopole tower, pine tree tower, guyed tower and guard tower have been exported to USA, Europe and other 55 different counties. It's only two hours' drive from Shijiazhuang airport to JIAYAO.
Certifications
Packaging & Shipping
Our Services
