Цена:4 400,00 $ - 4 800,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 5236.46 $* 5498.63 $*
Aug-16-2025 5192.59 $* 5452.63 $*
Jul-16-2025 4356.80 $* 4574.51 $*
Jun-16-2025 5104.3 $* 5359.28 $*
May-16-2025 4444.1 $* 4666.26 $*
Apr-16-2025 5016.46 $* 5267.97 $*
Mar-16-2025 4972.1 $* 5221.66 $*
Feb-16-2025 4928.12 $* 5174.2 $*
Jan-16-2025 4884.55 $* 5128.0 $*

Характеристики



Product Overview





1.The special design of one body tube cylinder can guarantee the welding stability
and velocity
2.Spot and projection welding functions.
3.Computer control system with steady-voltage and current, Multi time
Discharge(MTD),can satisfy various working requirements with ease.
4.Can weld iron and stainless steel.

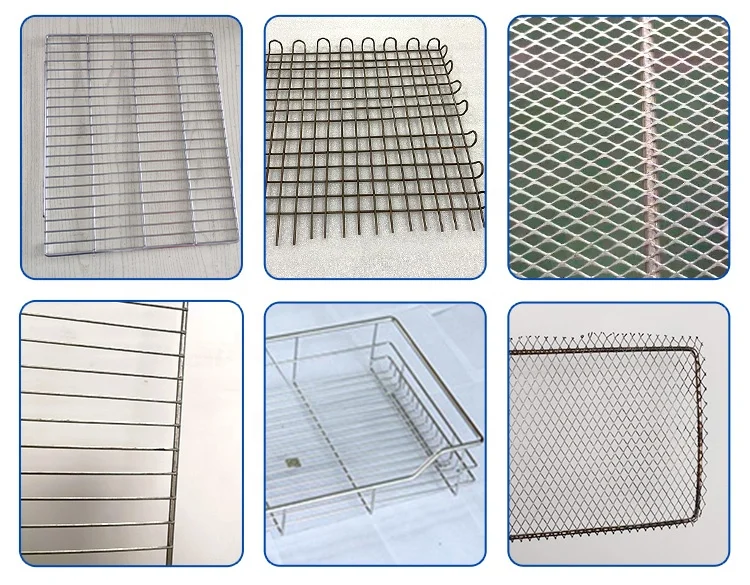

SAMPLE DISPLAY




PRODUCT SPECIFICATIONS

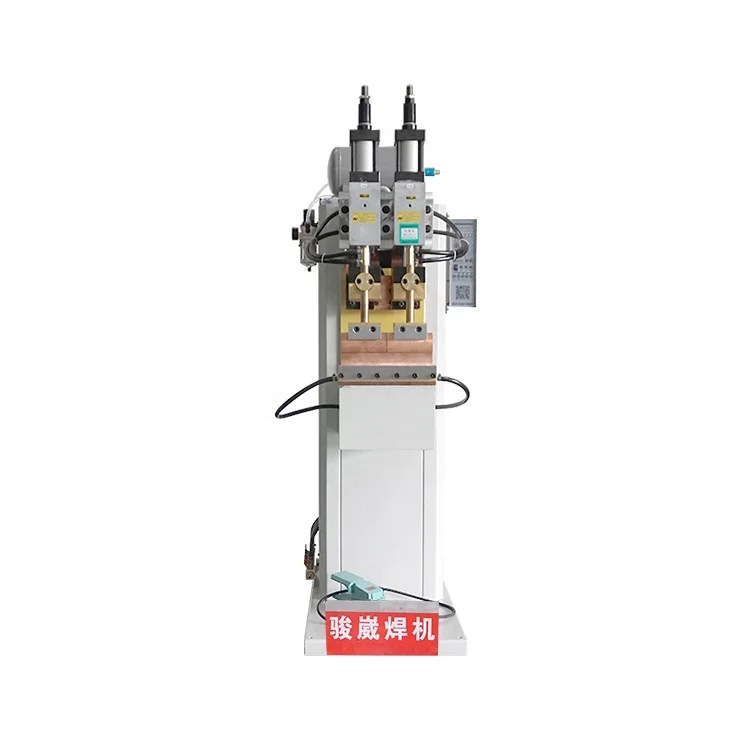

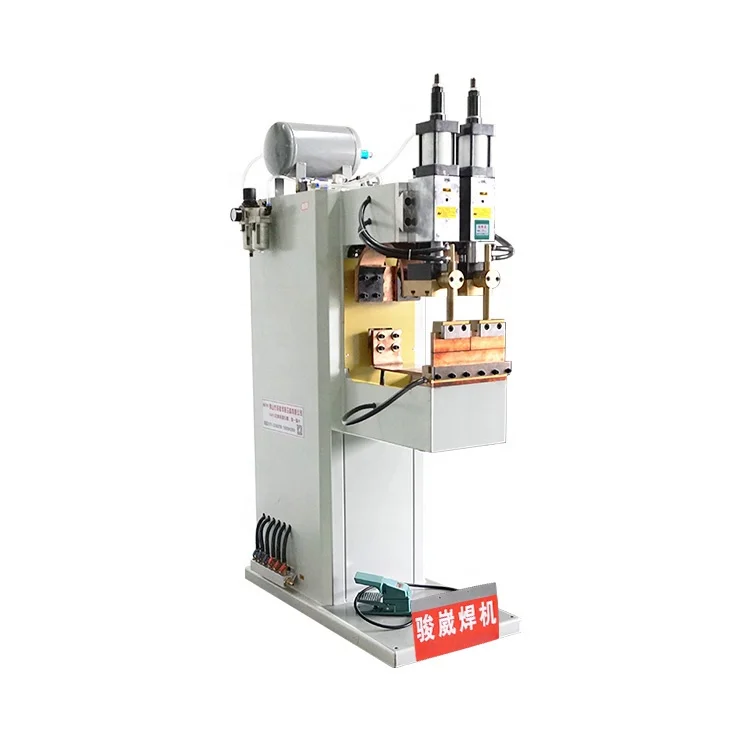

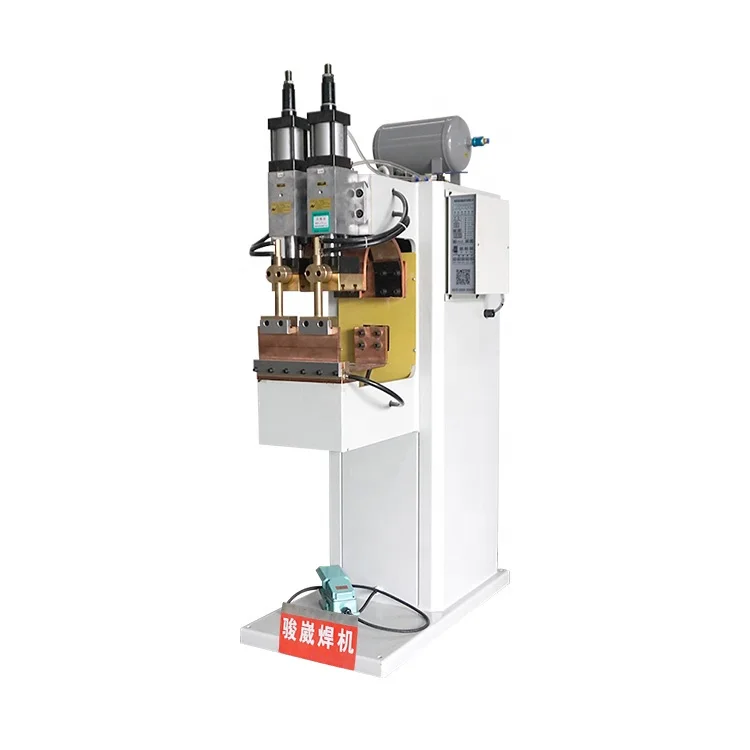

Slider two heads spot welder is customized for welding sliders of drawer and keyboard Tray. The feature is firmly welded, beautiful welding shape and any person can operate. It is safe and efficient. It no need welding rod, no need professional weldor that will take maximum 5 monthes to return the cost, 1 year quality assurance will guarantee that if there is any problem we will offer you the maintaince for free except the reason of human destructive factor and the depletion of consumables.

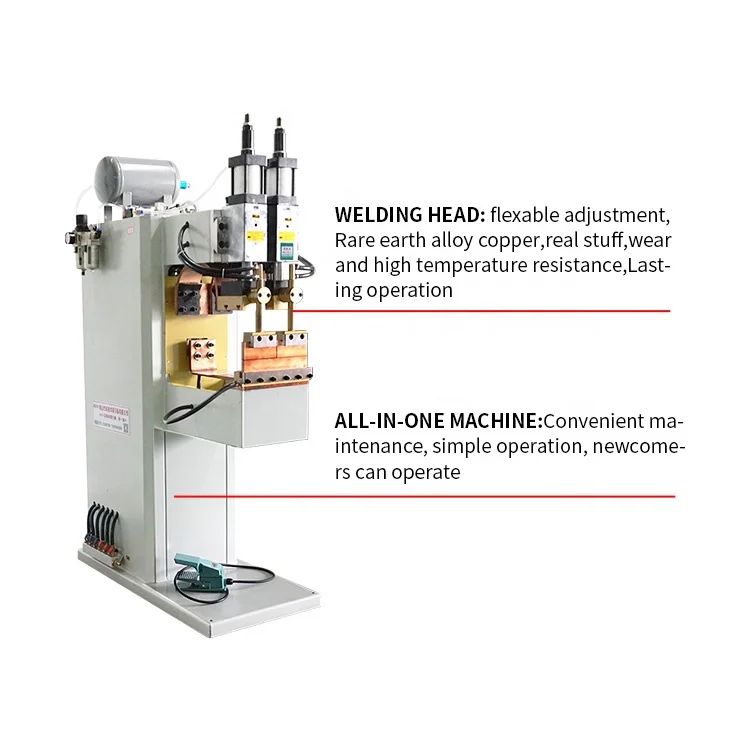

WELDING HEAD: Flexable adjustment,rare earth alloy copper,real stuff,wear and high temperature resistance,lasting operation.
ALL-IN ONE MACHINE: Convenient maintenance, simple operation,new comer can operate.

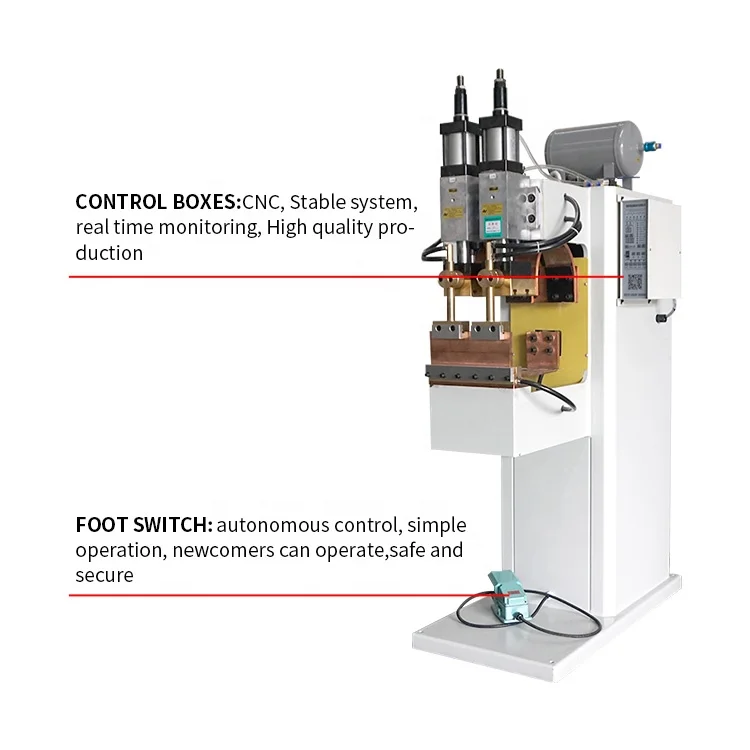

CONTROL BOXES: CNC,stable system, real time monitoring, high quality production.
FOOT SWITCH: autonomous control,simple operation,newcomer can operate,safe and secure.



Pure copper raw materials
small resistance, less heat, good electrical conductivity, long life (5 years plus)
Thickened steel plate
Solid, stable, strong stability, low noise, when welding it is not easy to move
Accurate measurement
The accurate measurement of
workpiece dimension is an important step to make a good  machine


model
Input vollage
Roted capacity
KVA
Rated Frequency
HZ
Rated dute cycle %
Arm Lentgh
MM
Electrode stroke
MM
Cooling water consumption L/min
Max welding capabilt (low carbon steel two block welding) mm
25KVA
 380V*3
25
50/60
50
350
50
3
1.0+1.0
40KVA
 380V*3
40
50/60
50
350
50
3
2.0+2.0
50KVA
380V*3
50
50/60
50
380
60
4
3.0+3.0
63KVA
380V*3
63
50/60
50
380
60
4
3.5+3.5
80KVA
 380V*3
80
50/60
50
400
75
5
4.0+4.0
100KVA
380V*3
100
50/60
50
400
75
6
4.5+4.5
160KVA
 380V*3
160
50/60
50
400
75
8
5.0+5.0
200KVA
 380V*3
200
50/60
50
400
75
10
6.0+6.0




PROVIDE NON-STANDARD CUSTOMIZED SERVICES
Spot welding machine,projection welding machine, butt welding machine,automatic welding machine, semi-automatic welding machine etc various welding equipment.
Can be customized according to the needs of the workpiece


Why Choose Us



1. Resistance welding machine for many years experience,
manufacturers direct sales, the price is competitive.

2. Customized Service: We can help to design and develop the
welding machine according to your requirement.We are flexible
and capable Supplier.

3. After Sales Service and Technical Assistance: 24 hours technical
support by email.Our professional team is always here willing to be
your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we
pursue.


JUNWEI welder compare with other suppliers (mostly)


1. JUNWEI Welder Frame
1. In whole C shape steel plate,no crack, stable welding, design life of 10 years
2. Surface electrostatic powder spraying, strong adhesion, nails can't be scraped off, 10 years of life
3. Solid, stable, strong stability, low noise, when welding it is not easy to move
Others
1. 4-5mm plate bending with pipe support, easy to slip when welding, short life
2.Paint - based, 3 years of life, easy to rust after falling paint
3.Relatively light, loud noise, easy to shake and move


2. JUNWEI transformer
1. Primary and secondary coil are made of copper, the material price is nearly 2-fold higher, small size, small resistance, less heat, long life (5 years +), with temperature control protection (thermocouple), automatic power off when 85 degrees
2. Good stability, small spark, product surface effect and quality is good
3.High permeability silicon steel sheet, good permeability, small loss, overall energy saving more than 30%
Others
1. The main body uses X alloy, all kinds of poor
2. inferior
3.Low permeability, poor


3.JUNWEI electrode tip
1. Rare earth alloy copper, about 3 times the price of chrome copper alloy, about 5 times the life
2.High temperature resistance (more than 500 degrees), wear resistance, impact resistance
Others
1. Chrome copper alloy
2. Only over 300 degrees. Everything else is weak


4. JUNWEI Control box
1. Constant current constant voltage, grid fluctuation automatic correction
2. The upper limit can be adjusted to 250 cycles, which is 5 seconds
3. Current refinement to the thousandth, to achieve precise control
Others
1.Grid fluctuation instability
2.The upper limit can be adjusted to 99 cycles, which is 2 seconds
3.Generally to the percentile, the control accuracy is limited


5. JUNWEI copper mold copper base
H62 brass, copper content of 62%,
95% + electric conductivity
Others
Impurities cast copper, with lead material and other impurities, conductivity difference is nearly half


Most of the parts is manufacturered by ourselve, such as electrode tip/cap, busbar and main transformer,this is why our welding machine quality is good as as well the price is competitive. And the quality of our products are always got very good reputtion that make 50% orders from our regular customers.




ABOUT US








Foshan Junwei Intelligent Machinical Equipment Technology CO.,LTD. Has been focusing on R&D and production for more than 10 years: CNC resistance spot welding machine, seam welding machine, intermediate frequency welding machine,press welding machine,automatic welding machine, semi-automatic welding machine,etc.
We have a professional R&D team and strong technical power which was established in Aug. 2006. With abundant experience and professional knowledge, we are always ready to provide you with ideal technical solution and excellent welding equipment.
For more than 10 years,our company has been creating welding miracles for iron products,copper and aluminum products and stainless steel products industry. Independently developed more than 300 high-efficiency special welding machines. And esteablished the “Junwei” brand, obtained 28 patents of utility model.Applicable industries: Hardware wire products,Stainless steel products,Household appliances,Automobile manufacturing, Bathroom industry,Chassis cabinet,Copper and aluminum products,Refrigeration industry,Microelectronics,etc.
We will continue to strive and innovate,with the highest goal of customer satisfaction,to make more contributions to society and humanity.
















FAQ



1. Q: Do your factory sale directly?
A:Yes,it is.Our factory sale directly, competitive price with high quality.

2. Q: What information do you need to give me proper recommendation?
A: In order to recommend you the suitable machine model, please send us the detailed information regarding your product.Like material, thickness, welding position, minimum and maximum size of product, welding requirement, etc. It would be better if you could send us your product drawings. Then our engineer will recommend you the machine according to your welding requirement.

3. Q: Can you provide customized service for our product?
A: Yes. We will provide you the professional automatic welding system solutions according to your specific product. Only you need to send us your detailed product drawings and welding requirement, then we will come out with the customized technical proposal for you.

4.Q:What do we need to do if the machine fails?
A:Within the guarantee time(1 year), we will send the spare parts to you for free
and provide the technical consultant for any time.(consumable not included)

5. Q:I want to know the welding quality for our product, what should I do?
A: You can send your samples to our factory to do test welding. After test welding, we will send the welding video and pictures to you for reference. Also we will send the samples back
to you for verification.

6. Q:Where is your factory?
A:Our facotry is in Chencun Town,Shunde District,Foshan city,Guangdong Province,China

7. Q: Can I make my own design and logo on the product?
A. Yes. we do OEM.Welcome global partners.
