Высокопрочная медно-алюминиевая биметаллическая инкрустация покрытый металлическим листом для электромобилей и
- Категория: Other Electrical Equipment >>>
- Поставщик: Dongguan,Sanxie,Metal,Material,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 6.92 $* | 6.84 $* |
| Jul-19-2025 | 5.45 $* | 5.61 $* |
| Jun-19-2025 | 6.88 $* | 6.27 $* |
| May-19-2025 | 6.11 $* | 6.92 $* |
| Apr-19-2025 | 5.63 $* | 5.83 $* |
| Mar-19-2025 | 6.62 $* | 6.95 $* |
| Feb-19-2025 | 6.92 $* | 6.24 $* |
| Jan-19-2025 | 6.18 $* | 6.15 $* |
Характеристики
Product Paramenters
Material | Copper T2, Aluminum 1060 | ||
Specification(thickness * width) | 0.1mm-15mm*30mm-1000mm | ||
Copper and Aluminum weight ratio | Cu:AL | 32%-40%: 60%-68% | |
Copper and Aluminum volume ratio | Cu:AL | 15-20: 80-85 | |
Resistivity(Ωmm2/m) | ≦0.024 | ||
Elongation (%) | 15%～30% | ||
Tensile strength(MPa) | 150-170Mpa | ||
peel strength(N/mm) | more than 12 | ||
Surface hardness(HV 0.3) | 76/37 | ||
composite rate (%) | 100% | ||
Products Description

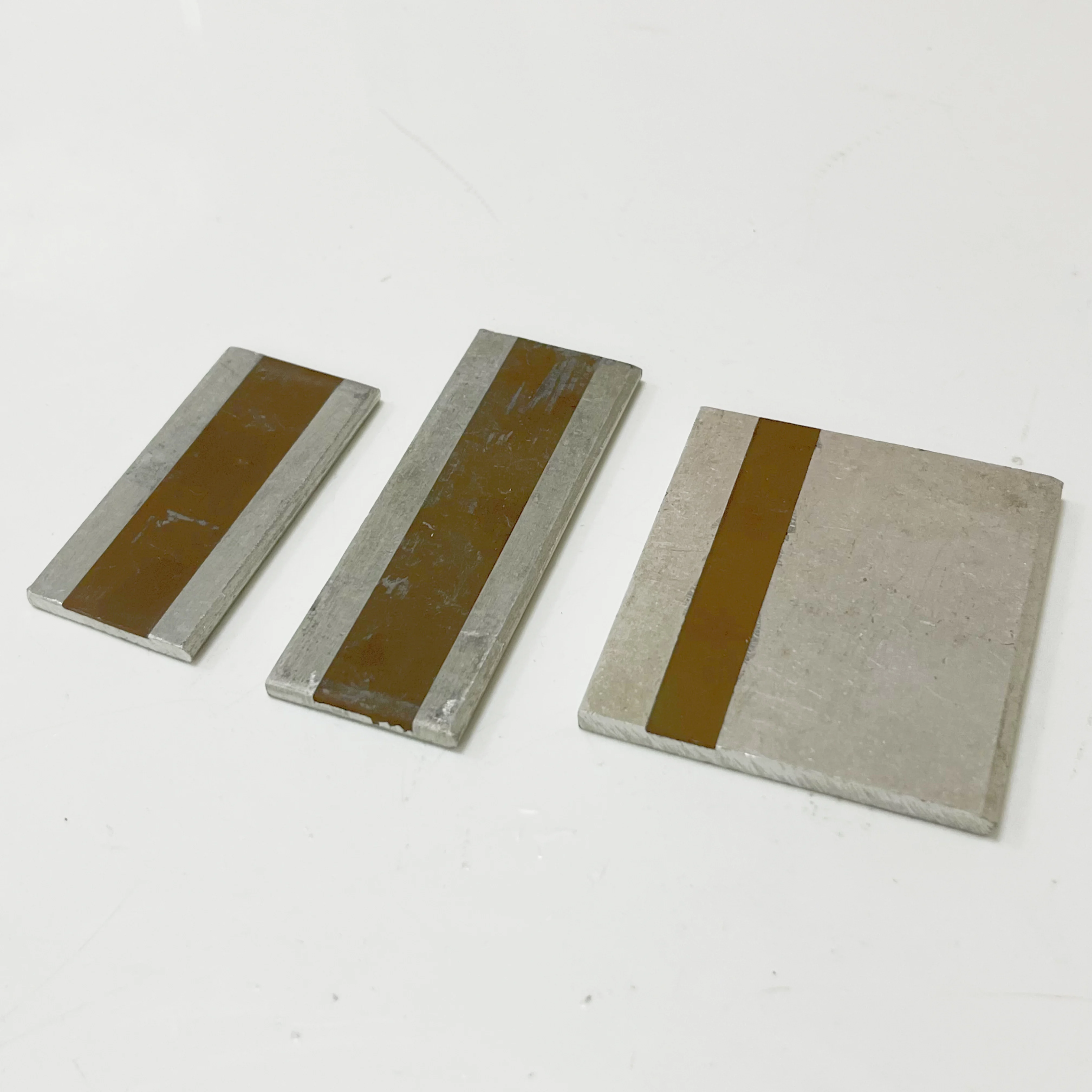

Bimetal al-cu single inlay clad sheet
AL-CU inlay clad sheets are mainly used for copper-aluminum transitional connection, avoiding the direct connection of copper and aluminum to produce electrochemical corrosion between copper and aluminum, and the resistance increases, which leads to various power accidents caused by local heating of the circuit.
1.Process:
Our advanced rolling processes assure you of optimum bond integrity,allows copper and aluminum to be permanently and firmly bonded in an oxygen free environment, ensuring 100% metallurgical bonding.Through the use of an inlay, we can incorporate expensive copper materials with less expensive aluminum materials. This composite puts the characteristics of a precious metal exactly where you need it, resulting in substantial savings.
2.Application:

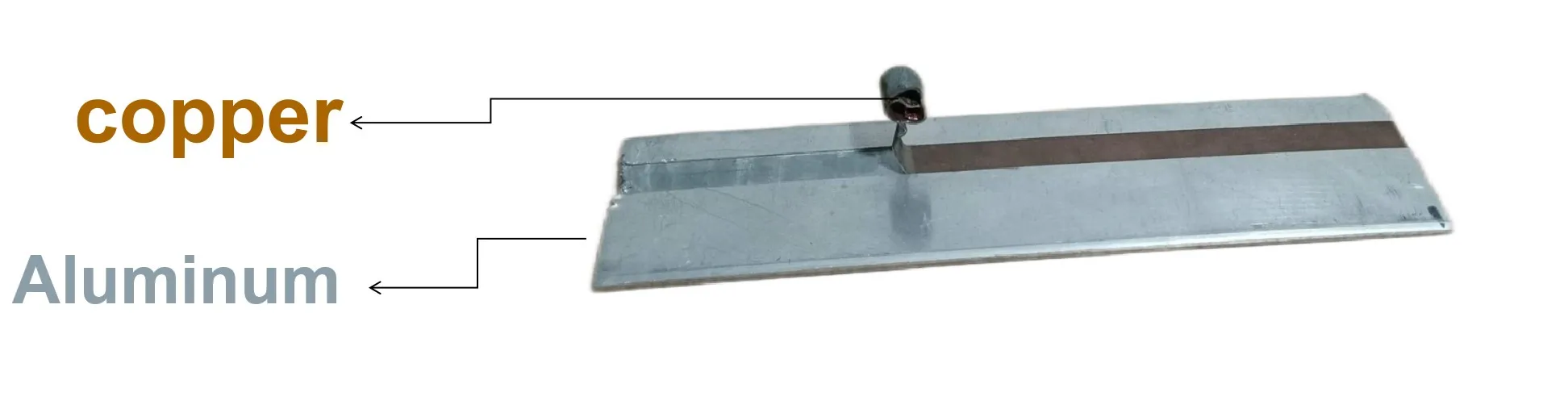

Aluminum are inlaid into a copper base or copper are inlaid into a aluminum base to create copper to aluminum joining solutions. Many electrical applications, including some li-ion batteries require joining of aluminum and copper tabs in a collector plate. Copper inlaid aluminum or aluminum inlaid copper allows for making copper to copper joints and aluminum to aluminum joints for easy weld joints.
In addition to electrical applications,It is also widely used in electronics, communications, power, heat dissipation, automotive, architectural decoration, living appliances and so on.
High voltage transformer
Distribution box
High-speed rail industry
New energy electric car
Shipping industry
Transformer
3.Other advantages:
• Minimized use of precious metals
• Solid pahse bond between substrate and inlay
• Combination of properties not available in a single alloy
• Longer life than electroplated components
• Combinations not available by electroplating
• Solid pahse bond between substrate and inlay
• Combination of properties not available in a single alloy
• Longer life than electroplated components
• Combinations not available by electroplating
4.Configuration
There are two common configurations for inlay cladding metal, one is single inlay, and the other is single edged inlay. And we can also produce overlay cladding metals, one is single overlay（two layers） , and the other is double overlay（three layers） . In addition, we can also provide weld thru.

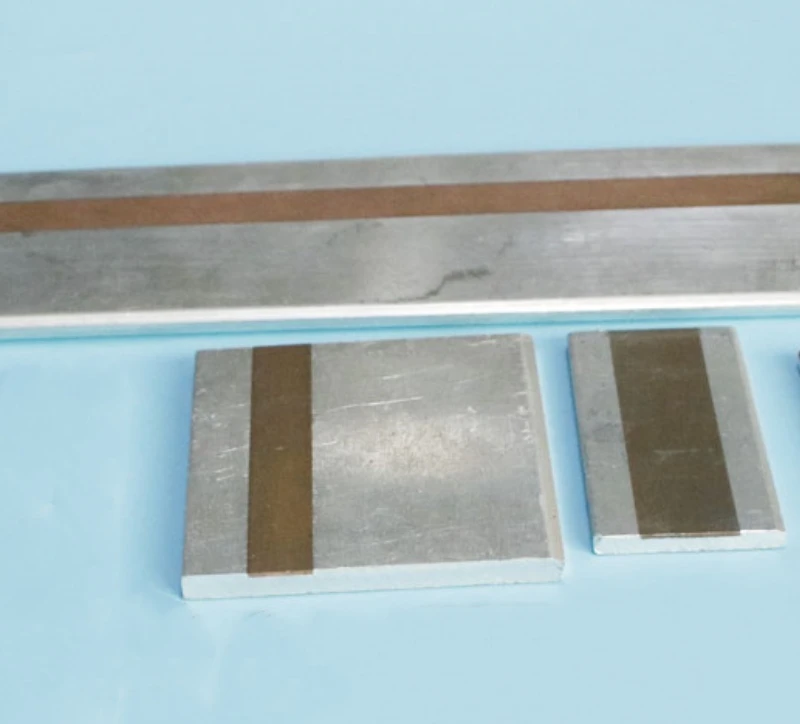

Inlay clad metal

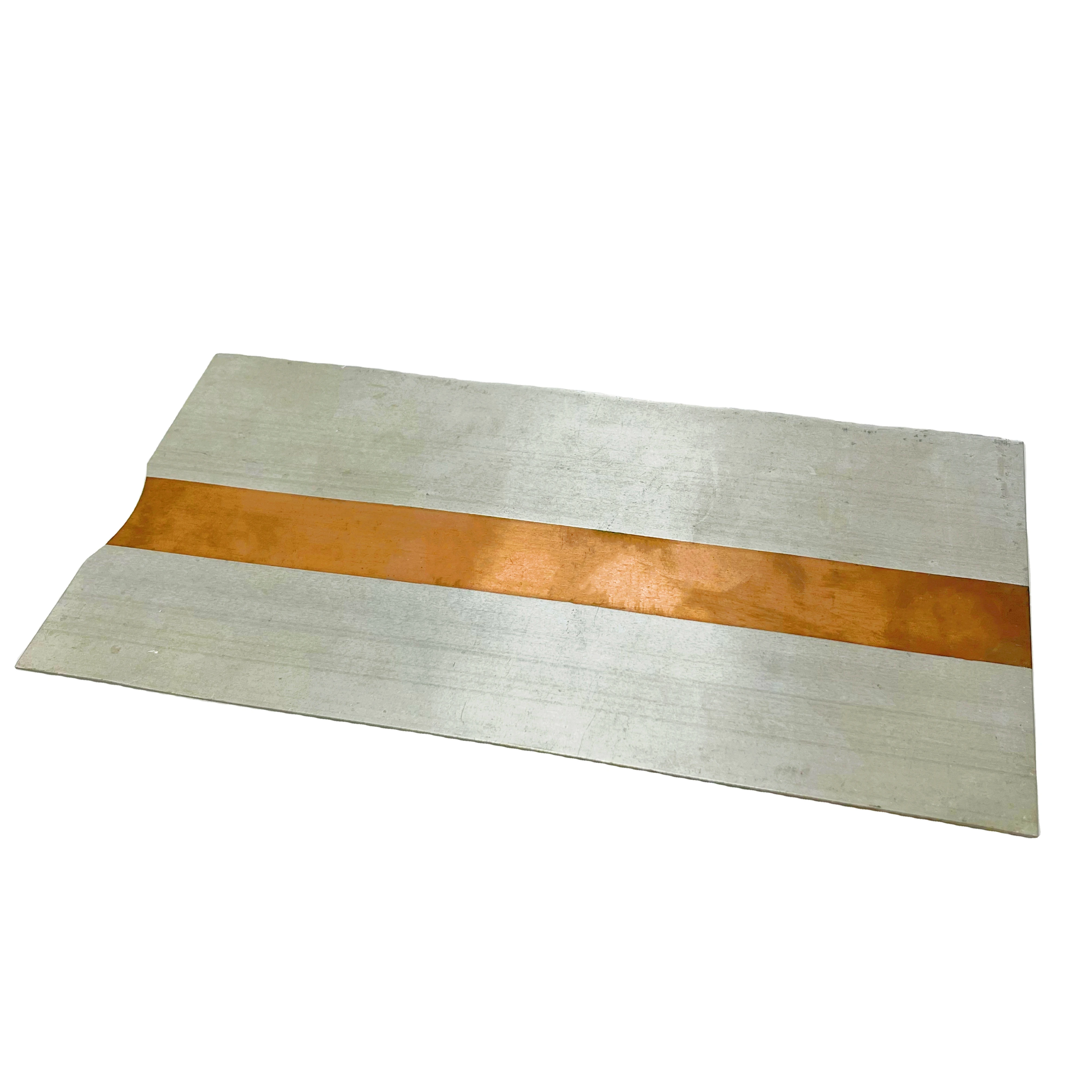

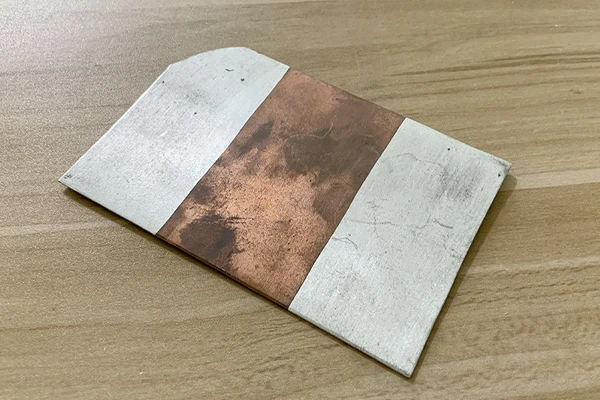

single inlay

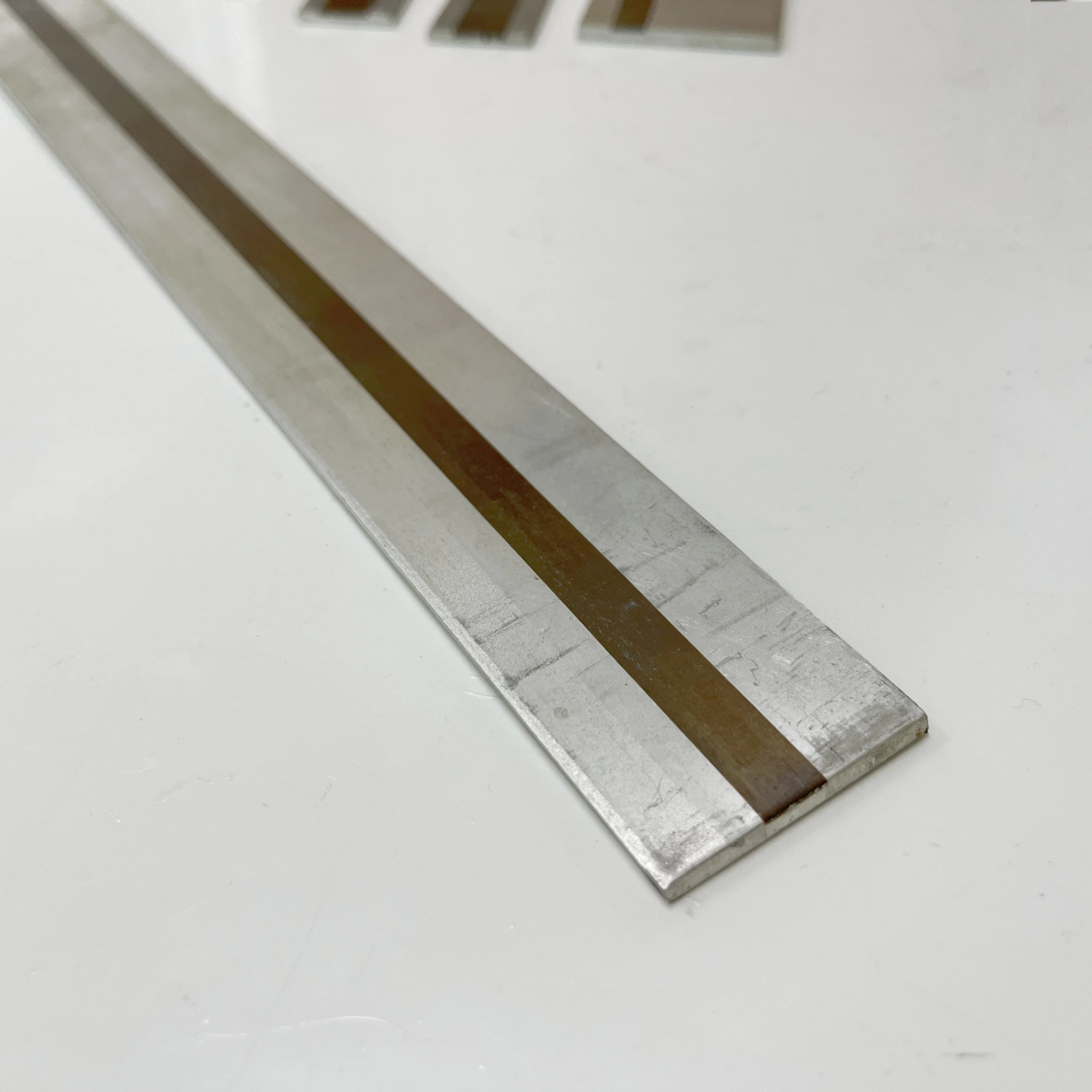

single edge inlay
Overlay clad metal
single overlay
double overlay
weld thru
5.Other product customization:
In addition to copper aluminum clad metal , there are also many products made of bimetallic materials. We accept various customizations.
customize | material | Copper:Purple Copper T2 (C1100) /Brass H62 / H65 Aluminum: 1060 / 1070/ 8010 / 1100 / 3003 /5052 Others:Steels/Nickel/Zinc...... |
shape | Sheet / Plates / Strip / terminal lug / boss / foil / Washers / PG clamp / earthing block / Customized Design | |
Thickness | 0.07mm/ 0.1mm/14.5mm/according to your needs. | |
Width | according to your needs. | |
Length | according to your needs. | |
Ratio | according to your needs. | |
Configuration | Whether it is Inlay clad, Overlay clad, or welded clad, the specific configuration can be customized |
Company Profile
Dongguan Sanxie Metal Material Technology Co., Ltd. ,founded in 2016, is a high-tech enterprise integrating R&D, production, sales and service of metal materials. we have specialized in clad metals technologies for a long time, especially copper clad aluminum materials in electric power, electronics, new energy and other fields, and deeply excavates and develops its practicality,energy saving and value innovation.The specific product types include: copper clad aluminum plate, copper clad aluminum busbars, copper clad aluminum strips and so on.
We offer unmatched service to our customers while providing high-quality products at affordable prices.We work with our customers,both large and small,to ensure that their particular needs are addressed.Our experienced know-how people will be able to provide solutions based on requirement, not only products requested. Our knowledgeable technical support team are capable to provide the customers with not only product properties, but also suggestions and information on how the materials works.
We always adhere to the business philosophy of " integrity-based, co-creation of value, bimetal composite, and win-win cooperation", and adhere to the development idea of "creating value for customers and saving energy for society". We are willing to work with friends from all walks of life to create and welcome a better tomorrow of composite materials!
We have professional team work whom can make the order with nice quality and ship it on time.I hope we can have the opportunity to cooperate for a long term. If you have any questions, please feel free to contact us.
Main Products
Copper Clad Aluminium row
copper clad aluminum earthing block
copper clad aluminum grounding boss
copper clad aluminum strips
Aluminum Inlay Copper sheet
Cu-Al Composite washer
copper nickel composite strip
copper clad aluminum sheet
copper-aluminum transitional plate
Certifications
Why Choose Us
FAQ
1.What is cladding?
A process that bonds one metal to another (or others) in order to achieve specific properties and application benefits, including economic.Typically, cladding is a continuous roll bonding process that dissimilar metals are diffused together to form an inseparable whole.Intense pressure creates a metallurgical bond at the atomic level so that the separate metals are joined through a common bonded structure with a shared electron surface.
2.Some misunderstandings about clad metal
Clad metal is not an alloy, not electroplated, not mechanically welded to another metal.The cladding process joins metals via high pressure and without brazing alloys or adhesives.It consists of layers of different metals.cladding allows many metal to be used which ordinarily could not be plated. Through careful selection of materials, a surface can be attained that is denser, harder and more wear resistant than a plated surface.
3.What is the impact that copper directly and mechanically connects aluminum?
When Aluminum terminals are directly connected to Copper Terminals,to carry current at a high voltage ,a bimetallic galvanic corrosion occurs, resulting in a high resistance at the joint. Heated joints are oxidized and loose in contact, resulting in sparks, voltage drops, power losses, and malfunctions, which damage the machinery.
4.What are the benefits of copper Clad aluminum Composite Materials？
Clad metals have a complete metallurgical bond that results in no increase of electrical or thermal resistance and permanent high strength. It not only has the advantages of good electrical conductivity, thermal conductivity, low contact resistance, easy electroplating and aesthetic appearance of the copper material, but also has the characteristics of light weight, excellent heat dissipation, and economical characteristics of aluminum materials.
A process that bonds one metal to another (or others) in order to achieve specific properties and application benefits, including economic.Typically, cladding is a continuous roll bonding process that dissimilar metals are diffused together to form an inseparable whole.Intense pressure creates a metallurgical bond at the atomic level so that the separate metals are joined through a common bonded structure with a shared electron surface.
2.Some misunderstandings about clad metal
Clad metal is not an alloy, not electroplated, not mechanically welded to another metal.The cladding process joins metals via high pressure and without brazing alloys or adhesives.It consists of layers of different metals.cladding allows many metal to be used which ordinarily could not be plated. Through careful selection of materials, a surface can be attained that is denser, harder and more wear resistant than a plated surface.
3.What is the impact that copper directly and mechanically connects aluminum?
When Aluminum terminals are directly connected to Copper Terminals,to carry current at a high voltage ,a bimetallic galvanic corrosion occurs, resulting in a high resistance at the joint. Heated joints are oxidized and loose in contact, resulting in sparks, voltage drops, power losses, and malfunctions, which damage the machinery.
4.What are the benefits of copper Clad aluminum Composite Materials？
Clad metals have a complete metallurgical bond that results in no increase of electrical or thermal resistance and permanent high strength. It not only has the advantages of good electrical conductivity, thermal conductivity, low contact resistance, easy electroplating and aesthetic appearance of the copper material, but also has the characteristics of light weight, excellent heat dissipation, and economical characteristics of aluminum materials.
5.What is the purpose of various welding methods?
Like cladding, various welding method are intended to fuse dissimilar metals together. Creating heat and transformation upon impact,they can be used to join dissimilar metals and alloys, of both precious and non-precious metals. Fusing component materials with different thicknesses, tempers, tensile strengths and conductivities is no problem for this process. Even metals with dissimilar melting points can be welded by this method, including refractory alloys.
6.What are the differences between inlays and overlays?
Overlay cladding is a process by which dissimilar layers of metals are bonded together, using extreme pressure (and sometimes heat) and no adhesives or fillers. Overlays can be single clad (two layers), double clad (three layers), or more layers.
Inlay clad products are formed when the additional strips of metal are seated in a channel within the base material,as opposed to overlay clad products, where the different materials overlap each other. In other words，a strip of one metal is bonded into a groove in another different metal or substrate.
Overlay cladding is a process by which dissimilar layers of metals are bonded together, using extreme pressure (and sometimes heat) and no adhesives or fillers. Overlays can be single clad (two layers), double clad (three layers), or more layers.
Inlay clad products are formed when the additional strips of metal are seated in a channel within the base material,as opposed to overlay clad products, where the different materials overlap each other. In other words，a strip of one metal is bonded into a groove in another different metal or substrate.
7.What are the benefits of Overlay Clad Metal Composite Materials?
Clad metals often use one material on the surface (for corrosion resistance, weldability or other benefits) and a different material in the core to create other properties. Overlay cladding creates clads with a wide range of properties not found in mono-metals.
Clad metals often use one material on the surface (for corrosion resistance, weldability or other benefits) and a different material in the core to create other properties. Overlay cladding creates clads with a wide range of properties not found in mono-metals.
8.What are the benefits of Inlay Clad Metal Composite Materials?
Through the inlay, we can put the characteristics of a precious metal exactly where you need it, yet allows dissimilar characteristics to be designed into a product.The process allows the use of virtually any wrought alloy, ensuring a highly consistent composition, and allowing many alloys to be used which ordinarily could not be plated.
Through the inlay, we can put the characteristics of a precious metal exactly where you need it, yet allows dissimilar characteristics to be designed into a product.The process allows the use of virtually any wrought alloy, ensuring a highly consistent composition, and allowing many alloys to be used which ordinarily could not be plated.
