Счетчик шагового двигателя с креплением на печатной плате 5 + 1 для

   Jiaxing Haihan Electronic Co., Ltd was established in 2011, We are a professional in designing and manufacturing parts for electricity meter, such as current transformer, stepper motor counter, manganin shunt, magnetic latching relay, single-phase or three-phase cases, DIN-Rail KWH energy meter.

Product Information	Drawing	Photo
Product name: Mechanical counter
Model:H-MC03D
HS Code: 9029109000
Country of original:China
Net Weight ≈74G
Technical specification
Rate voltage		3.5~5.5V
Coil resistance		450±50Ω
Ratio		200:1
Driving pulse width		80~320ms
Motor driving torque		30Nm
Number of digits		5+1(6 complete digit+decimal digit)
Color of digits		White on black ground&decimal digit white on black ground

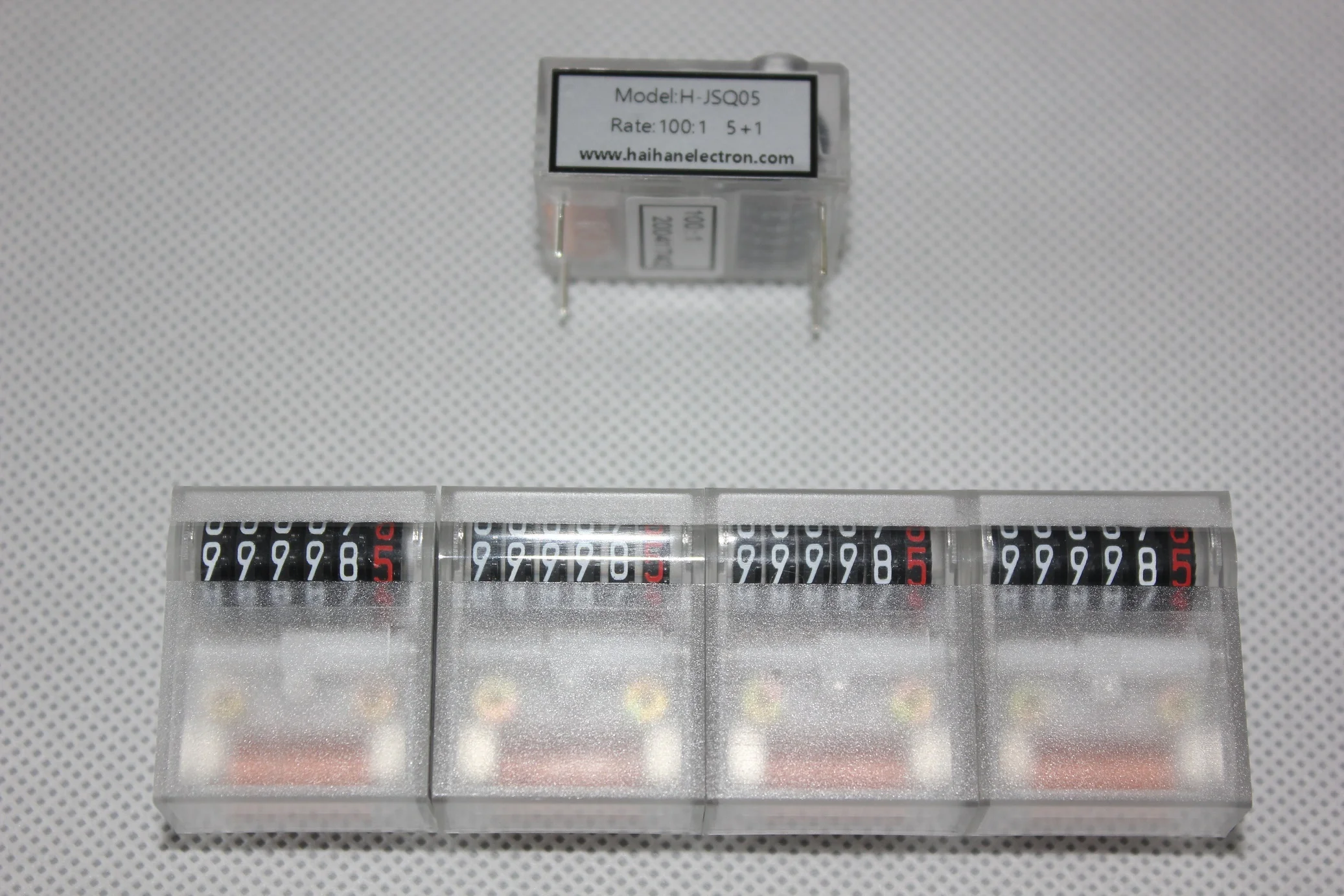

Setting of digits		setting to be at 999998
Material of wheels		Delrin of super quality thermoplastic
Movement of digits		Uni-directional movement only&No back
Wire length		100MM or customization
Temperature range		-40~75℃
Magnetic shielding		The stepper motor box should be shielded using MS to prevent tempering with influence of external AC/DC magnetic fields of 0.2Tesla

Proudction

Application

1,About current transformer

   Current transformer provide a simple, inexpensive and yet accurate means of
sensing current flow in power conductors,CT's are designed to handle motor inrush currents,so no extra precaution is needed to monitor motoros, We are available in 6 basic configurations:

1.1,Three phase and single phase energy meter CT's are available from measuring currents 0-120A

1.2,PCB board CT's are available from measuring currents 0-120A

1.3,ZPC CT's are available from measuring currents 0-3500A

1.4,Split core CT's are available from measuring currents 0-5000A

1.5,Clamp on CT's are available from measuring currents 0-2500A

1.6,BH-660V CT's are available from measuring currents 0-6000A

3,Flexible Rogowski Coil

     Rogowski Coil are designed for fast&easy installation on existing primary conductors. The split design permits non-contact AC current or current pulse measurement without requiring that the primary conductor be taken offline and disconnected for the current sensor installation. This method provides for the safe, easy and portable measurement of current.

2,Latching relay are available from measuring currents 0-120A

3,Manganin shunt
