Product Description
PLUG612R
The Plug-R series 640×512 Uncooled Thermal Module
• NETD<30mk, High Sensitivity
• Stable Performance
• Easy Integration & Plug-in
• Clear Image Quality & Details
• Customizable Temperature Range
• Strong Environmental Adaptability
• Stable Performance
• Easy Integration & Plug-in
• Clear Image Quality & Details
• Customizable Temperature Range
• Strong Environmental Adaptability

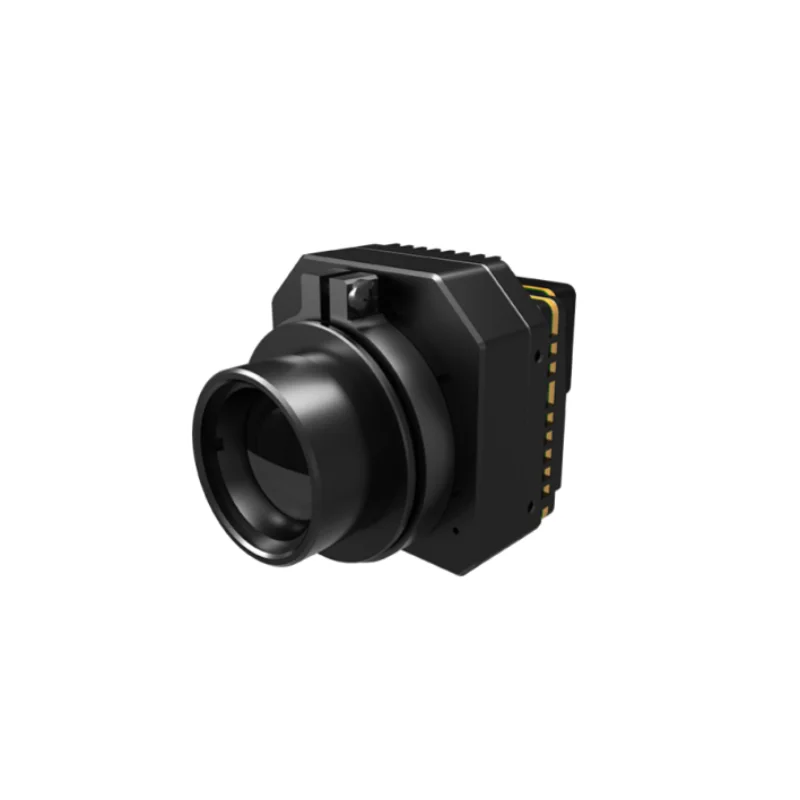

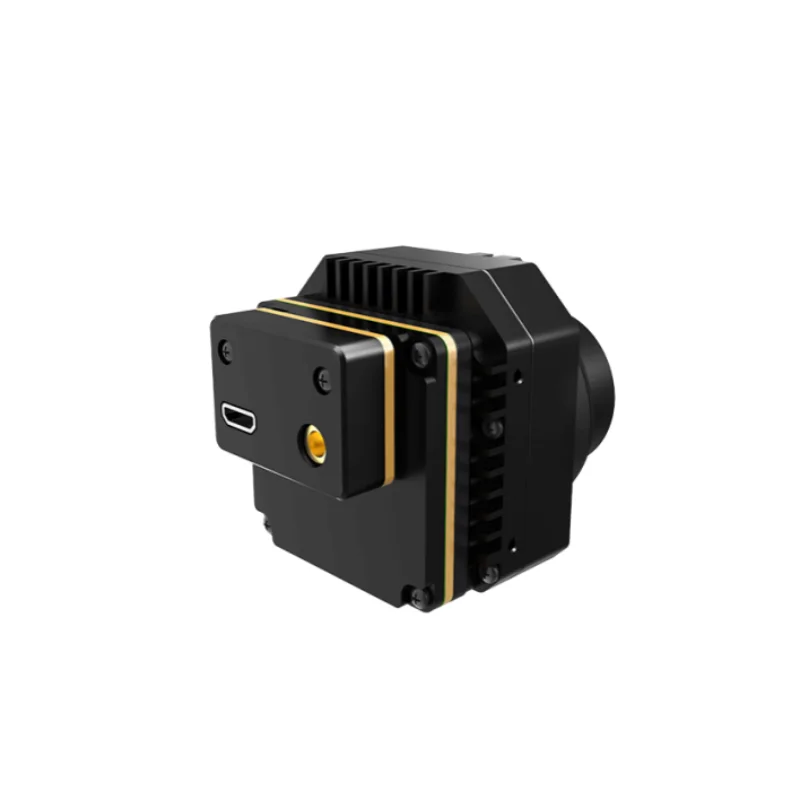

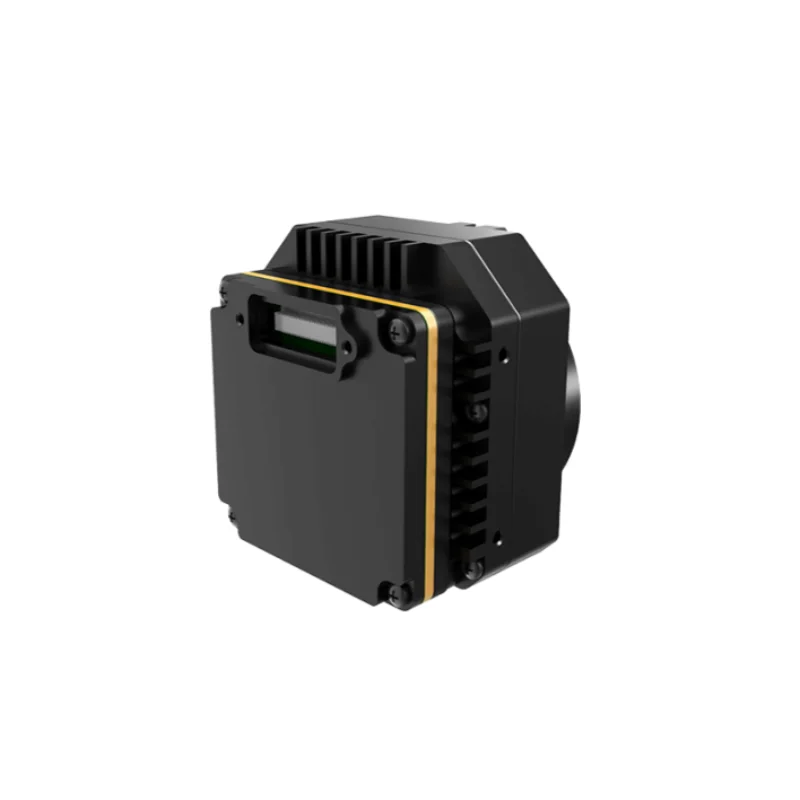

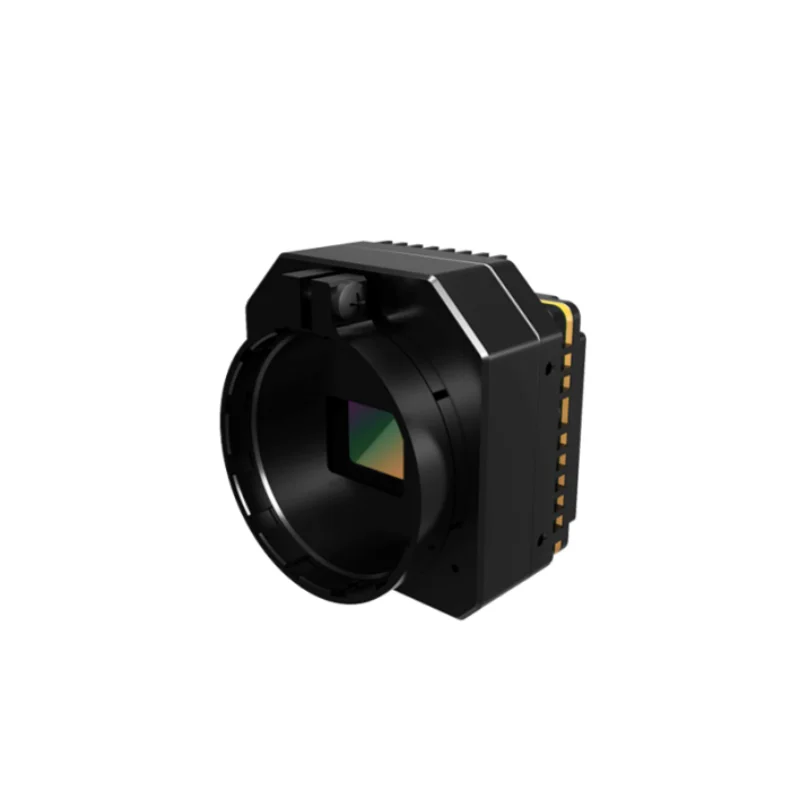

PLUG612R is one of the PLUG series uncooled infrared modules developed by Global Sensor Technology (GST). It consists of 640x512@12μm uncooled thermal infrared detector, full series of optical components, professional signal processing circuit and image processing algorithm.

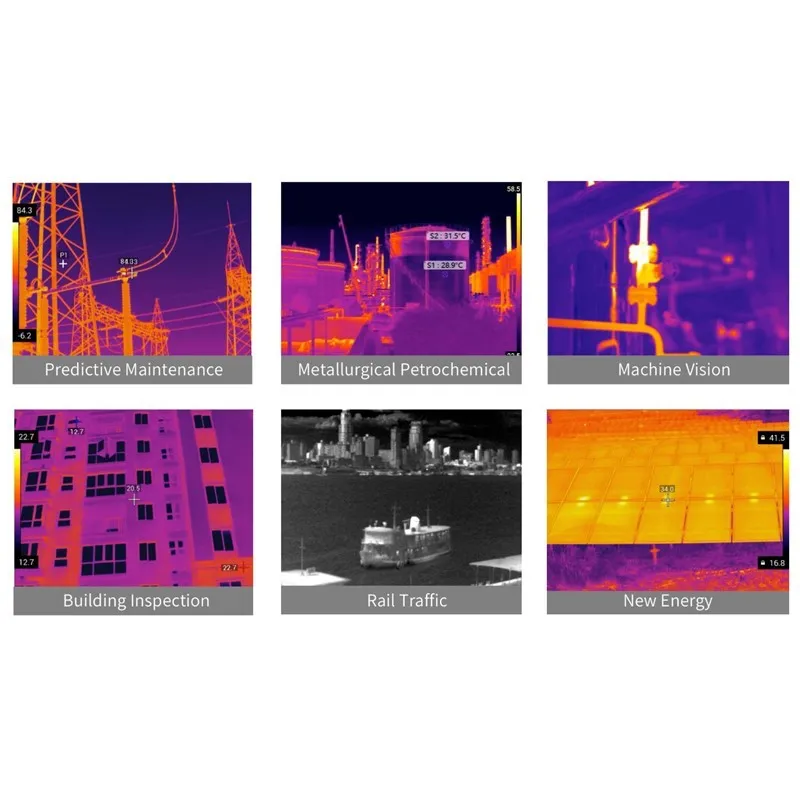

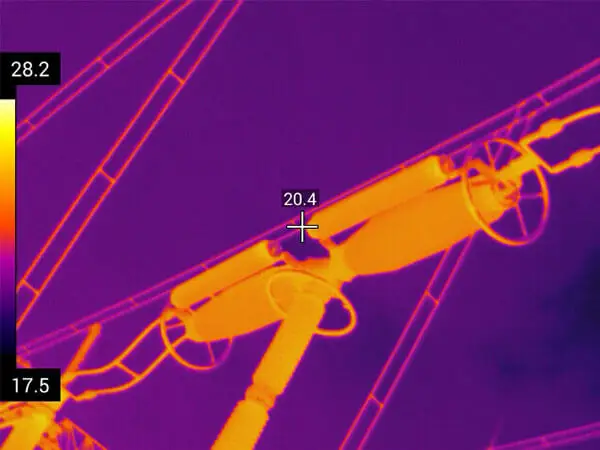

PLUG612R is a kind of uncooled infrared thermal imaging module applied in the field of industrial thermal imaging and temperature measurement. The temperature range is customizable, which can meet the specific requirements of industrial thermography and present a clear infrared thermal image.
PLUG612R is a kind of uncooled infrared thermal imaging module applied in the field of industrial thermal imaging and temperature measurement. The temperature range is customizable, which can meet the specific requirements of industrial thermography and present a clear infrared thermal image.
Specification
Model | PLUG612R | |
IR Detector Performance | ||
Resolution | 640×512 | |
Pixel Pitch | 12μm | |
Spectral Range | 8~14μm | |
Typical NETD | <40mk | |
Image Processing | ||
Frame Rate | 25Hz/30Hz | |
Start-up Time | <10s | |
Analog Video | PAL/NTSC | |
Digital Video | Y16/YUV/BT656/LVDS | |
Extension Component | USB/Camerlink | |
Dimming Mode | Linear/Histogram/Mixed | |
Digital Zoom | 1~8X Continual Zoom, Step Size 1/8 | |
Image Display | Black Hot/White Hot/Pseudo Color | |
Image Direction | Horizontally/Vertically/Diagonally Flip | |
Image Algorithm | NUC/AGC/IDE | |
Electrical Specification | ||
Standard External Interface | 50pin_HRS Interface | |
Communication Mode | RS232-TTL, 115200bps | |
Supply Voltage | 4~6V | |
Temperature Measurement | ||
Operating Temperature Range | -10℃~50℃ | |
Temperature Range | -20°C~150°C, 100°C~550°C | |
Temperature Accuracy | ±2°C or ±2% (Take the Maximum Value) | |
SDK | ARM/Windows/Linux SDK, Full Screen Thermography | |
Physical Characteristics | ||
Dimension (mm) | 44.5×44.5×36.6 | |
Weight | ≤85g | |
Environmental Adaptation | ||
Operation Temperature | -40°C ~ +70°C | |
Storage Temperature | -45°C ~ +85°C | |
Humidity | 5%~95%, Non-condensing | |
Vibration | Random Vibration 5.35grms, 3 Axis | |
Shock | Half-sine Wave, 40g/11ms, 3 Axis 6 Direction | |
Optics | ||
Optional Lens | Fixed Focus Athermal: 13mm/19mm/24mm | |
