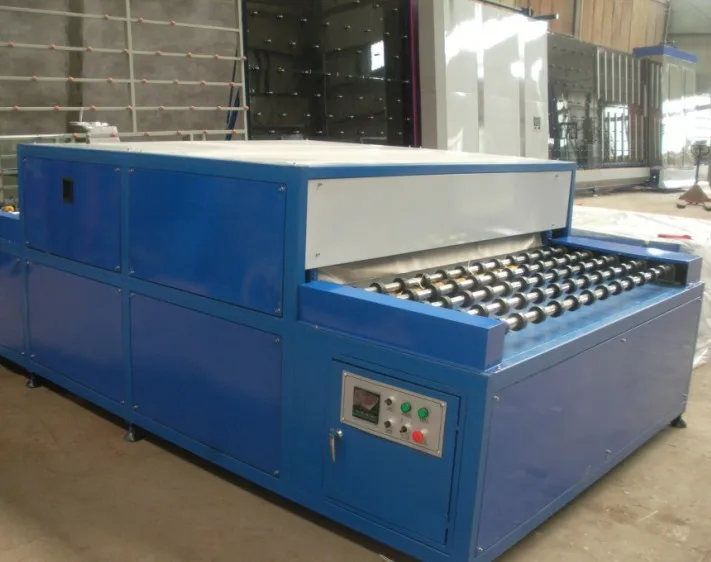

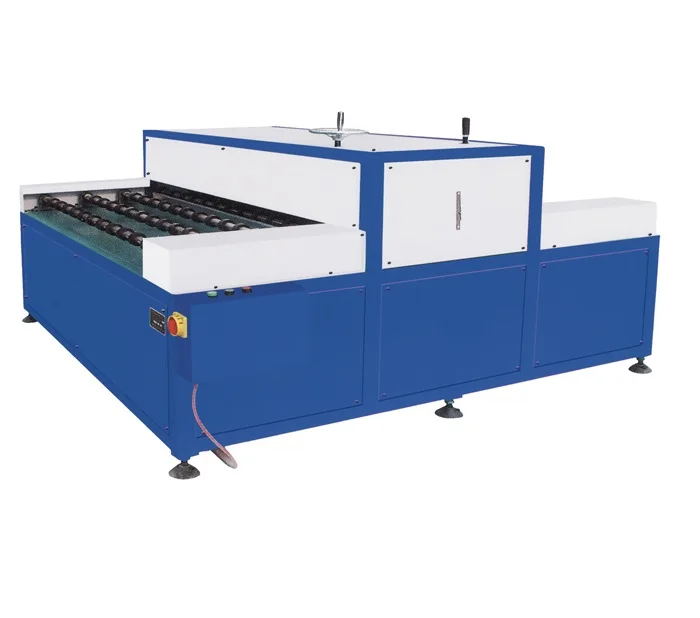

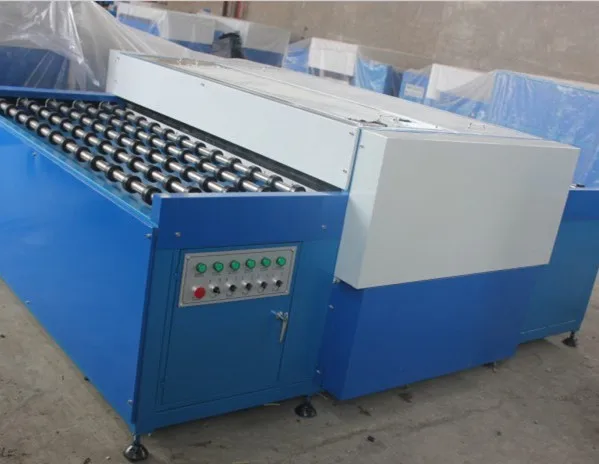

Double Glazing Horizontal Hot Roller Heat Press Machine /Warm Edge Roller Heat Machine





 Function:

1)It adopts two rubber rollers and frequency stepless speed so the transmission speed can be changed if necessary.

2)Temperature controlling device( heating pipes with 2kw power) is used to keep the best

temperature to assure the quality of the insulating glass.

3)The rollers in the hot stove are made of materials good in lubrication and heatproof.

4) Be suitable to use American-style rubber strip such as swiggle, etc.

5)The thickness of stainless steel is over 2 mm.



Technical Parameter:



Model	RYB1600A
Power voltage	380V 50Hz
Total power	20 KW
Max processing glass size	2000x1600mm
Sheet glass thickness	3-19mm
Maximum insulated glass thickness	6-30mm
Glass carry speed	1-5m/min
Overall dimmension	2800x2100x1300mm
Weight	about 950KGS



Guarantee & Aftersales service:

1)Guarantee the complete machine for one year, except the consumable parts.

2) 24hour technical support by email or calling.

3) User-friendly english manual for machine using and maintaining



5.Note:

Payment: Telex Transfer (T/T), 30% be paid after confirming the order and the rest 70% is effected while delivering the goods.

Package: Each PC in wooden cases.

Port of Loading: Qingdao, China

Delivery Time: During 15-20 days after we receive your first payment.
