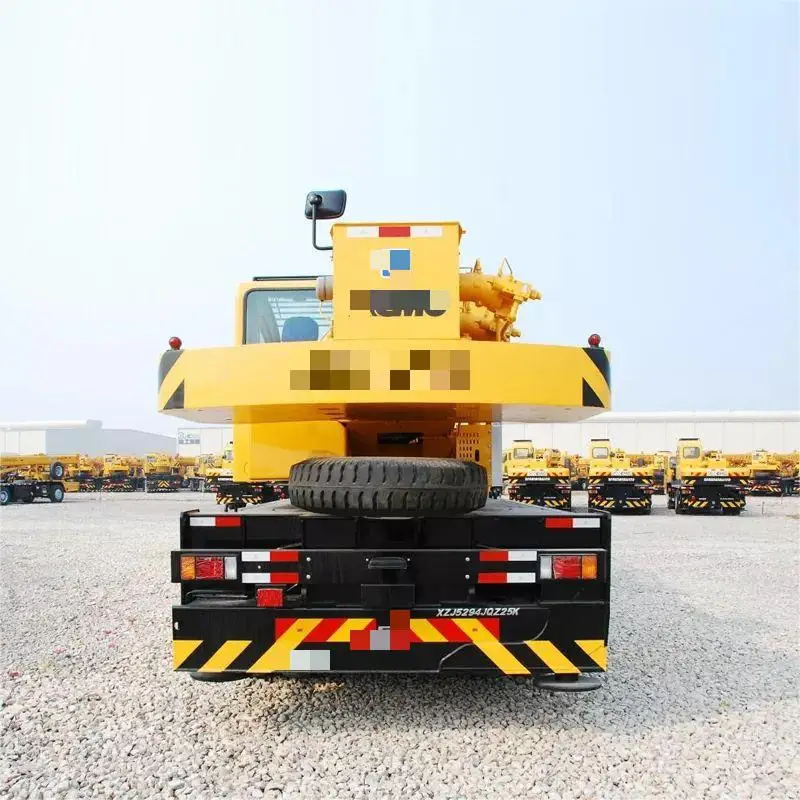

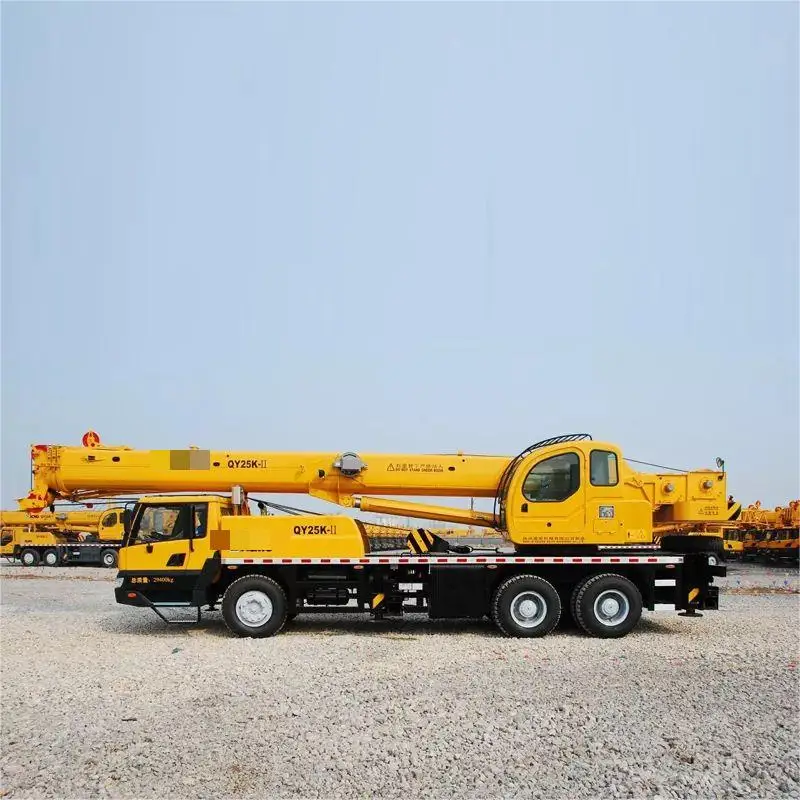

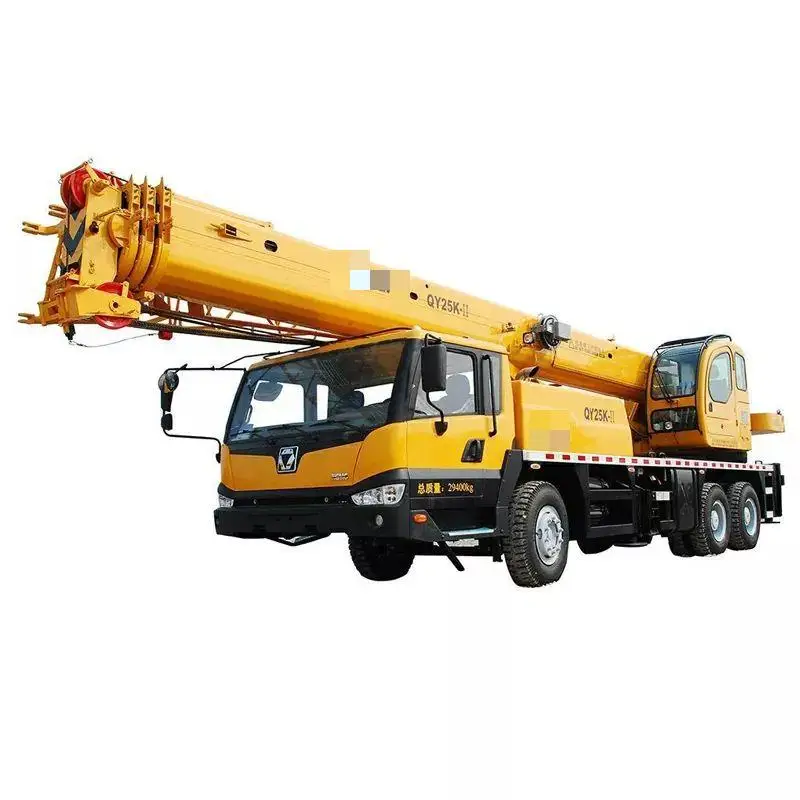

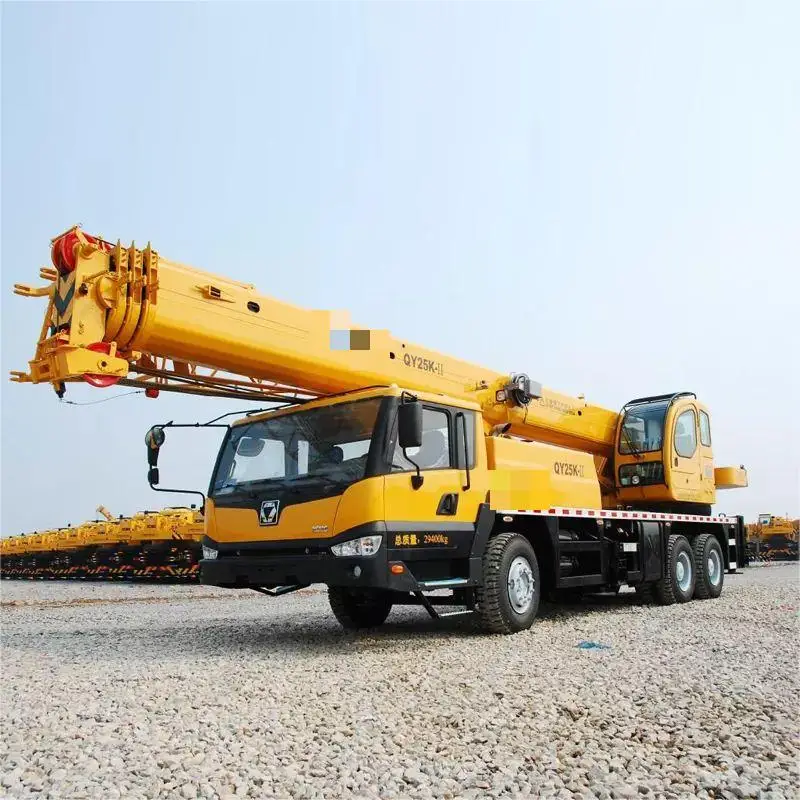

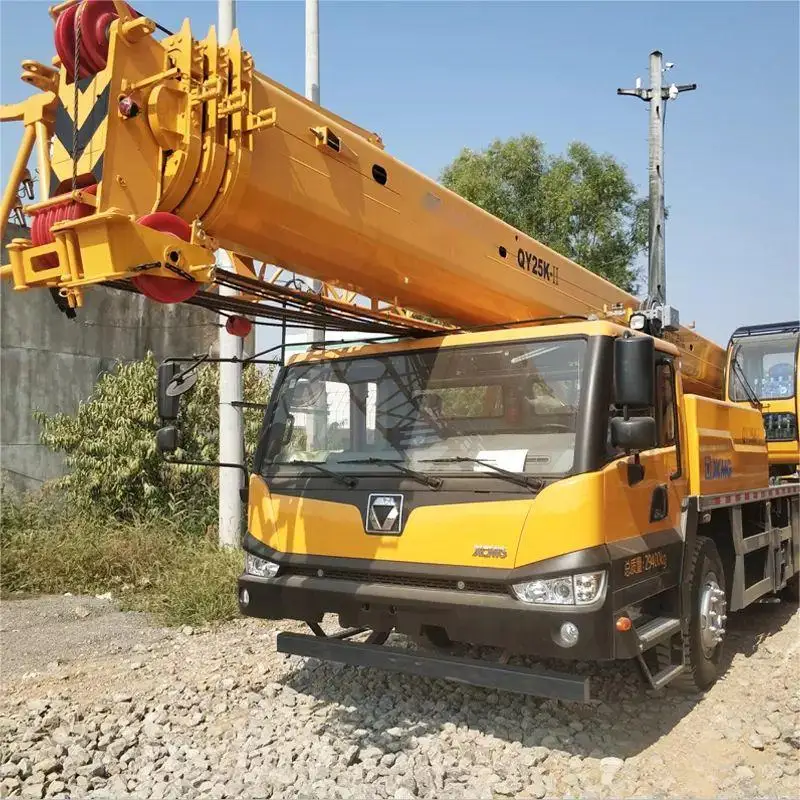

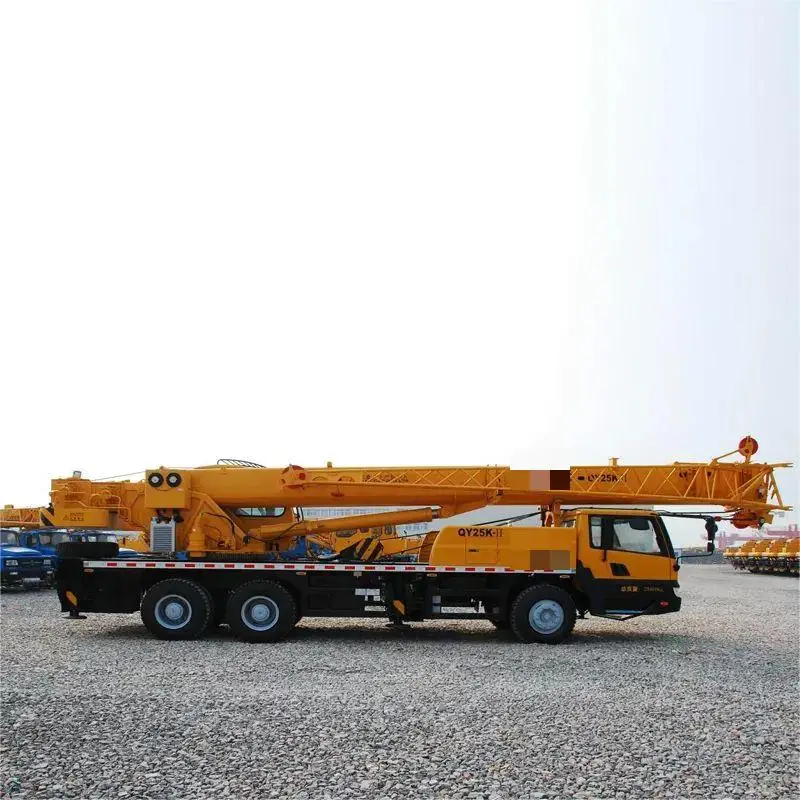

25-тонный гидравлический кран для грузовика от китайского производителя автокрана QY25K5 по
- Категория: Other Used Cranes >>>
- Поставщик: Henan,One,Five,Four,Seven,Import,And,Export,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 89845.63 $* | 94337.39 $* |
| Aug-17-2025 | 89090.85 $* | 93545.5 $* |
| Jul-17-2025 | 74745.36 $* | 78482.77 $* |
| Jun-17-2025 | 87580.43 $* | 91959.49 $* |
| May-17-2025 | 76255.27 $* | 80068.12 $* |
| Apr-17-2025 | 86070.25 $* | 90374.98 $* |
| Mar-17-2025 | 85315.29 $* | 89581.30 $* |
| Feb-17-2025 | 84560.61 $* | 88788.99 $* |
| Jan-17-2025 | 83805.99 $* | 87995.73 $* |
Характеристики
Product Description
Specification
Description | Unit | Parameter value | ||
Overall length | mm | 12650 | ||
Overall width | mm | 2500 | ||
Overall Height | mm | 3380 | ||
Wheel Base | mm | 4425+1350 | ||
Track | mm | 2074/1834/1834 | ||
Total vehicle mass in travel configuration | kg | 29400 | ||
Axle load | Front axle | kg | 6600 | |
Rear axle | 22800 | |||
Engine Model | SC8DK280Q3 | |||
Engine rated power | kw/(r/min) | 206/2200 | ||
Engine rated torque | N.m/(r/min) | 1112/1400 | ||
Max. travel speed | km/h | 75 | ||
Min. travel speed | km/h | 2.9 | ||
Min. turning diameter | m | 22 | ||
Min. ground clearance | mm | 260 | ||
Max. grade ability | % | 30 | ||
Approach angle | ° | 16 | ||
Departure angle | ° | 13 | ||
Braking distance (at 30 km/h, full load ) | m | ≤10 | ||
Oil consumption per 100km | L | ≤37 | ||
Exterior noise level during acceleration traveling | dB (A) | 84 | ||
Noise level at seated position | dB (A) | 90 | ||
