Кабель постоянного тока 600V 3G 4G 5G TFL 2x8 2x10 2x12 AWG экранирующий кабель

 Telecommunication Central Office Power Cable   Type 4923XX/0   3G 4G 5G Telecommunication Equipment Low Smoke Halogen Free DC Power Cable

Note: 1. the insulation colors are black, grey or grey, blue normally.

 2. The sheath color can be grey for indoor use and black for outdoor use.

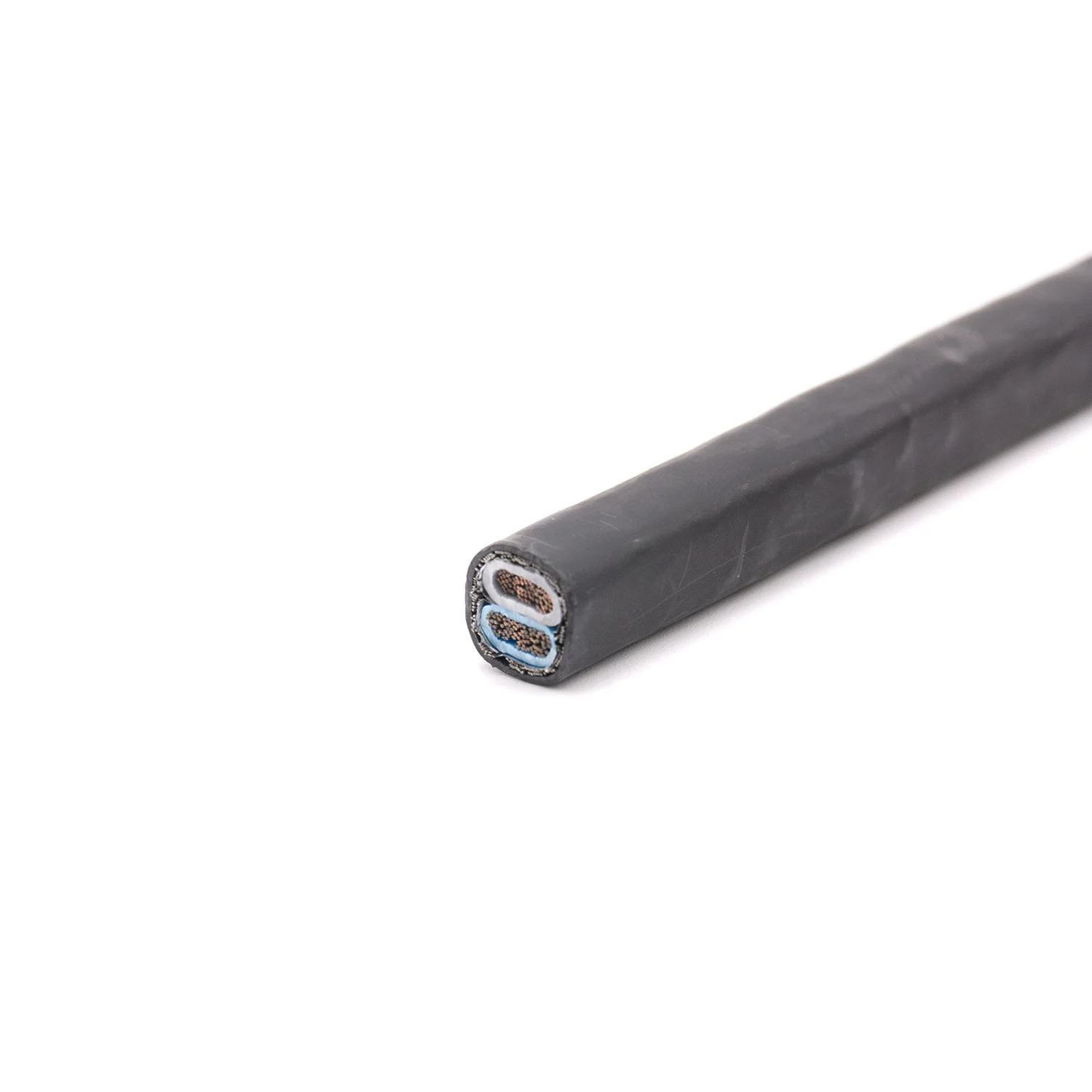

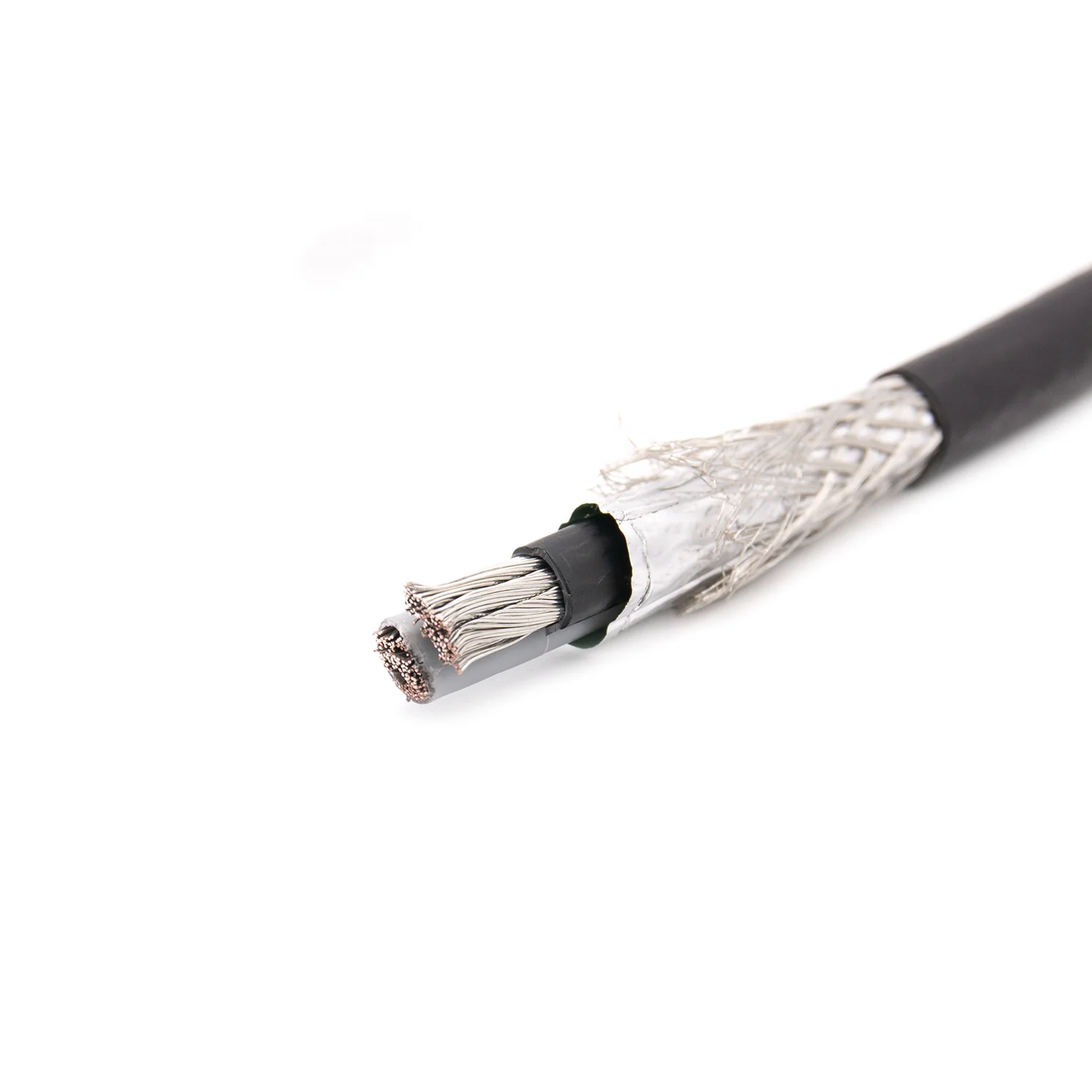

 Structure:

Conductor :   Stranded, tinned, annealed copper, IEC 60228 class   Three/TWO parallel cores to form a square conductor.
Insulation:  Flame retardant polyethylene, black and grey.

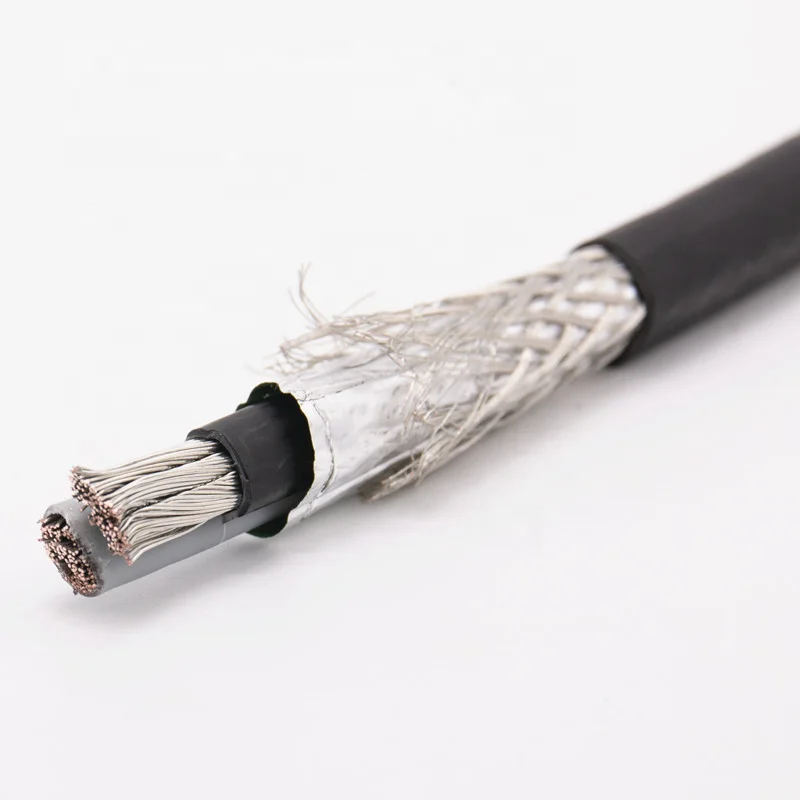

Shield: AL/PET band together with braid of annealed and tinned copper wires.
Sheath:  Flame retardant polyethylene, grey or black

Application

The cables are used for power supply of telecom equipment, where there are requirements for flame retardant, low smoke and halogen free performance. Grey outer-sheath(without “/0” in the code) for indoor use. Black outer-sheath (with “/0” in the code) is sunlight resistant, UV stabilized, for outdoor use.

Operating temperature

Max. 90 ℃,dry

Voltage

600V

Fire resistance

IEC 60332-3 cat C

UL 1685, Vertical tray

Standard:

UL2731, Telecommunication Central Office Power, Battery, and Distribution Cables

UL listed No: E471801

IEC60228, Conductors of insulated cables

Marking:

Hebei Huatong Wires & Cables Group Co., LTD E471801 TFL4923XX/0  2X**mm2 (2X**AWG)  90C DRY 600V CT Use (UL)  TCOPC Sunlight Resistant(optional) ****m or according to client’s requirement.

Package:

By drums. 500m/drum normally or according to client’s requirement.

Technical data

TFL281322, TFL281324,  TFL281325,  TFL281326

TFL492322, TFL492324,  TFL492324/0,  TFL492325/0,  TFL492326/0

2x2.5mm2 2x4mm2 2x6mm2 2x10mm2 2x16mm2

2x14AWG 2X12AWG 2X10AWG 2X8AWG 2X6AWG

1. 22 years production experience and 13 years export experience. with good quality and competitive price.
2 Annual Export amount more than 400million USD. Yearly manufacturing capacity 3 Billion RMB.
3 .Main products: Rubber Cables(upto 35kV),Mining Cable,1-35kV PVC &XLPE(LV&MV)Power Cables , Elevator Cable,Reeling/Trailing Cables,ESP cable, Solar PV Cables,Bare Conductor (AAC,ACSR,AAAC), ABC cables,Electric Wires, Control Cables, Welding Cable,Screened Cables and so on.
4.Products certification:UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL,DNV;
5. OEM/ODM service available, help you on designing.
6. Cable solutions to your particular requirements
7. Strict quality control system.
8. Strong technical support (technical data, drawing, etc.)
10. Free sample is available with economic express fee.

Please contact us directly

HeBei huatong wires&cables Group Co.,ltd.It was established in 1993.

Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billionYuan.Now there are more than 800 employers in our company, among which more than 150 are technicians. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects.

We are top cable manufacture of rubber serious cables . Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC power cables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We are OEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications. Products are exported to USA, Australia, Singapore, Europe, South America, Middle East, Asia, Africa. CNAS accredited national level laboratory.

We are one of China top rank cable&wire manufacturer.Our products meet standards of  GB, IEC,DIN, ASTM, JIS, NF C, AS/NZS  GOST, UL, CUL,C S A ,BS, TUV.... and so on.  At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, TUV,VDE,CPR, C S A,CUL,UL,CE,KEMA, TUV, DNV,Bureau Veritas, Lloyd,KR ,GL,NK ..certificates.

We promise 100% quantified product, and we will also pay attentiont to package and delivery. Therefore, our customer can receive the perfect product. Come to start our business.

We have worked with some of the most prestigious clients across industries!

 FAQ

(3).How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.

(4).How long can I expect to get the sample?

After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express  account or prepay us if you do not have an account.

(5).What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
