Необратный обратный клапан для напольной ловушки AMBOHR
- Категория: Valves >>>
- Поставщик: Ambohr,Electric,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 1.56 $* | 1.80 $* |
| Jul-19-2025 | 1.37 $* | 1.92 $* |
| Jun-19-2025 | 1.82 $* | 1.7 $* |
| May-19-2025 | 1.36 $* | 1.71 $* |
| Apr-19-2025 | 1.85 $* | 1.83 $* |
| Mar-19-2025 | 1.36 $* | 1.39 $* |
| Feb-19-2025 | 1.19 $* | 1.69 $* |
| Jan-19-2025 | 1.73 $* | 1.15 $* |
Характеристики
Test Drive This Product
Still not sure? We offer free product samples for many of our products.
No strings attached. We believe in our products and we
think you will too, once you give them a try.
Get A FREE Sample >>>
Product Description

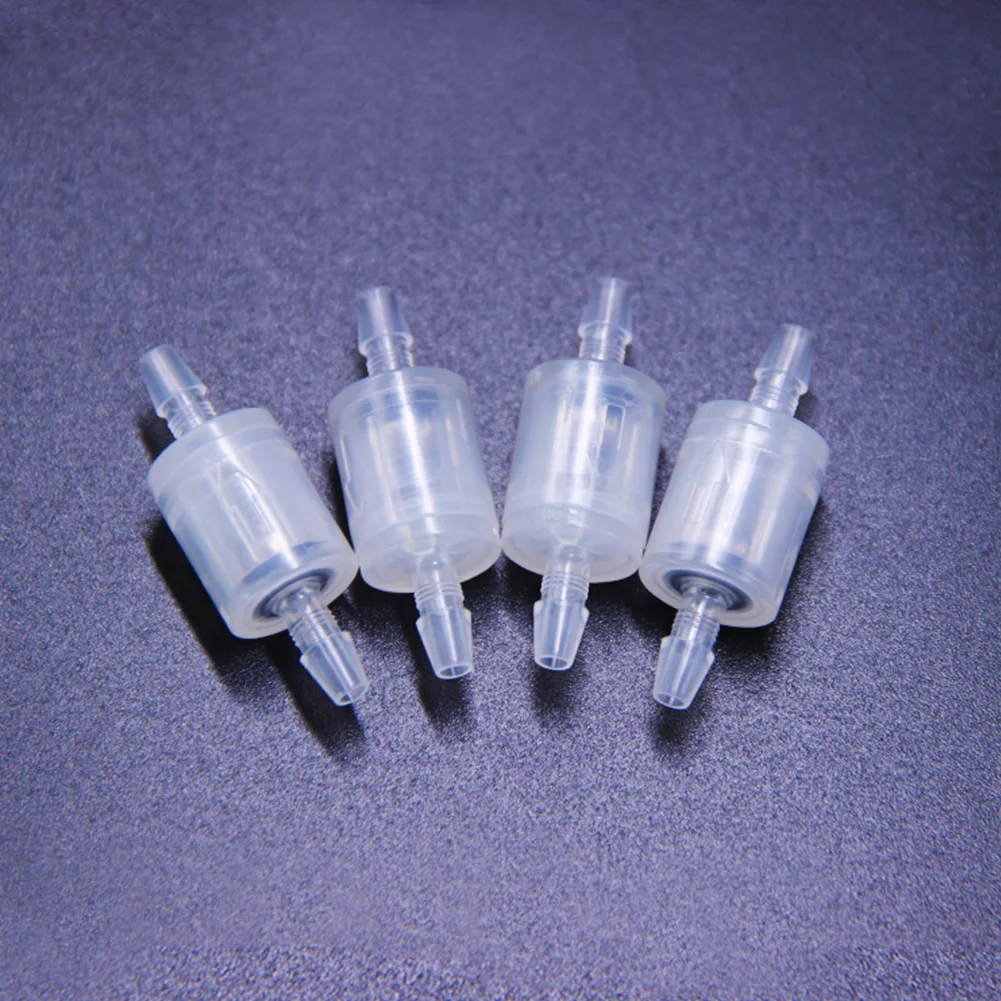

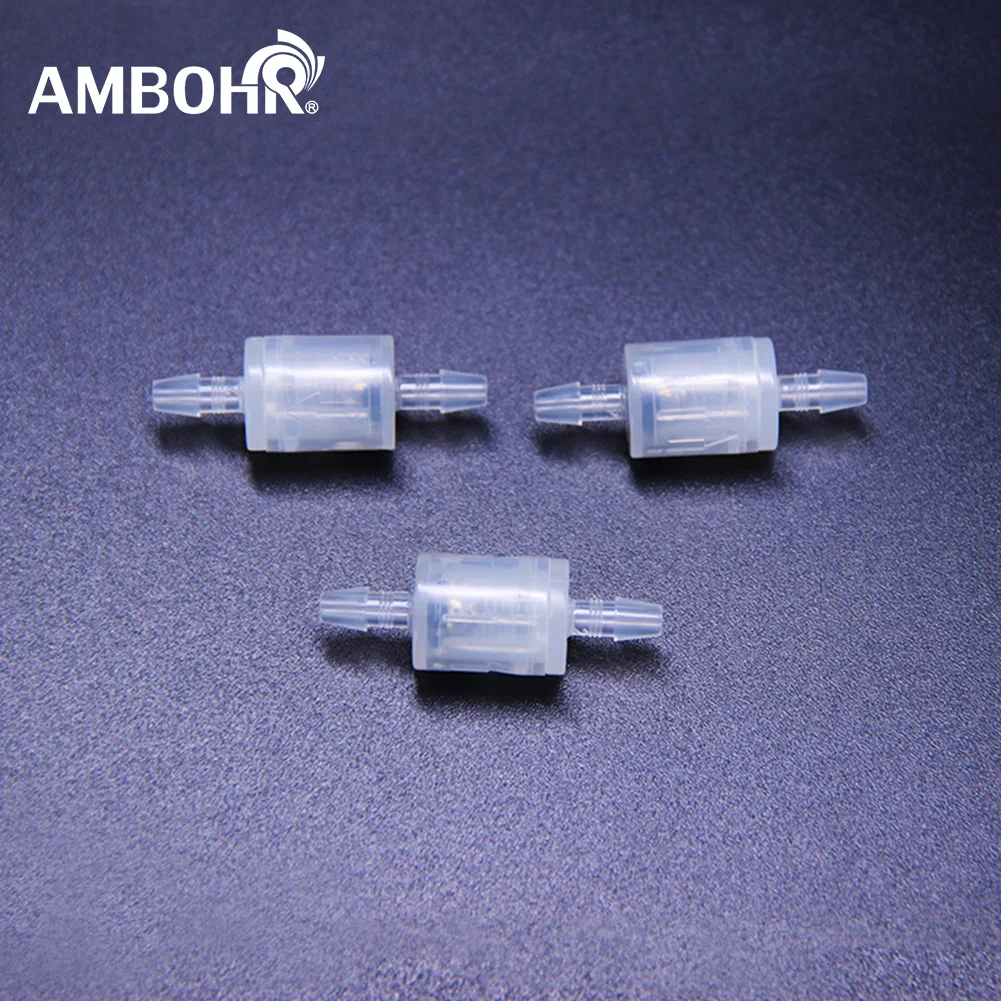

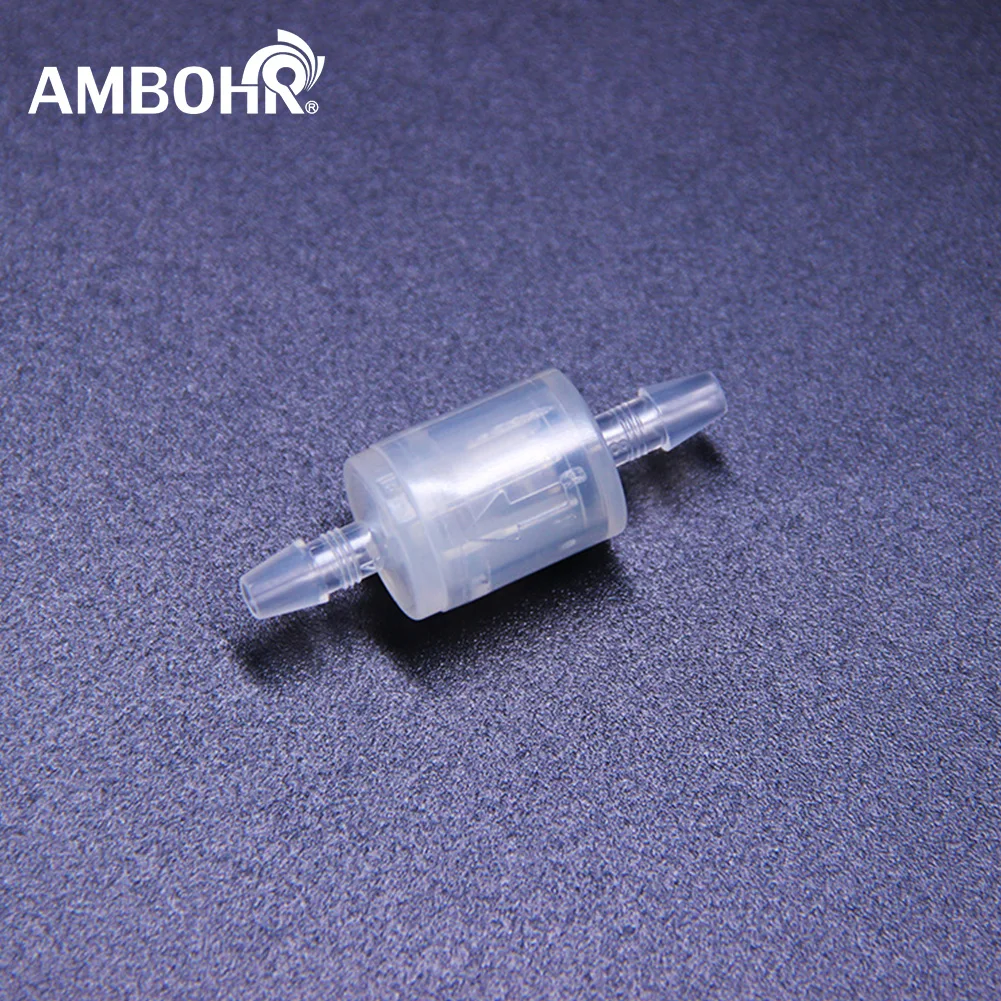

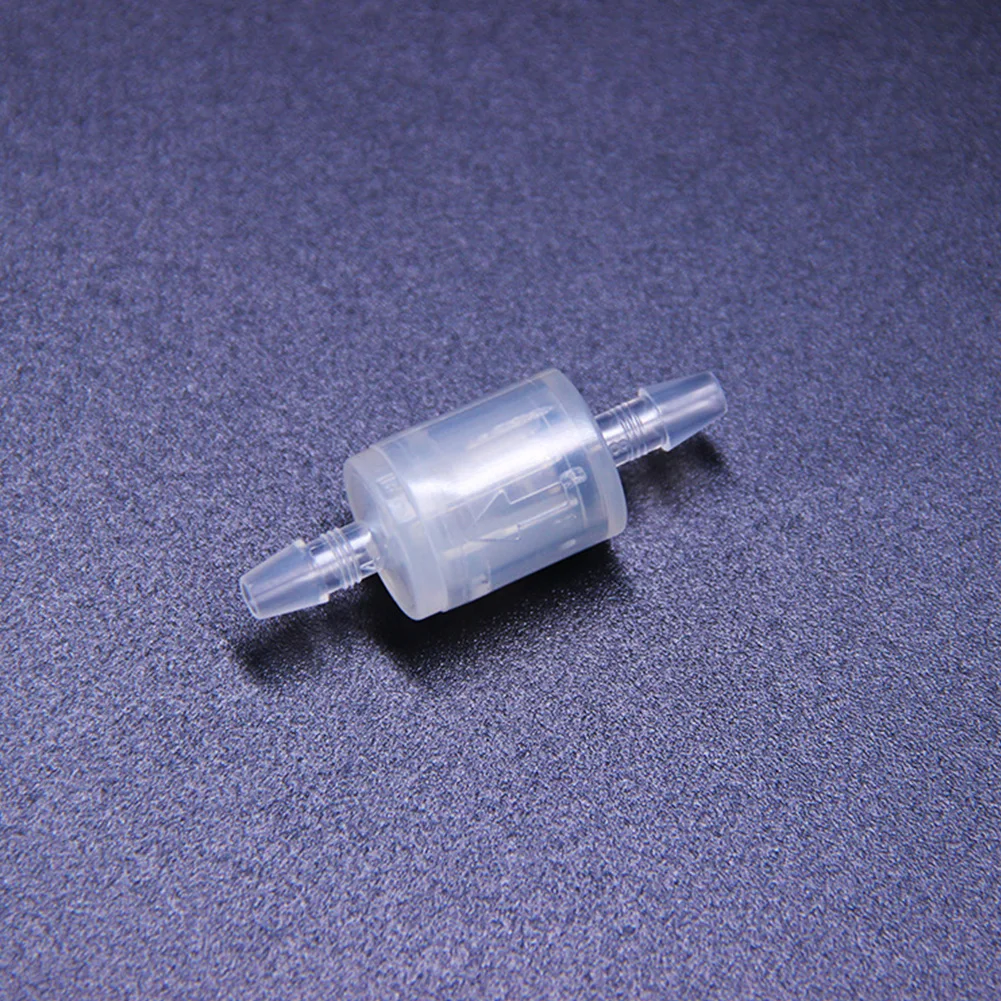

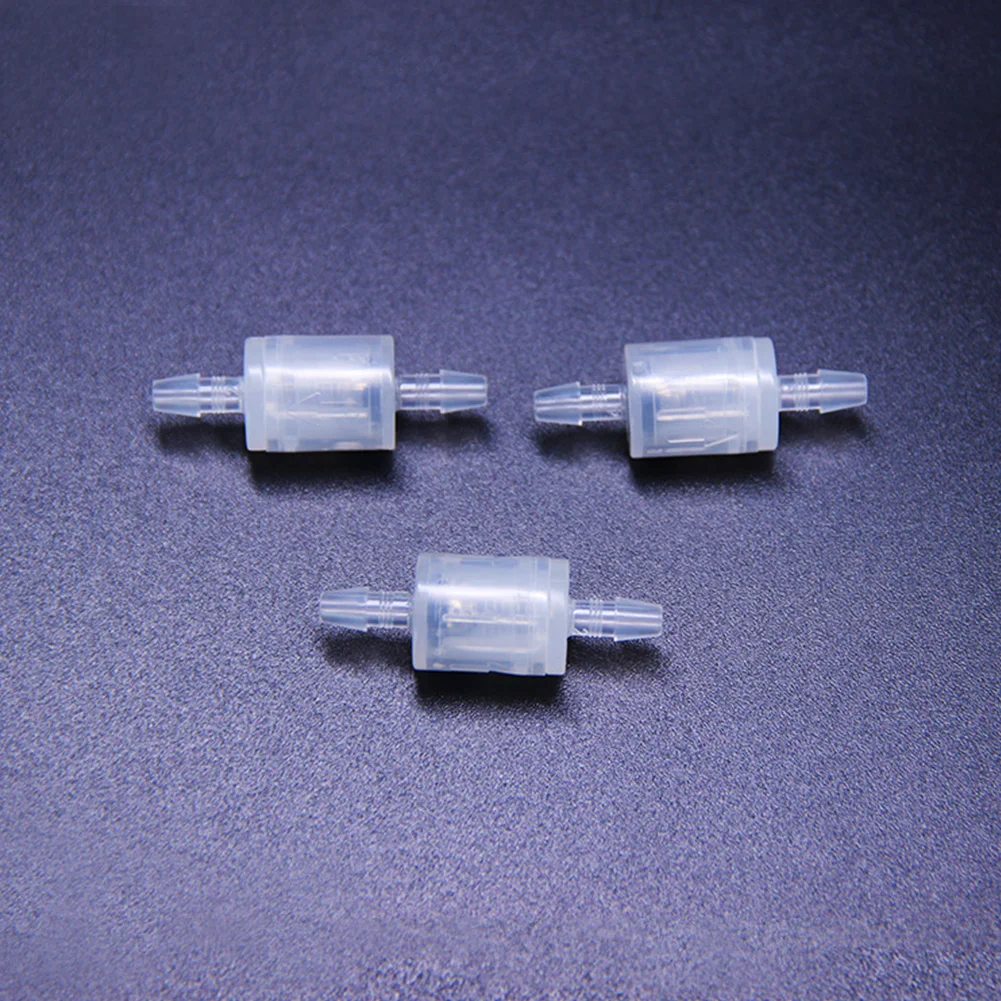

DCV0416DVN small plastic anti-ozone diaphragm check valve
Diaphragm check valves have three parts including inlet end, outlet end and diaphragm, it can be applied to industries such as automobiles, chemicals, and food...
Optional Material
• Gas fuel tank explosion-proof Applying rubber umbrella core.
• Post-surgical assistive device Applying spring ball-type safety relief valve
• Household steam mop Applying spring ball-type safety relief valve.
• Post-surgical assistive device Applying spring ball-type safety relief valve
• Household steam mop Applying spring ball-type safety relief valve.
• Medical scaling machine Applying spring lever-type safety relief valve.
• Wild camping air cushion Applying spring lever-type safety relief valve
Part number | Optional Material | ||||
A | PP | PVDF | |||
B | PP | PVDF | |||
C | EPDM | VMQ | FKM | ||
D | SUS316L | ||||
E | SUS304（SUS316、SUS302), | ||||
Different specifications of spring material selection | |||||
When the fluid pressure of the inlet end is less than the pressure relief value, it is in a sealing state；when products is still standing, it is in a sealing state.
When the fluid pressure of the inlet end is
greater than the pressure relief value, the steel ball is pushed forward, and the fluid flows out around the steel ball, thereby achieving the function of safe pressure relief.
greater than the pressure relief value, the steel ball is pushed forward, and the fluid flows out around the steel ball, thereby achieving the function of safe pressure relief.
Code | Specification | a（±0.5） | b（±0.3） | c（±0.1） | d（±0.1） | |||||
0216 | 1/8" | 36.0 | ø12.5 | ø4.8 | ø2.6 | |||||
0316 | 3/16" | 44.0 | ø12.5 | ø6.5 | ø3.2 | |||||
0416 | 1/4" | 52.0 | ø12.5 | ø8.6 | ø3.6 | |||||
Code can be customized | ||||||||||
Code | Specification | a（±0.5） | b（±0.3） | c（±0.1） | d（±0.1） | e（±0.1） | ||||||
0216 | 1/8" | 26.0 | ø12.5 | ø4.8 | ø2.6 | ø3.1 | ||||||
0316 | 3/16" | 30.0 | ø12.5 | ø6.5 | ø3.2 | ø3.1 | ||||||
0416 | 1/4" | 34.0 | ø12.5 | ø8.6 | ø3.6 | ø3.1 | ||||||
Code can be customized | ||||||||||||
Code | Specification | a（±0.5） | b（±0.3） | c（±0.1） | d（±0.1） | e（±0.1） | M |
1602 | 1/8" | 26.0 | ø12.5 | ø4.8 | ø2.6 | ø2.4 | M6 |
1603 | 3/16" | 30.0 | ø12.5 | ø6.5 | ø3.2 | ø2.4 | M6 |
1604 | 1/4" | 34.0 | ø12.5 | ø8.6 | ø3.6 | ø2.4 | M6 |
Diaphragm check valves
• Installation method: straight-in hose
• Standard valve： opening pressure 0.1-3.0Kpa(The opening force can also be customized according to customer needs, such as 5-10kpa 10-20kpa, etc.)
• Non-standard valve ： the optional scope of opening pressure 0.2-50.0Kpa，tolerance ± 20%，please confirm with our staff for the specific requirement
• Structure: diaphragm check valve

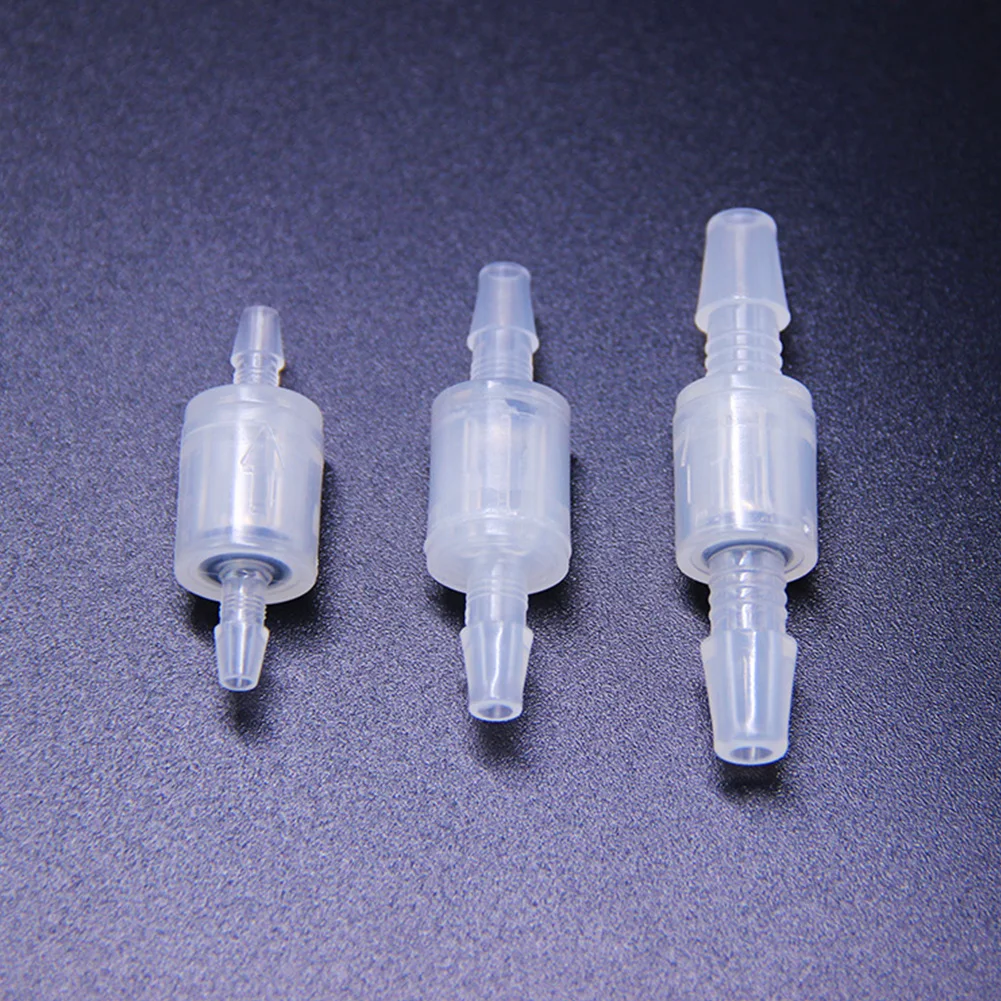

Hose connection size options
• 0216: Suitable for 3/32" inner diameter
hose interface 3/32"≈ 2.4mm
• 0316: Suitable for 3/16" inner diameter
hose interface 3/16"≈ 4.8mm
• 0416: Suitable for 1/4" inner diameter
• 0416: Suitable for 1/4" inner diameter
hose interface 1/4"≈ 6.4mm
WHY AMBOHR OZONE GENERATORS ARE SUPERIOR
• Better uniformity of dimension.
• The ultrasonic welding technique can make products solid and effectively.
• Reduce cost.
Product Application
ONE PASS & NON-RETURN
Auto Industry：Automobile fuel system, Wiper system and Carbon tank system
Chemical Industry：Pesticide mixture and irrigation
Food and Beverage：Coffee machine, Beer fresh-keeping, Liquid filling machine
Industrial Machinery：Ink supply system, Fuel supply system、Water cycle refrigerating system
Medical Auxiliary Instruments：Medical air bed、Oxygen generator, Rehabilitation system after
surgery, Ozone sterilization device
Swimming Pool and Hydrotherapy：Disinfecting system of circulating water
Water treatment：Ozone ions purify water
Chemical Industry：Pesticide mixture and irrigation
Food and Beverage：Coffee machine, Beer fresh-keeping, Liquid filling machine
Industrial Machinery：Ink supply system, Fuel supply system、Water cycle refrigerating system
Medical Auxiliary Instruments：Medical air bed、Oxygen generator, Rehabilitation system after
surgery, Ozone sterilization device
Swimming Pool and Hydrotherapy：Disinfecting system of circulating water
Water treatment：Ozone ions purify water
