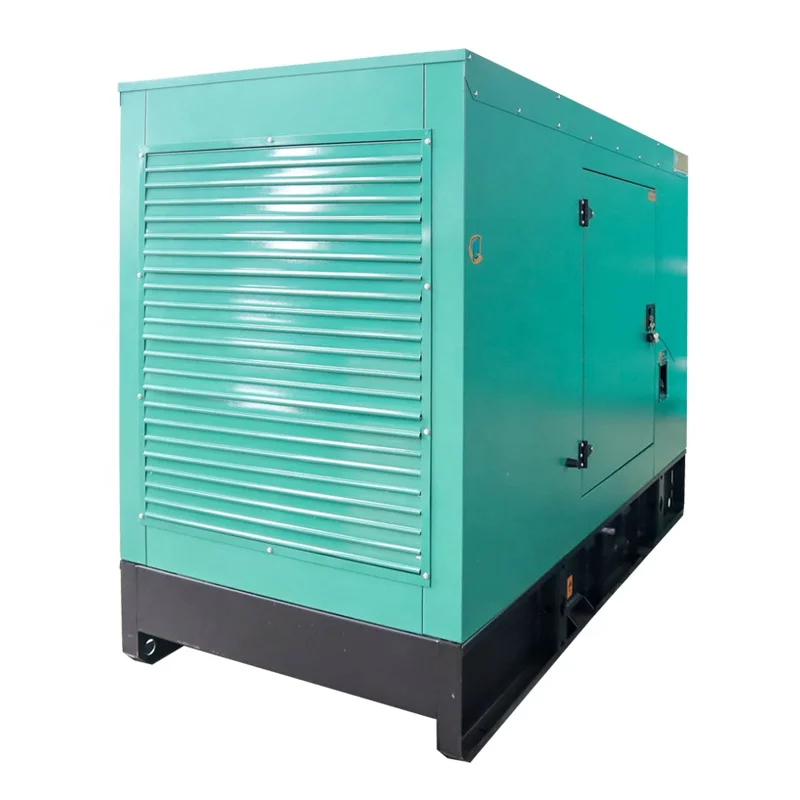

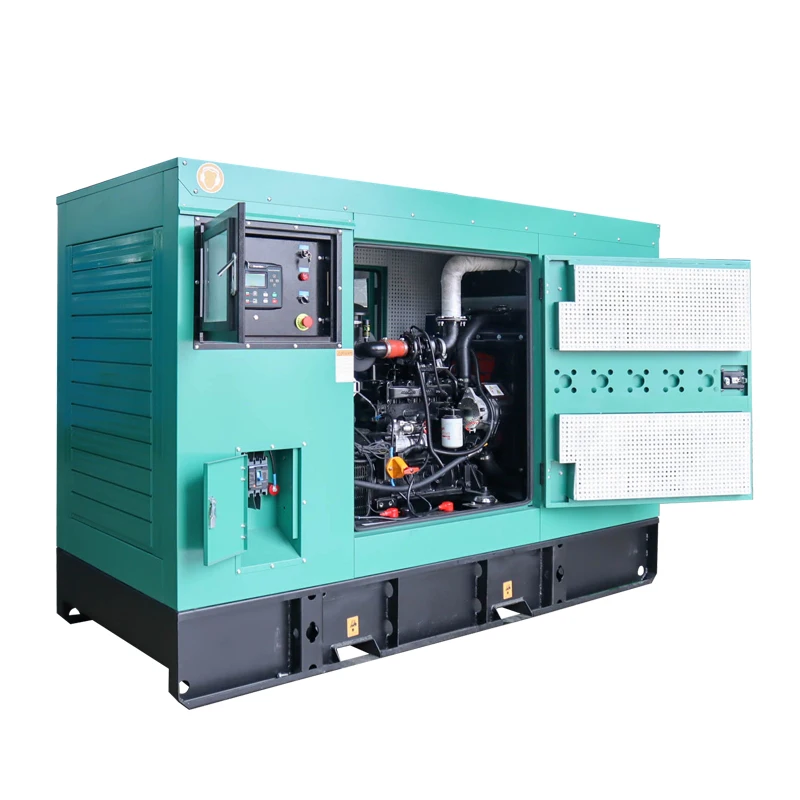

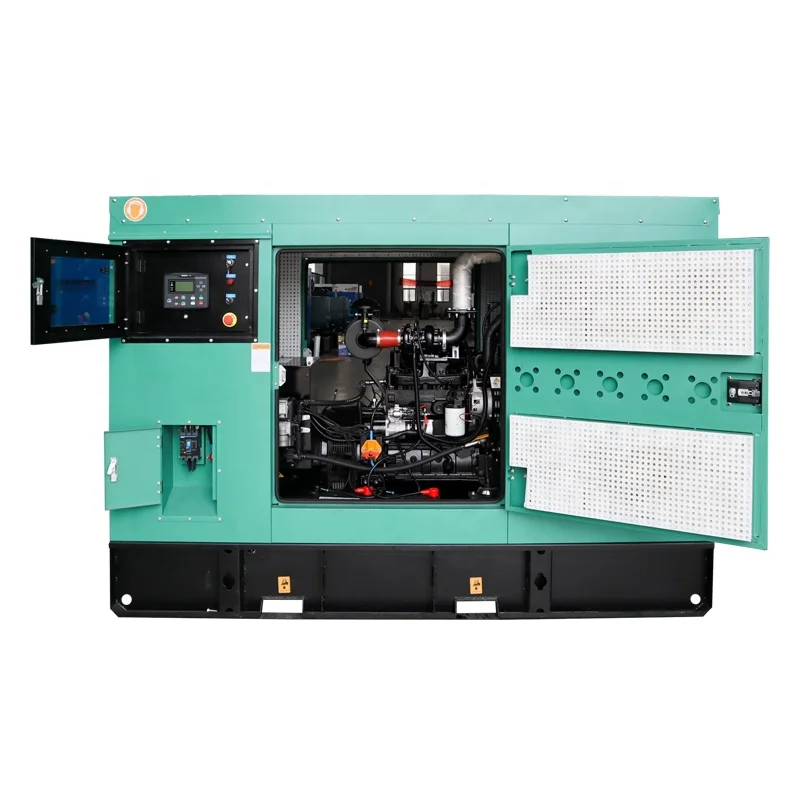

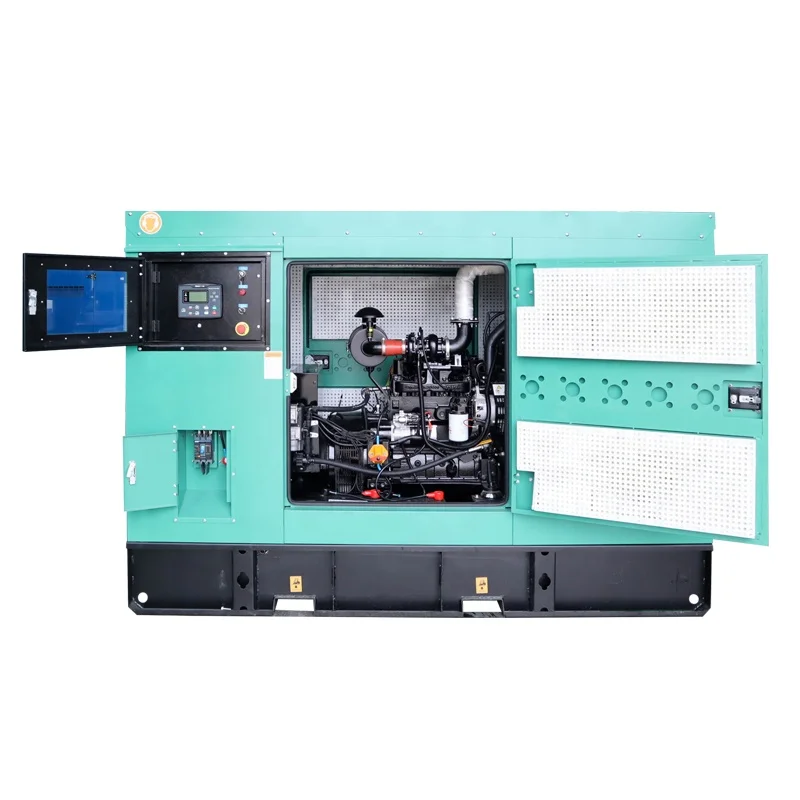

Дизельный генератор мощностью 35 кВА 40
- Категория: Electrical Equipment & Supplies >>>
- Поставщик: Taizhou,Jinte,Electromechanical,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 5950.58 $* | 6248.71 $* |
| Aug-19-2025 | 5900.37 $* | 6195.74 $* |
| Jul-19-2025 | 4950.85 $* | 5198.91 $* |
| Jun-19-2025 | 5800.0 $* | 6090.65 $* |
| May-19-2025 | 5050.94 $* | 5303.67 $* |
| Apr-19-2025 | 5700.80 $* | 5985.17 $* |
| Mar-19-2025 | 5650.84 $* | 5933.93 $* |
| Feb-19-2025 | 5600.68 $* | 5880.81 $* |
| Jan-19-2025 | 5550.38 $* | 5828.33 $* |
Характеристики
We can provide you: Diesel generators from 10kw to 3800kw, Marine diesel generators from 40kw to 2000kw, Gas generators from 20kW to 4000kw, Small petrol generators 1kW to 10kw.
Genset Model | Diesel Engine | Alternator | Controller | Prime Power |
JTC-50GF | Cummins 4BT3.9-G1 | JINTE | Deepsea | 40kw/50kva |

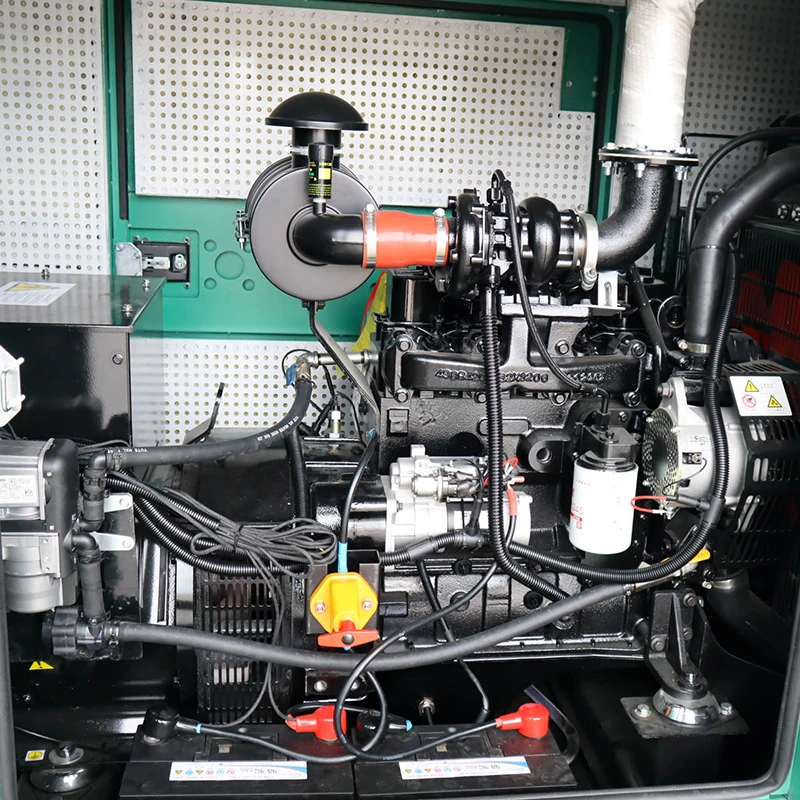

Engine Data | Engine model | 4BT3.9-G1 | |
Fuel system | Turbo, water-air cooling | ||
Cylinders | 4 in line | ||
Bore and stroke | 102*120（mm） | ||
Compression ratio | 18:1 | ||
Displacement | 3.9L | ||
Rotation speeed | 1500rpm | ||
Governor | Electronic | ||
Alternator data | Alternator model | Stamford/Marathon/Leroy Somer etc. | |
Number of phase | 3 | ||
Connecting type | 3 phase 4 wires,Y type connecting | ||
Power factor | 0.8 | ||
Protection grade | IP23 | ||
Exciter Type | Brushless exciting | ||
Controller data | Controller brands: Deepsea, Smartgen, ComAp, PCC, Datacom, etc. | ||
Multiple display languages | |||
Data logging facility, Internal PLC editor | |||
Fully configurable via PC using USB communications | |||
3-phase generator sensing and protection, overload alarm | |||
Protection: over-speed, low-speed, over-current, low-oil, low-fuel, high-temp, etc. | |||
Diesel engines
Diesel engines we can supply are
including Cummins, Perkins, Volvo,
MTU, Mitsubishi, Doosan, Baudouin,
Deutz and China Yuchai,
Weichai, SDEC, Yangdong, etc.
Weichai, SDEC, Yangdong, etc.
Alternators
Alternators we can supply are including Stamford, Marathon, Leroy Somer, ABB, Mecc Alte, Engga, Jinte, etc. We also can provide OEM and
ODM for alternators.
Controllers
Controllers we can supply are includin
Deepsea, PCC, ComAp, Smartgen,
Datakom, etc. Automatical or manual
control, ATS, AMF,Synchronizing,
Remote monitor system are optional.
Optional Forms
Company Profile
Taizhou Jinte, a professional Diesel Generators and Gas Generators manufacturer and exporter in China mainland. Jinte Company was established in 2002 and now is at the top of the generator sets manufacturing field. We have a reputation for lower prices, higher quality, fast shipping, and excellent after-sales service. We use world-famous diesel engines like Cummins, Perkins, Deutz, Volvo Panta, Doosan, Jichai, SDEC, and Weichai series, coupled with top brand alternators like Stamford, Leroy Somer, Marathon, and Siemens, etc. Jinte Power ensures to supply high-quality power generators, and all of our products are strictly tested before EXW.
We have customers from more than 60 countries and regions, and about 30000 sets of power generators were sold in China and abroad.
Packaging & Shipping
Normally, for open type diesel generators, we will pack with plastic film, and then fixed in a plywood case. We make sure the diesel genset will be firmly fixed in the plywood case. For soundproof silent type diesel generators, we usually pack with plastic film, and directly load into the container. If customer needs, we can pack the silent type diesel generator with plywood as well. However, for big power gensets, such as larger than 800kw genset, we usually directly load into container.
We have customers from more than 60 countries and regions, and about 30000 sets of power generators were sold in China and abroad.
Packaging & Shipping
Normally, for open type diesel generators, we will pack with plastic film, and then fixed in a plywood case. We make sure the diesel genset will be firmly fixed in the plywood case. For soundproof silent type diesel generators, we usually pack with plastic film, and directly load into the container. If customer needs, we can pack the silent type diesel generator with plywood as well. However, for big power gensets, such as larger than 800kw genset, we usually directly load into container.
Customers visiting
Our products are shipped to more than 40 countries or regions such as Philippines, Thailand, Myanmar, Cambodia, Pakistan, UAE, Kuwait, Ukraine, Russia, South Africa, Kenya, United States, Australia,Venezuela, Panama, Ecuador, Dominica and South Korea etc.
Our products are shipped to more than 40 countries or regions such as Philippines, Thailand, Myanmar, Cambodia, Pakistan, UAE, Kuwait, Ukraine, Russia, South Africa, Kenya, United States, Australia,Venezuela, Panama, Ecuador, Dominica and South Korea etc.
FAQ
Q1: Are you a trading company or manufacturer?
A: We are a factory and exporter.
Q2: What is the power range of your diesel generator?
A: We can provide power from 6KVA-5000KVA
Q3: How long is your delivery time?
A: 1-4 weeks
Q4: What are your terms of payment?
A: T/T 30% in advance and TT 70% balance paid before shipment or 100% LC at sight.
Q5: What is your warranty period?
A:Our payment terms are 1 year or 1000 running hours whichever comes first. But based on some special projects, we can extend our warranty period.
Q6: Do you offer OEM service?
A: Yes
Q7: How could I trust you?
A: Diesel Generators Service & Supply comply with all the standards about Diesel Power Supply Equipments requirements. If you are not convinced by the pictures, videos, check-in reports, load tests, customer experiences and sales associates' knowledge about the generator you are interested in, then we invite you to come visit our expansive yard and shop facility to witness a load test and see the professional operation we have to go on here.
Q8: What's the frequency of diesel generators?
A: 50/60HZ
Q9: What's the voltage of your diesel generator?
A:220/110V, 380/220V, 400/230V, 415/240V, 440/260V, 460/270V, and double voltage or high voltage.
Q10: What's your MOQ?
A: 1 set.
Q11: What kind of Diesel Generators you can supply?
A: We can supply: Open type diesel generators, soundproof type (silent type) diesel generators, trailer mounted diesel
generators,containerised diesel generators, high voltage diesel generators, synchronized diesel generators.
Q2: What is the power range of your diesel generator?
A: We can provide power from 6KVA-5000KVA
Q3: How long is your delivery time?
A: 1-4 weeks
Q4: What are your terms of payment?
A: T/T 30% in advance and TT 70% balance paid before shipment or 100% LC at sight.
Q5: What is your warranty period?
A:Our payment terms are 1 year or 1000 running hours whichever comes first. But based on some special projects, we can extend our warranty period.
Q6: Do you offer OEM service?
A: Yes
Q7: How could I trust you?
A: Diesel Generators Service & Supply comply with all the standards about Diesel Power Supply Equipments requirements. If you are not convinced by the pictures, videos, check-in reports, load tests, customer experiences and sales associates' knowledge about the generator you are interested in, then we invite you to come visit our expansive yard and shop facility to witness a load test and see the professional operation we have to go on here.
Q8: What's the frequency of diesel generators?
A: 50/60HZ
Q9: What's the voltage of your diesel generator?
A:220/110V, 380/220V, 400/230V, 415/240V, 440/260V, 460/270V, and double voltage or high voltage.
Q10: What's your MOQ?
A: 1 set.
Q11: What kind of Diesel Generators you can supply?
A: We can supply: Open type diesel generators, soundproof type (silent type) diesel generators, trailer mounted diesel
generators,containerised diesel generators, high voltage diesel generators, synchronized diesel generators.
