100 мм AAC ALC настенная панель панели крыши

Категория: Building Boards >>>
Поставщик: Jinan,JRF,Industry,Co.,Ltd.

Цена:66,00 $ - 75,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	79.85 $*	83.65 $*
Aug-18-2025	78.58 $*	82.1 $*
Jul-18-2025	65.12 $*	68.78 $*
Jun-18-2025	77.78 $*	81.95 $*
May-18-2025	67.29 $*	70.68 $*
Apr-18-2025	75.13 $*	79.84 $*
Mar-18-2025	75.80 $*	79.58 $*
Feb-18-2025	74.51 $*	78.38 $*
Jan-18-2025	73.4 $*	77.28 $*

Характеристики

Product Description

AAC-ALC (Autoclaved Aerated Concrete)

The comprehensive advantage is a new breakthrough in the reform of wall materials in my country. The company has passed ISO9001 and ISO4001 system certification, and its products are superior to national standards and industry standards. The products meet the energy-saving and environmental protection requirements of various buildings such as residences, offices, factories, schools, hospitals, etc. At present, the products have been sold well in large and medium-sized construction projects in Jiangsu, Zhejiang and Shanghai. Many foreign merchants have also visited the factory one after another, and high-end plates have been signed for export in batches and exported to Brazil, Malaysia, Africa and other places.

Specification

AAC-ALC BLOCKS

>It is a kind of porous silicate block cured by high temperature and high pressure steam after adding aluminum powder as gas generating agent in the ingredients of calcium material and silicon material, mixing with water, casting, expansion,pre curing and cutting.

>It has the advantages of light weight and high strength,heat insulation and sound insulation, durable fire resistance, convenient construction and so on.

Basic Performance

Dry Density Level

B03

B04

B05

B06

B07

B08

Dry Density(Kg/m³)

Superior Products

≤300

≤400

≤500

≤600

≤700

≤800

Qualified Products

≤325

≤300

425

≤625

≤725

≤300

Drying Shrinkage Value(mm/m)

Standard Method

≤0.50

Fast Method

≤0.80

Frost Resistance

Mass Loss(%)

≤5.0

Strength After Freezing(MPa)

Superior Products

≥0.8

≥0.16

≥2.8

≥4.0

≥6.0

≥8.0

Qualified Products

≥0.8

≥0.16

≥2.0

≥2.8

≥4.0

≥6.0

Thermal Conductivity(dry){W(m.k)}

≤0.10

≤0.12

≤0.14

≤0.16

≤0.18

≤0.20

Common Specification

Length(mm)

Width(mm)

Height(mm)

600

100 120 125 150 180 200 240 250 300

200 240 250 300

AAC-ALC WALL PANEL

>It uses quartz sand, cement and lime as the main raw materials.

>It is made by curing with high pressure steam.

>It is a new type of material with superior performance, which has the advantages of accurate production process,stable performance and accurate size.

>It can used as interior wall, exterior wall board,floor board,fireproof board,etc.

>It is widely used in residential, commercial,school, hospital,factory and other industries.

Basic Performance
Intensity Level			A2.5	A3.5	A5.0	A7.5
Dry Density Level			B04	B05	B06	B07
Dry Density (kg/m³)			≤425	≤525	≤625	≤725
Compressive Strength(MPa)	Average Value	≥2.5	≥3.5	≥5.0	≥7.5
Compressive Strength(MPa)		Single Group Min	≥2.5	≥2.8	≥4.0	≥6.0
Drying Shrinkage Value （mm/m)	Standard Methoud	≤0.50
Drying Shrinkage Value （mm/m)		Fast Methoud	≤0.80
Frost Resistance	Mass Loss(%)	≤5.0
Frost Resistance		Strength After Freezing (MPa)	≤2.0	≤2.8	≤4.0	≤6.0
Thermal Conductiviti(Dry){W(m.k)}			≤0.12	≤0.14	≤0.16	≤0.18

Specification
Interior Wall Panel	Thickness(mm)	50	75	100	125	150	175	200	250
Interior Wall Panel	Exterior Wall Panel	Max Length(mm)	1400	3000	4000	5000	6000	6000	6000	6000
Exterior Wall Panel	Thickness(mm)	100	125	150	175	200	250	300
Exterior Wall Panel		Thickness(mm)	3500	4500	5500	6000	6000	6000	6000
Fire Resistance of 100mm Wallboard(Hour)			≥4
Impact Resistance(Times)			≥15
Hanging Force(N)			≥1500

12 Major Advantages

1.Sound insulation and anti-noise

The ALC board has undergone special maintenance and chemical principles, and the independent hollow structure produced by its internal constituent materials has good sound absorption and sound insulation functions. It is much higher than the sound insulation effect of other brick walls and meets the national residential sound insulation requirement

2.Fire retardant

ALC board has very superior fire and heat insulation performance. At 1000 degrees Celsius, the fire resistance limit exceeds 4 hours, and it does not emit toxic and harmful substances. It has passed the test of the National Building Materials Testing Center, and its non-combustible performance has reached the GB8624-1997 grade A1 non-combustible standard.

3.Thermal insulation

Building energy efficiency is the focus of the current construction industry.
The composition of the ALC board determines that it has good thermal insulation function, which can make your indoor environment more comfortable. It has the function of automatically adjusting the moisture content in the indoor air with seasonal climate changes, so that the humidity can be maintained at a constant level. To achieve the effect of ecological adjustment, it is in line with the development trend of modern residential buildings.

4.Lightweight and economical

ALC board is light in weight, its bulk density is (520~620)Kg/m3, which is only 1/3~1/5 of the weight of 100mm masonry + two plastered walls. If a building starts to consider the use of lightweight wall panels from the basic structure design, the structure and foundation cost can be greatly reduced, and the beam-column structure can be optimized, the overall indoor layout will be more reasonable, and the use function will be improved.

5.Waterproof and

Moisture-proof

ALC board is 100% asbestos-free, has good waterproof and moisture-proof properties, and can be used in wet areas such as kitchens, bathrooms, basements, etc. Therefore, the wallboard will not be loosened due to moisture absorption, returned to halogen, deformed, and decreased in strength, etc. Phenomenon. Experiments have shown that the wallboard can be kept dry without leaving any traces on the back of the wallboard without any veneer, after the cement-bonded pool is filled with water, and there will be no condensation on the wall in humid weather. Water droplets, and general masonry cannot be moisture-proof, and the phenomenon of peeling of the splatter layer will occur after a long time.

6.Anti-cracking

The ALC board panel is made of silica sand, aluminum powder, etc., the shrinkage rate is only 0.5, and the board has a certain toughness. The installation adopts a reasonable assembly process to make the overall performance more stable and reliable. No cracking phenomenon occurs.

7.Earthquake resistance

Good integrity

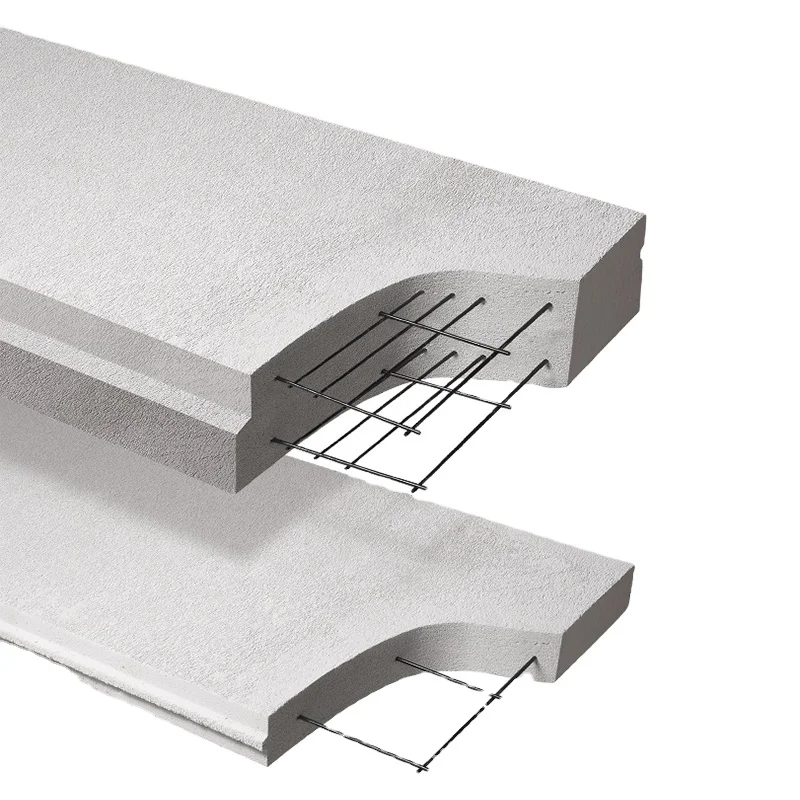

The unique physical structure of ALC board, built-in steel mesh, has high strength, the wall board adopts prefabricated construction, the board and the board are connected by steel anchorage, the tongue and groove splicing is bonded with high-strength polymer anti-cracking mortar, impact resistance The performance is more than 1.5 times higher than that of ordinary brick walls. After the steel structure skeleton is anchored and installed, the overall strength is greatly improved. The anti-cracking degree can be designed to be 8 degrees earthquake resistance, which meets the requirements of "small earthquakes are not damaged, medium earthquakes can be repaired, and large earthquakes are not collapsed" The requirements of the international standard for seismic resistance of walls.

8.Thin body - increase the usable area

According to the national building partition slat specifications, ALC panels of 100mm and 150mm can replace the traditional 240mm brick wall and 370mm thick brick wall respectively. Obviously, using the ALC board system to build a 5m~6m extension wall can increase the usable area by 1m2, and the utilization rate will increase by 4%~6%. Residential partitions and divisions.

9.Simple construction and Short construction period

Prefabricated construction, with a wall height of less than 4 meters, each group of about 3 workers, an average skilled worker can ship more than 40m² a day, and the wall panels are smooth on both sides without plastering, and the efficiency is improved compared with masonry wall construction 10 times or more. It is only required to set the line accurately, and it can be installed by both big and small workers. After installation, finishing treatment can be performed without masonry and plastering (generally, block walls need a plastering process, and the next step can only be carried out after the mortar strength meets the requirements. construction), greatly shortening the construction period. Installation of wall panels does not require complex scaffolding, and the construction is convenient and fast.

10.Easy to operate, can be pasted, can be nailed

ALC board can be firmly combined with construction glue, cement mortar, internal and external wall putty, etc., and can be pasted with tiles, marble, wood veneer, etc. without special treatment. Bolts, hanging air conditioners, TVs, range hoods and other heavy objects. It overcomes the shortcomings that the hollow wall has no holding force, cannot be nailed, cannot be hung, and is difficult to install doors and windows. It is possible to open wire grooves directly in the wall, bury water pipes, etc.

11.Environmentally friendly and recyclable

100% ALC board does not contain substances harmful to the human body, and meets the national GB6566-2001 "Radionuclide Limits for Building Materials" standard. It is a radioactive building main material and a class A decoration material. green building materials. The inner core is a mixture of silica sand, cement, gypsum, and aluminum powder, so it can be recycled and reused, reducing a lot of construction waste

12.Creativity

We can provide patterned panels,which can achieve the effect of bricek pattern,check pattern and stone imitation directly after installation

Product Application

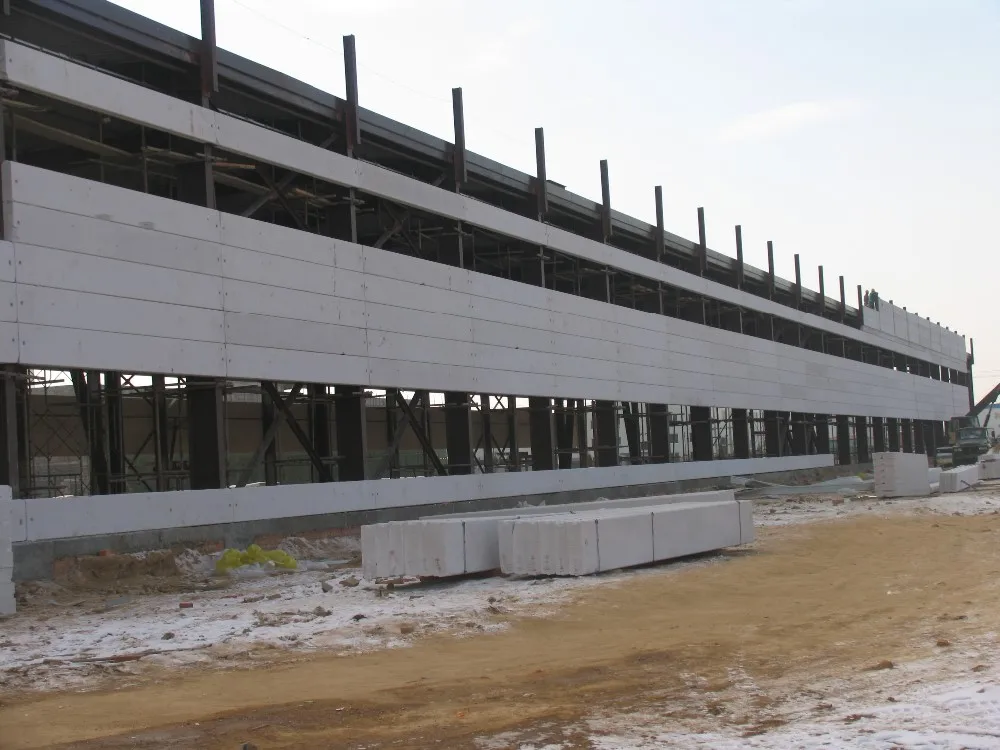

ALC-AAC can not only be used for exterior wall enclosures, interior wall partitions, flat-slope roofs of civil buildings, but also for roofs and exterior walls of industrial plants, and is an excellent material for interior and exterior walls of various steel structure buildings.

It is a new energy-saving and environmentally friendly wall material supported by the state.
