Acrel ADF400L4H(2S)(6D) многосочечный Электрический счетчик 4 или 2 канала 6 каналов интеллектуальный энергии с одобрением
- Категория: Electrical Instruments >>>
- Поставщик: Acrel,E-Business,(shanghai),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.25 $* | 0.72 $* |
| Aug-16-2025 | 0.82 $* | 0.48 $* |
| Jul-16-2025 | 0.23 $* | 0.31 $* |
| Jun-16-2025 | 0.1 $* | 0.24 $* |
| May-16-2025 | 0.80 $* | 0.89 $* |
| Apr-16-2025 | 0.15 $* | 0.61 $* |
| Mar-16-2025 | 0.49 $* | 0.98 $* |
| Feb-16-2025 | 0.54 $* | 0.85 $* |
| Jan-16-2025 | 0.65 $* | 0.26 $* |
Характеристики
Products Description

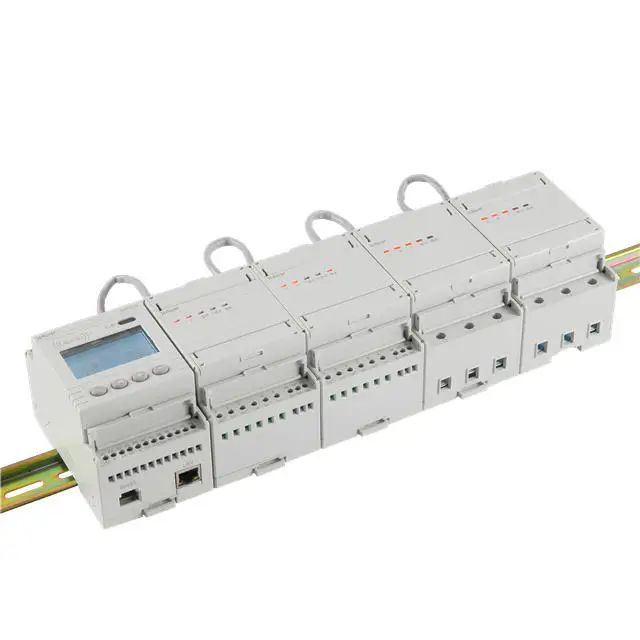

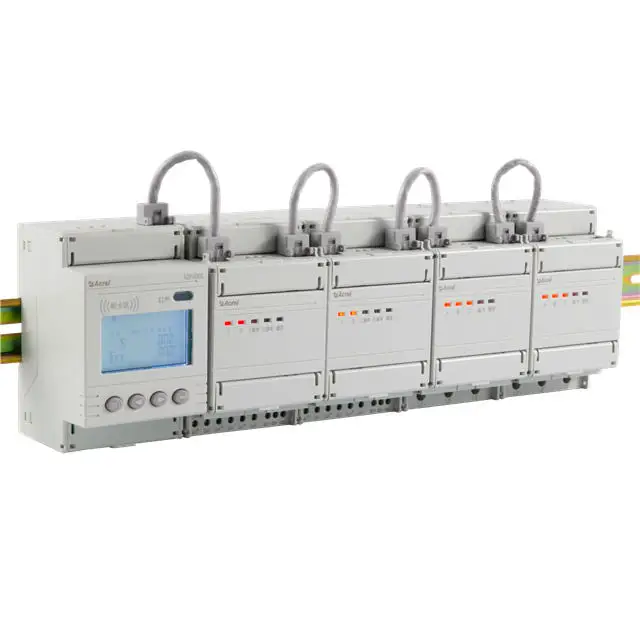

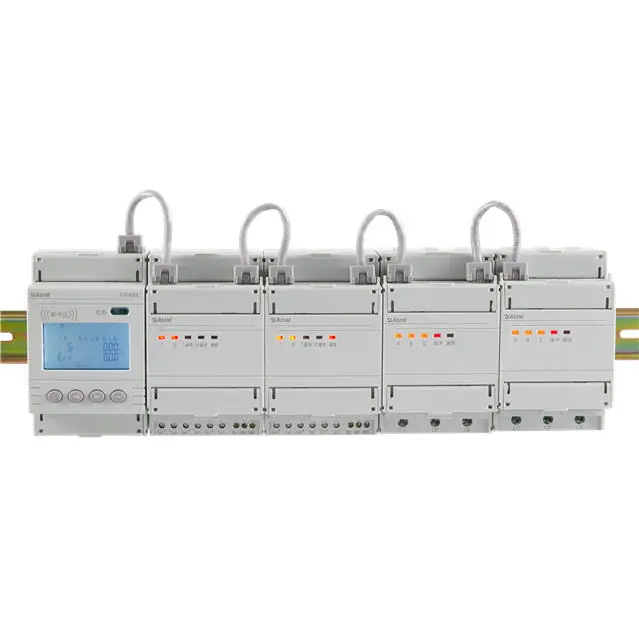

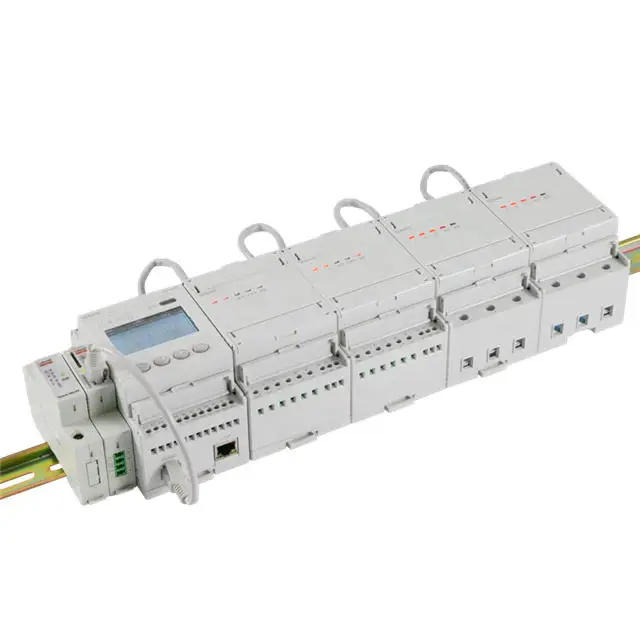

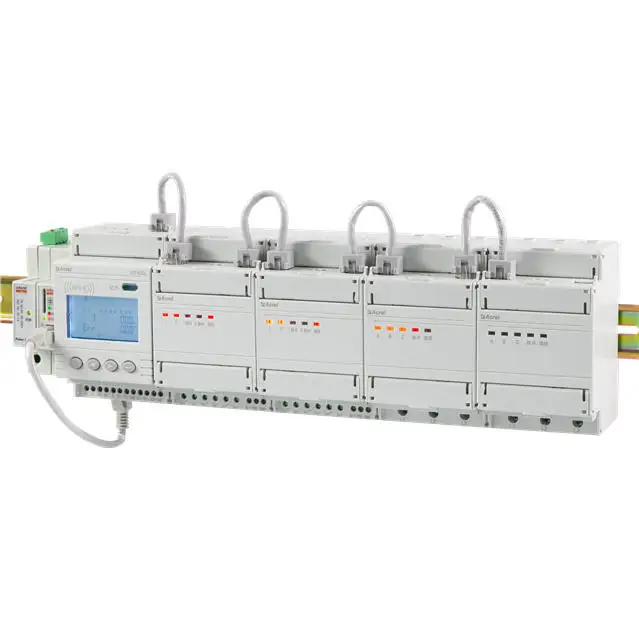

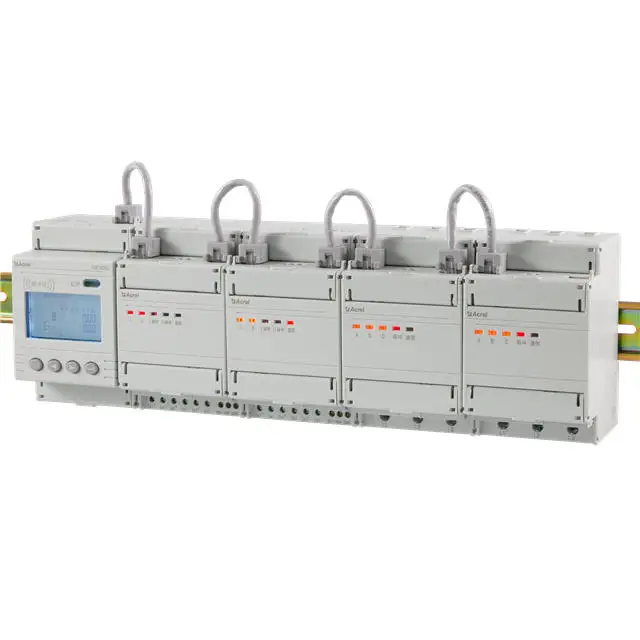

ADF400L Multi circuit Energy Meter
The ADF400L series multi-user electric energy meter can achieve up to 12 three-phase or 36 single-phase direct access measurement or 12 three-phase mutual inductor access measurement, a hybrid of direct access and mutual inductor access through module combination measurement method. This series of electric energy meters are popular among communities, schools, enterprises, etc. due to their high accuracy, centralized installation, centralized management, high installation flexibility, and non-interference.
1. Three-phase 3*220/380V power supply to provide working power for the back-end measurement module；
2. Man-machine interface: LCD and button programming;
3. Infrared communication；
4. RF card swiping (IC function)；
5. 2 RS485 network communication (*C function)；
6. RS485 communication for No. 3 extended wireless module (RJ45 connection mode )；
7. Up to 2DI/2DO (K function)；
8. Up to 1 Ethernet communication (CE function)；
2. Man-machine interface: LCD and button programming;
3. Infrared communication；
4. RF card swiping (IC function)；
5. 2 RS485 network communication (*C function)；
6. RS485 communication for No. 3 extended wireless module (RJ45 connection mode )；
7. Up to 2DI/2DO (K function)；
8. Up to 1 Ethernet communication (CE function)；
Function & Parameter
1. Main Function
Prepaid Function
Features | Function Description | ||
Energy metering | Total active energy, forward and reverse active energy, multi-rate active energy measurement | ||
Electricity measurement | U、I P、Q、S、PF、F | ||
LCD display | 8-digit segment LCD display, backlight display | ||
Button programming | Key programmable communication, number of loops, single three-phase mode, external control mode and other parameters | ||
Pulse output | Active pulse output | ||
Multiple rate | Support 4 time zones, 2 time slots, 14 daily time slots, 4 rates | ||
Date, time, day of the week | |||
Main module communication | Infrared communication | ||
Up to 3 channels of communication: RS485 interface， Also support Modbus | |||
Prepaid agreement (remote, radio frequency card) | Cost control (including forward active power and reverse active power) | ||
Time control | |||
Negative control (malignant load identification) | |||
Strong control | |||
Recharge record | 20 Article | ||
Metering Function
Features | Function Description | ||
Display method | LCD（Field） | ||
Energy metering | Active energy metering（Forward and reverse）， Reactive power measurement（Forward and reverse） | ||
Electricity measurement | Voltage, current (zero sequence current), power factor, frequency, active power, reactive power, apparent power | ||
Harmonic function | Total harmonic content, sub-harmonic content (2～31 times) | ||
Three-phase unbalance | Voltage and current unbalance | ||
DI/DO | Main module 2DI2DO | ||
Transformer access to the slave module 2DI4DO (direct access to the slave module without) | |||
LED Instructions | Pulse light indication | ||
Communication | Infrared communication | ||
RS485 interface (main module) supports MODBUS | |||
Historical power | Historical Electricity in Last December | ||
2. Technical Parameter
Technical parameter | ADF400L-□H□S□D(Y)- □ | |||||
Auxiliary power | Voltage | Three-phase 3*220V/380V power supply (for single-phase power supply, short-circuit terminals 1, 2, and 3 on the instrument) | ||||
Power consumption | ≤10W | |||||
Voltage input | Rated voltage | 3×220/380V、3×57.7/100V、 | ||||
Reference frequency | 50Hz | |||||
Current input | Input Current | 3×1(6)A(Instrument transformer access), 3*10 (80) (direct access) | ||||
Starting current | 1‰Ib | |||||
Measuring performance | measurement accuracy | 0.5s level | ||||
Clock accuracy | ≤0.5s/d | |||||
Pulse | Pulse output | Each three-phase metering module has 1 active energy pulse | ||||
Pulse Width | 80ms±20ms | |||||
Pulse constant | 3×1(6)A specification 6400 imp/kWh | |||||
Switch | Main module | Main module 2DI+2DO，Among them, DI is dry contact input | ||||
Slave module | Transformer access slave module 4DI+4DO，Among them, DI is 220V wet contact input | |||||
Communication | Infrared interface | Infrared communication | ||||
RS485 interface | MODBUS-RTU | |||||
Ethernet interface | Modbus-TCP、TCP/IP | |||||
Surroundings | temperature | Operating temperature：-20℃~+60℃， storage temperature：-30℃~+70℃ | ||||
humidity | ≤95%RH，No condensation, no corrosive gas place | |||||
altitude | ≤2000m | |||||
Example: ADF400L-2H1S1D
1 main module
2H: 2 three mutual inductor access loop, input current larger than 80A, CT ratio xxx/5A
1S: 1 three phase circuit connect directly, input current 10(80)A
1D: 1 single phase circuit connect directly, input current 10(80)A
1 main module
2H: 2 three mutual inductor access loop, input current larger than 80A, CT ratio xxx/5A
1S: 1 three phase circuit connect directly, input current 10(80)A
1D: 1 single phase circuit connect directly, input current 10(80)A
Dimension & Installation
Company Profile
Acrel Co., Ltd. [Stock Code : 300286. SZ] is a high-tech enterprise concentrating on research, production, sales and services. It mainly provides systemic solutions of energy efficiency management and electrical safety for users. ‘Acrel’ is equipped with the complete production lines from cloud platform software to sensors. Until now, it has more than 8000 sets systemic solutions used in China to help users to realize energy visual management ,supply energy data services and improve electrical efficiency and safety. ‘Acrel’ has maintained steady growth since its listing in 2012. The company will adhere to the concept of ‘innovation,high-efficiency,unity and honesty’ and it provides more high-quality solutions,products and service for power system users and micro-grid.
Payment & Delivery
1.Payment: T/T 100% in advance, credit card, western union, in cash and etc. T/T 30% as deposit and the balance before shipment or against copy of B/L is acceptable with enough MOQ.
2.Delivery Arriving Time: in 3-7 working days after payment received.
3.Ways of Delivery: By sea, air, train or international courier like Fedex, TNT, DHL and UPS.
