Внешняя пленка SS304 плетеный шланг PTFE для


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-20-2025 0.94 $* 0.22 $*
Aug-20-2025 0.81 $* 0.6 $*
Jul-20-2025 0.83 $* 0.49 $*
Jun-20-2025 0.36 $* 0.32 $*
May-20-2025 0.8 $* 0.76 $*
Apr-20-2025 0.85 $* 0.23 $*
Mar-20-2025 0.97 $* 0.5 $*
Feb-20-2025 0.52 $* 0.63 $*
Jan-20-2025 0.95 $* 0.68 $*

Характеристики



Product Description

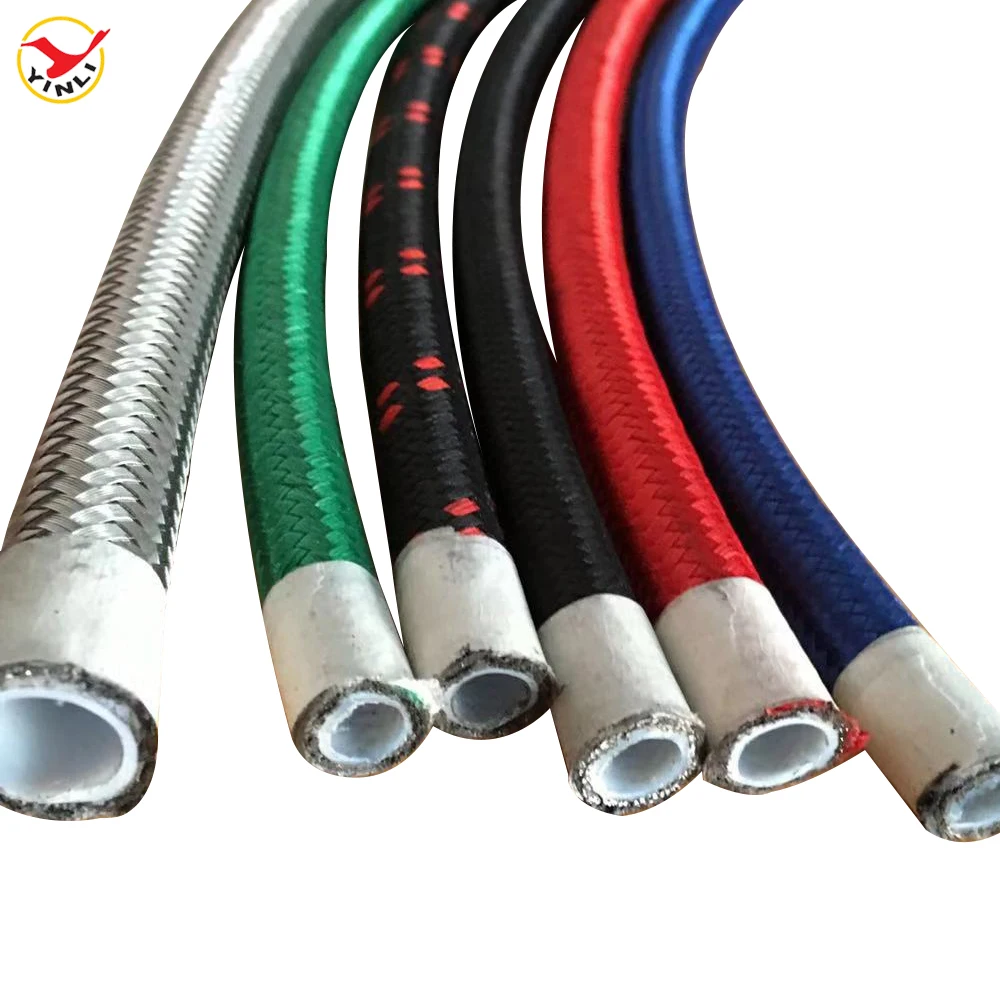

Outer Wrap SS304 Braided PTFE Hose for Fuel Line
This hose is made of high-quality PTFE
on the inside that gives them high
chemical and heat resistance,along
with a braided stainless steel outside which gives them high durability,
extreme pressure resistance, and a professional and high-tech appearance.
They are smooth bore for optimal flow.

PTFE exhibits unique properties including excellent chemical resistance,very high temperature resistance (up to 260°C, 500°F) and a frictionless, easy clean surface. These properties determine the types of application areas in which PTFE hose can provide the best possible hose for the job.




Specification


Size
ID(mm)
ID(mm)
Thickness
(PTFE tube) mm
Working Pressure(Bar)
Min.Burst Pressure(Bar)
Min.Bend Radius (mm/±3mm)
1/4"
5.75-6.55
5.75-6.55
0.8
151
450
32
5/16"
7.75-8.55
7.75-8.55
0.8
126
370
36
3/8"
9.14-10.25
9.14-10.25
0.8
105
324
59
1/2"
12.45-13.25
12.45-13.25
1
90
270
82
5/8"
15.35-16.25
15.35-16.25
1
72
255
95
3/4"
18.6-19.85
18.6-19.85
1
60
231
113
7/8"
21.84-22.86
21.84-22.86
1
52
189
145
1"
24.89-26.16
24.89-26.16
1.5
47
144
189


Company Profile




Hengshui Yinli Rubber Products Co.,LTD is a big and reliable rubber hose and relative products factory since 1997, our productin capacity is 1500000 meters hose, 100000 pieces fittings, 1000 sets hose crimping, cutting and skiving machines, and new items will be improved by requirements.CE , ISO and MSHA certificate are available.Free samples for hose and fittings are available.

We can give you the best export service base on our experience,we have directly export products to more than 20 countries all over t he world since 2008.

You will get the best support from us for rubber hoses,hose assemblies,fittings, hose protector,hose machines and other stainless steel and PTFE flexible hose.

Welcome to ask us for more information, it’s our honor to give you the best service.

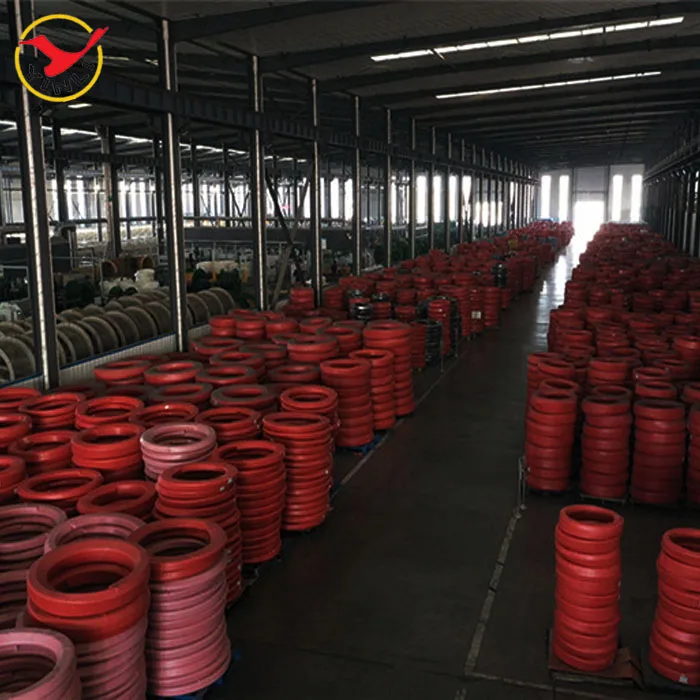

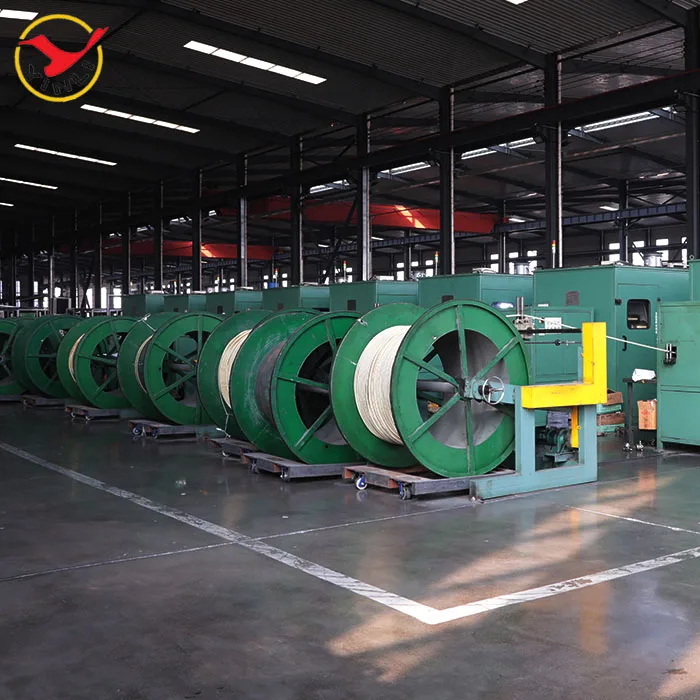

Production flow




QC system




FAQ


Q1. Are you factory?
A. Yes, we are a factory since 1997, which have more than 20 years experience on rubber hose production.

Q2. Do you produce embossed marking ?
A. Yes, we do provide embossed and printing markings with different color.

Q3. Can you produce product with my own brand?
A. Yes, it's available except famous brand without authorization .

Q4. What is the biggest size you can produce?
A.Hydraulic hose inner diameter size up to 304mm, industrial rubber hose inner diameter size up to 1300mm.

Q5. Is colorful hose available?
A. Yes, we can produce the hose color buy your requirements.

Q5.What is your payment terms?
A. 30% deposit, 70% before delivery.


Our team

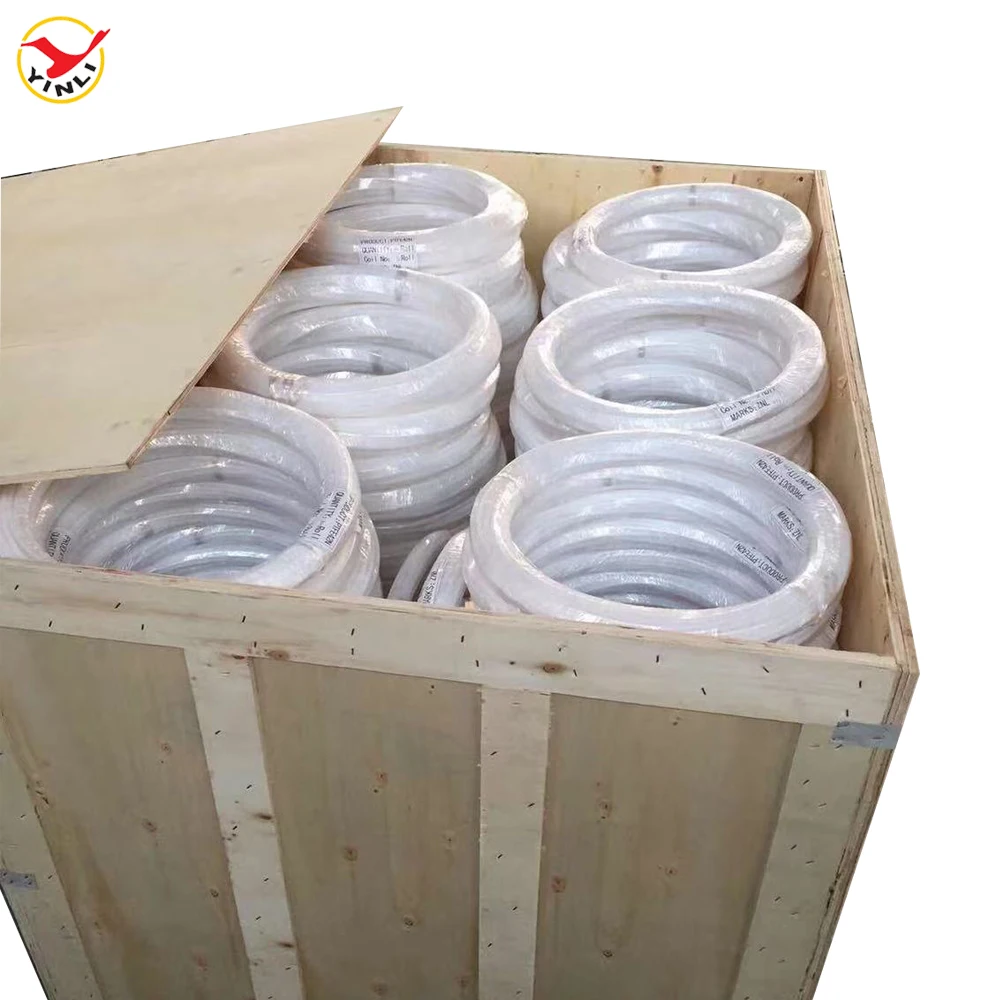

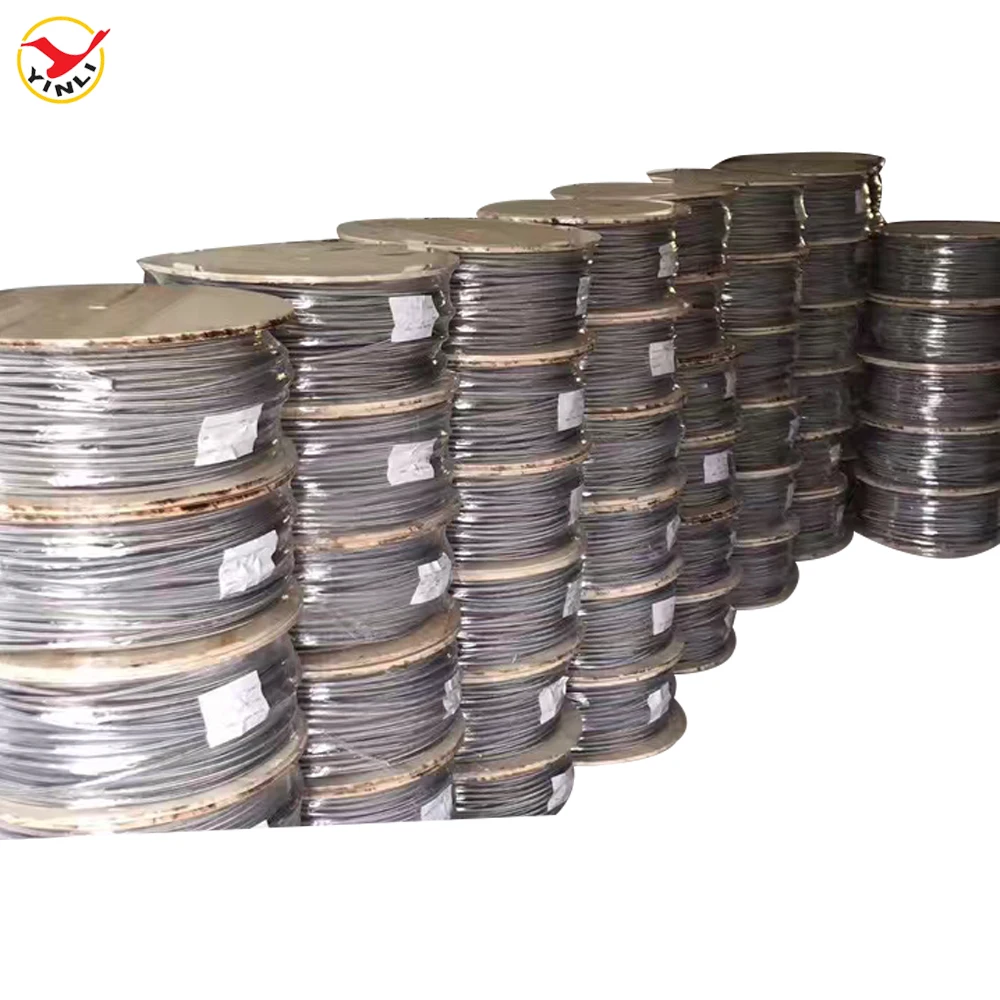

Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


Данные ресурс не является интернет-магазином, а лишь содержит ссылки на международную торговую площадку Alibaba.com
