Новый дизайн ЧПУ для колес токарный станок CK6160Q

Новый дизайн ЧПУ для колес токарный станок CK6160Q

Категория: Other Vehicle Equipment >>>
Поставщик: Taian,Haishu,Machinery,Co.,Ltd.

Цена:7 000,00 $ - 8 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	8330.41 $*	8747.49 $*
Aug-19-2025	8260.89 $*	8673.1 $*
Jul-19-2025	6930.75 $*	7277.62 $*
Jun-19-2025	8120.52 $*	8526.32 $*
May-19-2025	7070.38 $*	7424.96 $*
Apr-19-2025	7980.17 $*	8379.61 $*
Mar-19-2025	7910.54 $*	8306.87 $*
Feb-19-2025	7840.99 $*	8232.17 $*
Jan-19-2025	7770.6 $*	8159.82 $*

Характеристики

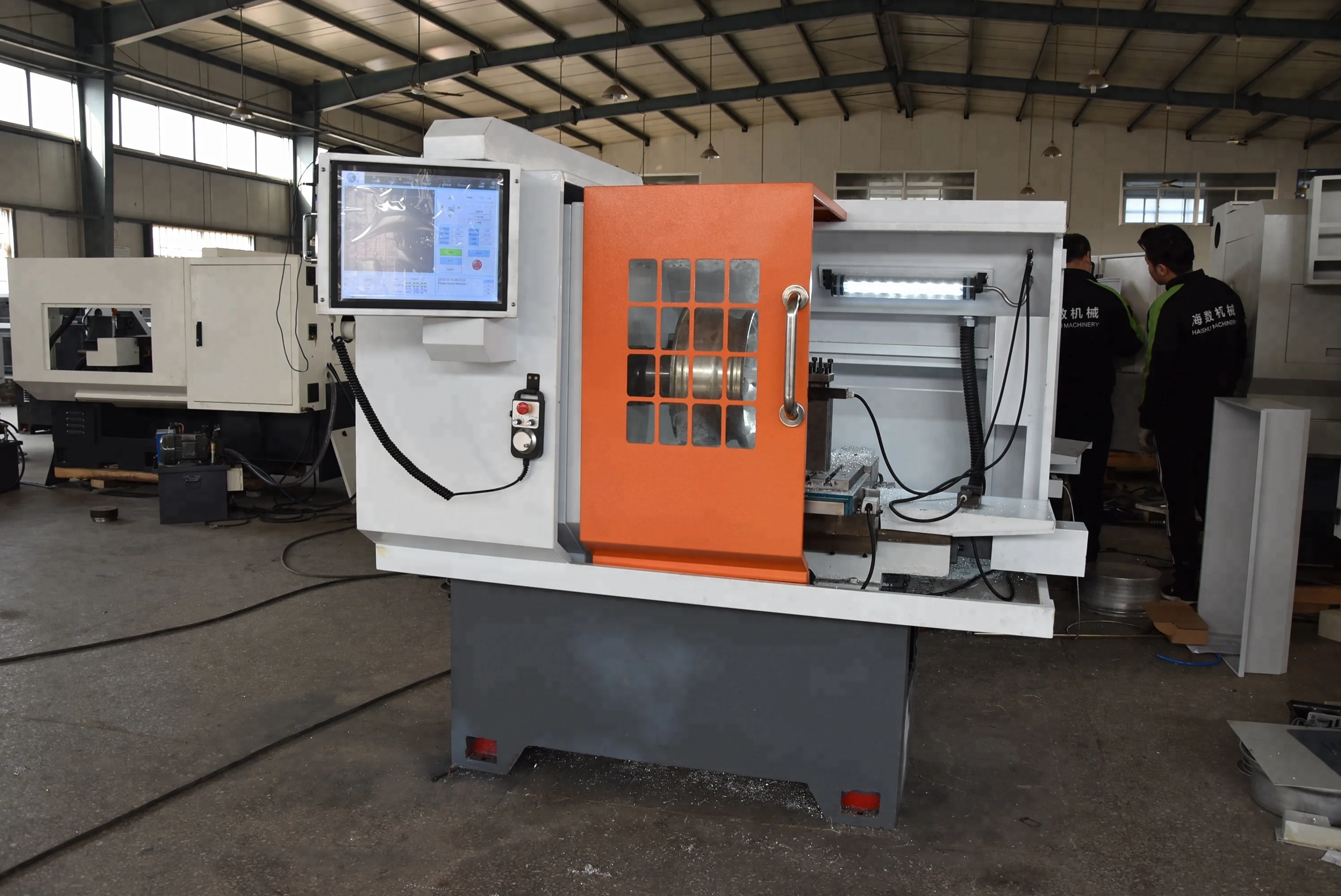

New Designed CNC For Wheels Lathe Machine CK6160Q Super Promotion

Item	Unit	parameters and configuration
Item	Unit	CK6160Q
Max. wheel diameter	Inch	22"
X-axis maximum stroke	mm	320
Main motor power	kw	3
Rail width	mm	260
Max. workpiece length	mm	500
Wheel measuring direction		X,Z
Measuring tool	mm	Laser, probe (optional)
Measurement method		Point measurement and quick scan
Program optimization		Manual and automatic
Number of wheel processing programs		100000

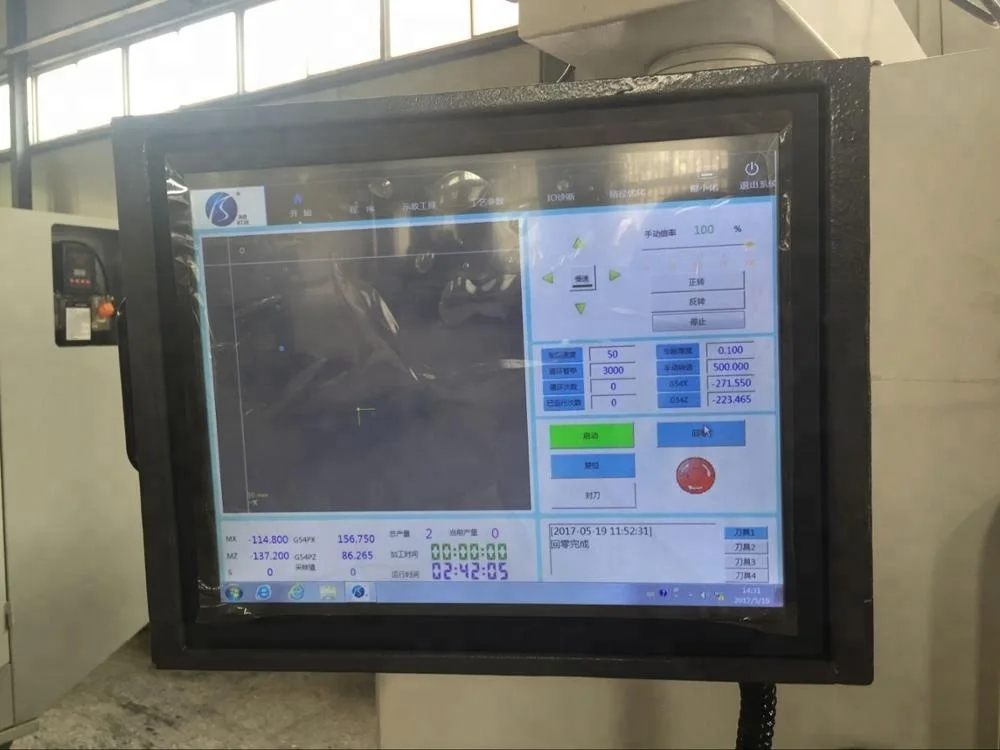

CNC System		"HAISHU" special system (touch screen operation, 17 "screen LCD display).

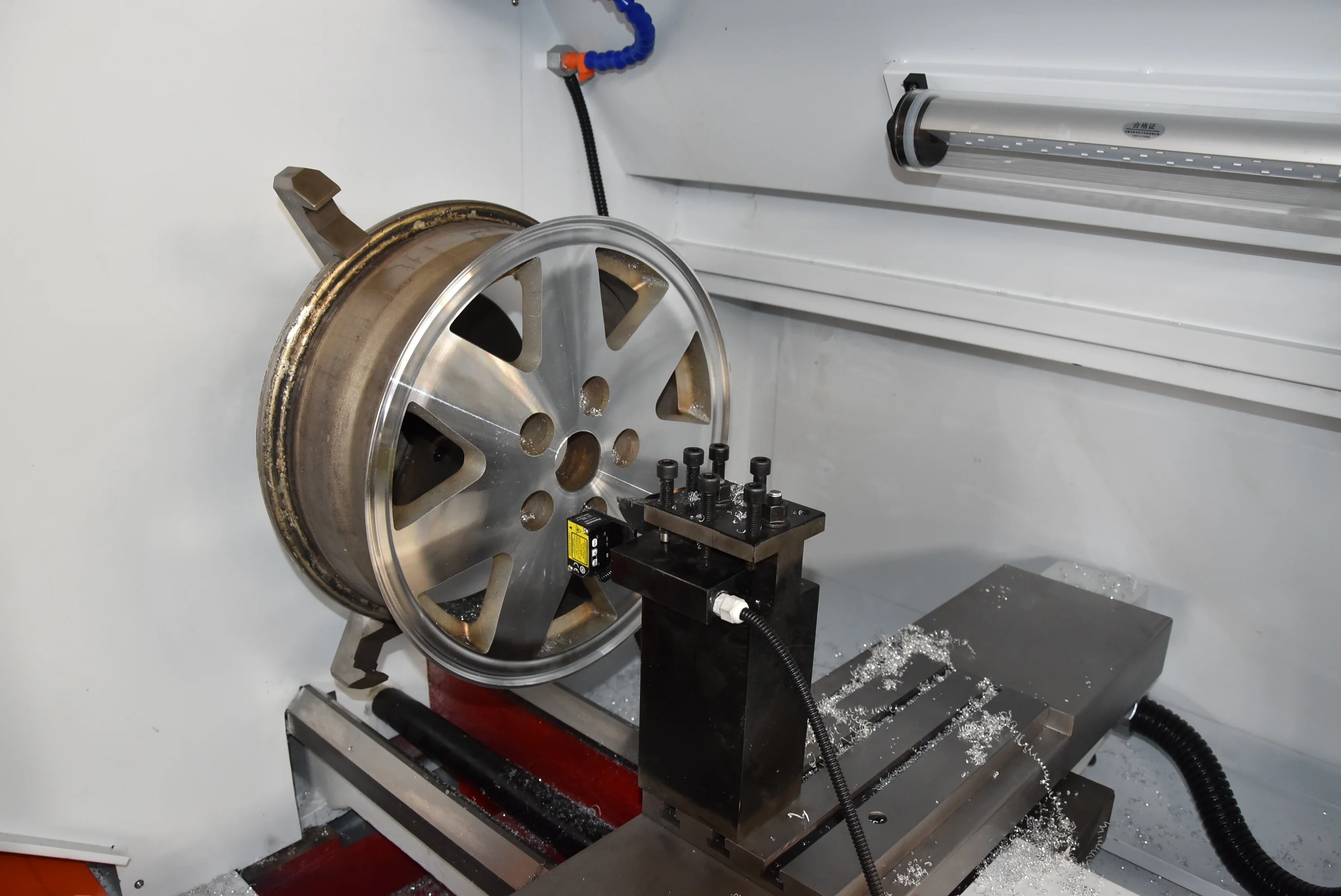

Wheel processing		surface, rim
Mchining accuracy		IT6~IT7
Surface roughness	um	Ra0.8~1.6
Main drive form		Frequency control, servo drive (optional)
Spindle speed	rpm	Factory setting 150~2800
Fast-moving feed	mm/min	X :5000 Z :8000
Repeat accuracy	mm	X :0.01 Z :0.015
Turret form		Fixed turret,Electric turret (optional)
Section of turning tool	mm	25×25
Machine size(L×W×H)	mm	1900×1400×1750
Net weight	kg	1300

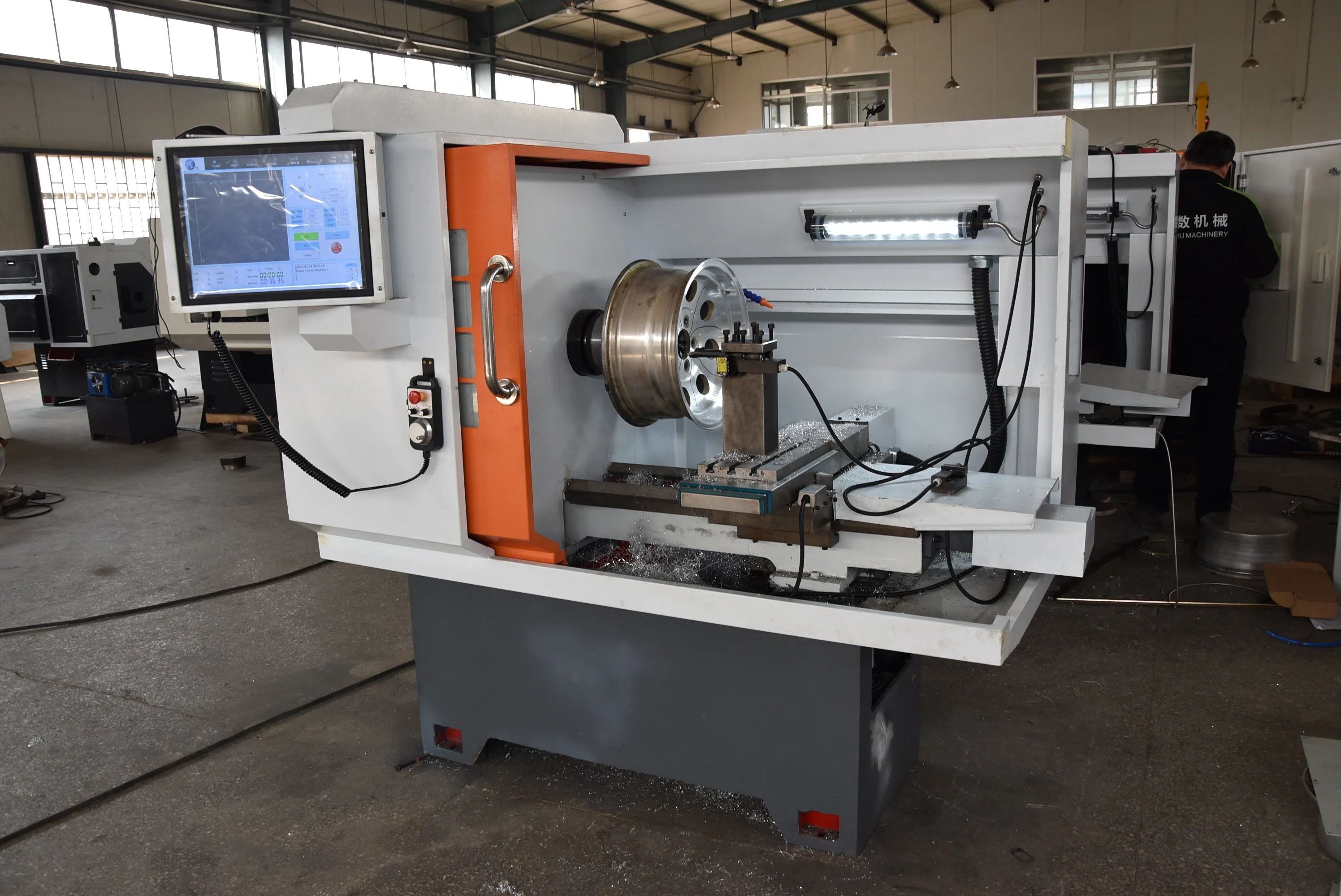

CK6160Q wheel lathes 2

wheel repair lathe 3 CK6160Q wheel machines 4 wheel cnc machine 6 wheel repair machine 7

We have a professional R & D team, we can design the machine appearance and can also customize machine according to your requirements. The patent certificate of the machine we designed:
