Заводская Авторизованная дилерская XC-MG LW500FN фронтальный погрузчик номинальная нагрузка
- Категория: Loaders >>>
- Поставщик: China,Construction,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 49980.97 $* | 52479.63 $* |
| Aug-20-2025 | 49560.7 $* | 52038.29 $* |
| Jul-20-2025 | 41580.69 $* | 43659.42 $* |
| Jun-20-2025 | 48720.71 $* | 51156.42 $* |
| May-20-2025 | 42420.56 $* | 44541.67 $* |
| Apr-20-2025 | 47880.11 $* | 50274.78 $* |
| Mar-20-2025 | 47460.30 $* | 49833.38 $* |
| Feb-20-2025 | 47040.75 $* | 49392.69 $* |
| Jan-20-2025 | 46620.58 $* | 48951.65 $* |
Характеристики
Product Description

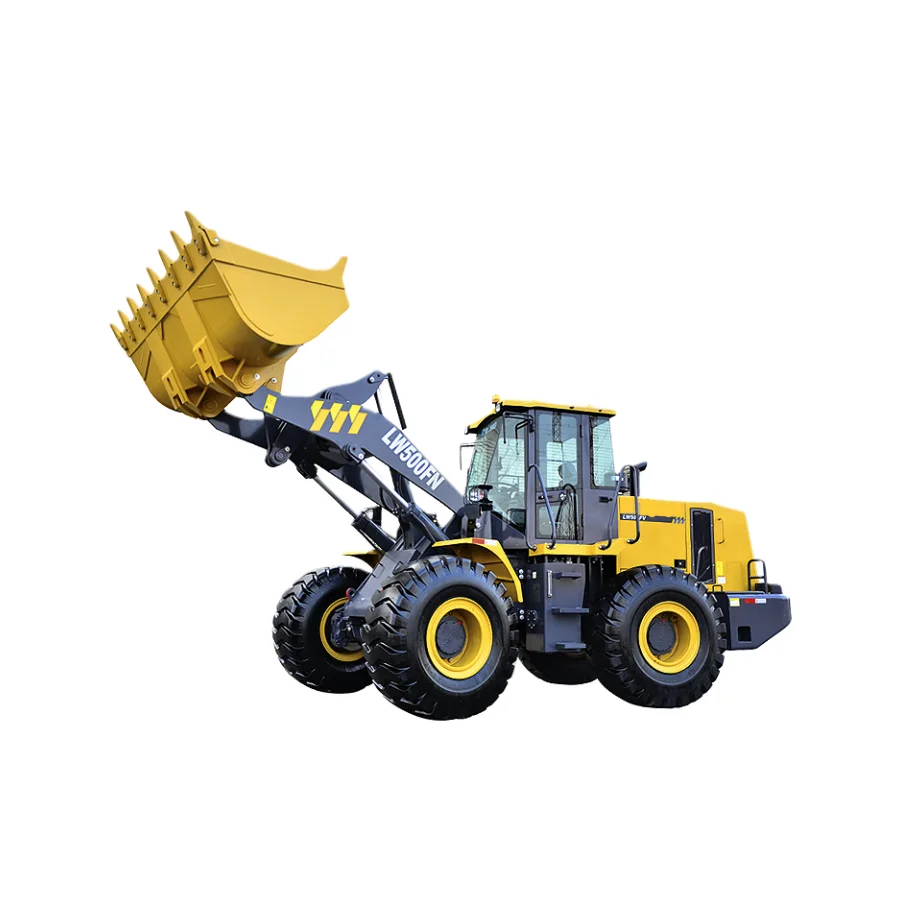

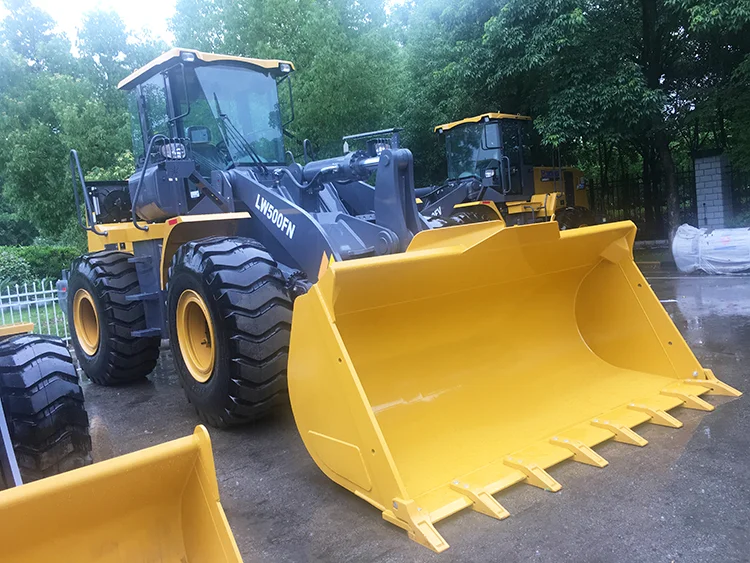

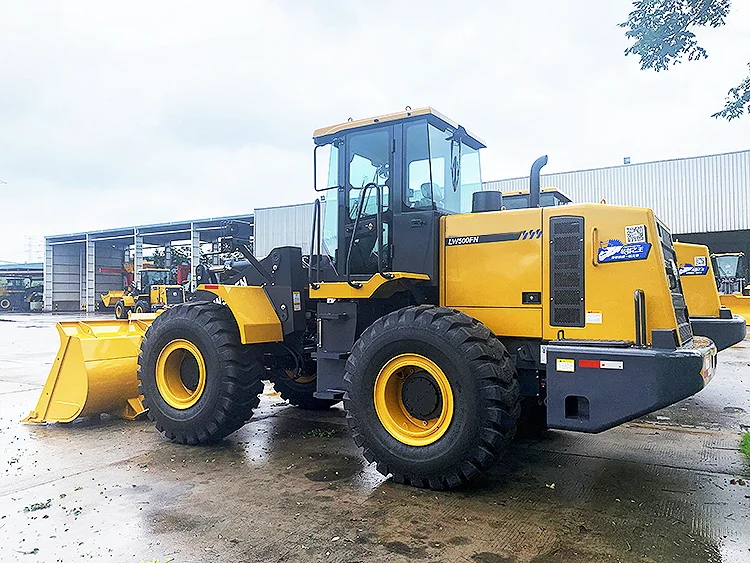

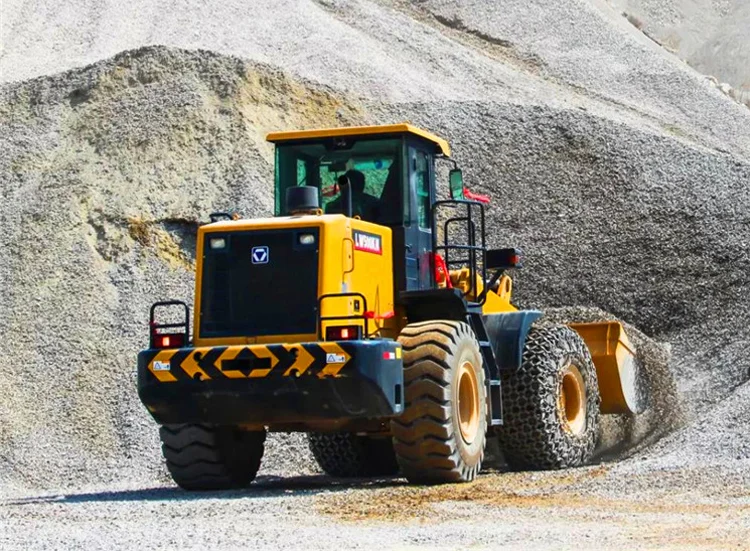

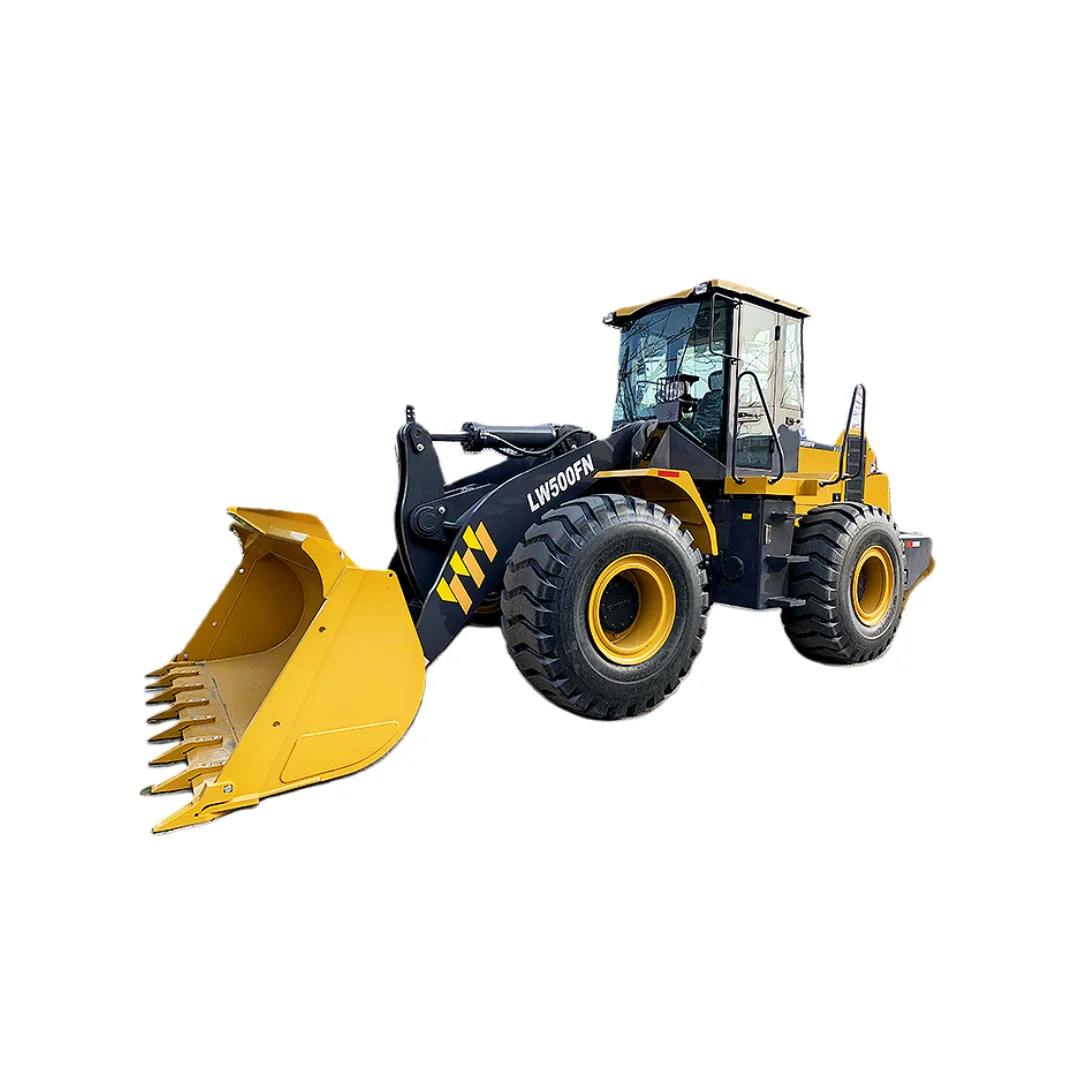

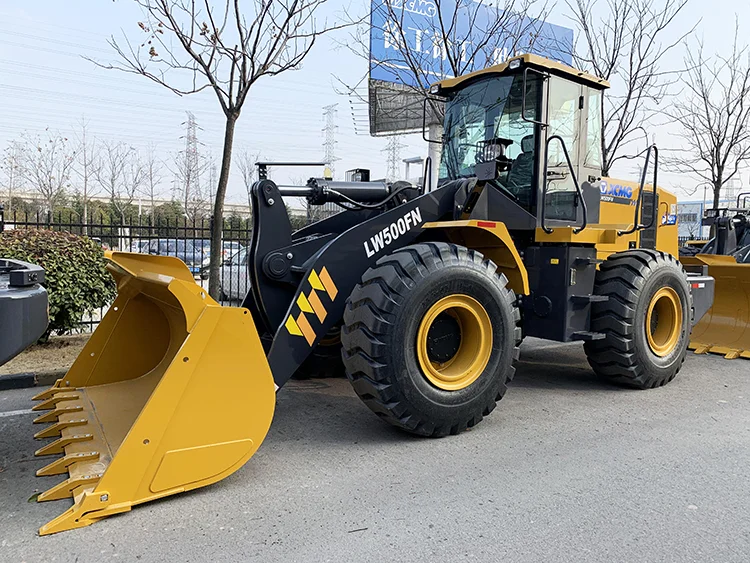

XCMG LW500FN 5 ton wheel loader
LW500KN is suitable for heavy loads under rock conditions; the working device and front and rear frame feature thick board of high strength, reasonable distribution and strong carrying capacity.
The large rock bucket with capacity of 3M3 is improved in terms of the work efficiency and adaptation. The bucket teeth adopt the structure of toothholder and sleeve. The cutting blade and bucket edge are equipped with protection device, featuring excellent abrasion resistance and shock resistance.
1. The front frame adopts the box structure with integrally cast lugs and the rear frame adopts the special-shaped box beams welded from variable stiffness bent plates, featuring high carrying capacity.
2. The hinged joints between front and rear frames adopt the structure of rolling bearings + knuckle bearings, featuring high carrying capacity and working stability.
3. With short wheelbase and small turning radius, this product features high mobility and flexibility and outstanding field
adaptability.
The large rock bucket with capacity of 3M3 is improved in terms of the work efficiency and adaptation. The bucket teeth adopt the structure of toothholder and sleeve. The cutting blade and bucket edge are equipped with protection device, featuring excellent abrasion resistance and shock resistance.
1. The front frame adopts the box structure with integrally cast lugs and the rear frame adopts the special-shaped box beams welded from variable stiffness bent plates, featuring high carrying capacity.
2. The hinged joints between front and rear frames adopt the structure of rolling bearings + knuckle bearings, featuring high carrying capacity and working stability.
3. With short wheelbase and small turning radius, this product features high mobility and flexibility and outstanding field
adaptability.
Variety attached tools meeting requirements of different working conditions:
Clipping plier I (paired teeth)/ Clipping plier II (staggered teeth)/ Toad's mouth clamp/ Port plier/ Grasping grass machine/
Pallet fork/ Snowplow.
Pallet fork/ Snowplow.
Specification
Description | Unit | Parameter value | ||
Rated operating load | kg | 5000 | ||
Bucket capacity | m³ | 2.5～4.5 | ||
Machine weight | kg | 16900 | ||
Dump clearance at maximum lift | mm | 3150～3560 | ||
Reach at maximum lift | mm | 1100～1190 | ||
Wheel base | mm | 2960 | ||
Tread | mm | 2250 | ||
Height of hinge at maximum lift height | mm | 4112 | ||
Working height(fully lifted) | mm | 5510 | ||
Max.breakout force | kN | 170 | ||
Hydraulic cycle time-raise | s | ≤6 | ||
Total hydraulic cycle time | s | ≤10.5 | ||
Min. turning radius over tyres | mm | 5950 | ||
Articulation angle | ° | 35 | ||
Gradeability | ° | 28 | ||
Tyre size | 23.5-25-16PR | |||
Overall machine dimension L×W×H | mm | 7910×3016×3515 | ||
Model | WD10G220E21 | |||
Rated Power | kW | 162 | ||
Fuel Tank | L | 250 | ||
Hydraulic Tank | L | 210 | ||
