Product Description
Long Range free SDK 860-960Mhz 5-10M reading range UHF Long Distance RFID Reader
1, Support ISO18000-6C(EPC C1G2) protocol tag, can make support ISO18000-6B tag
2, Able to decode ISO-18000B, EPC.
3, Reading Rang(Max).: 5M-10M Reading Distance
4, Free SDK and configuration software
5, Communication: Wiegand 26, rs232/485, TCP/IP optional
Product Parameter | Parameter Description UHF Readerb |
Model | ACM803b Integrated UHF Reader (8M -12M long range distance UHF reader) |
Frequency | 860-960MHZ |
Operation Mode | Fixed Frequency or FHSS or Software Programmable |
Power Supply | DC12V input, 25W power adaptor |
Built- in Antenna Type | Built-in Circularly polarized antenna. |

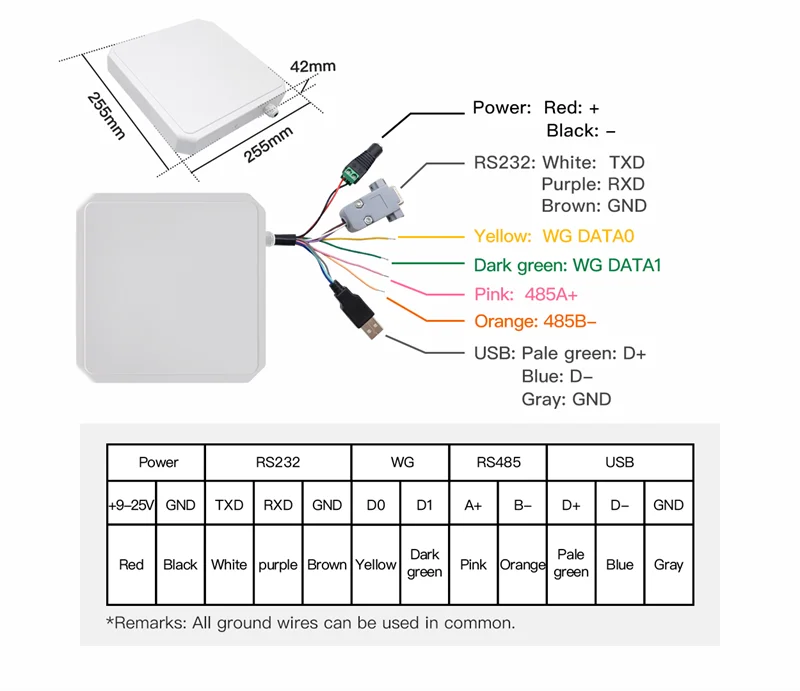

Communication Ports | 1)RS-232 2)RS-485 3)Weigand 26 bits \\ 32bits |
Reading speed | less than 0.1 seconds |
Software | free SDK,API(C++, C#) development kit (can be customized) |
Operating Temperature | -40°C~+60C ,Humidity: 5%~95%(non-condensing) |

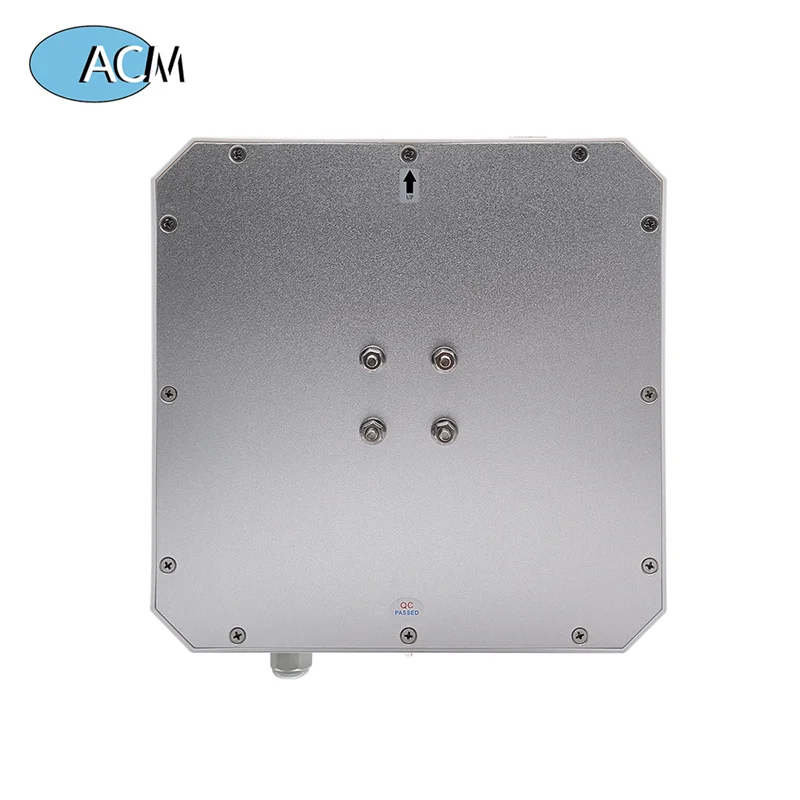

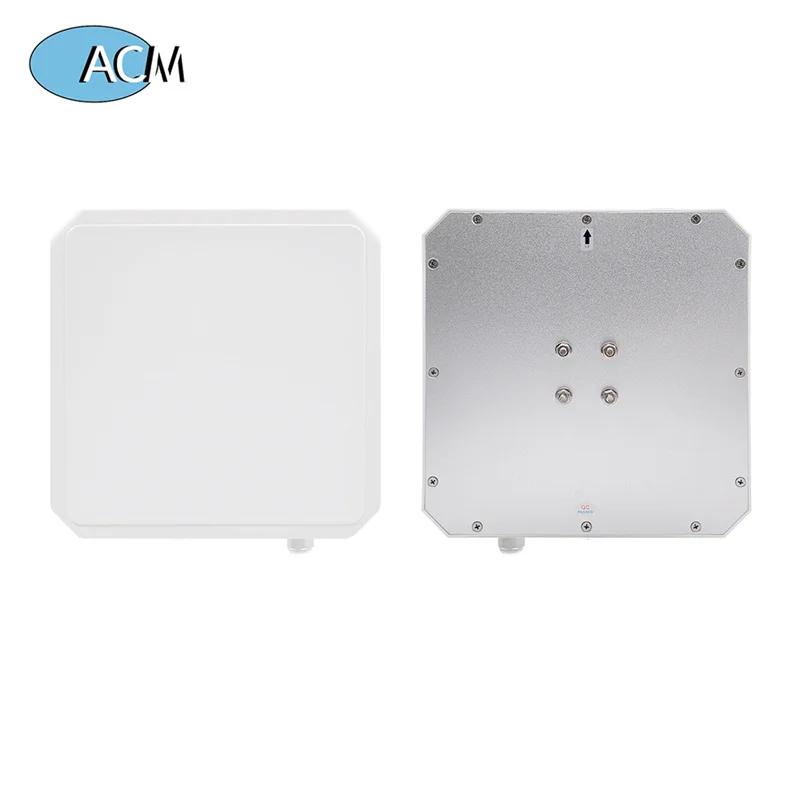

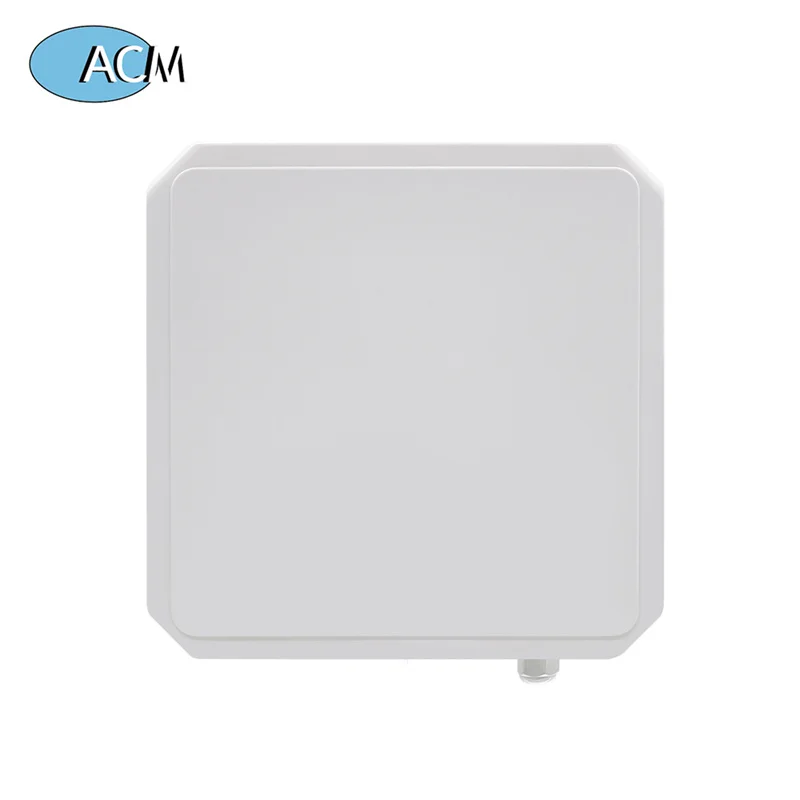

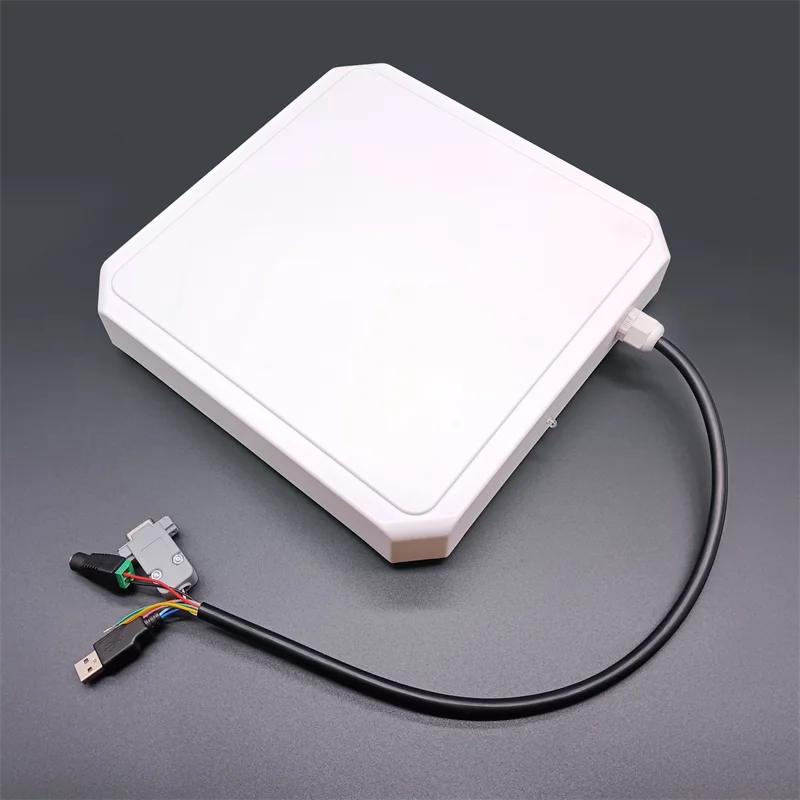

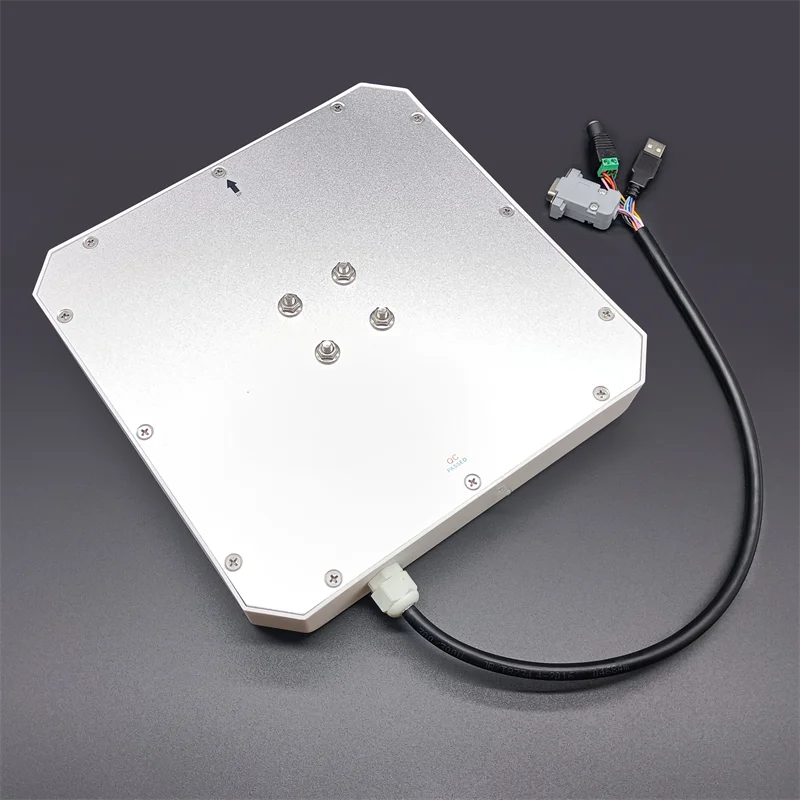

Detailed Images
Product Advantages
Wholesale UHF RFID Antenna gate access systems 860-960Mhz uhf long range integrated rfid reader
1. Wake up tags:the tag which only be waked up can communicate with reader, prevent the disturbing from other tags, ensure
the correct information between reader and system's tag.
2. Read data:it can get the ID number of tag, and also get the data which in the specify area, multi tags
reading will be available.
3. Write data: can write data in specify tag's storage area.
4. Can connect with the device which has W26 and W34 interface, no need to develop.
5. Communicate with controller or PC, that can get the data; provide SDK development kit, user can develop it.
Application
Application of RFID UHF reader and writer
Wholesale UHF RFID Antenna gate access systems 860-960Mhz uhf card handheld active long range desktop usb integrated rfid reader
1, Transportation management
2, Vehicle management
3, Road and bridge toll
4, Custom management
5, Warehouse management
6, Car parking management
7, Access control management
8, Production management
We are professional comprehensive security access control products supplier with 20 years experience, we make sure to offer the best solution of access control system solution! So, send your inquiry details in the below, click "Send" now!
We are looking forward to forming successful business relationships with new clients around the world in the future.
Wholesale UHF RFID Antenna gate access systems 860-960Mhz uhf card handheld active long range desktop usb integrated rfid reader
Packing & Delivery
Every order we will check the quality firstly to ensure our customer get the best product.
Our staff will pack it carefully to avoid the damage of transportation.
We will ship every goods out as soon as possible.
Wholesale UHF RFID Antenna gate access systems 860-960Mhz uhf card handheld active long range desktop usb integrated rfid reader
Shipping Way (Just for new customers reference )
We are one of the leading exporter of RFID products in China since 2000 years . With rich international trade experience we know the international shipping very well , We know which express or air/sea line is cheap and safe to your country . We can supply various certificate for you to clean your custom to such as CO , FTA , Form F , Form E ...Ect . We wil provide our professional suggestion for your shipping . EXW , FOB , FCT , CIF , CFR ...trade term are ok for us . We can be your reliable partner for products and shipping .
