Характеристики

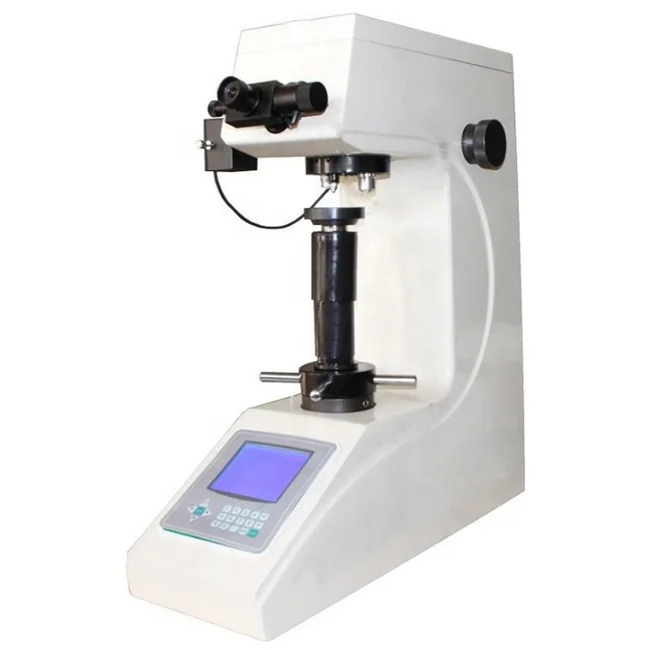

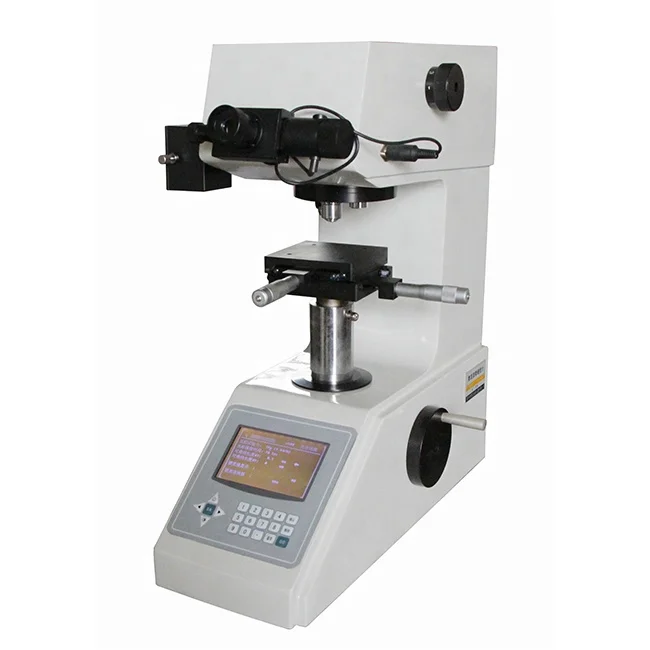

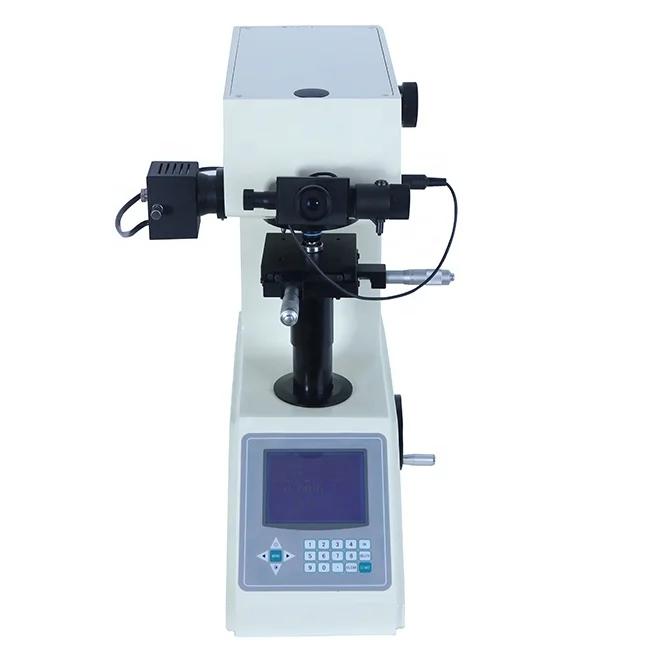

Hardness Test Machine Micro Vickers Hardness Tester
HV-1000 Micro Hardness Tester
The hardness tester is suitable for measuring the micro-hardness of small, thin, and surface-penetrated test pieces, and for measuring the Knoop hardness of brittle and hard materials such as glass, ceramics, agate, and artificial gemstones.
The hardness tester is suitable for measuring the micro-hardness of small, thin, and surface-penetrated test pieces, and for measuring the Knoop hardness of brittle and hard materials such as glass, ceramics, agate, and artificial gemstones.
Usage and Characteristics
Vickers hardness tester, in the mechanical, electrical, light source with a unique and sophisticated design, indentation imaging
clearer, more accurate measurement. Using color LCD screen, high-speed 32-bit microprocessor control system, full realization of man-machine dialogue and automation. Has a high test accuracy, simple operation, high sensitivity, easy to use, stable indicating value and so on. The electronic closed-loop control is used to apply the test force; the functions of automatic application,maintenance, removal, and direct display of the hardness value are fully realized.
clearer, more accurate measurement. Using color LCD screen, high-speed 32-bit microprocessor control system, full realization of man-machine dialogue and automation. Has a high test accuracy, simple operation, high sensitivity, easy to use, stable indicating value and so on. The electronic closed-loop control is used to apply the test force; the functions of automatic application,maintenance, removal, and direct display of the hardness value are fully realized.
Specification
Test force | 10gf-1000gf |
measurement system magnification | 100X(observation)400X(Measured) |
Measurement range | 5-3000HV |
Minimum division value | 40X objective lens: 0.25 μm; 10X objective lens: 1 μm. |
micro diamond indenter | the opposite face angle: 136o, chisel edge: no more than 1μm; |
Knoop diamond indenter | long ridge line angle: 172°30', chisel edge: no more than 1μm. |
Maximum height of the specimen | 90mm |
Distance from the center of the indentation to the machine wall | 120mm |
Power supply | AC 220V |
Dimensions | 480*310*560mm |
Weight | about 40kg |
Company Profile
Zhongchuang Testing Machine has CMC (China Metrology Certification, serial number is Lu Made 01000402), we are a testing machine manufacturing-type enterprise, and also in the same industry took the lead through the ISO9001: 2008, and EU CE certification.
Packing & Delivery
FAQ
1. How to choose the most suitable Mechanical Equipment ?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do andthe required specification.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 7~15 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4. Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
5. Do you have customers of our country before?
Now our testing machines have been sold to more than 80 countries, like USA, Canada, Russia,UK,Italy, Germany, European , India, Pakistan, Philippine, Singapore, Malaysia,Thailand , Vietnam, Korea,Saudi Arabia,Brazil... and so on.
6. How about your warranty?
Generally,our warranty is one year. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
7. How about the packing for machine,is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
8. What is the order process?
Inquiry - quotation -communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery -customer receiving - after service.
9. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
