20 мм
- Категория: Potentiometers old >>>
- Поставщик: Soundwell,Electronic,Products,Guangdong,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.68 $* | 0.5 $* |
| Aug-15-2025 | 0.55 $* | 0.98 $* |
| Jul-15-2025 | 0.69 $* | 0.38 $* |
| Jun-15-2025 | 0.29 $* | 0.95 $* |
| May-15-2025 | 0.73 $* | 0.6 $* |
| Apr-15-2025 | 0.72 $* | 0.41 $* |
| Mar-15-2025 | 0.45 $* | 0.63 $* |
| Feb-15-2025 | 0.86 $* | 0.58 $* |
| Jan-15-2025 | 0.36 $* | 0.48 $* |
Характеристики
Slide Potentiometer Model | SC2003/SC2005/SN2009/SN2010/SN2011/SA2005 series |
Operating Force | 15~150gf.cm |
Working temperature | -10℃ ~70℃ |
Resistance Taper | B |
Operating life | 10,000 Min |

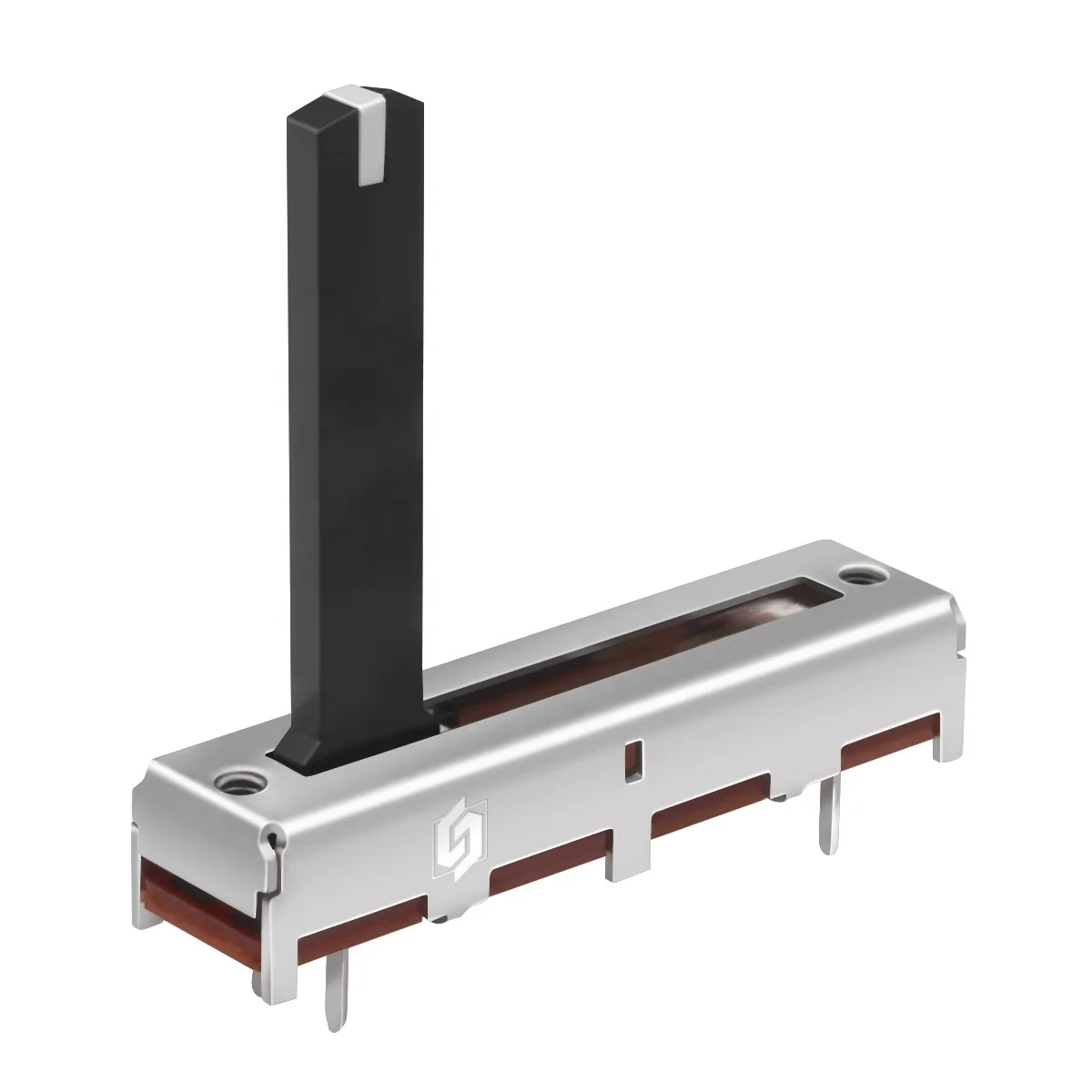

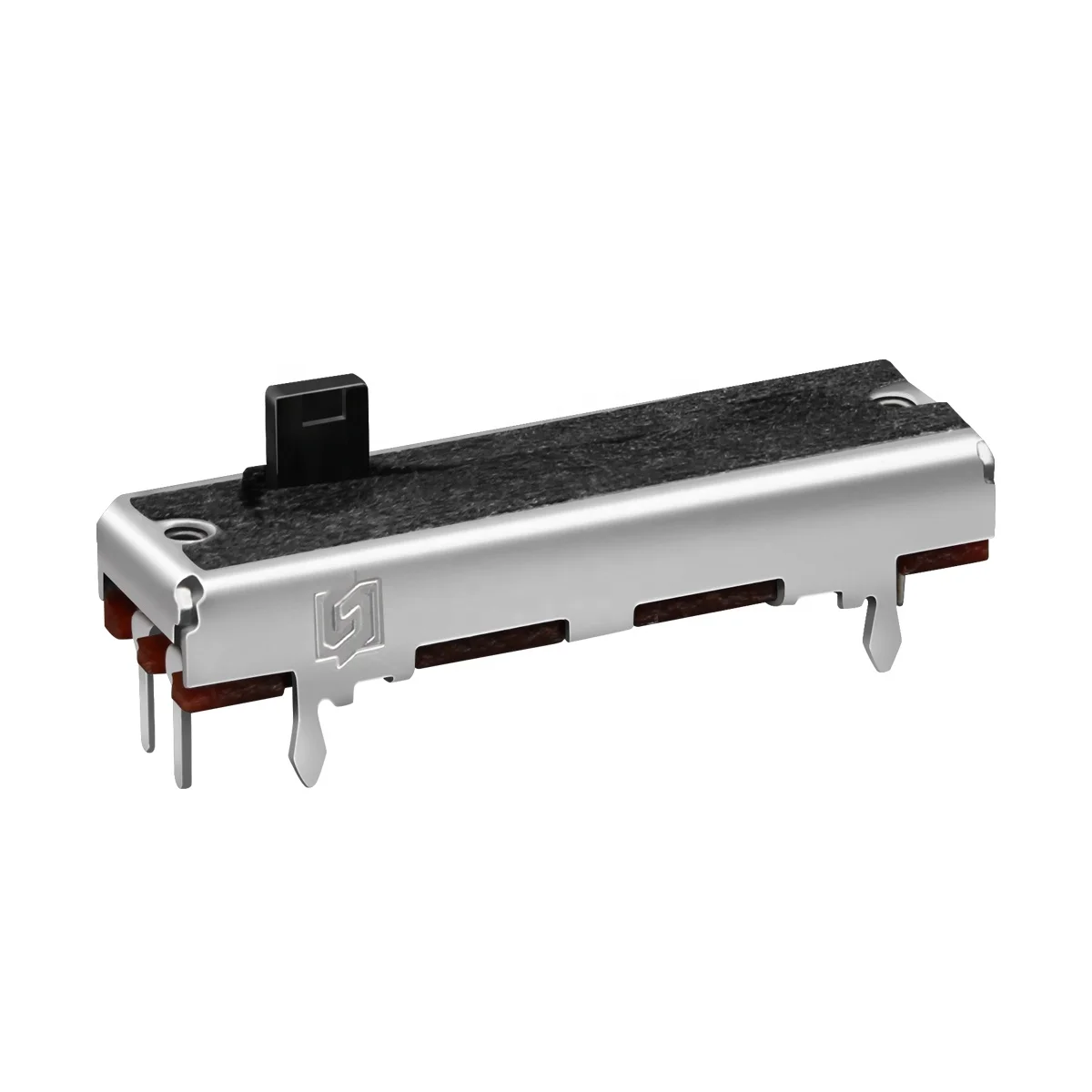

20mm Dual Slide Potentiometer Main Specifications
Travel | 20mm | ||||||
Rated power | 0.2W | ||||||
Maximum operating voltage | AC 100V | ||||||
Operating temperature | -10℃ ~70℃ | ||||||
Operating life | 10,000 Min | ||||||
Applications | Professional audio like mixing consoles, electronic pianos, guitars and other related electronic devices. | ||||||
Product features | Smooth operation with reliable performance; Available in both mono and stereo types; Available with center click and LED; Wide options for different applications; | ||||||
Functions | Mainly used to adjust the volume, adjust the channel, adjust the balance, etc. | ||||||
20mm Dual Slide Potentiometer Specifications
One、MECHANICAL CHARACTERISTIC
1. Operating Force: 15~150gf.cm
2. Click Force: 80~330gf.cm
3. Slide Travel: 20 mm
4. Lever Stop Strength: ≥3.0Kgf.cm
5. Lever Wobble (mm p-p): 1.6mm Max
Two、ELECTRICAL CHARACTERISTIC
1. Total Resistance Range: 1KΩ<R<1MΩ, ±20%; 1KΩ≥R or R≥1MΩ, ±30%
2. Resistance Taper: B
3. Rated Power: 0.2W
4. Maximum Operating Voltage: AC 100V
5. Residual Resistance: R1,2≤10Ω; R2,3≤20Ω
6. Insulation Resistance: 100MΩ 1 Minute at DC 250V
7. Dielectric Voltage: 1 Minute at AC 250V
Three、ENDURANCE CHARACTERISTIC
3. Rated Power: 0.2W
4. Maximum Operating Voltage: AC 100V
5. Residual Resistance: R1,2≤10Ω; R2,3≤20Ω
6. Insulation Resistance: 100MΩ 1 Minute at DC 250V
7. Dielectric Voltage: 1 Minute at AC 250V
Three、ENDURANCE CHARACTERISTIC
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
