Вентиляторы 630 900 1000 мм с
- Категория: Refrigeration & Heat Exchange Parts >>>
- Поставщик: Shenzhen,Topfan,Technology,Development,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 100.26 $* | 105.34 $* |
| Aug-16-2025 | 99.82 $* | 104.76 $* |
| Jul-16-2025 | 83.88 $* | 87.94 $* |
| Jun-16-2025 | 97.84 $* | 102.70 $* |
| May-16-2025 | 85.20 $* | 89.29 $* |
| Apr-16-2025 | 96.17 $* | 101.66 $* |
| Mar-16-2025 | 95.28 $* | 100.32 $* |
| Feb-16-2025 | 94.2 $* | 99.74 $* |
| Jan-16-2025 | 93.13 $* | 98.55 $* |
Характеристики
Product Details

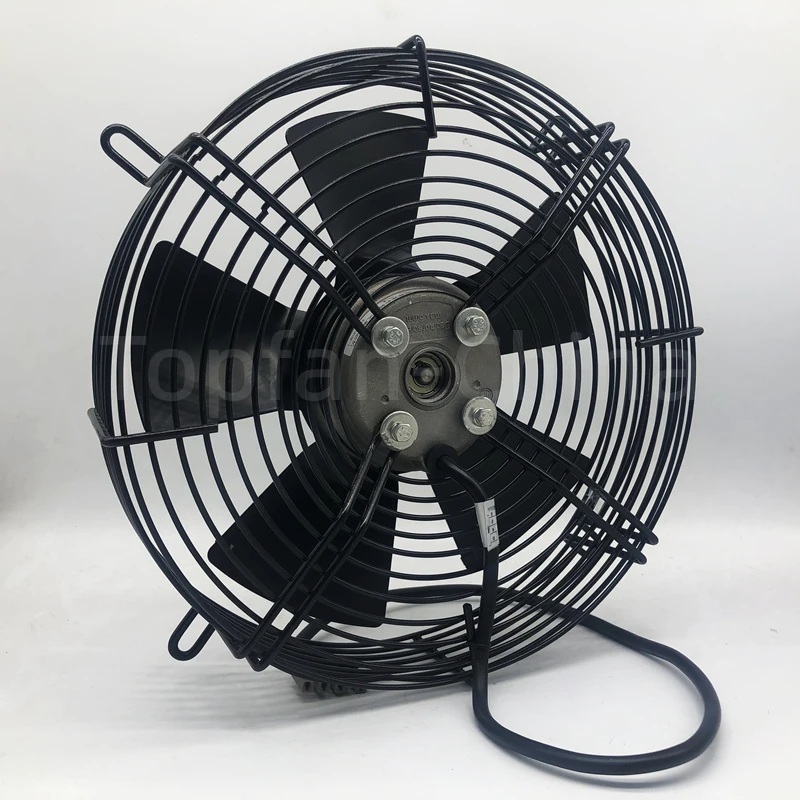

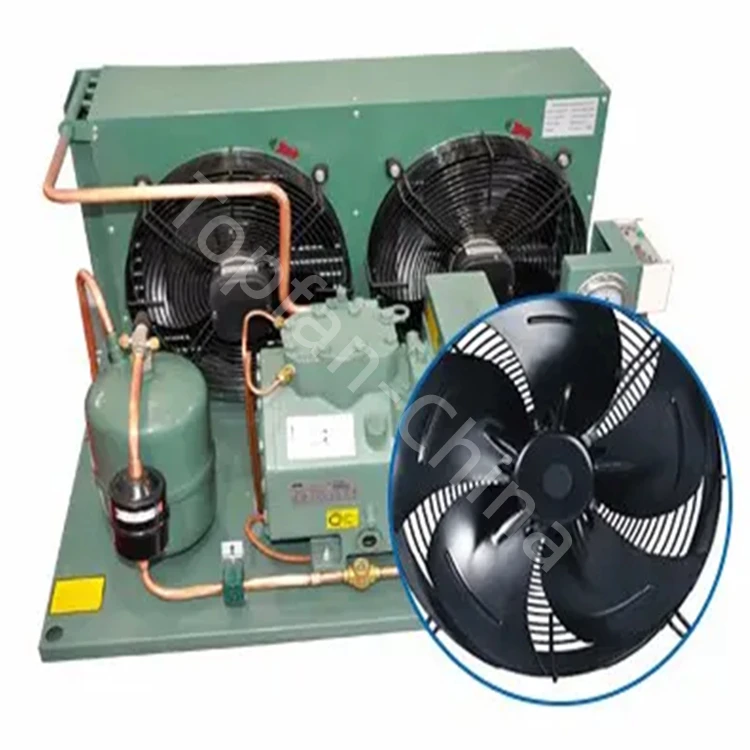

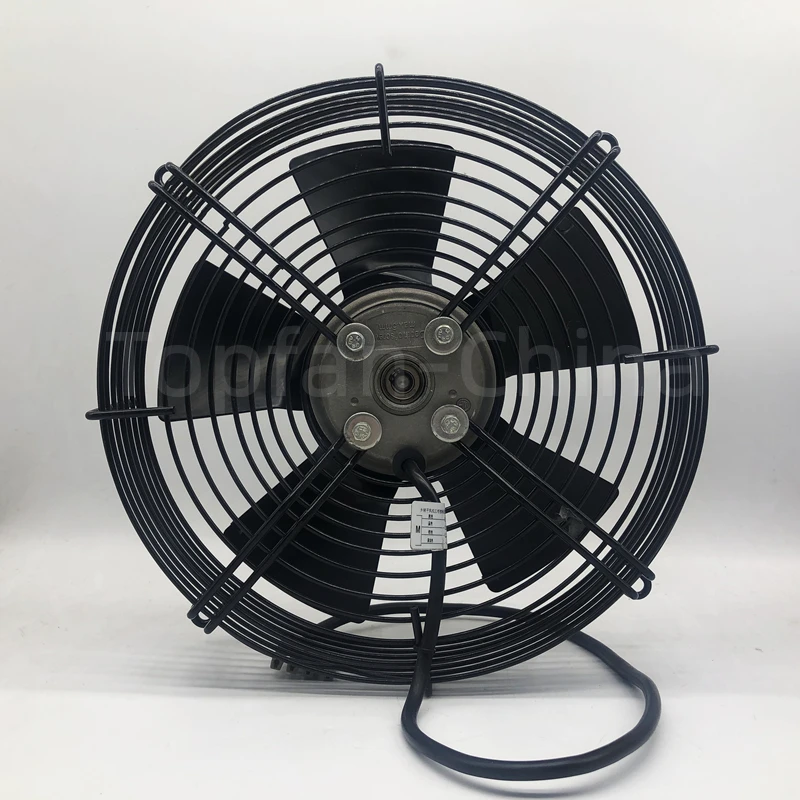

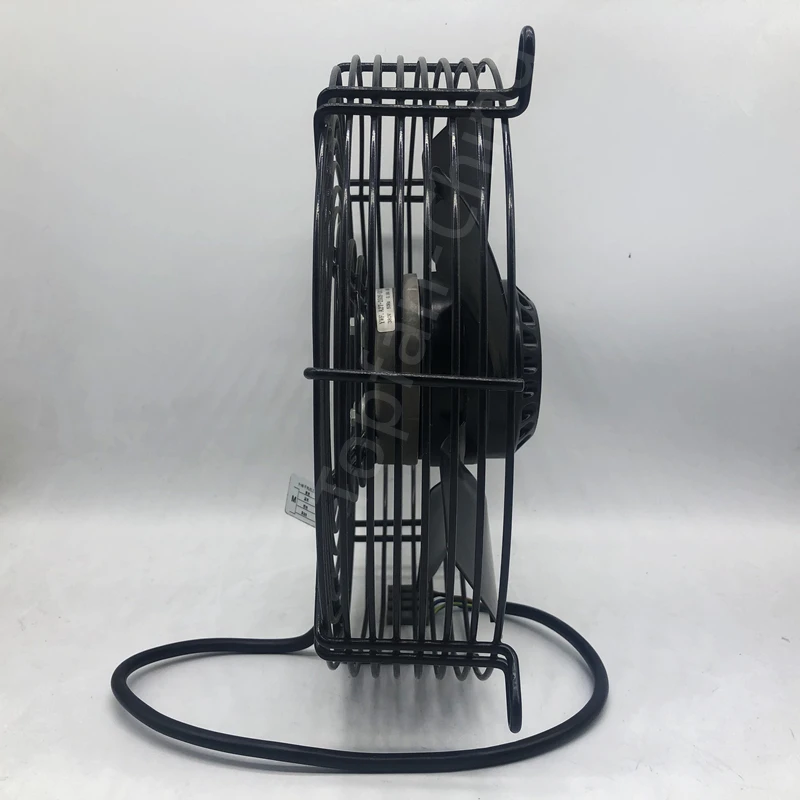

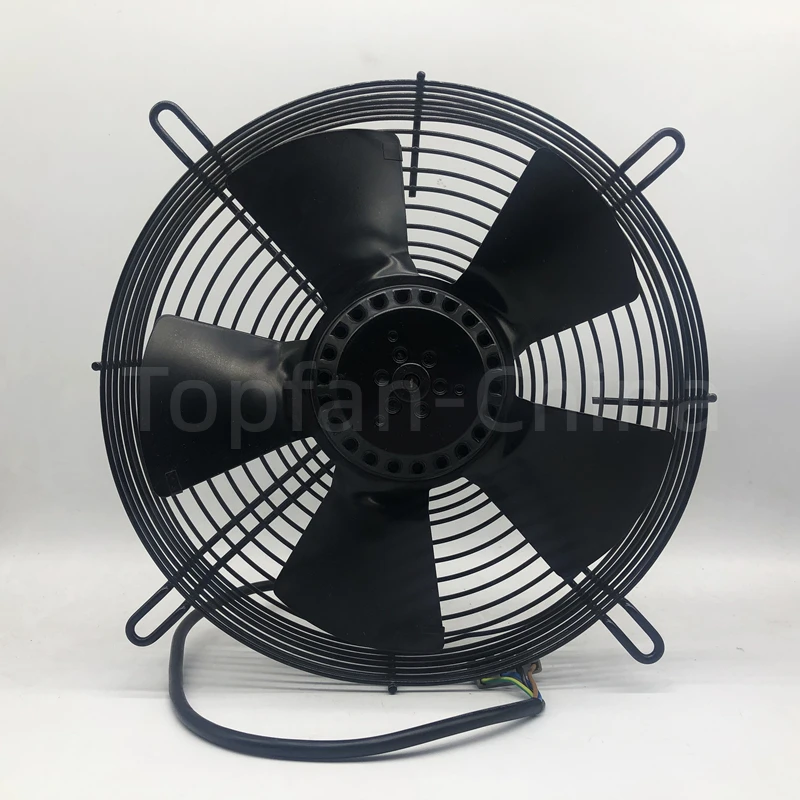

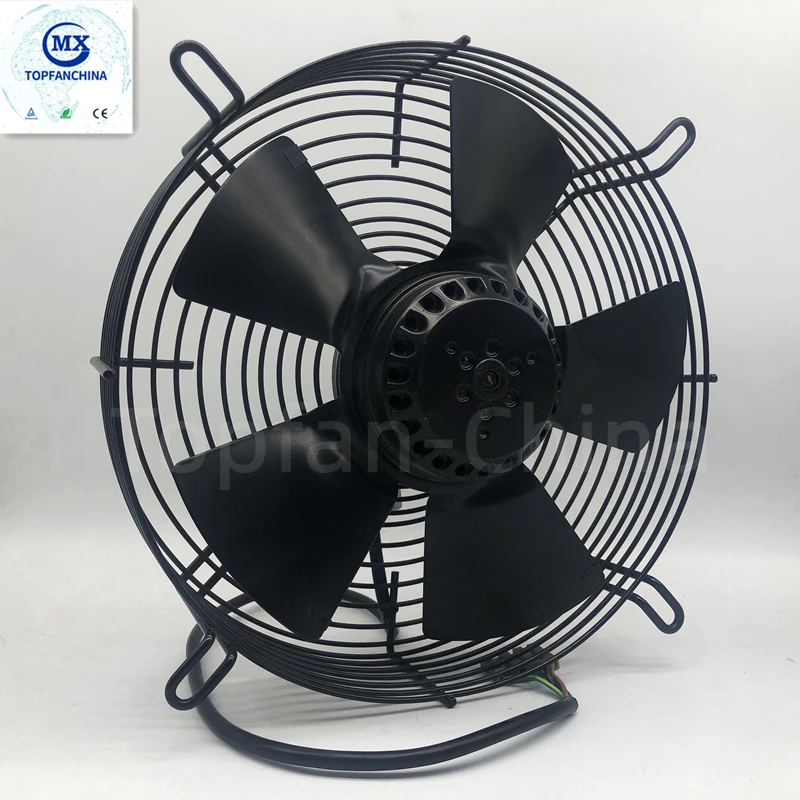

YWF 630 900 1000 mm Axial Flow Fans HVAC Ventilators Large Industrial Purifier Condenser Cooling Fan For Air Coolers Evaporators
Model | Motor | Volt. | Freq. | Airflow | Airflow | Speed | Power | Noise Level | |||||||
Part No. | - | VAC | Hz | m³/h | CFM | RPM | W | dB-A | |||||||
AG360A2-AGT-00 | AM074A2-AGT-11 | 230 | 50/60 | 2800/3100 | 1649/1826 | 1360/1500 | 137/185 | 70 | |||||||
AG450A2-AG5-00 | FW106-0554E02 | 230 | 50 | 6600 | 3887 | 1350 | 530 | 75 | |||||||
AG500A2-AG5-01 | FW106-0754E02 | 230 | 50 | 8700 | 5182 | 1280 | 720 | 78 | |||||||
AS630A3-AG5-01 | AM106A3-AG5-00 | 230 | 50 | 10500 | 6185 | 870 | 630 | 75 | |||||||
+ | + | + | + | + | + | + | + | + | |||||||
AF900B3-AL5-00 | AM137B3-AL5-10 | 400 | 50 | 30200 | 17796 | 930 | 2050 | 83 | |||||||
More Models | Other RPM/CFM/Voltage/Current...please contact us see the specification for more details. | ||||||||||||||
Product Name | Axial Cooling Fan |
Material | Impeller completely made of cold rolled steel |
Bearing Type | Ball Bearing |
Voltage | AC 115V/230V/380V/480V , DC 12V/24V/48V, EC 115V/230V... |
Air Flow | Up to 30200 m³/h |
Input Power | 70W - 1.8kw |
Store Recommended
Product Name | DC AC EC Axial Fan |
Material | Metal & Plastic |
Bearing Type | Ball Bearing & Hydraulic Bearing & Sleeve Bearing |
Voltage | DC 5V/12V/24V/48V ，AC 115V/230V/380V/480V , EC 115V/230V... |
Function Range | PWM FG RD IP58 IP68 |
Applications | Household Appliances/Machine/Aeronautical/Power equipment, etc |
Product Name | Backward Curved Centrifugal Fan |
Impeller Material | PA6 + GF / Aluminum Alloy / Plastic |
Voltage | DC 5V/12V/24V/48V ，AC 115V/230V/380V/480V , EC 115V/230V... |
Mode Of Operation | S1 |
Protection Class | IP55 / IP54 / IP44 PWM FG RD IP58 IP68 |
Insulation Class | F |
Operation Temperature | -30℃ to +80℃ |
Techniacal Feature | Control input 0-10VDC / PWM, Tech ouput , Locked-rotor protection . Reverse Polarity Over-voltage protection Soft Start Protection |
Product Name | DC AC EC Centrifugal Blower |
Material | Housing - Galvanized Metal Impeller - Galvanized Metal & Plastic |
Motor Type | AC Capacitor Motor , DC/EC brushless external rotor motor |
Voltage | DC 5V/12V/24V/48V ，AC 115V/230V/380V/480V , EC 115V/230V... |
Function Range | PWM FG RD IP58 IP68 |
Applications | split air conditioner , air curtains , cooling, etc |
Product Name | Forward Centrifugal Fan-single inlet without housing |
Diameter of impeller: | 150mm 160mm 180mm 200mm 246mm |
Material | Housing - Galvanized Metal Impeller - Galvanized Metal |
Voltage | DC 5V/12V/24V/48V ，AC 115V/230V/380V/480V , EC 115V/230V... |
